TR9936 Trailer Air Spring

TR9936 Trailer Air Spring TR9936

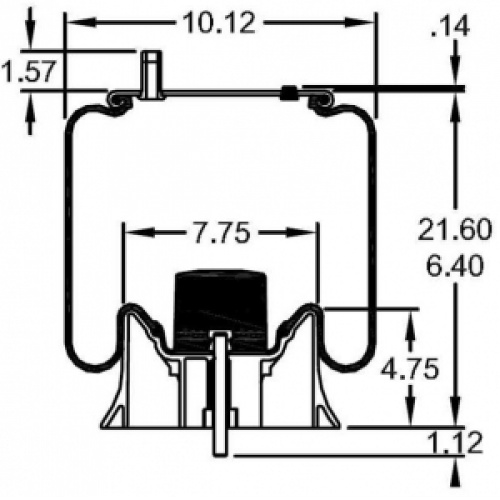

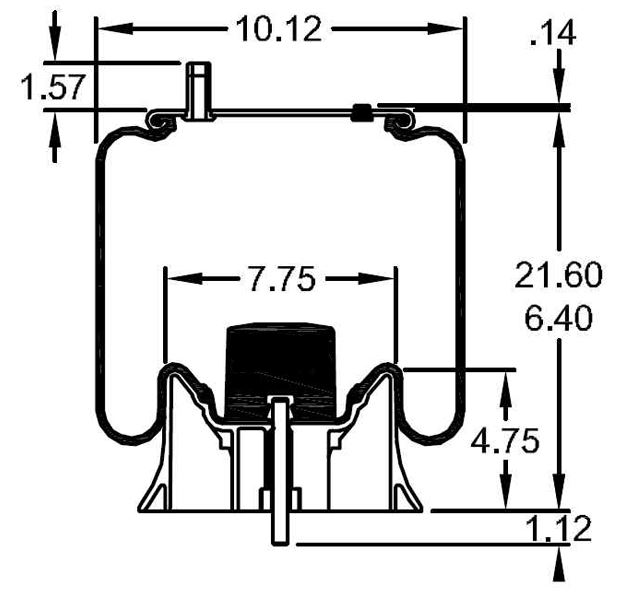

Air Spring Type Reversible Air Spring
Top Plate Diameter 9.00
Piston Diameter 9.50
Bellows Diameter 10.12
Piston Height 4.75
Piston Material Composite
Max Extended Height 21.60
Minimum Compressed Height 6.40
Air Inlet Type Male
Air Inlet Height 1.57

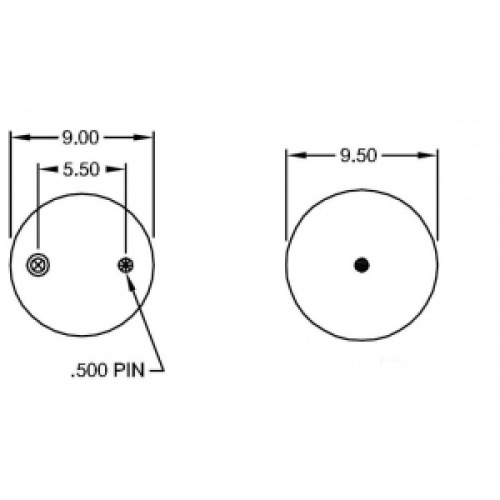

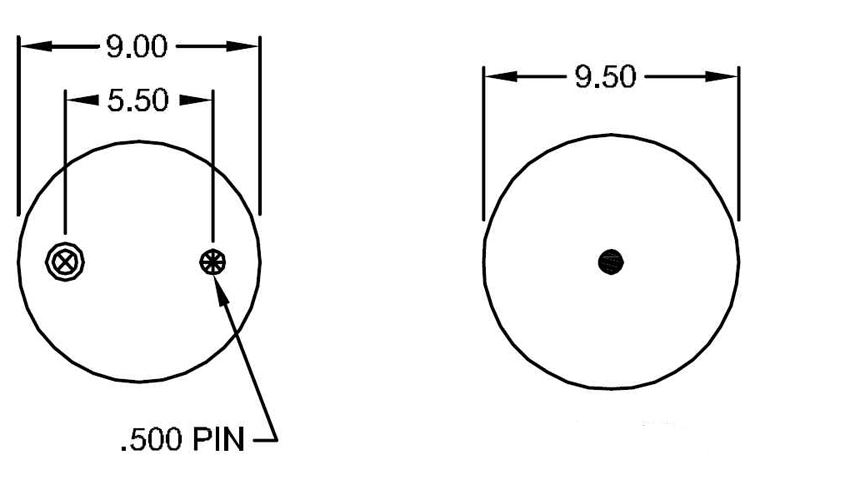

Top Plate Mounting Type Air Inlet and Stud
Stud Quantity on Top Plate 1
Top Plate Stud Height 0.14
Distance between Top Plate Stud and Air Inlet 5.50
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper Yes
Bellows Number 1T15M7.5

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Trailer Air Spring
Firestone:  W01-358-9936
Goodyear:  1R12-499
Holland (Neway):  905-57-156
Triangle:  8454
Contitech:  910-17.5P454
Extended Height:  21.60"
Compressed Height:  6.40"
Top Plate Width:  9.00"
Piston Width:  9.50"
Weight:  14.00 lbs
