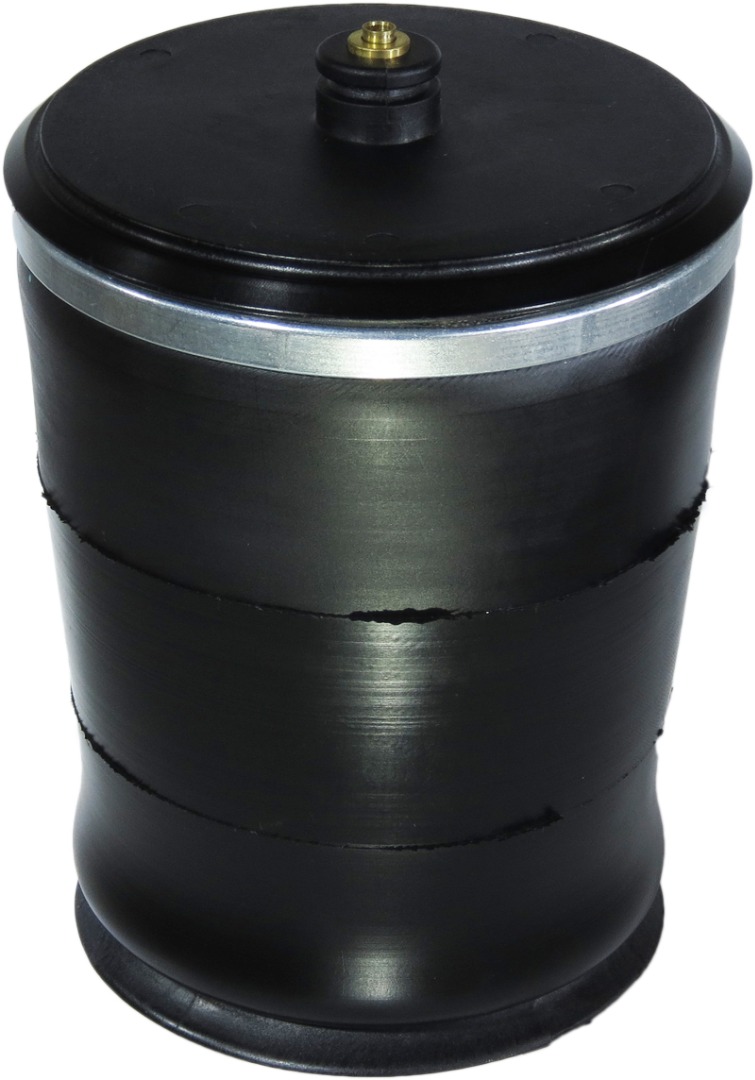

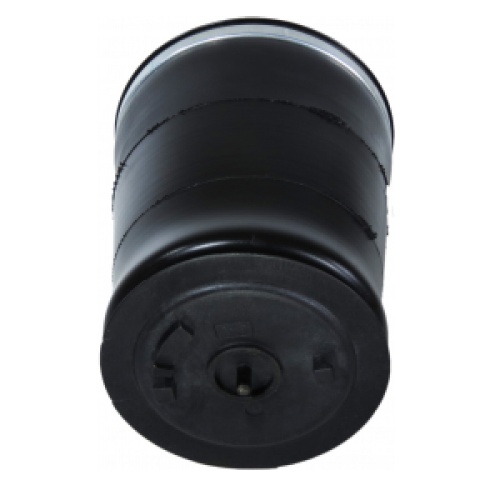

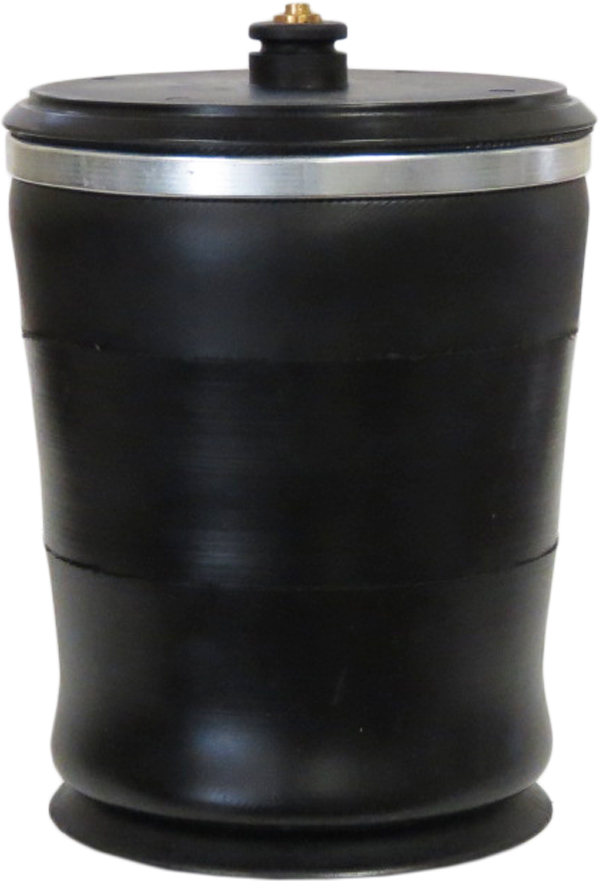

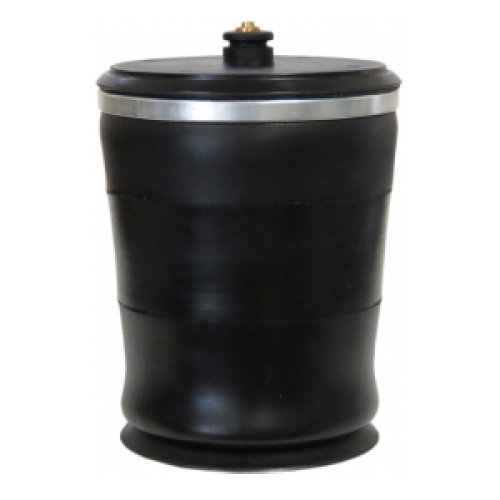

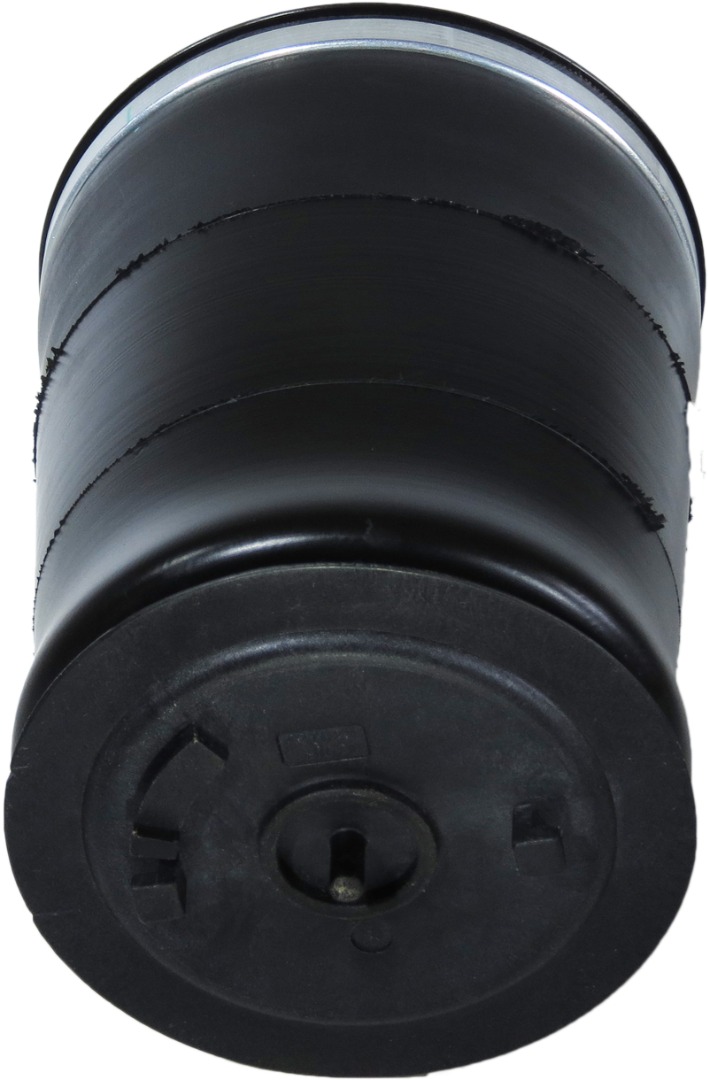

TR9933 Front Axle Air Spring

TR9933 Front Axle Air Spring TR9933

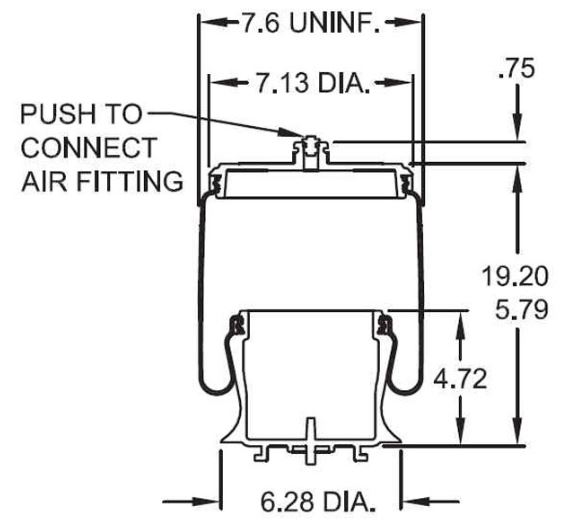

Air Spring Type Cabin Air Spring
BCR 11.75
Top Plate Diameter 7.13
Piston Diameter 6.28
Bellows Diameter 7.60
Piston Height 4.72
Piston Material Composite
Max Extended Height 19.20
Bottom Air Inlet Thread Size 3/4-16
Minimum Compressed Height 5.79
Air Inlet Type Male
Air Inlet Height 0.75
Top Plate Mounting Type Air Inlet
Air Inlet Qauntity 2
Distance Between Air Inlets 5.50
Top Plate Threaded Hole Quantity 1
Distance Between Top Plate Threaded Holes 0.75
Stud Quantity on Top Plate 1
Top Plate Stud Height 1.35
Distance between Top Plate Stud and Air Inlet 6.20
Distance Between Top Plate Studs 6.25
Distance Between Bracket Mounting and Air Inlet 6.20
Piston Mounting Type Stud
Piston Stud Quantity 1
Piston Threaded Hole Quantity 1
Distance Between Piston Threaded Holes 6.25
Distance Between Bottom Base Studs 6.20
Has Inner Bumper No
Bellows Number BLACK

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Front Axle Air Spring for PACCAR
PACCAR: B81-6023B
Firestone: W02-358-9933
Extended Height: 19.20"
Compressed Height: 5.79"
