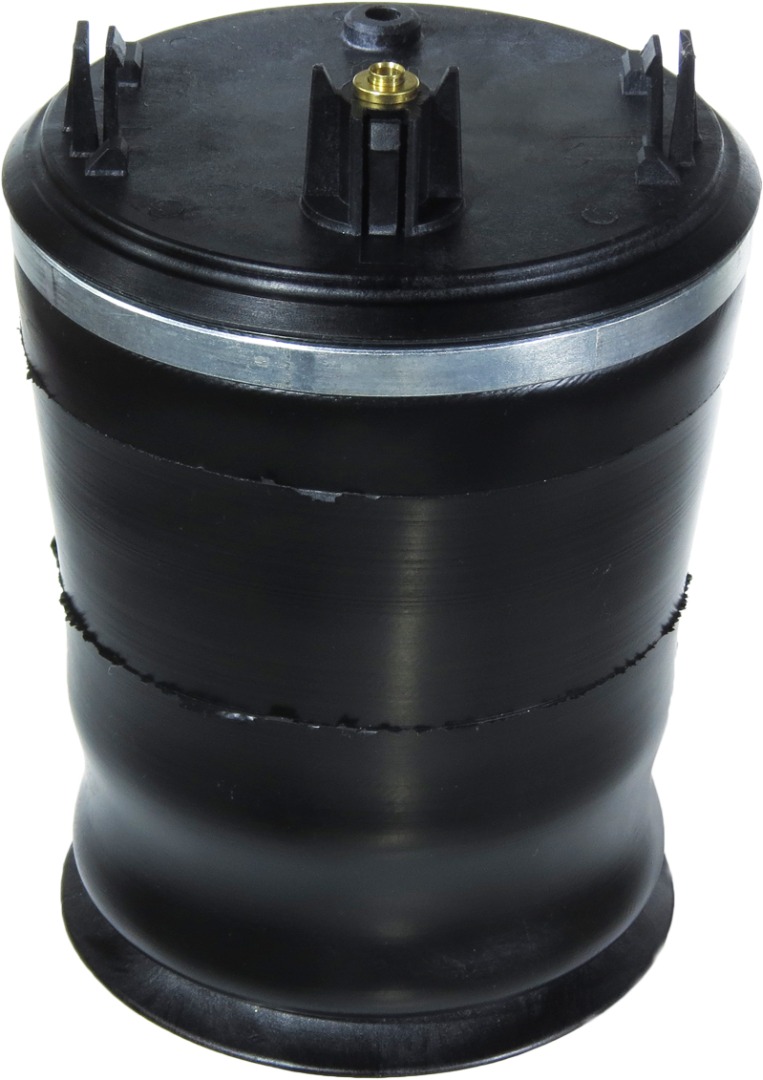

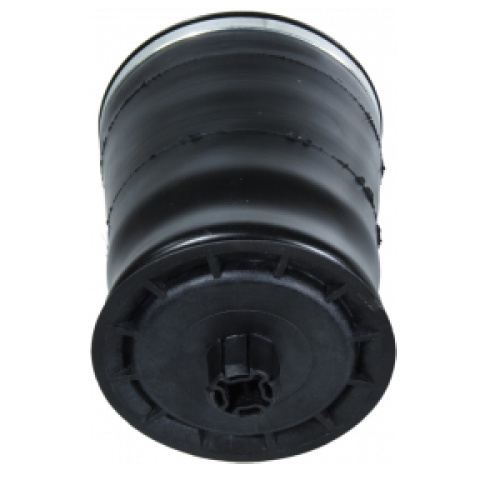

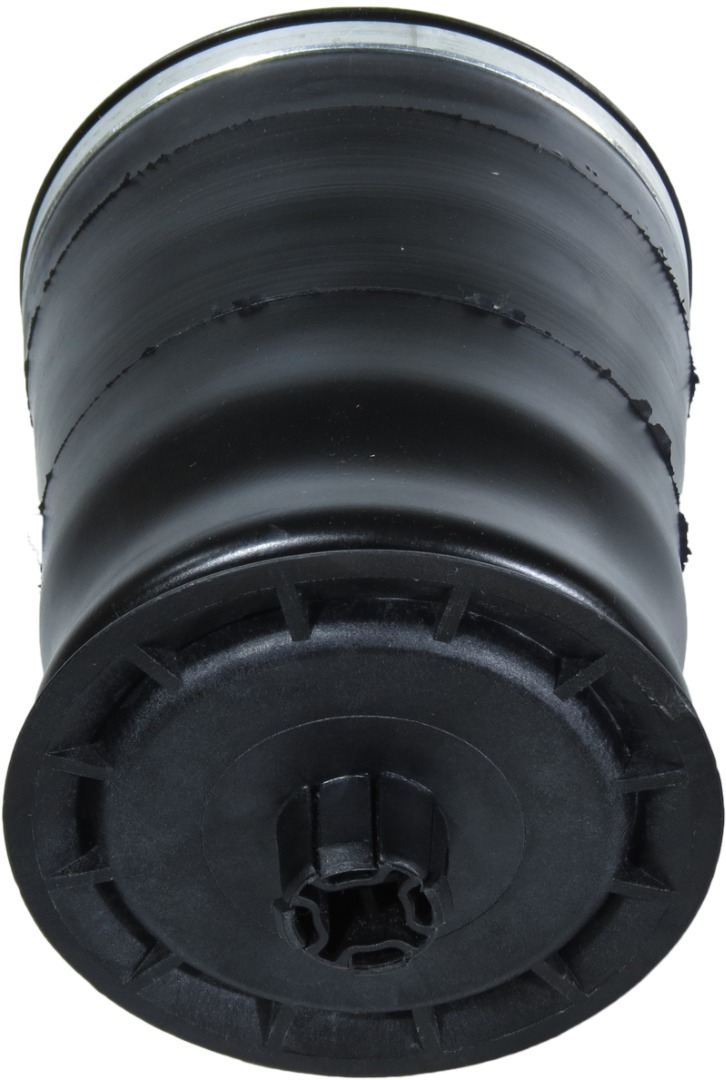

Front Axle Air Spring for Volvo Trucks
TR9913 Volvo Front Axle Air Spring TR9913
Air Spring Type
Cabin Air Spring

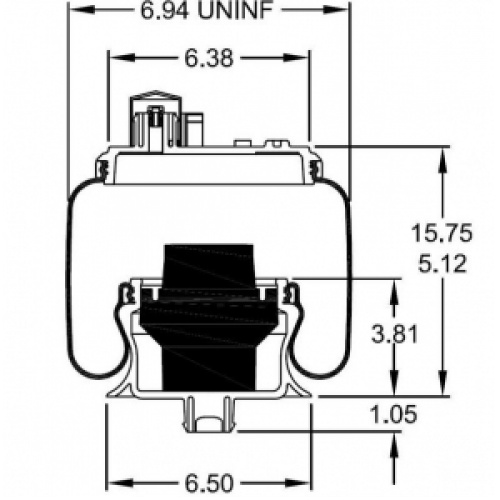

Top Plate Diameter
6.38
Piston Diameter
6.50
Bellows Diameter
6.94
Piston Height
3.81
Piston Material
Composite
Max Extended Height
15.75
Minimum Compressed Height
5.12
Air Inlet Type
Male
Top Plate Mounting Type
Air Inlet
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
BLUE
| Firestone: | W26-358-9913 |
| Volvo: | 20897204 |
| Mack: | 57QL520M |
| Hendrickson: | 66349-2 |
| Extended Height: | 15.75" |
| Compressed Height: | 5.12" |
| Weight: | 4.40 lbs |
