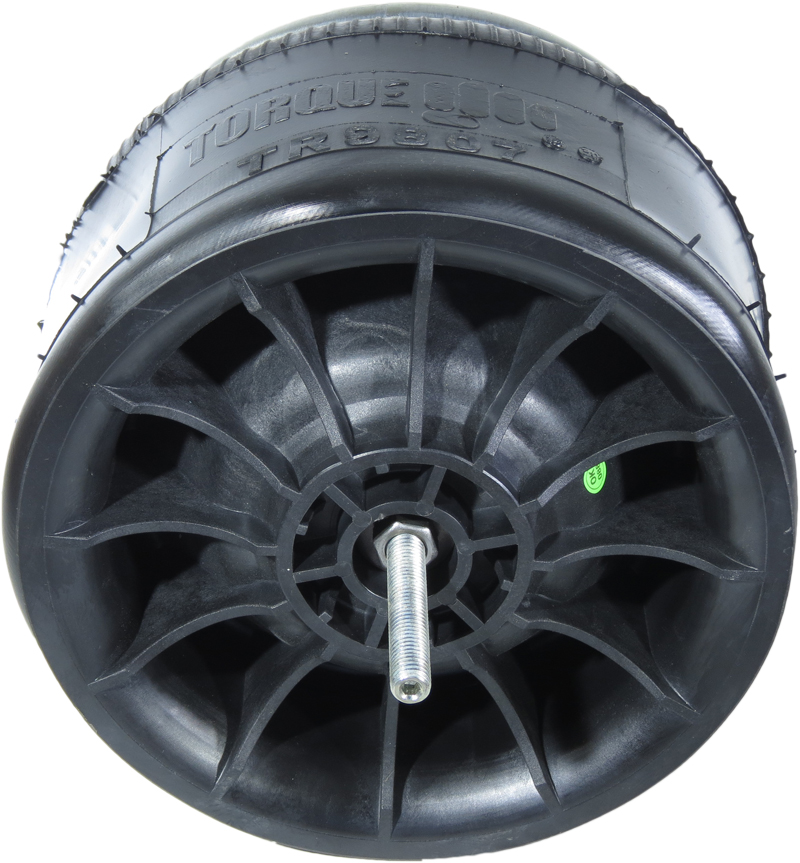

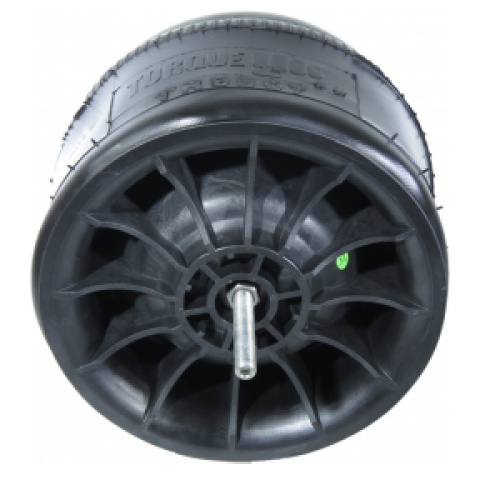

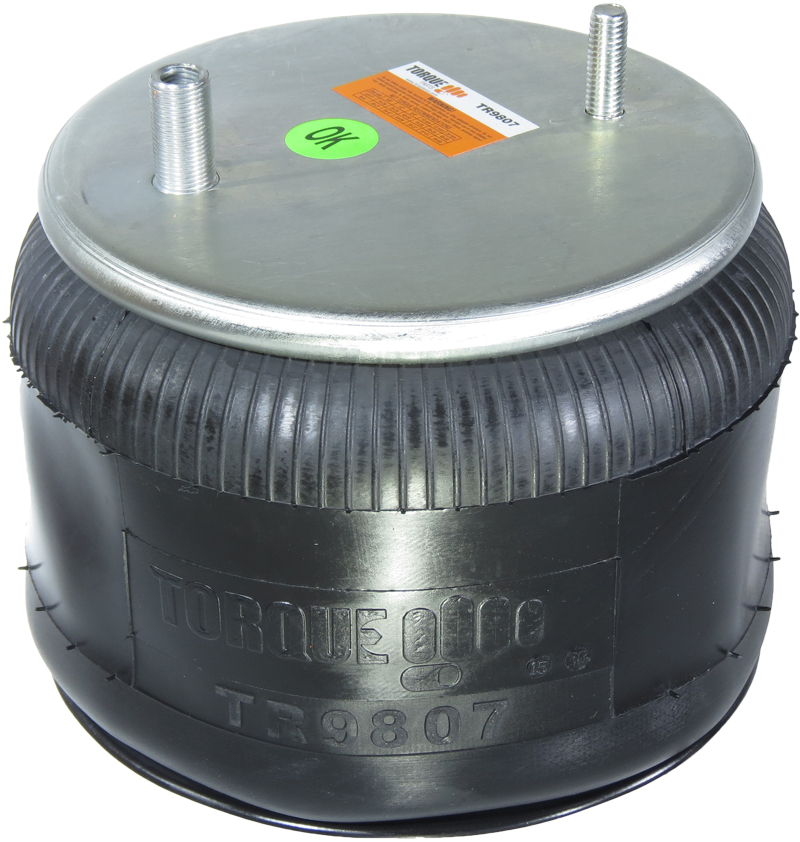

TR9807 Trailer Air Spring

TR9807 Trailer Air Spring TR9807

Air Spring Type Reversible Air Spring

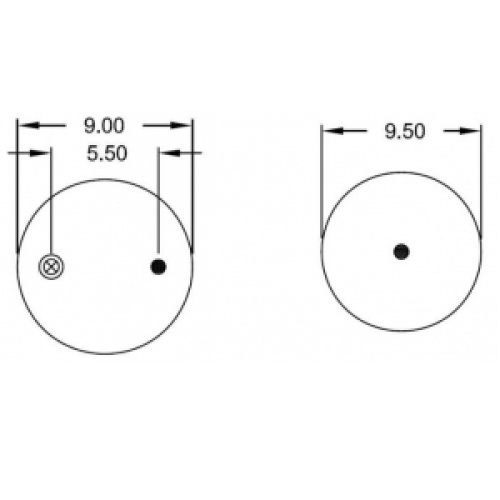

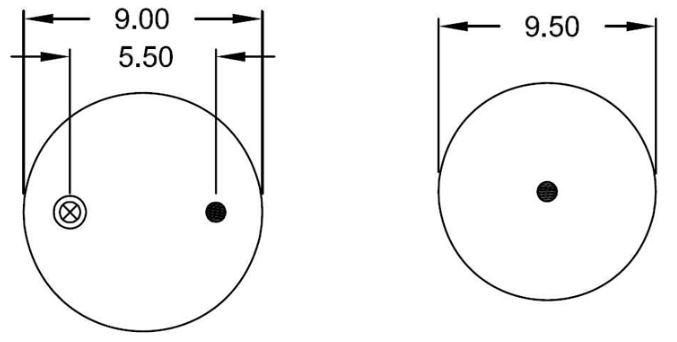

Top Plate Diameter 9.00
Piston Diameter 9.50

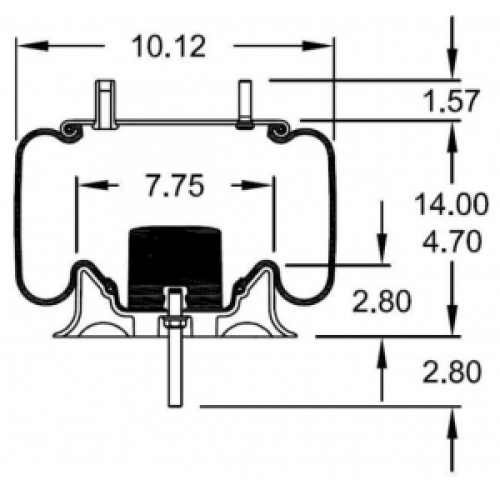

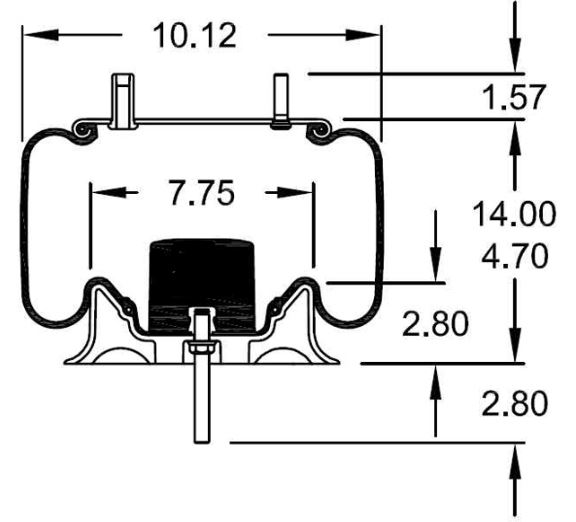

Bellows Diameter 10.12
Piston Height 2.80
Piston Material Composite
Max Extended Height 14.00
Minimum Compressed Height 4.70
Air Inlet Type Male
Air Inlet Height 1.57
Top Plate Mounting Type Air Inlet and Stud
Stud Quantity on Top Plate 1
Top Plate Stud Height 1.57
Distance between Top Plate Stud and Air Inlet 5.50
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper Yes
Bellows Number 1T15M2

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Trailer Air Spring
Holland (Neway):  90557372, 50857000, 90557306, 90557363
Firestone:  W01-358-9807
Goodyear:  1R12-1047
Contitech:  910-13.5P874
Triangle: 8382
Extended Height:  14.00"
Compressed Height:  4.70"
Top Plate Width:  9.00"
Piston Width:  9.50"
Weight:  17.20 lbs
