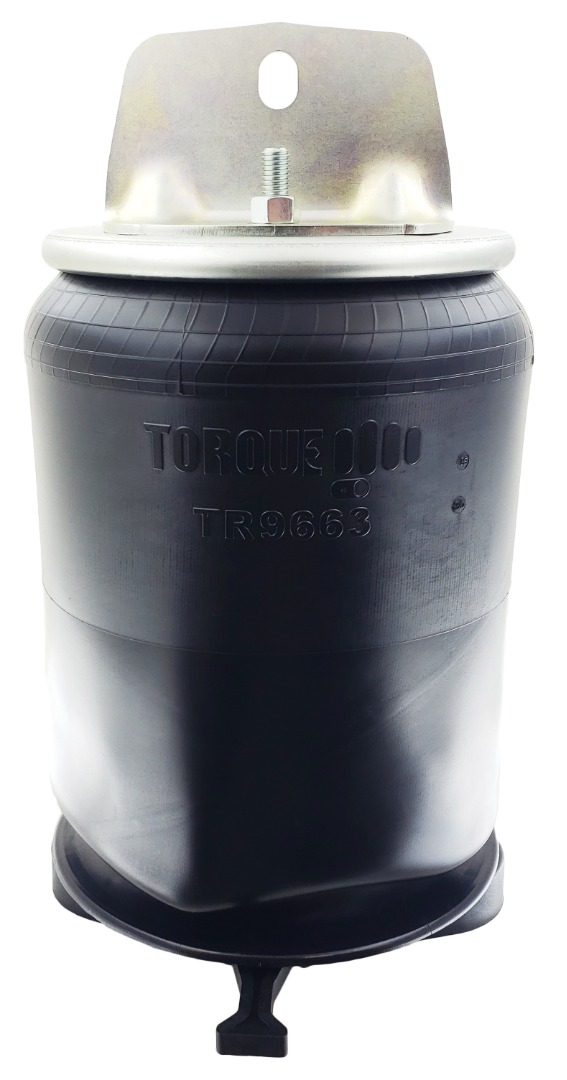

TR9663 Trailer Air Spring

TR9663 Trailer Air Spring TR9663

Air Spring Type Reversible Air Spring

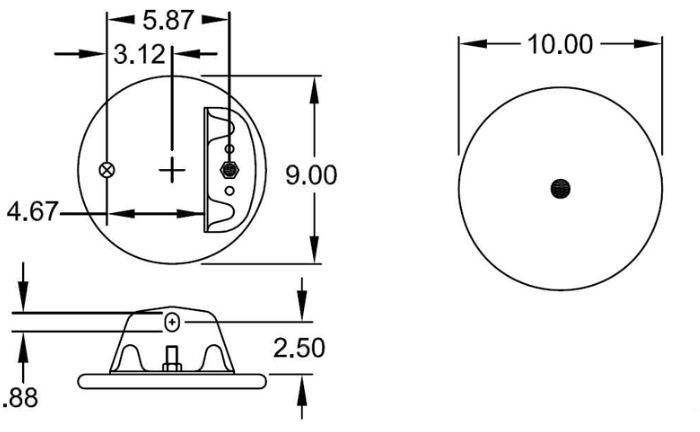

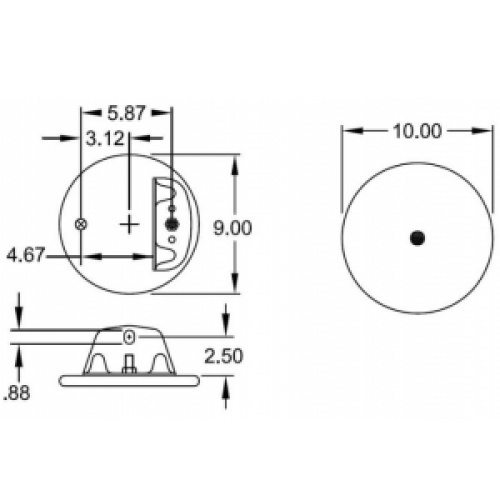

Top Plate Diameter 9.00
Piston Diameter 10.00

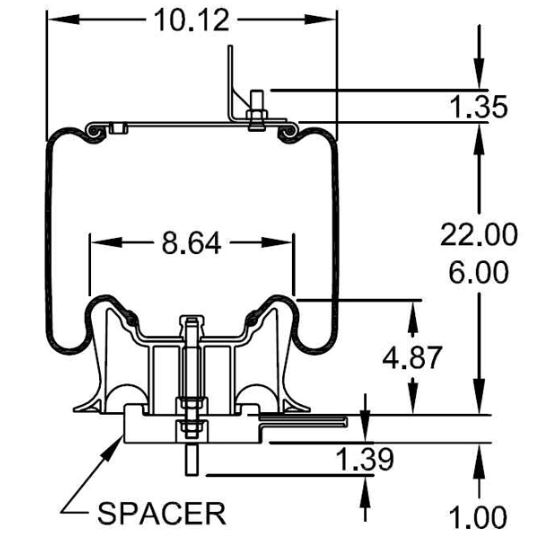

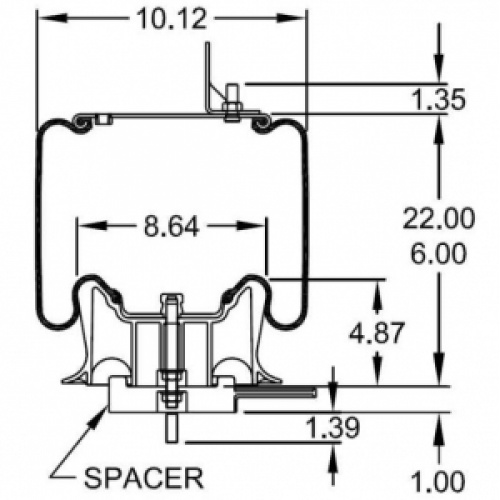

Bellows Diameter 10.12
Piston Height 4.87
Piston Material Composite
Max Extended Height 22.00
Minimum Compressed Height 6.00
Air Inlet Type Female
Top Plate Mounting Type Bracket and Air Inlet
Top Plate Threaded Hole Quantity 1
Stud Quantity on Top Plate 1
Top Plate Stud Height 1.35
Distance Between Bracket Mounting and Air Inlet 5.87
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper No
Bellows Number 1T15M8

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Trailer Air Spring
Firestone:  W01-358-9663
Hendrickson:  60271-2,  60271-1
Mack:  57WL57M
Goodyear:  1R12-1093
Contitech:  910-18.5P939
Extended Height:  22.00"
Compressed Height:  6.00"
Top Plate Width:  9.00"
Piston Width:  10.00"
Weight:  18.50 lbs
