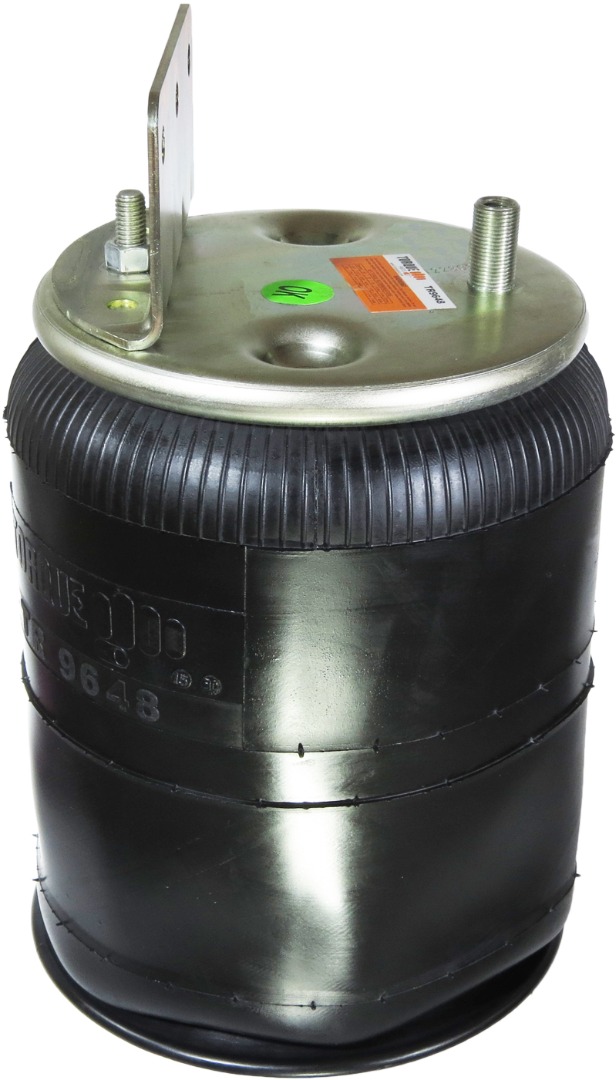

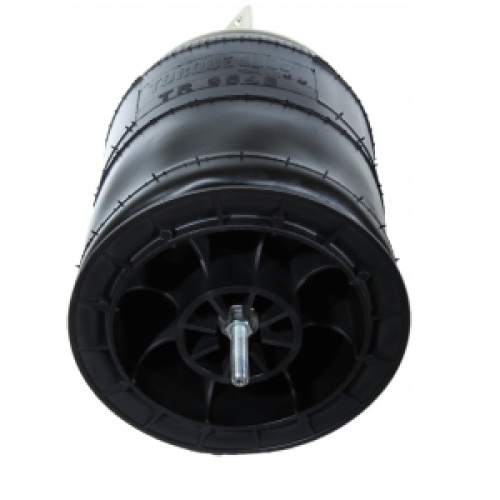

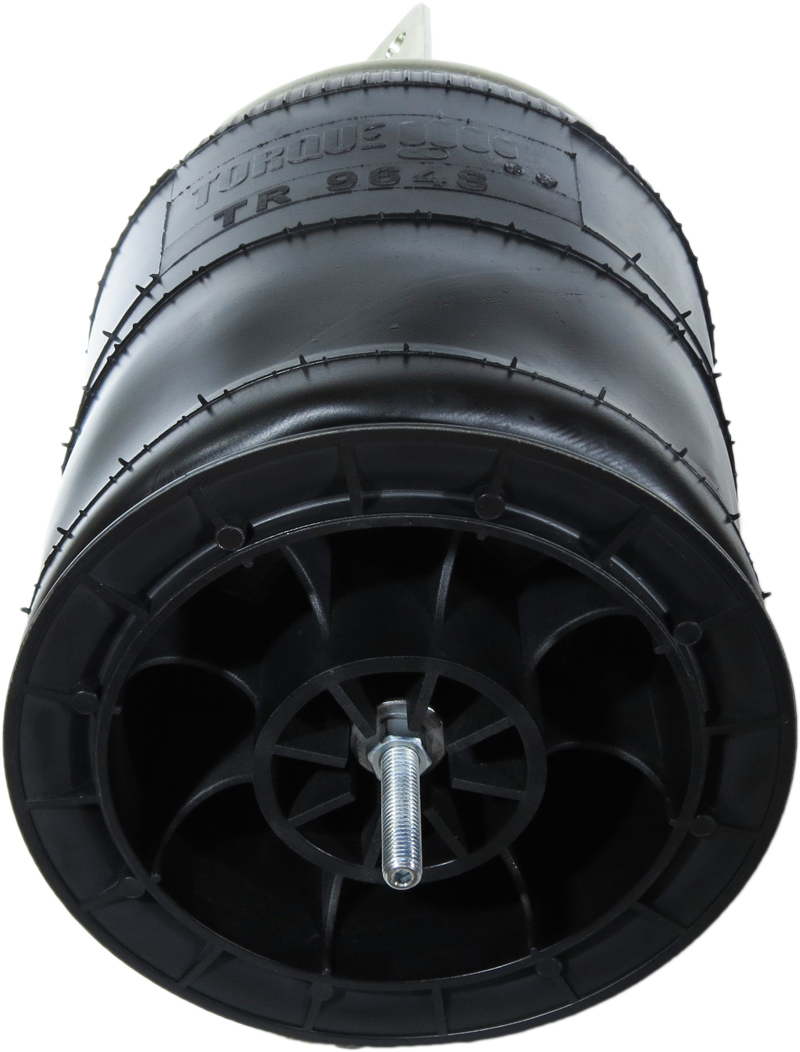

TR9648 Navistar Air Spring

TR9648 Navistar Air Spring TR9648

Air Spring Type Reversible Air Spring

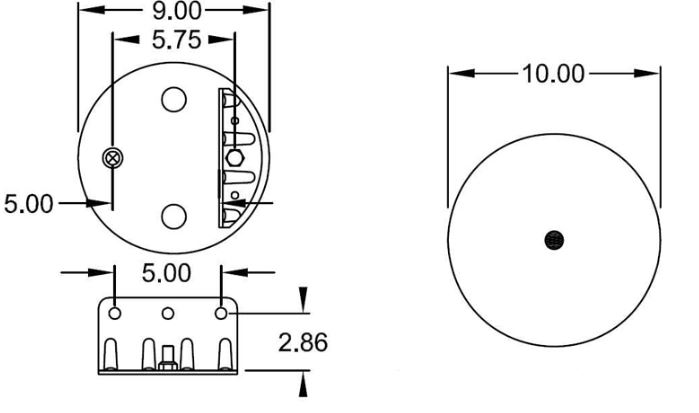

Top Plate Diameter 9.00
Piston Diameter 10.00

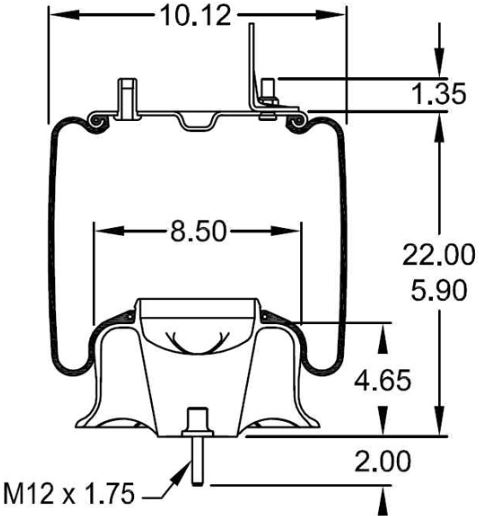

Bellows Diameter 10.12
Piston Height 4.65
Piston Material Composite
Max Extended Height 19.65
Minimum Compressed Height 5.90
Air Inlet Type Male
Air Inlet Height 1.35
Top Plate Mounting Type Bracket and Air Inlet
Stud Quantity on Top Plate 1
Top Plate Stud Height 1.35
Distance Between Bracket Mounting and Air Inlet 5.75
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper No
Bellows Number 1T15XNR5

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Air Spring for Navistar Trucks
Navistar:  2027911C-1, 2027911C-2
Firestone:  W01-358-9648
Goodyear:  1R12-398, 1R12-538
Contitech:  910-18.5P456
Triangle:  8456
Extended Height:  22.00"
Compressed Height:  5.90"
Top Plate Width:  9.00"
Piston Width:  10.00"
Weight:  15.40 lbs
