Trailer Air Spring
TR9644 Trailer Air Spring TR9644
Air Spring Type
Reversible Air Spring

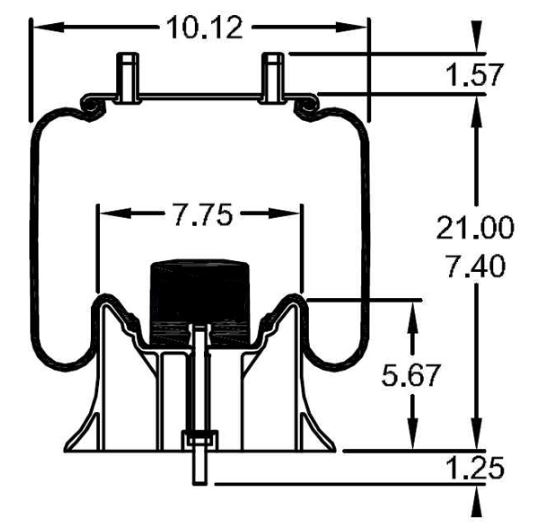

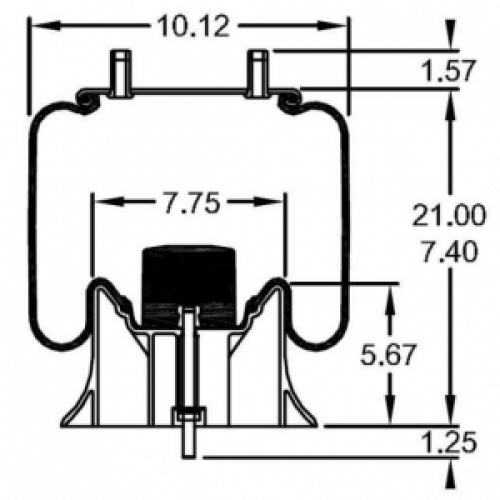

Top Plate Diameter
9.00
Piston Diameter
10.25
Bellows Diameter
10.12
Piston Height
5.67
Piston Material
Composite
Max Extended Height
21.00
Minimum Compressed Height
7.40
Air Inlet Type
Male
Air Inlet Height
1.57

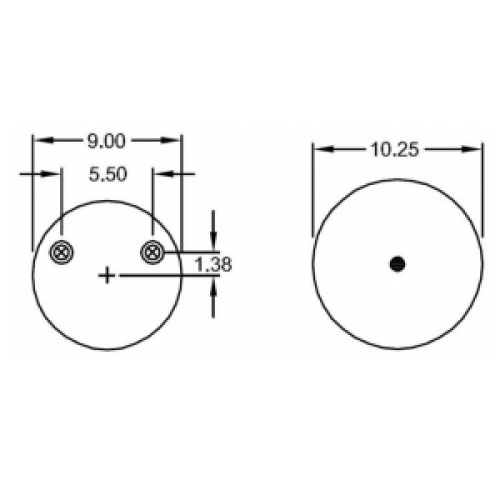

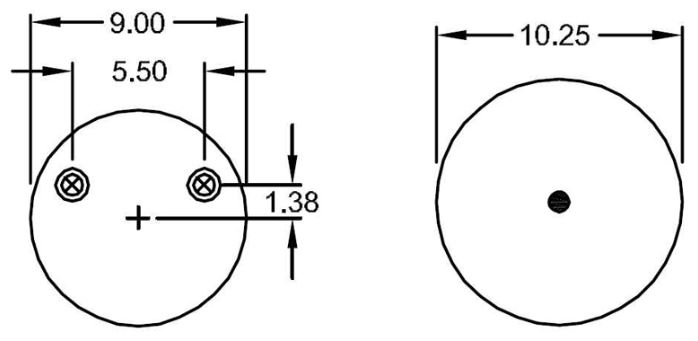

Top Plate Mounting Type
Air Inlet
Air Inlet Qauntity
2
Distance Between Air Inlets
5.50
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Distance between Top Plate Stud and Air Inlet
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T15MBTW6
| Hendrickson: | S-23721, C-23721 |
| Firestone: | W01-358-9644 |
| Contitech: | 910BP-16P569 |
| Triangle: | 8569 |
| Extended Height: | 21.00" |
| Compressed Height: | 7.40" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.25" |
| Weight: | 14.00 lbs |
