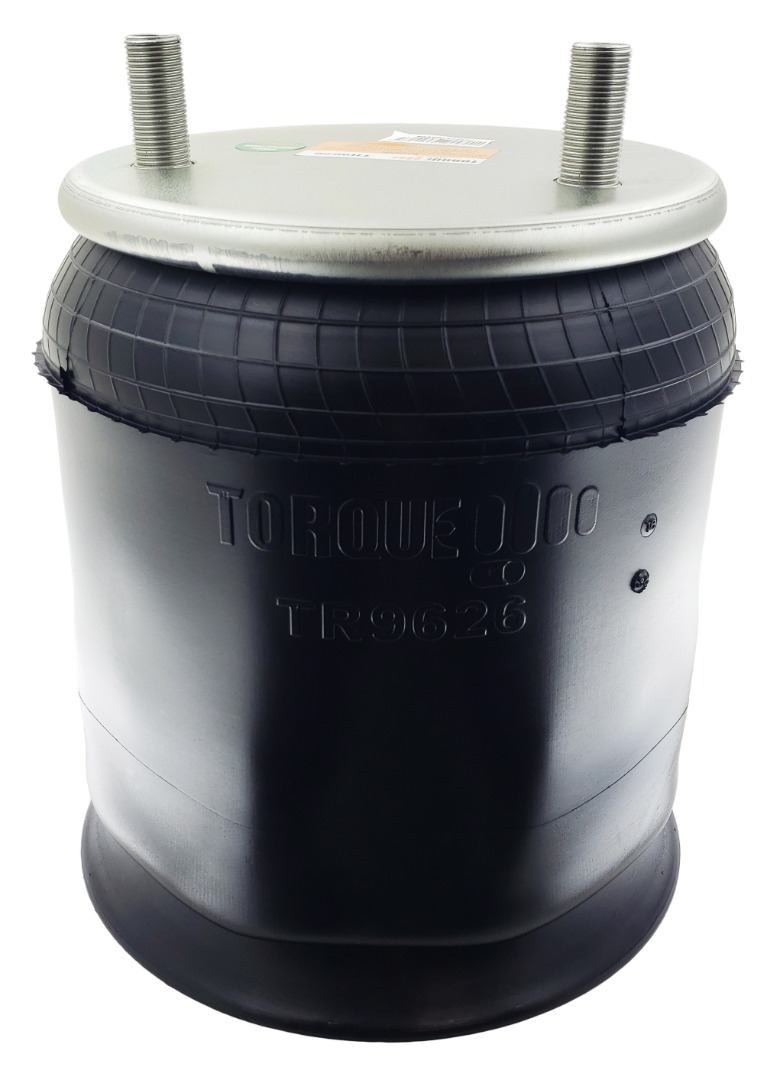

Trailer Air Spring
TR9626 Trailer Air Spring TR9626
Air Spring Type
Reversible Air Spring

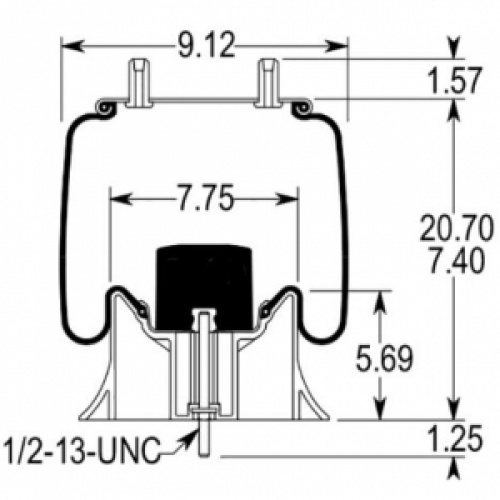

Top Plate Diameter
9.00

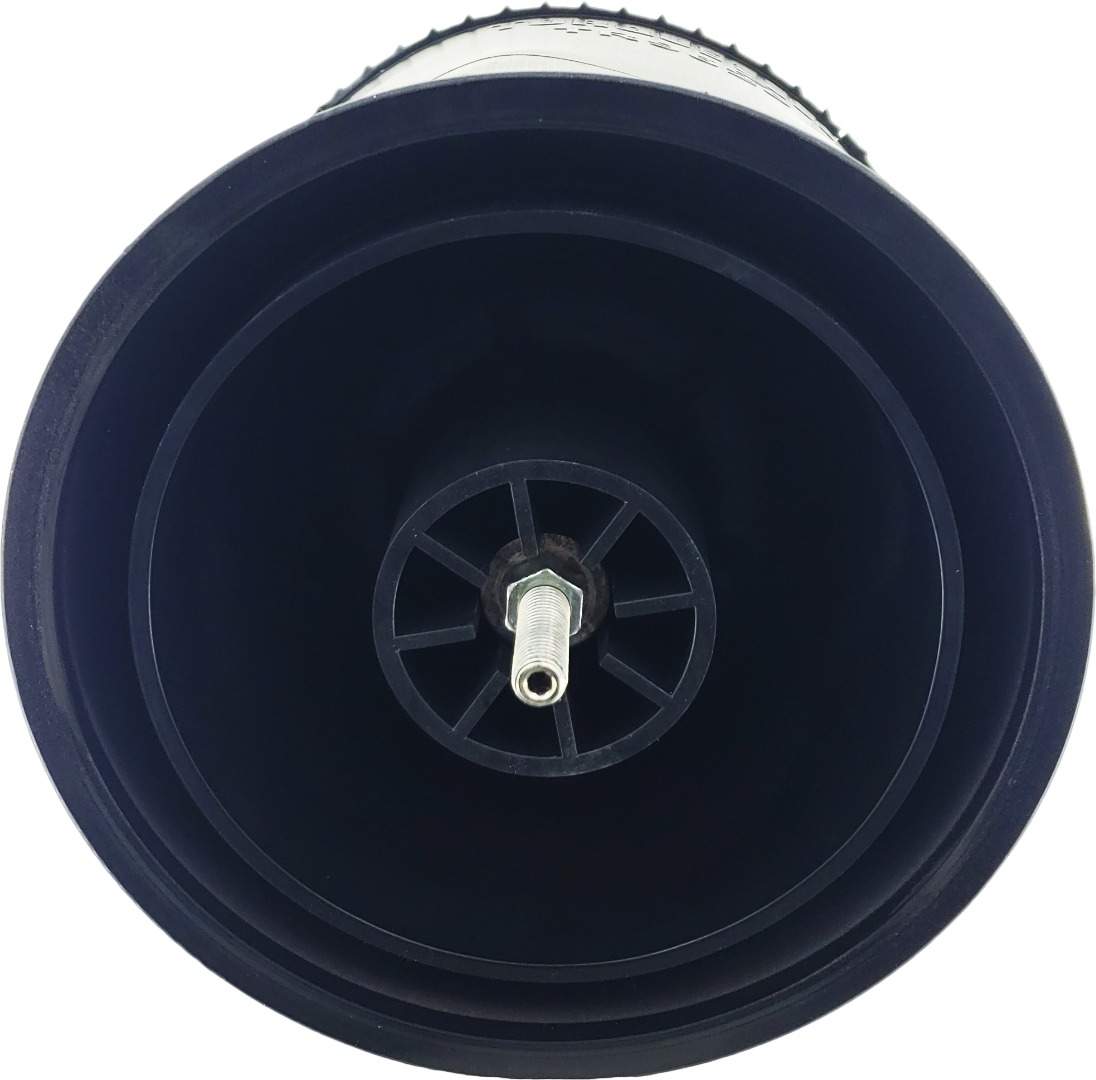

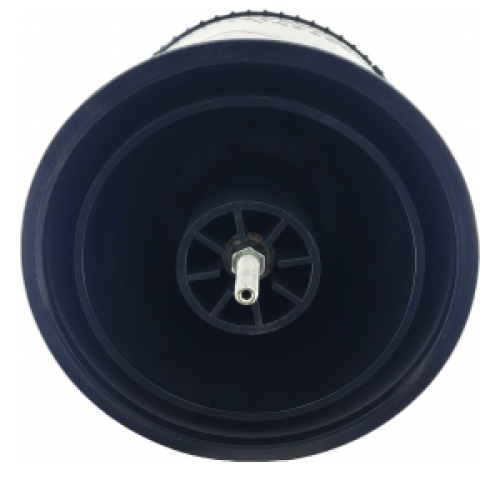

Piston Diameter
10.25
Bellows Diameter
9.12
Piston Height
5.69
Piston Material
Composite
Max Extended Height
20.70
Minimum Compressed Height
7.40
Air Inlet Type
Male
Air Inlet Height
1.36

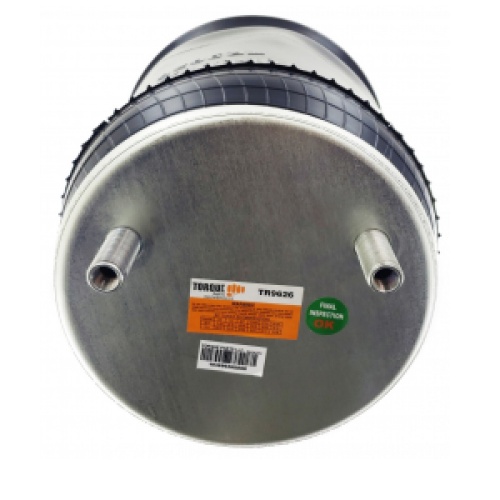

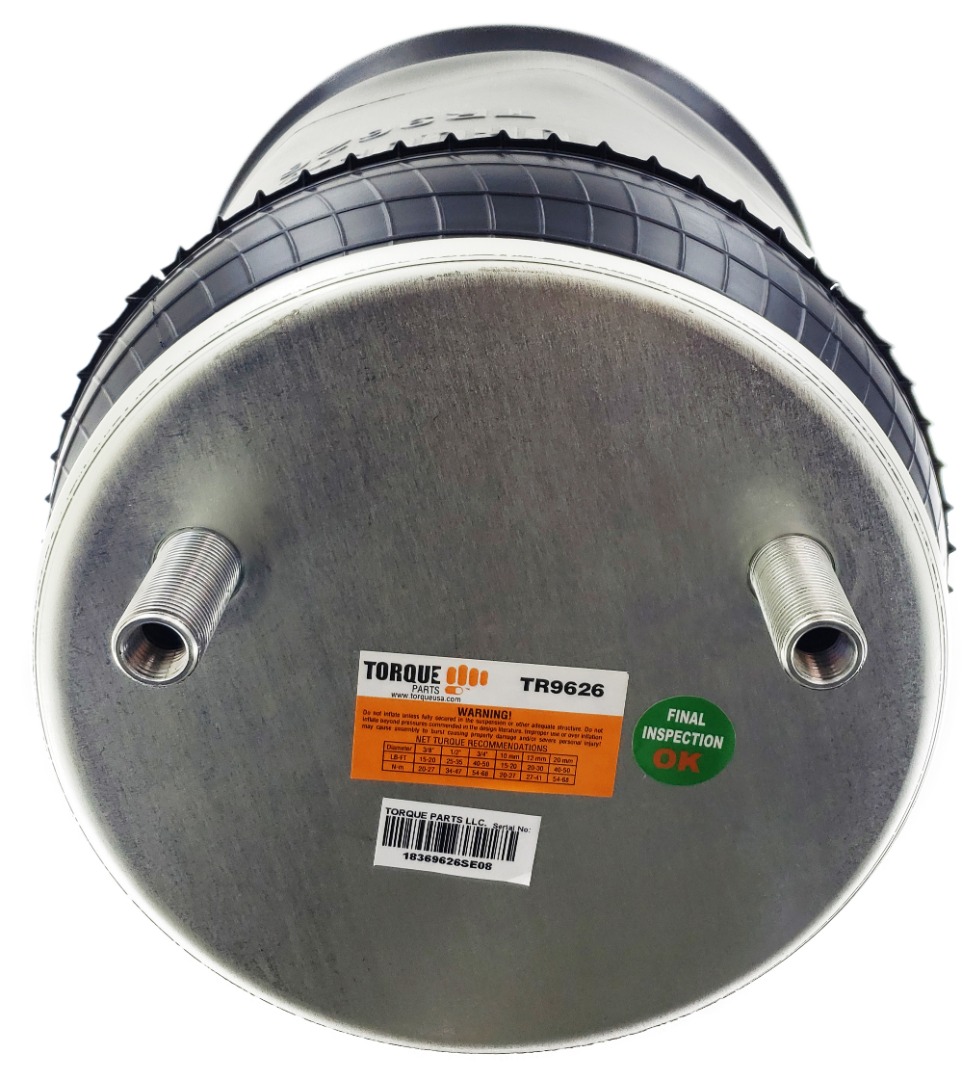

Top Plate Mounting Type
Air Inlet

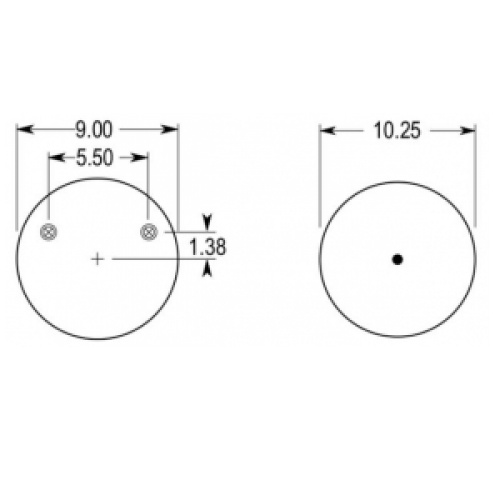

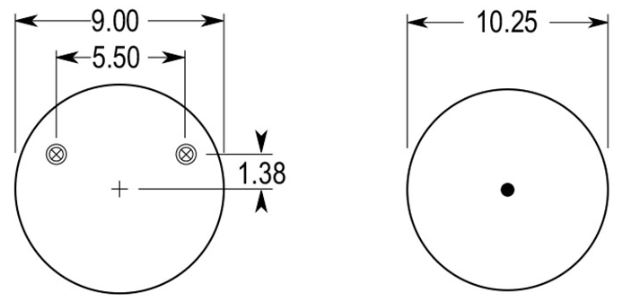

Distance between Top Plate Stud and Air Inlet
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T15L6
| Hendrickson: | S-23720, C-23720 |
| Firestone: | W01-358-9626 |
| Goodyear: | 1R11-292 |
| Contitech: | 99-16P568 |
| Triangle: | 8568 |
| Extended Height: | 20.70" |
| Compressed Height: | 7.40" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.25" |
| Weight: | 14.50 lbs |
