Air Spring for Kenworth Trucks
TR9616 Kenworth Air Spring TR9616
Air Spring Type
Reversible Air Spring

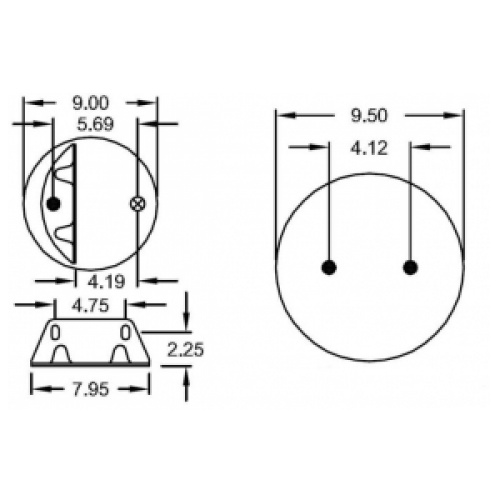

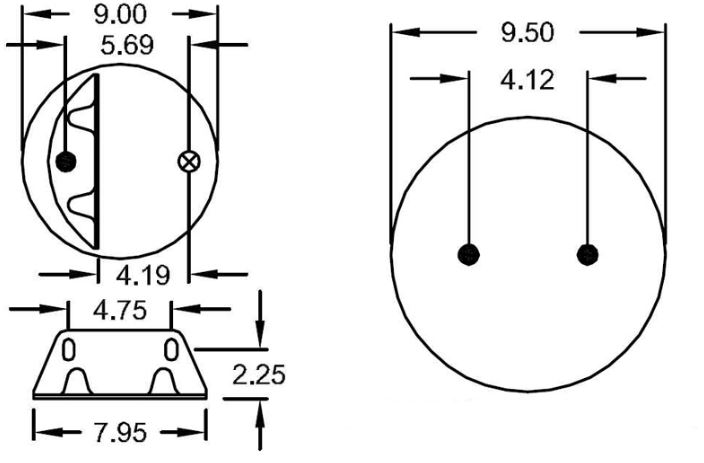

Top Plate Diameter
9.00
Piston Diameter
9.50

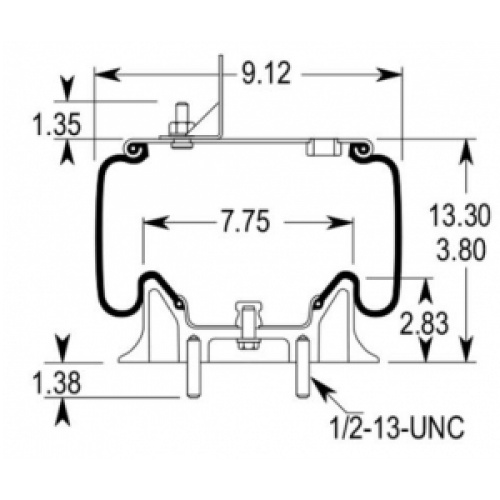

Bellows Diameter
9.12
Piston Height
2.83
Piston Material
Composite
Max Extended Height
13.30
Minimum Compressed Height
3.80
Air Inlet Type
Female

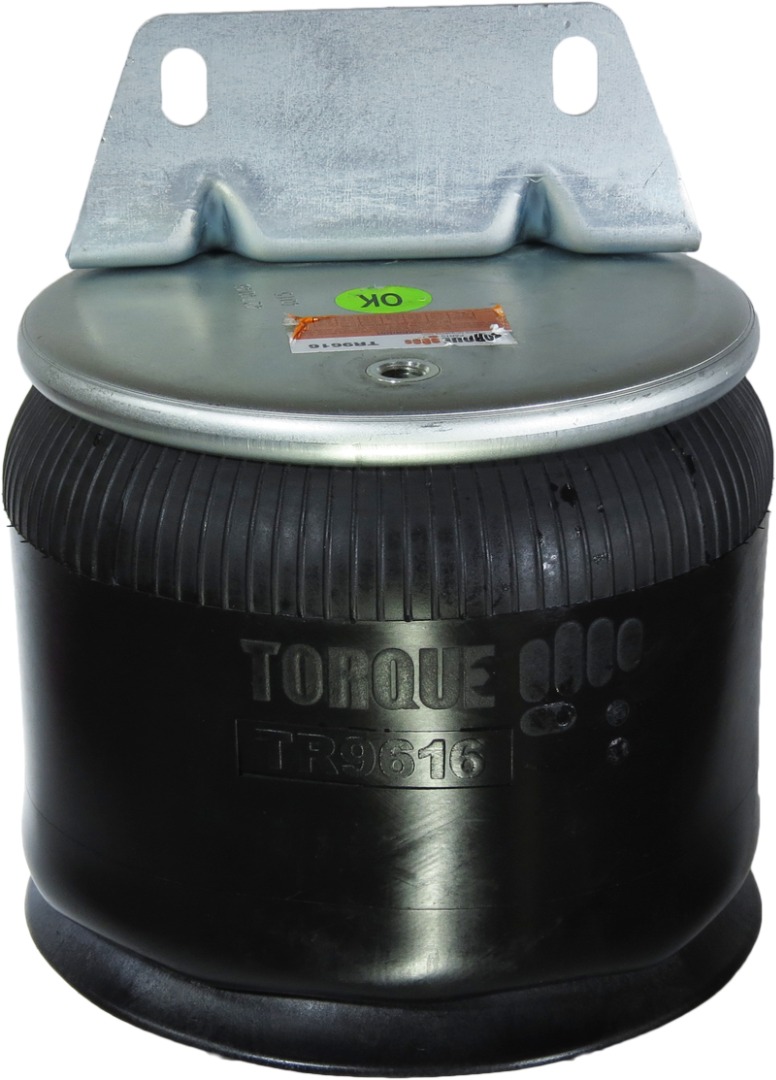

Top Plate Mounting Type
Bracket
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance Between Bracket Mounting and Air Inlet
5.50

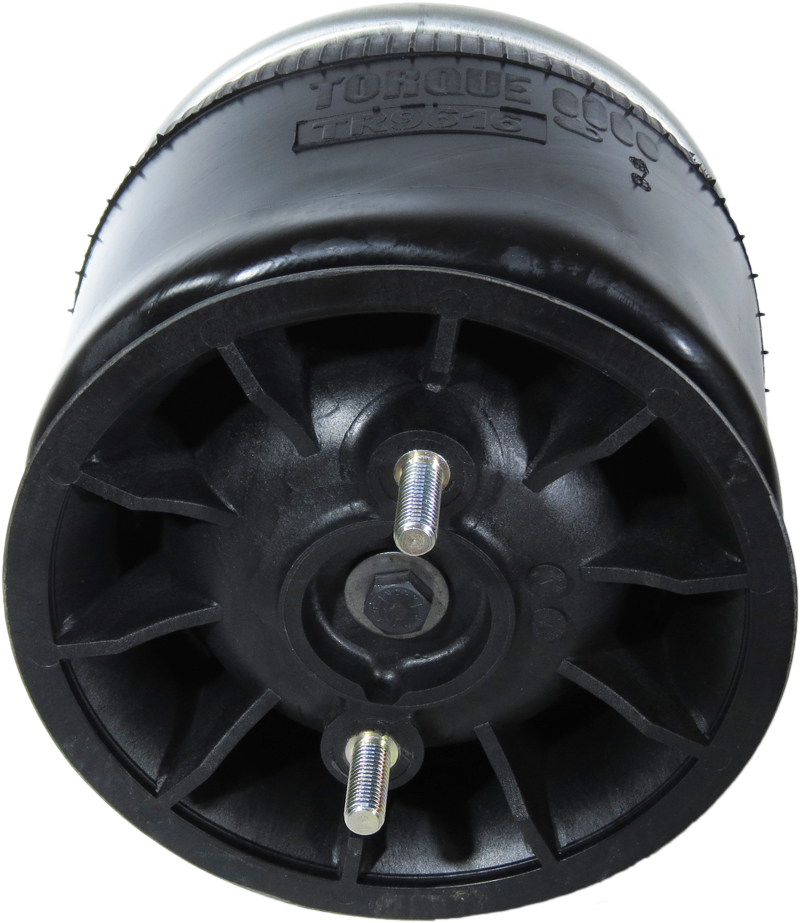

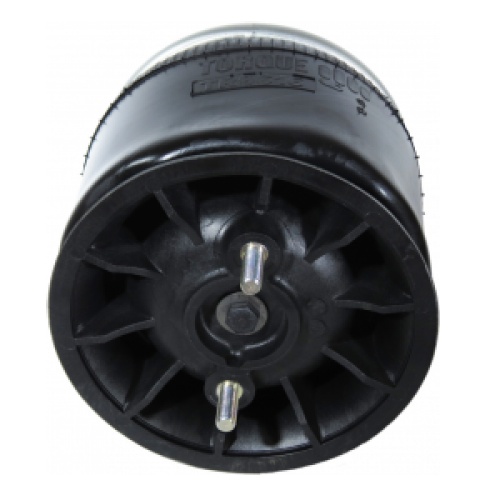

Piston Mounting Type
Stud
Piston Stud Quantity
2
Distance Between Bottom Base Studs
4.12
Has Inner Bumper
No
Bellows Number
1T15L1.5
| Kenworth: | K-303-16 |
| Firestone: | W01-358-9616 |
| Goodyear: | 1R11-242 |
| Triangle: | 8515 |
| Contitech: | 99-12P515 |
| Extended Height: | 13.30" |
| Compressed Height: | 3.80" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.50" |
| Weight: | 11.90 lbs |
