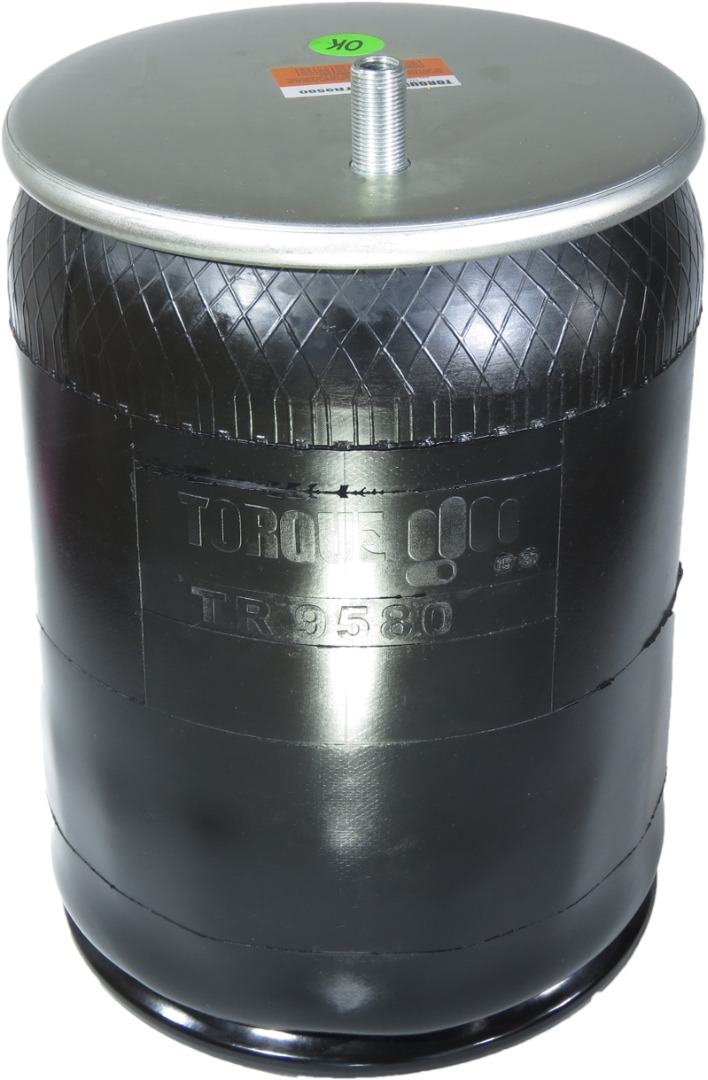

Trailer Air Spring
TR9580 Trailer Air Spring TR9580
Air Spring Type
Reversible Air Spring

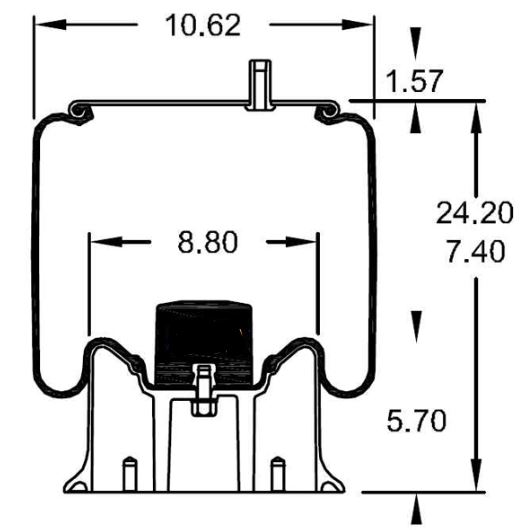

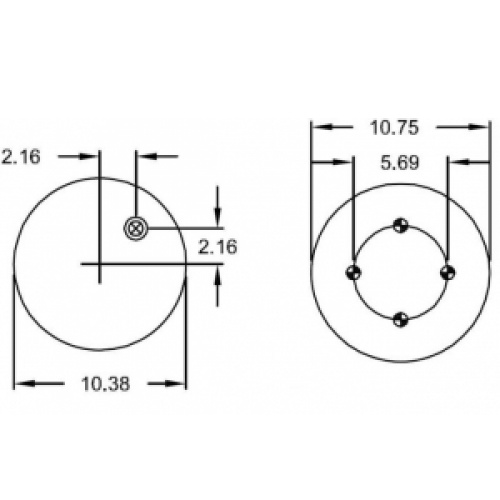

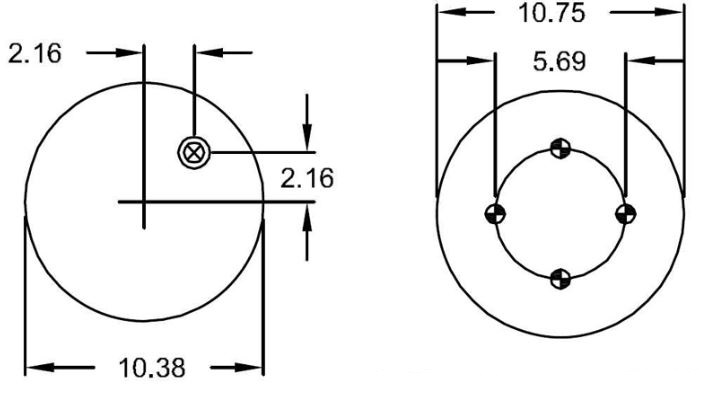

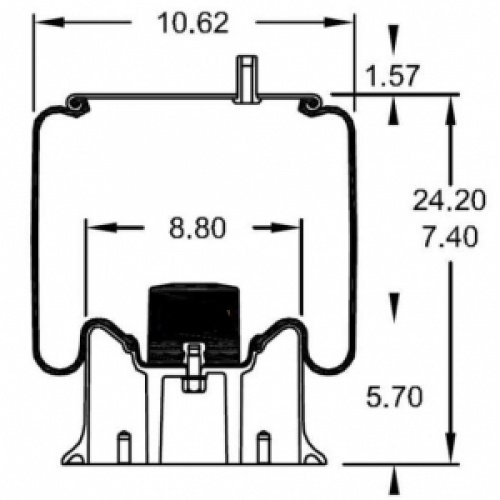

Top Plate Diameter
10.38
Piston Diameter
10.75
Bellows Diameter
10.62
Piston Height
5.70
Piston Material
Aluminum
Max Extended Height
24.20
Minimum Compressed Height
7.40
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet

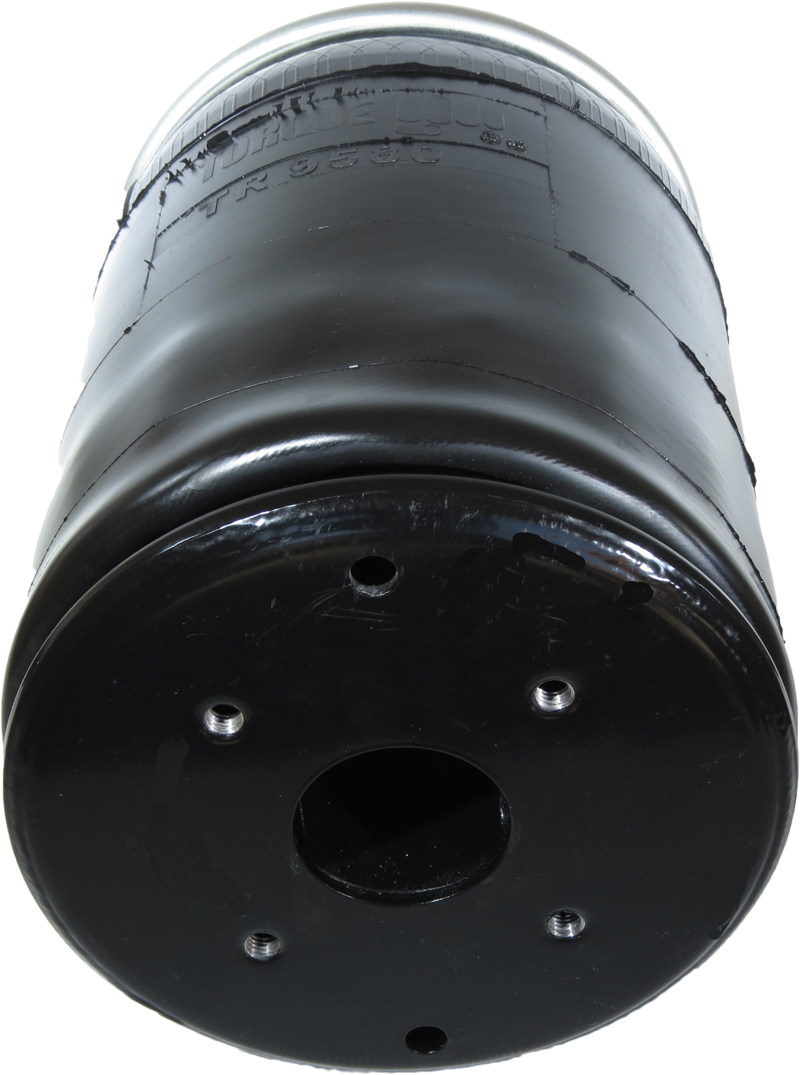

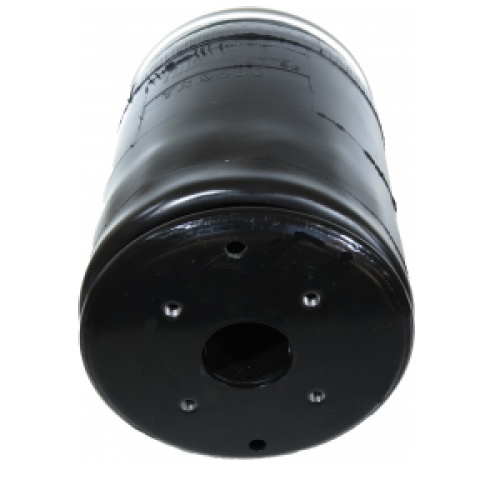

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
4.00
Has Inner Bumper
Yes
Bellows Number
1T17CL9.5
| Firestone: | W01-358-9580 |
| Goodyear: | 1R13-118, 1R13-144, 1R13-081 |
| Triangle: | 8434 |
| Contitech: | 1010-21P434 |
| Hendrickson: | S-20127, S-20414, C-20127 |
| Extended Height: | 24.20" |
| Compressed Height: | 7.40" |
| Top Plate Width: | 10.38" |
| Piston Width: | 10.75" |
| Weight: | 25.20 lbs |
