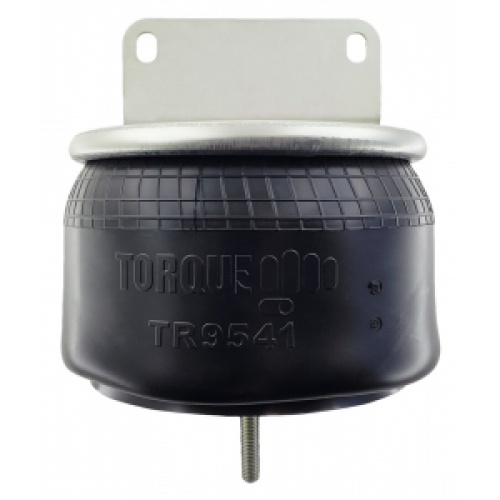

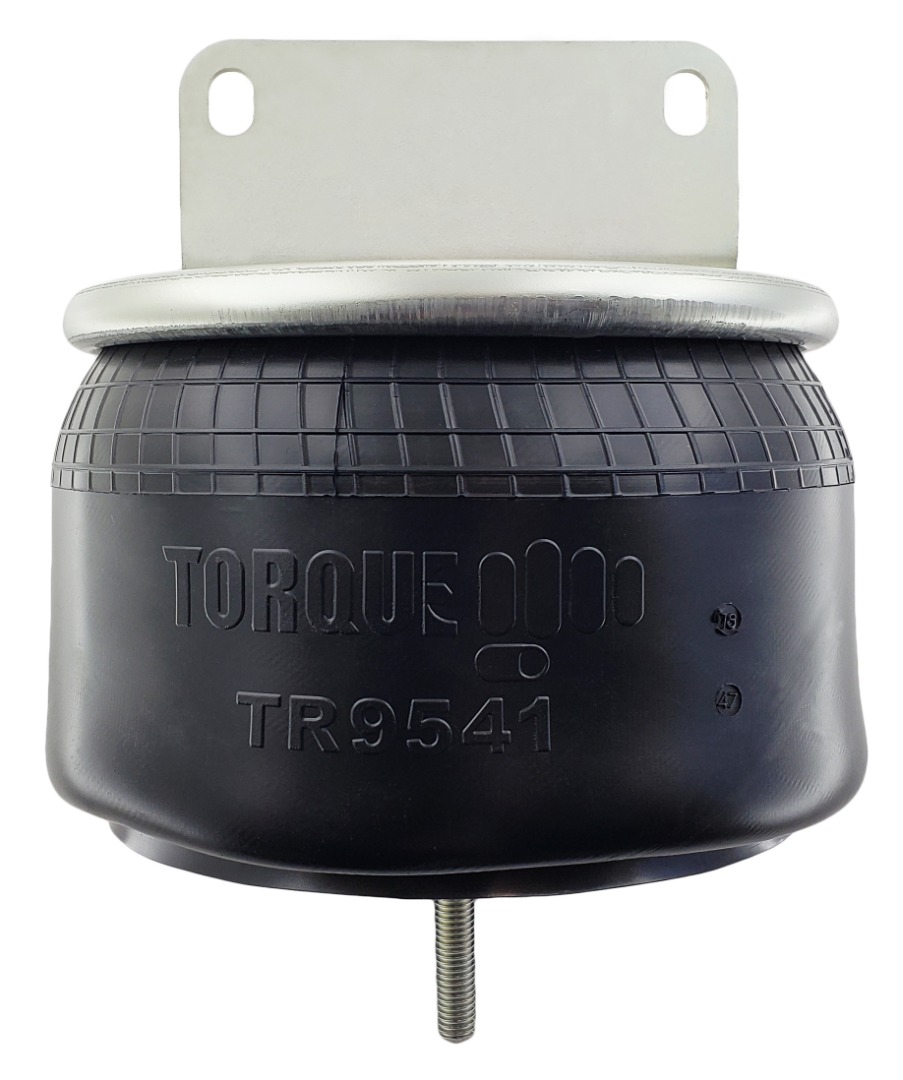

Air Spring for Kenworth Trucks

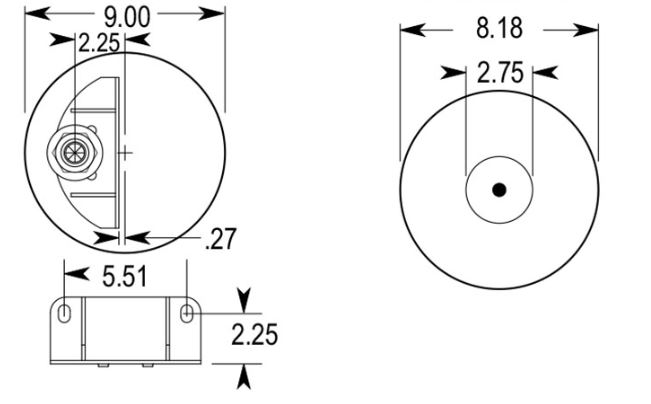

TR9541 Kenworth Air Spring TR9541
Air Spring Type
Reversible Air Spring

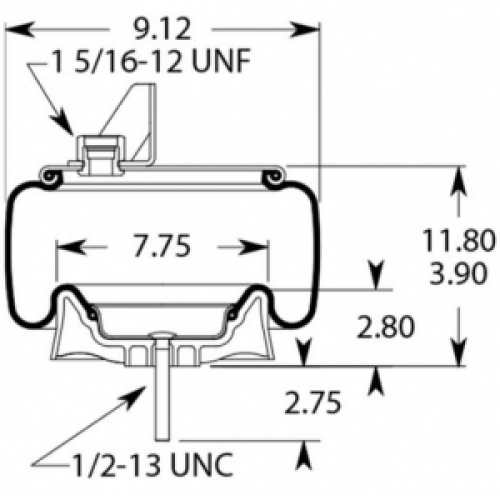

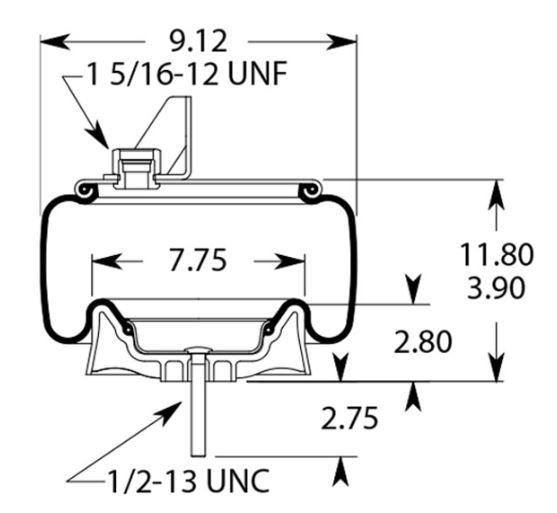

Top Plate Diameter
9.00
Piston Diameter
8.18
Bellows Diameter
9.12
Piston Height
2.80
Piston Material
Composite
Max Extended Height
12.00
Minimum Compressed Height
3.90
Air Inlet Type
Male

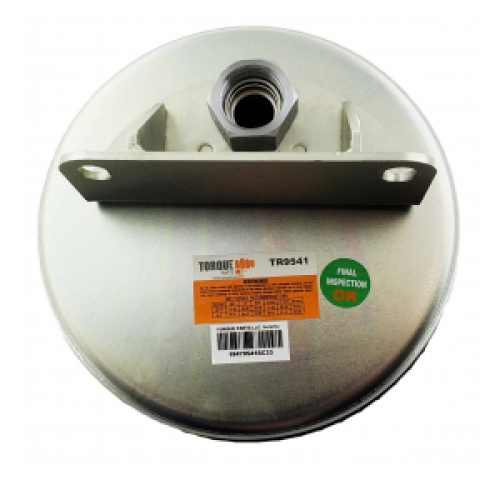

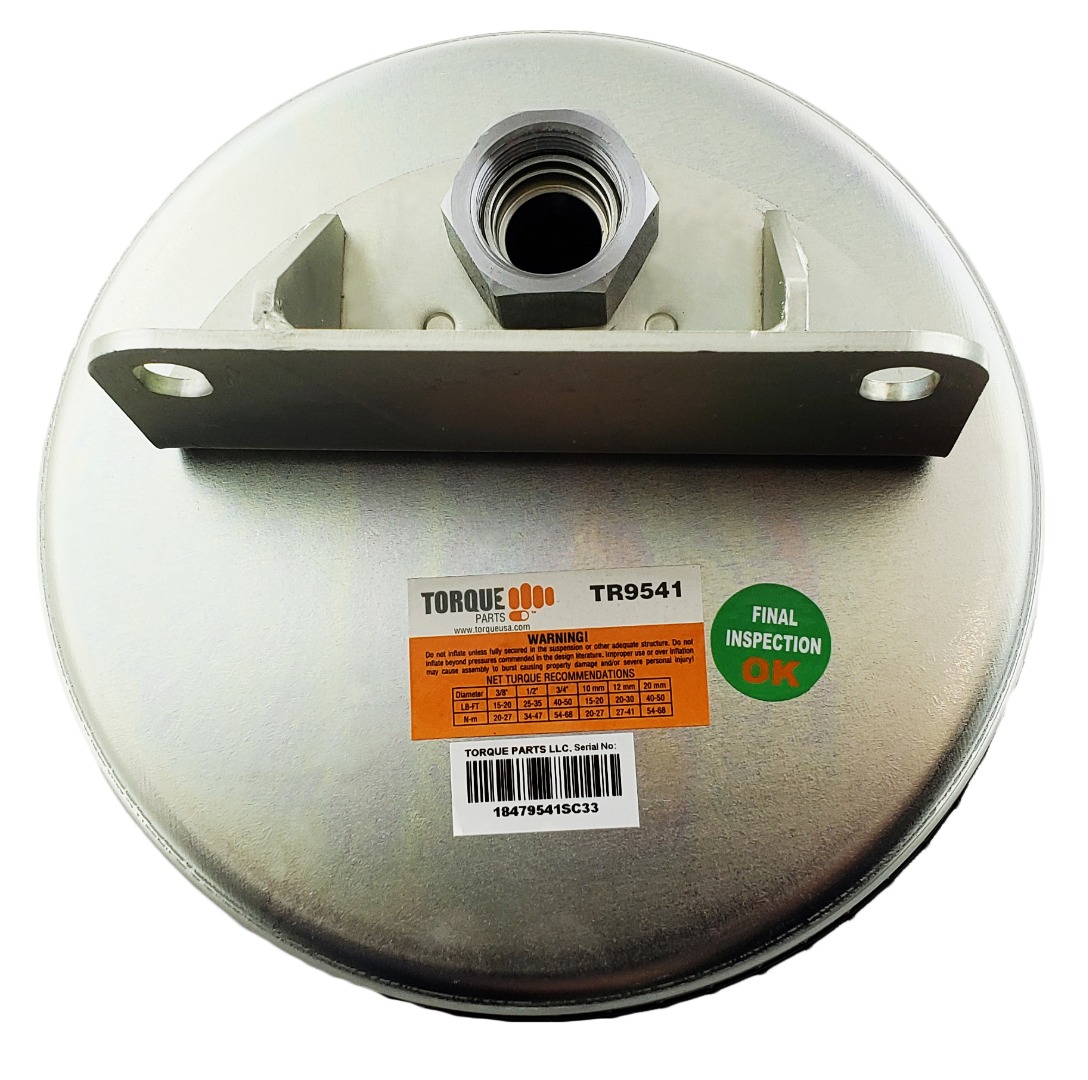

Top Plate Mounting Type
Bracket
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
1T15LA0
| Kenworth: | C81-1005, C81-1004, Airglide 200 05/05/03 or later, Airglide 460, Airglide 690 |
| Firestone: | W01-358-9541, W01-358-9547 |
| Contitech: | 9 9-10 P 861 |
| Extended Height: | 11.80" |
| Compressed Height: | 6.25" |
| Top Plate Width: | 9.00" |
| Piston Width: | 8.18" |
| Weight: | 11.1 lbs |
