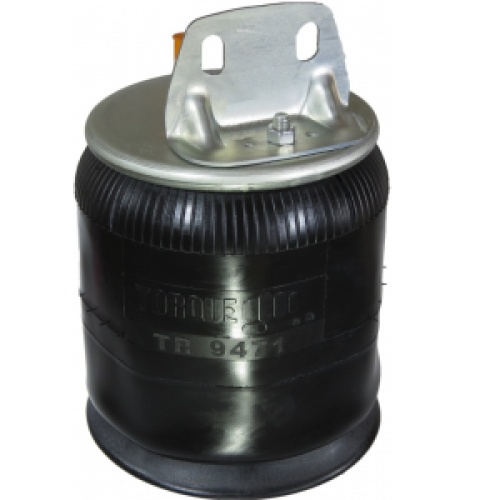

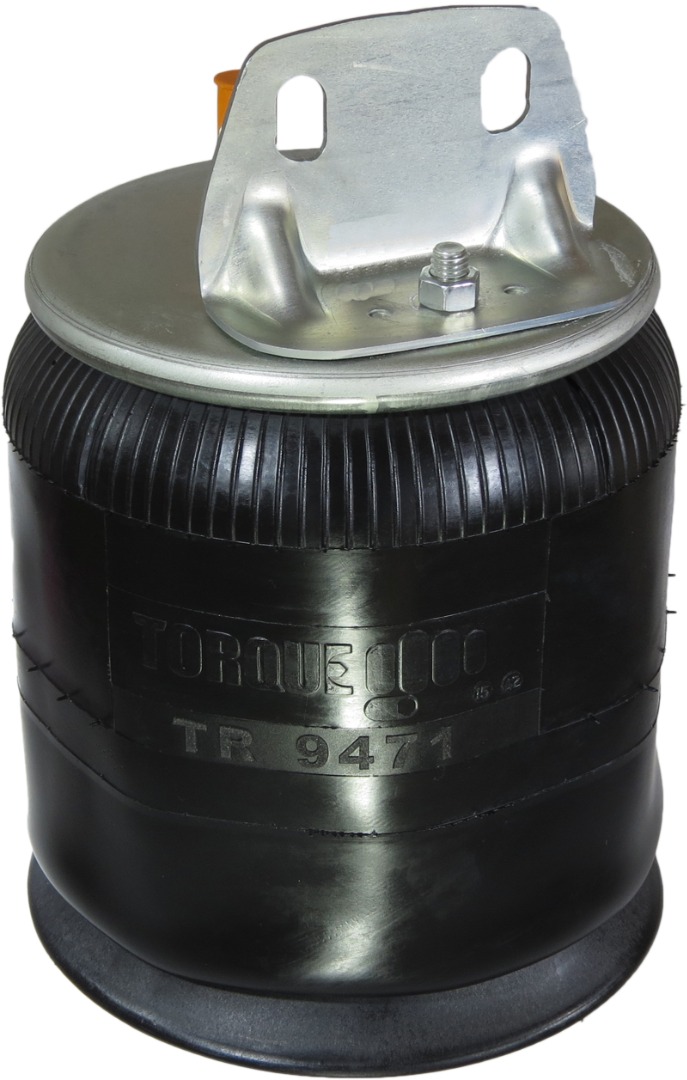

Trailer Air Spring
TR9471 Trailer Air Spring TR9471
Air Spring Type
Reversible Air Spring

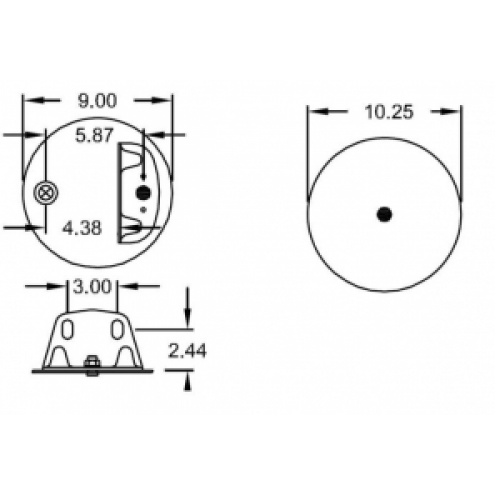

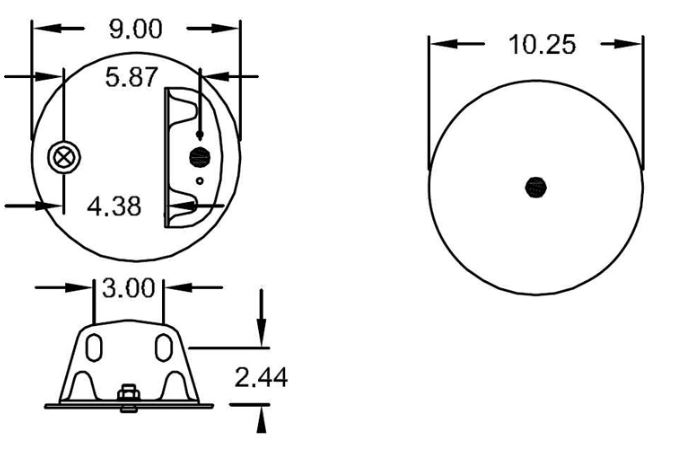

Top Plate Diameter
9.00
Piston Diameter
10.25

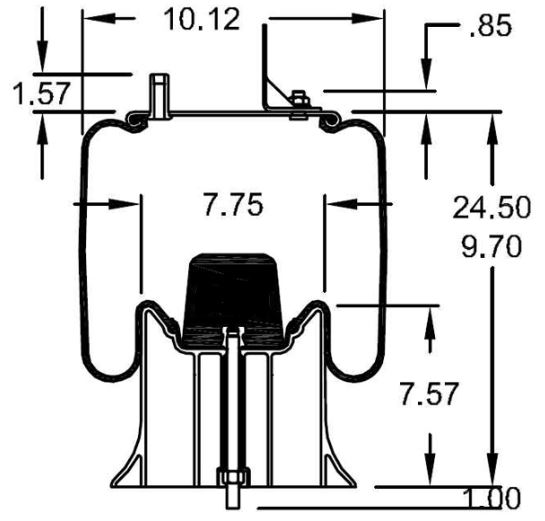

Bellows Diameter
10.12
Piston Height
7.57
Piston Material
Composite
Max Extended Height
24.50
Minimum Compressed Height
9.70
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Bracket and Air Inlet
Stud Quantity on Top Plate
1
Top Plate Stud Height
0.85
Distance Between Bracket Mounting and Air Inlet
5.87

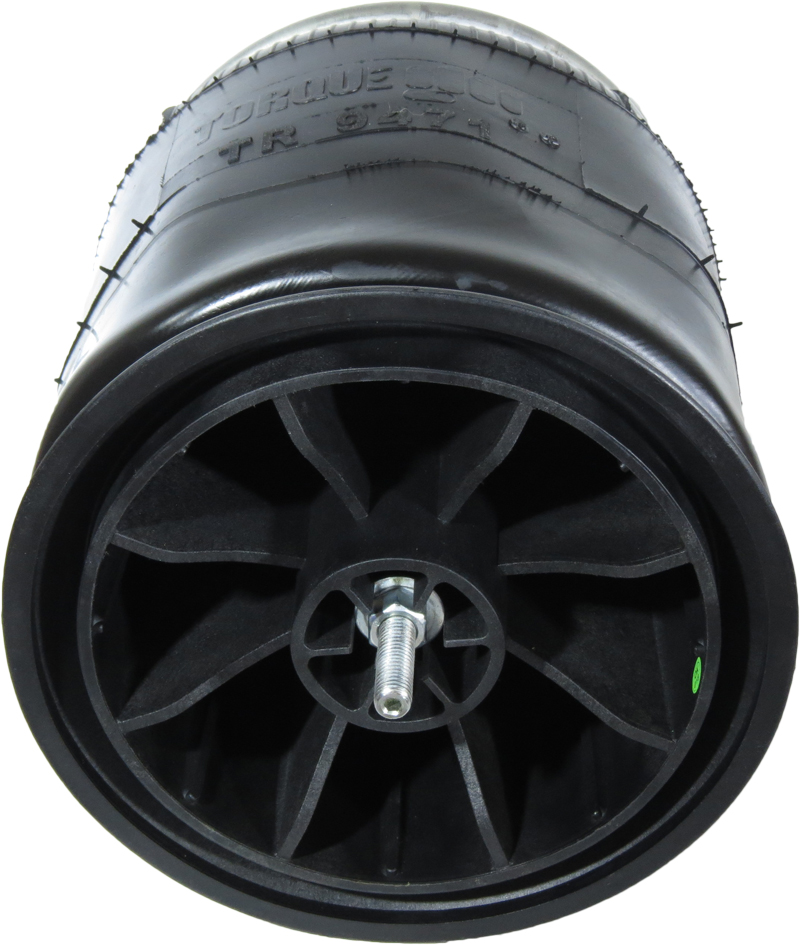

Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T15V8
| Firestone: | W01-358-9471 |
| Holland (Neway): | 905-57-146, 905-57-177, 905-57-182, 905-57-212, 905-57-214 |
| Goodyear: | 1R12-485, 1R12-504 |
| Triangle: | 8445 |
| Extended Height: | 24.50" |
| Compressed Height: | 9.70" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.25" |
| Weight: | 17.80 lbs |
