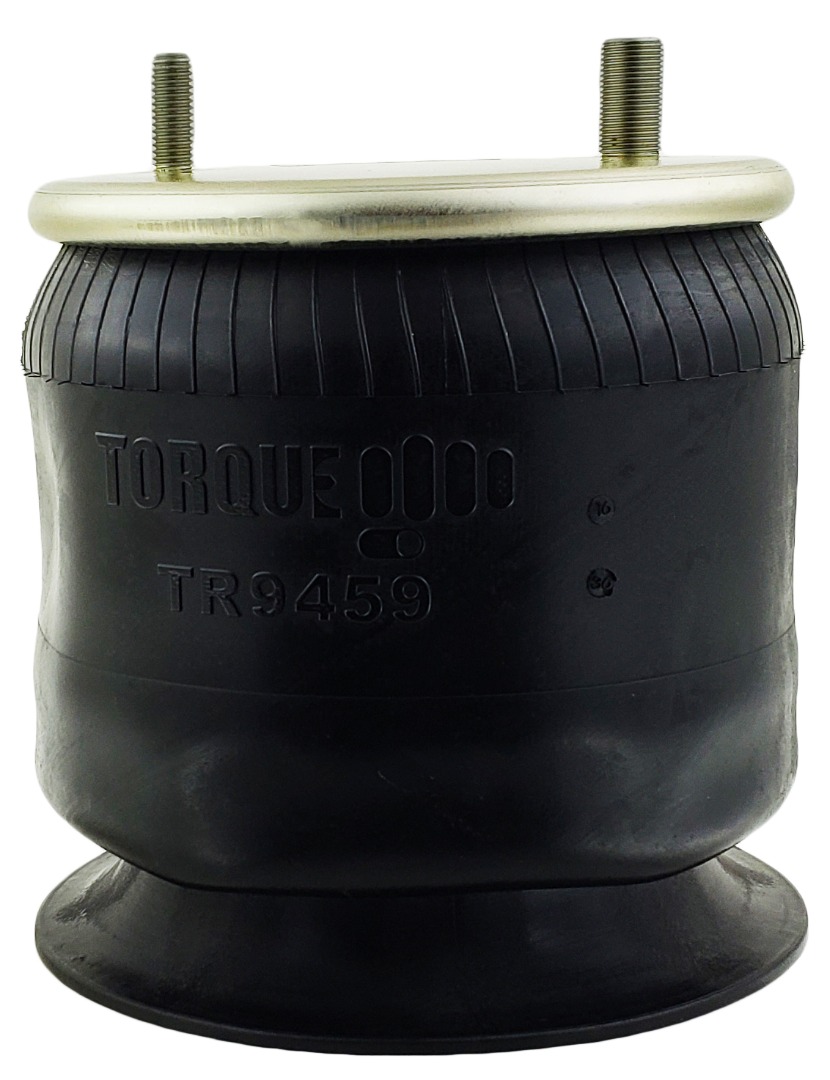

Trailer Air Spring
TR9459 Trailer Air Spring TR9459

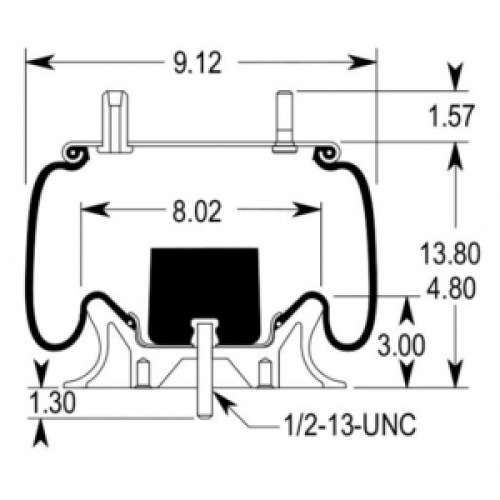

Air Spring Type
Reversible Air Spring

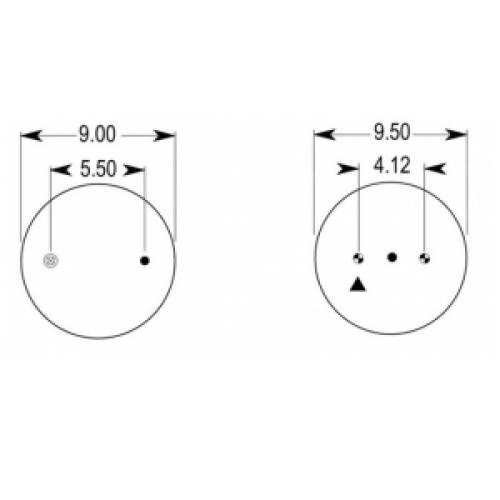

Top Plate Diameter
9.00
Piston Diameter
9.50
Bellows Diameter
9.12
Piston Height
3.00
Piston Material
Aluminum
Max Extended Height
13.80
Minimum Compressed Height
4.80
Air Inlet Type
Male
Air Inlet Height
1.57

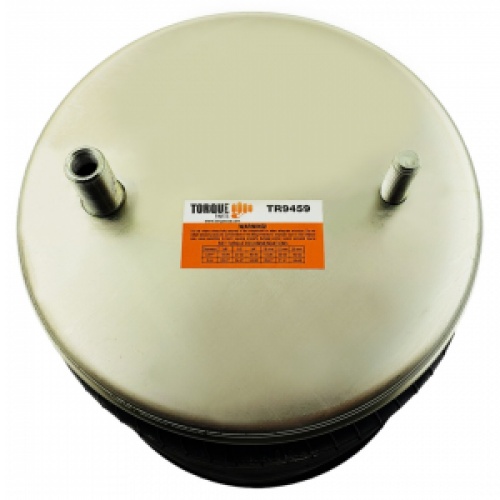

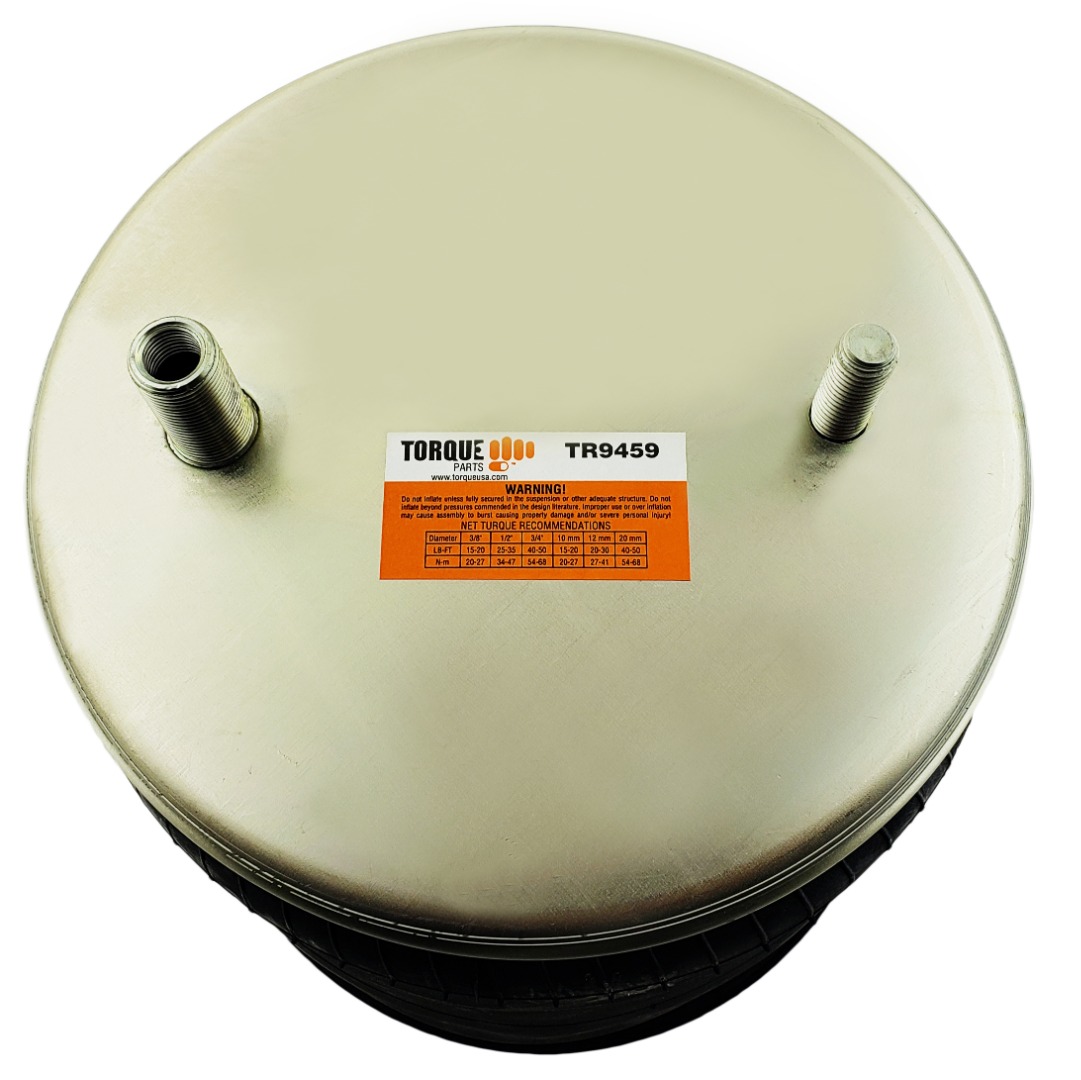

Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Distance between Top Plate Stud and Air Inlet
5.50

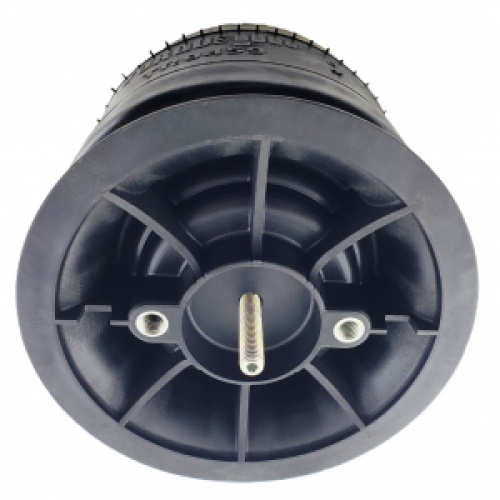

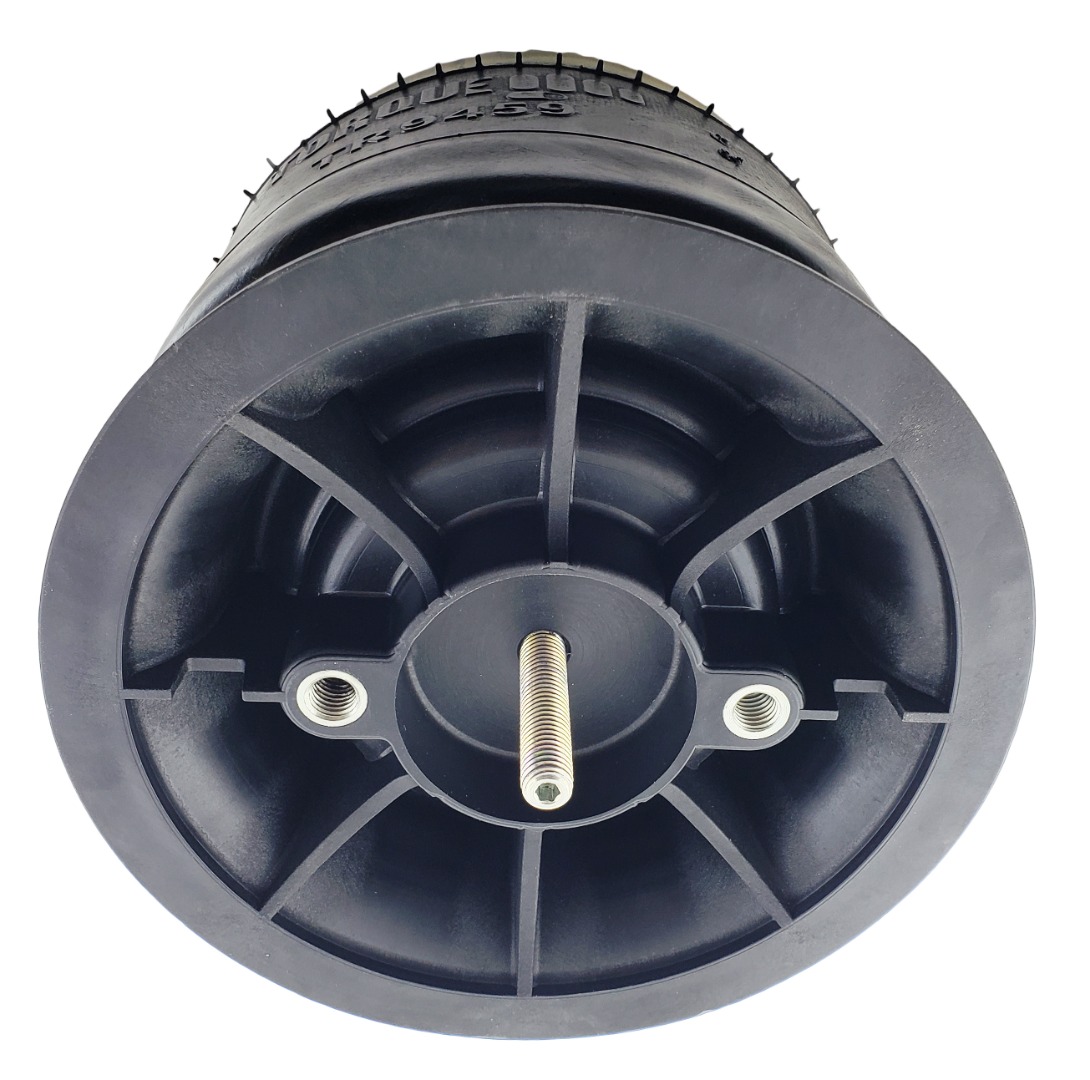

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
4.12
Has Inner Bumper
Yes
Bellows Number
1T15L2
| Ridewell: | 1003589459C |
| Firestone: | W01-358-9459 |
| Reyco: | 1003589459C |
| ArvinMeritor: | A-2258 |
| Extended Height: | 13.80" |
| Compressed Height: | 4.80" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.50" |
| Weight: | 14.00 lbs |
