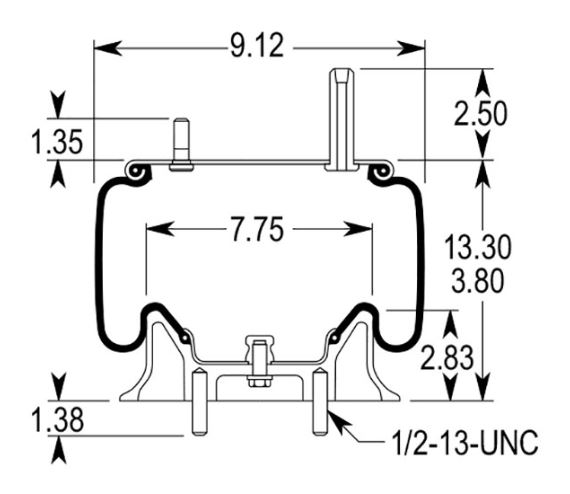

Air Spring for Kenworth Trucks

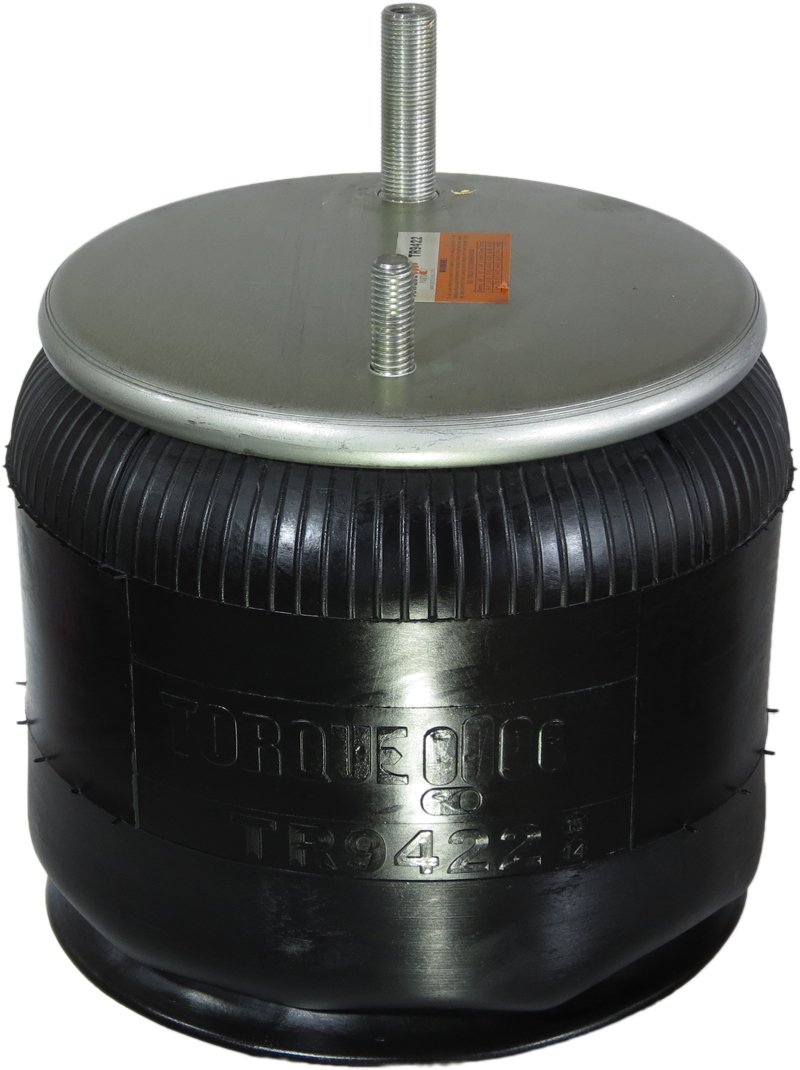

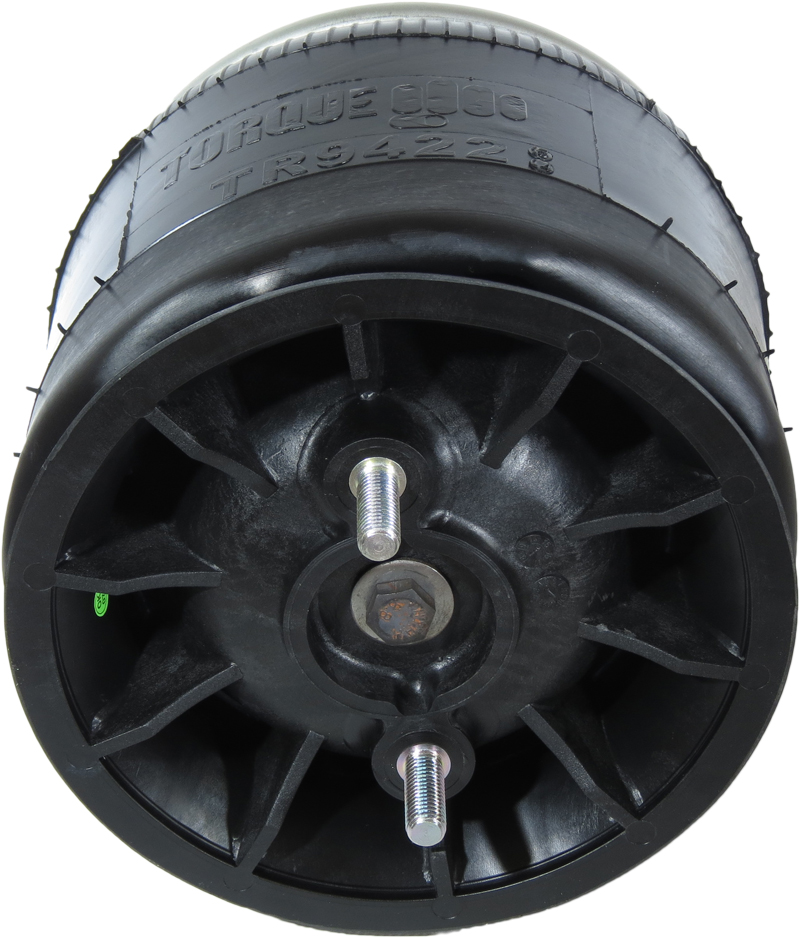

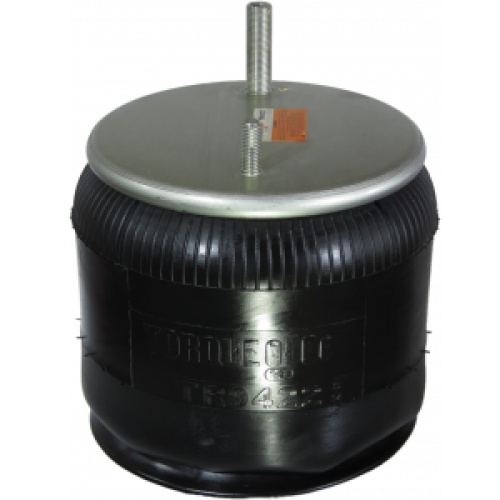

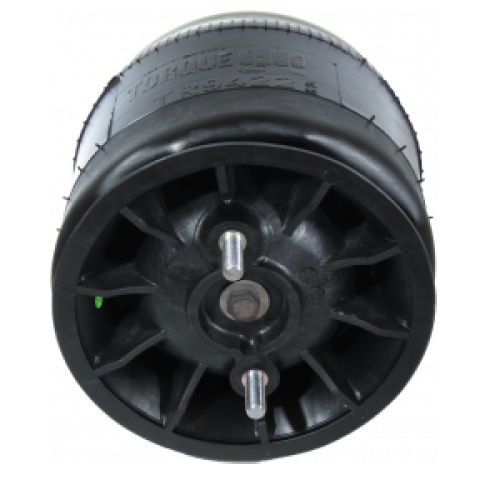

TR9422 Kenworth Air Spring TR9422
Air Spring Type
Reversible Air Spring

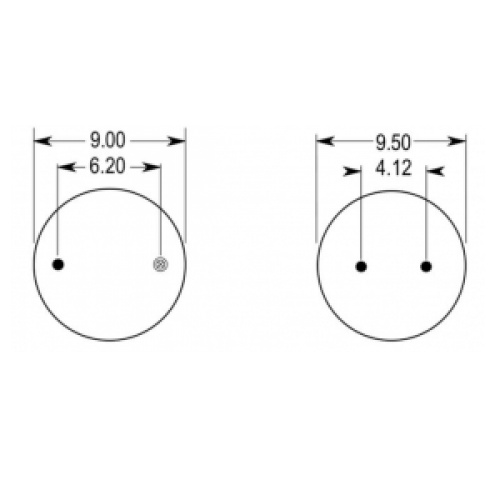

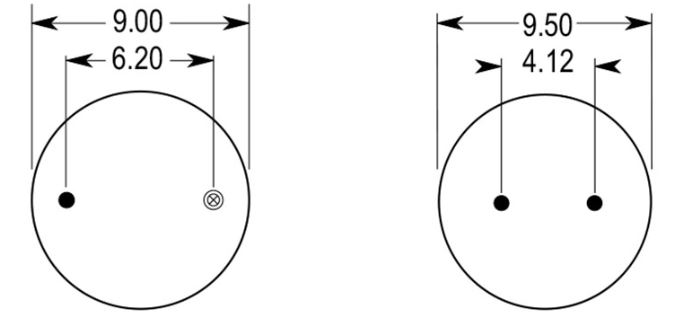

Top Plate Diameter
9.00
Piston Diameter
9.50
Bellows Diameter
9.12
Piston Height
2.80
Piston Material
Composite
Max Extended Height
13.30
Minimum Compressed Height
3.80
Air Inlet Type
Male
Air Inlet Height
2.50
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance between Top Plate Stud and Air Inlet
6.20
Piston Mounting Type
Stud
Piston Stud Quantity
2
Distance Between Bottom Base Studs
4.12
Has Inner Bumper
No
Bellows Number
1T15L1.5
| Kenworth: | K303-6, K303-14, K303-15, K303-19 |
| Firestone: | W01-358-9422 |
| Goodyear: | 1R11-028 |
| Triangle: | 8314, 8537 |
| Contitech: | 99-12P314, 9 9-9 S 537 |
| Navistar: | 554762C1 |
| Hendrickson: | S-13032, 513032, |
| Ridewell: | 1003589422C |
| Watson & Chalin: | AS0017 |
| Dayton: | 352-9422 |
| Neway: | 90557120 |
| Kenworth: | K303-6, K303-14, K303-15, K303-22 |
| Load Guard: | 5C2050 |
| Volvo: | 85101148, 3130496 |
| Alliance: | ABP N32 019622 |
| Extended Height: | 13.30" |
| Compressed Height: | 3.80" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.5 |
| Weight: | 10.00 lbs |
