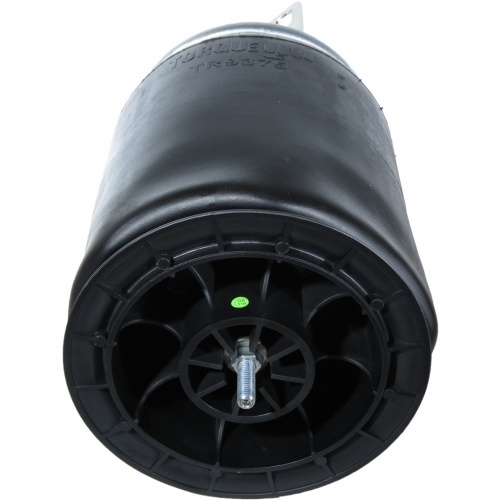

Air Spring for Mack Trucks
TR9373 Mack Air Spring TR9373

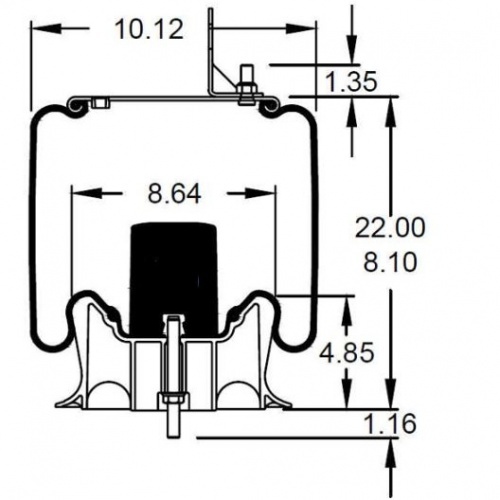

Air Spring Type
Reversible Air Spring

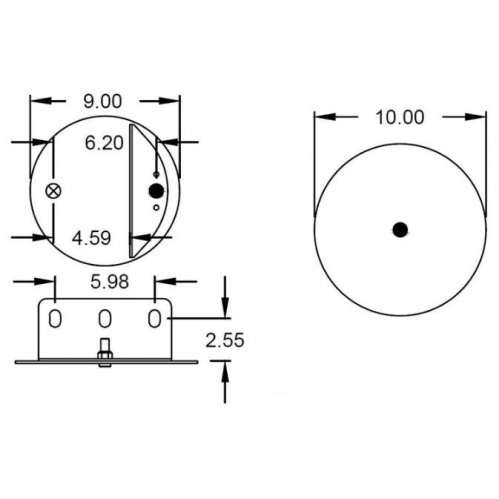

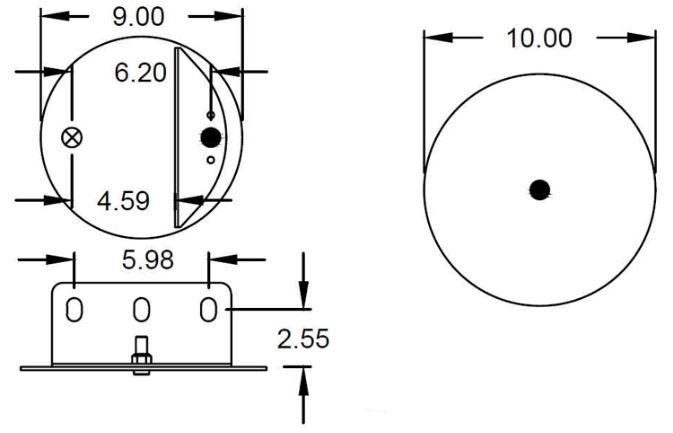

Top Plate Diameter
9.00
Piston Diameter
10.00
Bellows Diameter
10.12
Piston Height
4.85
Piston Material
Composite
Max Extended Height
22.00
Minimum Compressed Height
7.60
Air Inlet Type
Female
Top Plate Mounting Type
Bracket and Air Inlet
Top Plate Threaded Hole Quantity
1
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance Between Bracket Mounting and Air Inlet
6.20
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T15M8
| Mack: | 57QL414M, 3645Q27, 364QS27, 57QL414M, 20755320, 25158024 |
| Firestone: | W01-358-9375 |
| Hendrickson: | 50899-1, 50899-2 |
| Goodyear: | 1R12-404, 1S12-031, 1R12-488, 1S12-030 |
| Triangle: | 8451 |
| Contitech: | 910-18.5P451 |
| Extended Height: | 22.00" |
| Compressed Height: | 8.10" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 16.30 lbs |
