Air Spring for Navistar Trucks
TR9371 Navistar Air Spring TR9371
Air Spring Type
Reversible Air Spring

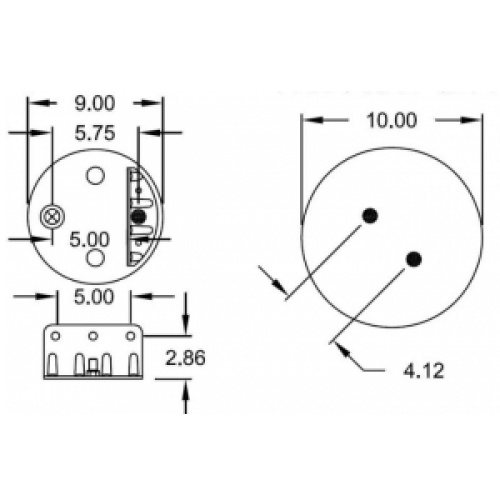

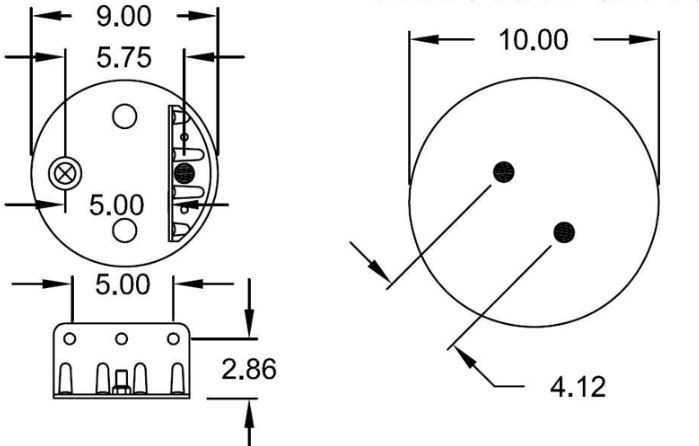

Top Plate Diameter
9.00
Piston Diameter
10.00

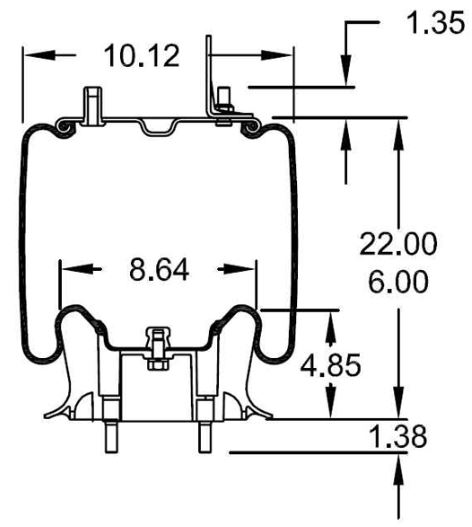

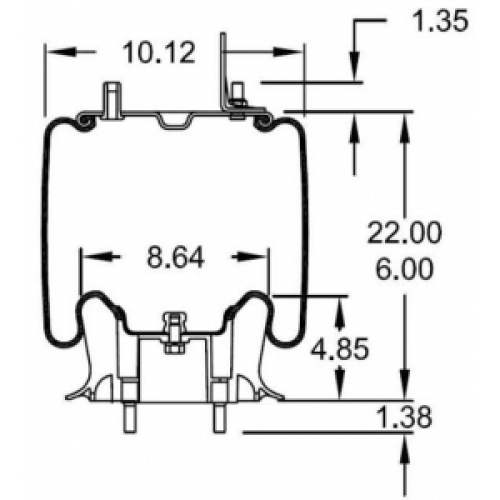

Bellows Diameter
10.12
Piston Height
4.85
Piston Material
Composite
Max Extended Height
22.00
Minimum Compressed Height
6.00
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Bracket and Air Inlet
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance Between Bracket Mounting and Air Inlet
5.75
Piston Mounting Type
Stud
Piston Stud Quantity
2
Distance Between Bottom Base Studs
4.12
Has Inner Bumper
No
Bellows Number
1T15M8
| Navistar: | 1670073C-1, 1686386C-1 |
| Firestone: | W01-358-9371 |
| Goodyear: | 1R12-401, 1S12-244 |
| Triangle: | 8521 |
| Extended Height: | 22.00" |
| Compressed Height: | 6.00" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 18.00 lbs |
