TR9370 Trailer Air Spring

TR9370 Trailer Air Spring TR9370

Air Spring Type Reversible Air Spring

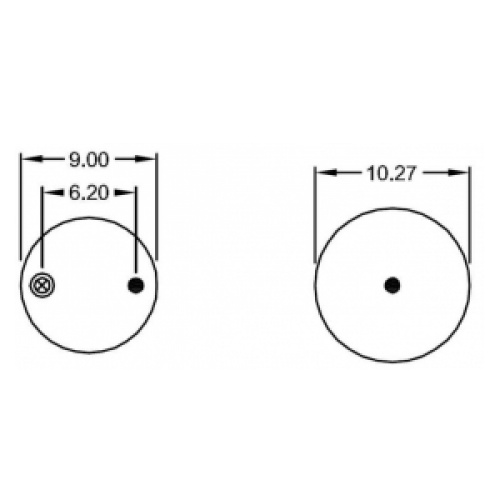

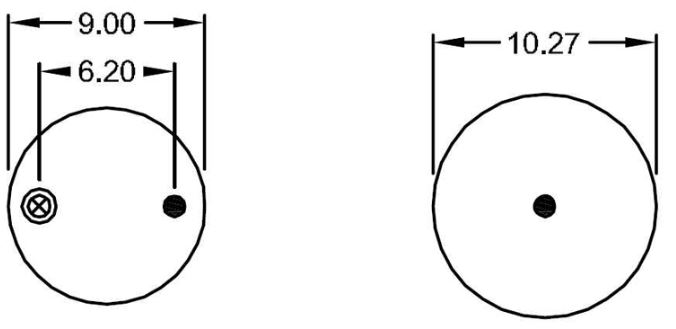

Top Plate Diameter 9.00
Piston Diameter 10.27
Bellows Diameter 10.12
Piston Height 7.57
Piston Material Composite

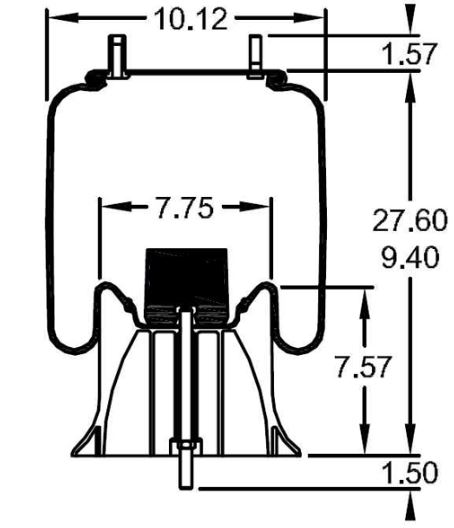

Max Extended Height 27.60
Minimum Compressed Height 9.40
Air Inlet Type Male
Air Inlet Height 1.57
Top Plate Mounting Type Air Inlet and Stud
Stud Quantity on Top Plate 1
Top Plate Stud Height 1.57
Distance between Top Plate Stud and Air Inlet 6.20
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper Yes
Bellows Number 1T15M11

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Trailer Air Spring
Watson & Chalin:  AS-0057
Firestone:  W01-358-9370
Goodyear:  1R12-440, 1R12-503, 1R12-580
Triangle:  8448
Contitech:  910-21P448
Extended Height:  27.60"
Compressed Height:  9.40"
Top Plate Width:  9.00"
Piston Width:  10.27"
Weight:  16.80 lbs
