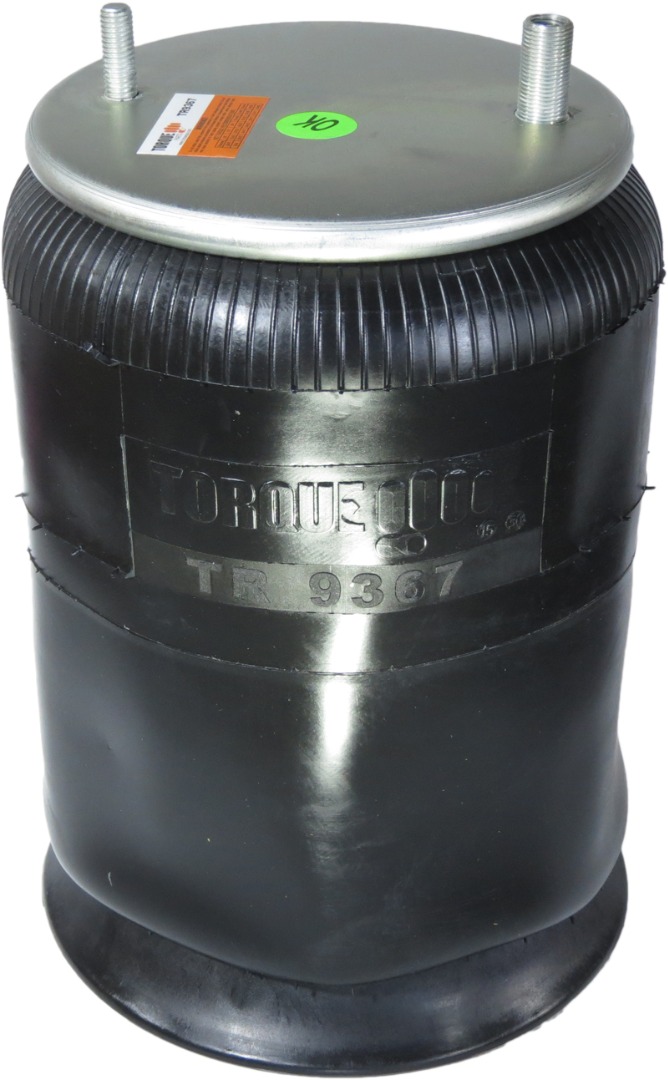

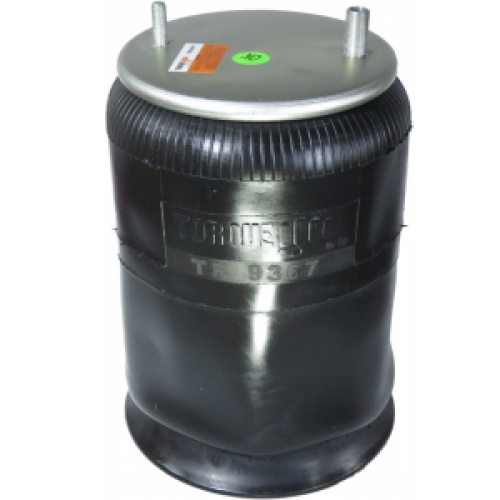

TR9367 Trailer Air Spring

TR9367 Trailer Air Spring TR9367

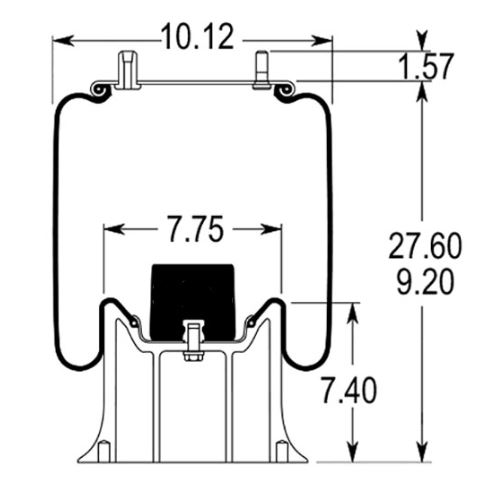

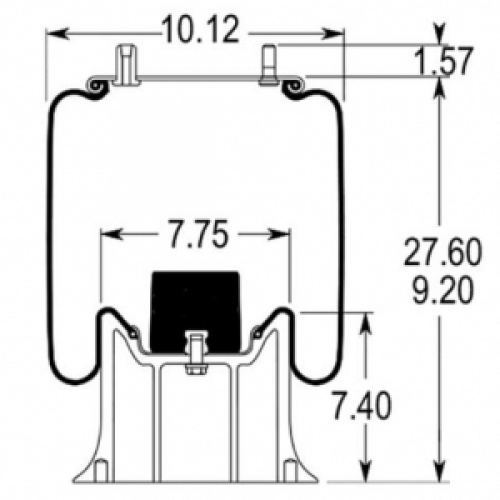

Air Spring Type Reversible Air Spring
Top Plate Diameter 9.00
Piston Diameter 10.25
Bellows Diameter 10.12
Piston Height 7.40
Piston Material Aluminum
Max Extended Height 27.60
Minimum Compressed Height 9.20
Air Inlet Type Male
Air Inlet Height 1.57

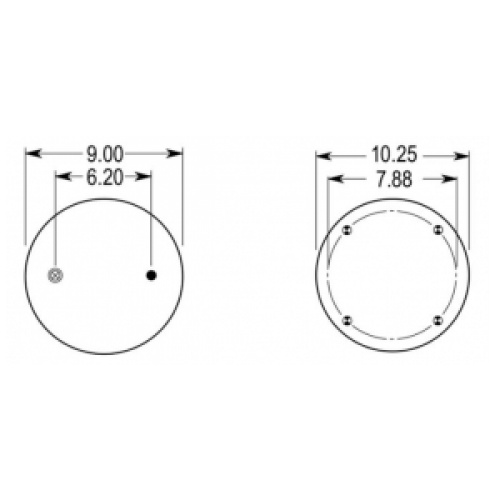

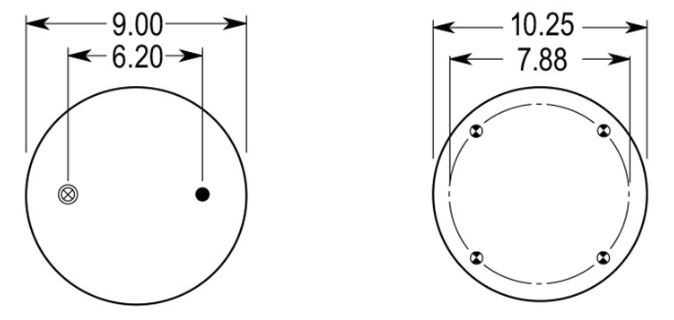

Top Plate Mounting Type Air Inlet and Stud
Stud Quantity on Top Plate 1
Top Plate Stud Height 1.57
Distance between Top Plate Stud and Air Inlet 6.20

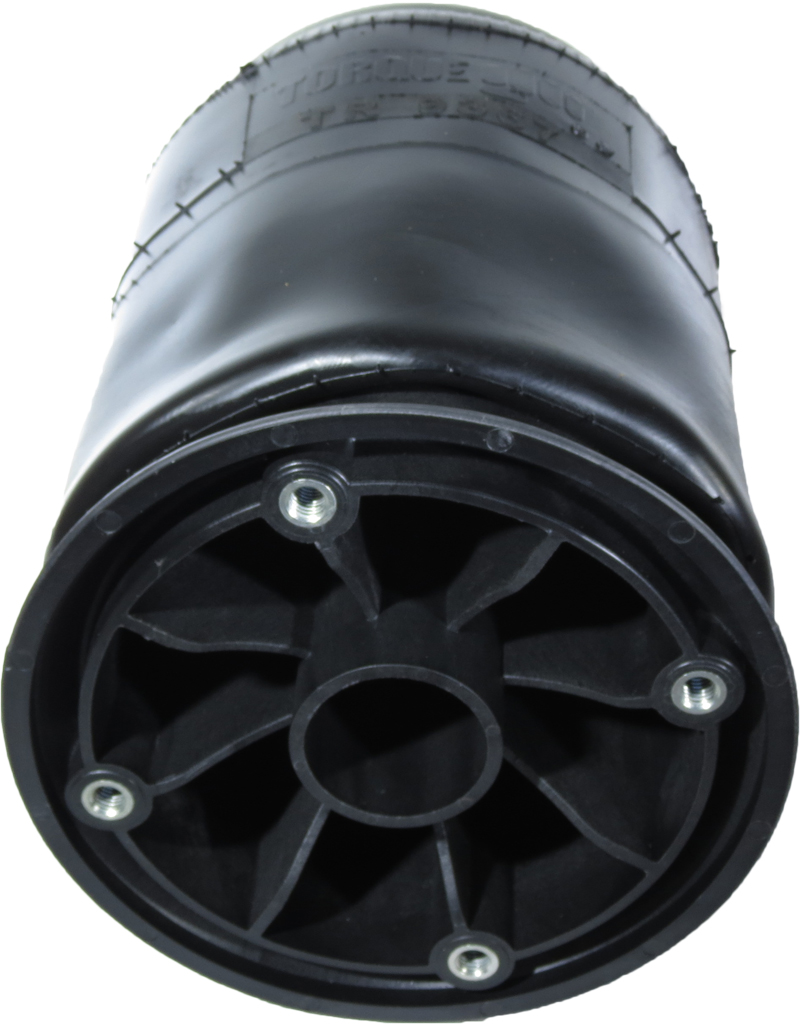

Piston Mounting Type Threaded Hole
Piston Threaded Hole Quantity 4
Distance Between Piston Threaded Holes 7.88
Has Inner Bumper Yes
Bellows Number 1T15M11

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Trailer Air Spring
Hendrickson:   S-14249, B-14249
Firestone:  W01-358-9367
Goodyear:  1R12-283, 1R12-256
Triangle:  8505
Contitech:  910-21P505
Watson and Chalin:  AS-0104, AS-0137
Extended Height:  27.60"
Compressed Height:  6.20"
Top Plate Width:  9.00"
Piston Width:  10.25"
Weight:  16.80 lbs
