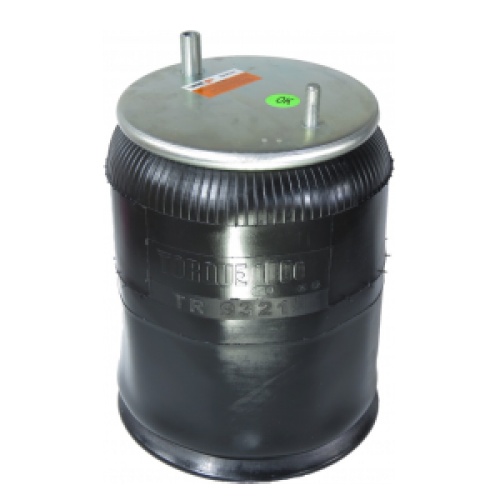

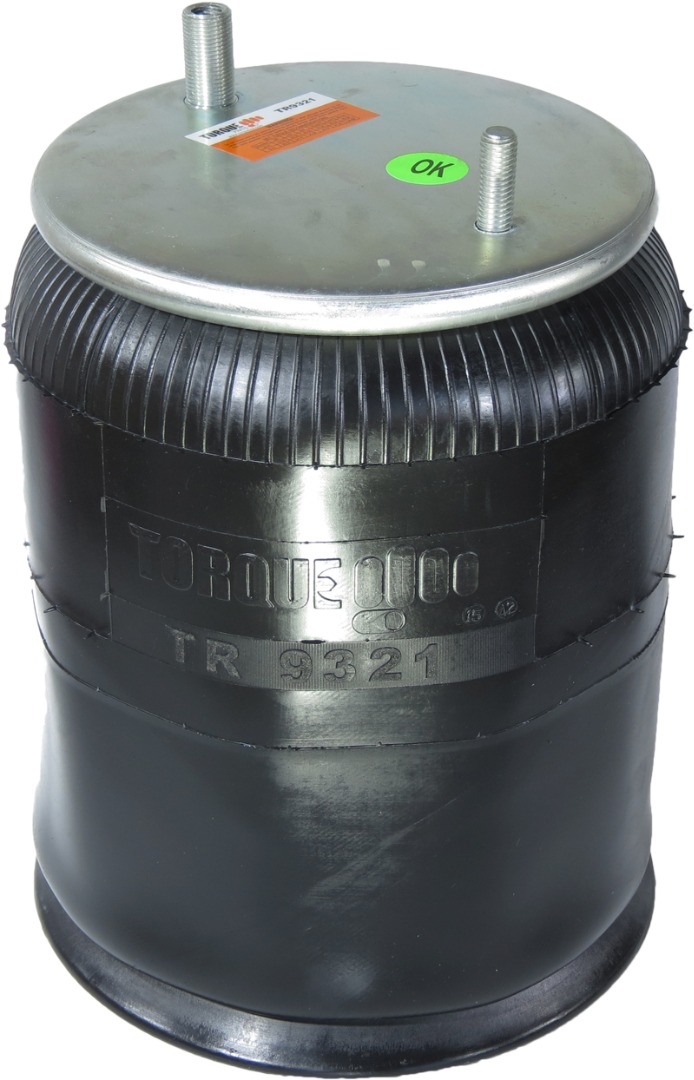

Trailer Air Spring
TR9321 Trailer Air Spring TR9321
Air Spring Type
Reversible Air Spring

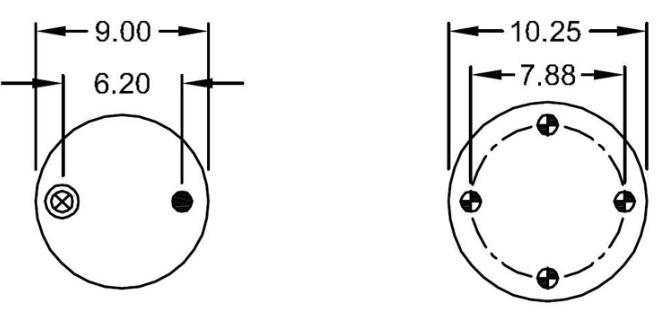

Top Plate Diameter
9.00
Piston Diameter
10.25

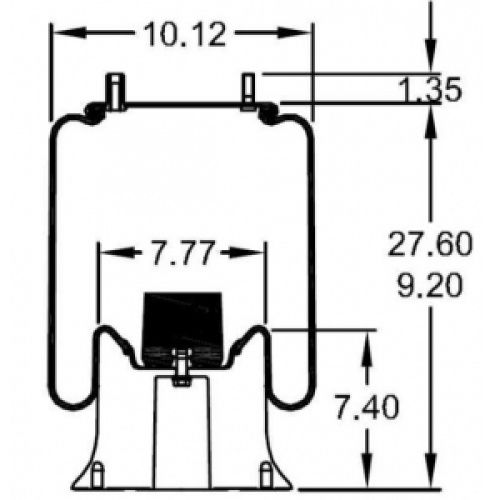

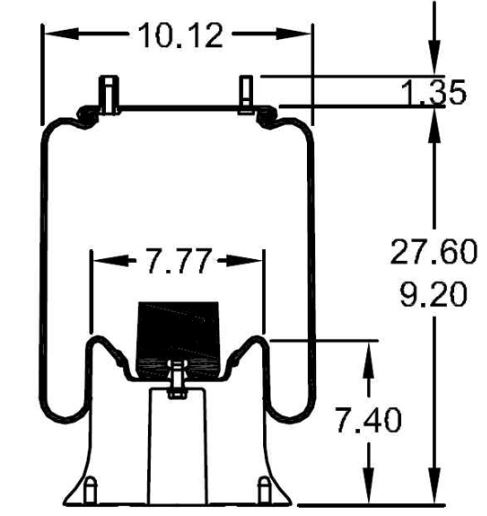

Bellows Diameter
10.12
Piston Height
7.40
Piston Material
Aluminum
Max Extended Height
27.60
Minimum Compressed Height
9.20
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance between Top Plate Stud and Air Inlet
6.20

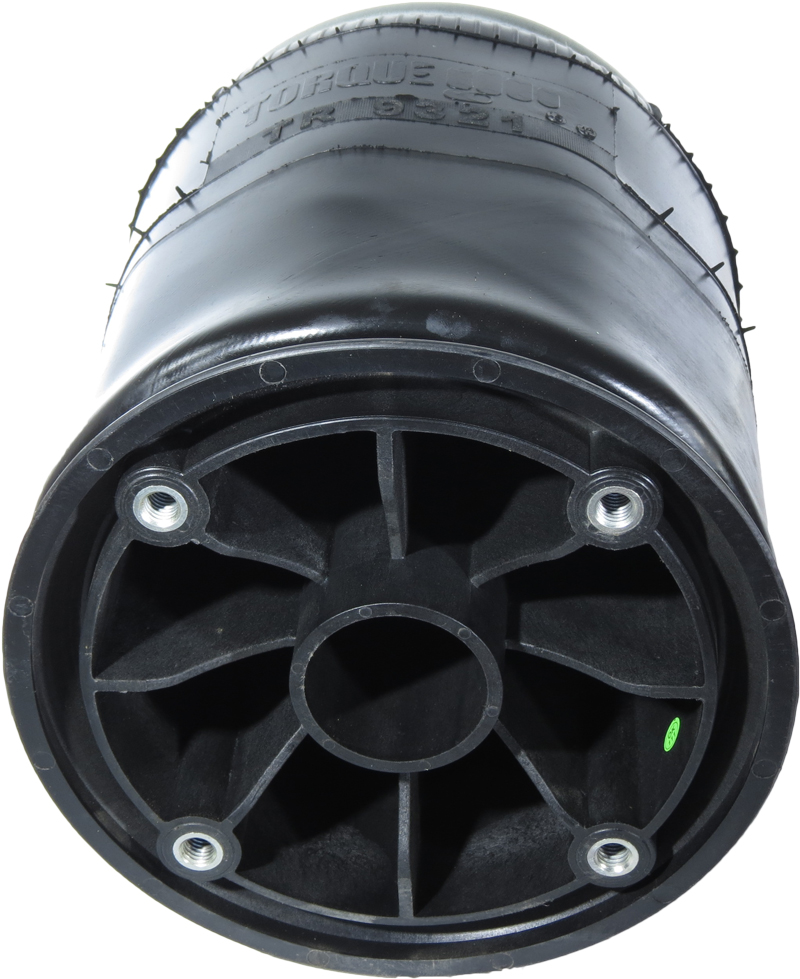

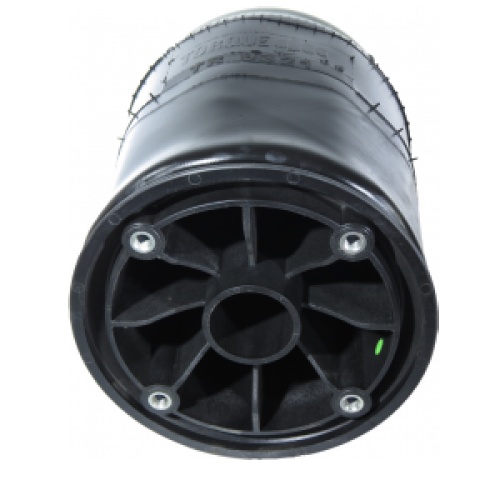

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
7.88
Has Inner Bumper
Yes
Bellows Number
1T15M11
| Watson & Chalin: | AS-0036 |
| Firestone: | W01-358-9321 |
| Goodyear: | 1R12-256, 1R12-335 |
| Triangle: | 8361 |
| Contitech: | 910-21A361, 910-21P361 |
| Hendrickson: | NS501304 |
| Extended Height: | 27.60" |
| Compressed Height: | 9.20" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.25" |
| Weight: | 14.70 lbs |
