Trailer Air Spring

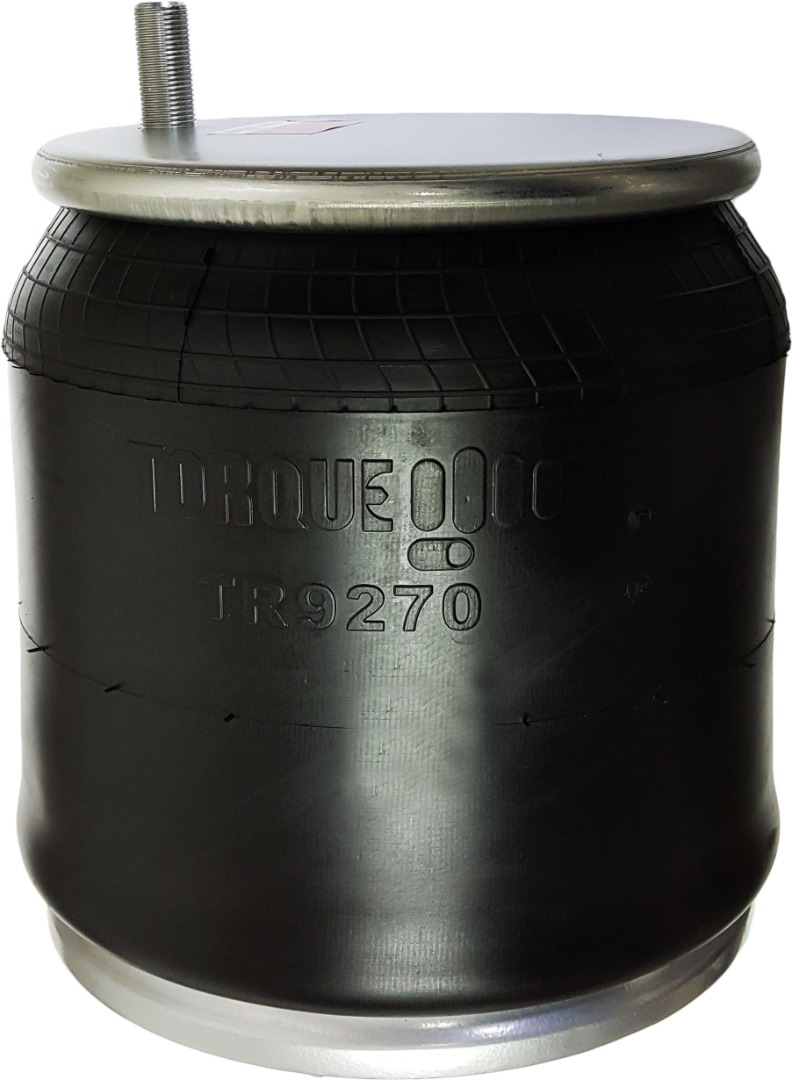

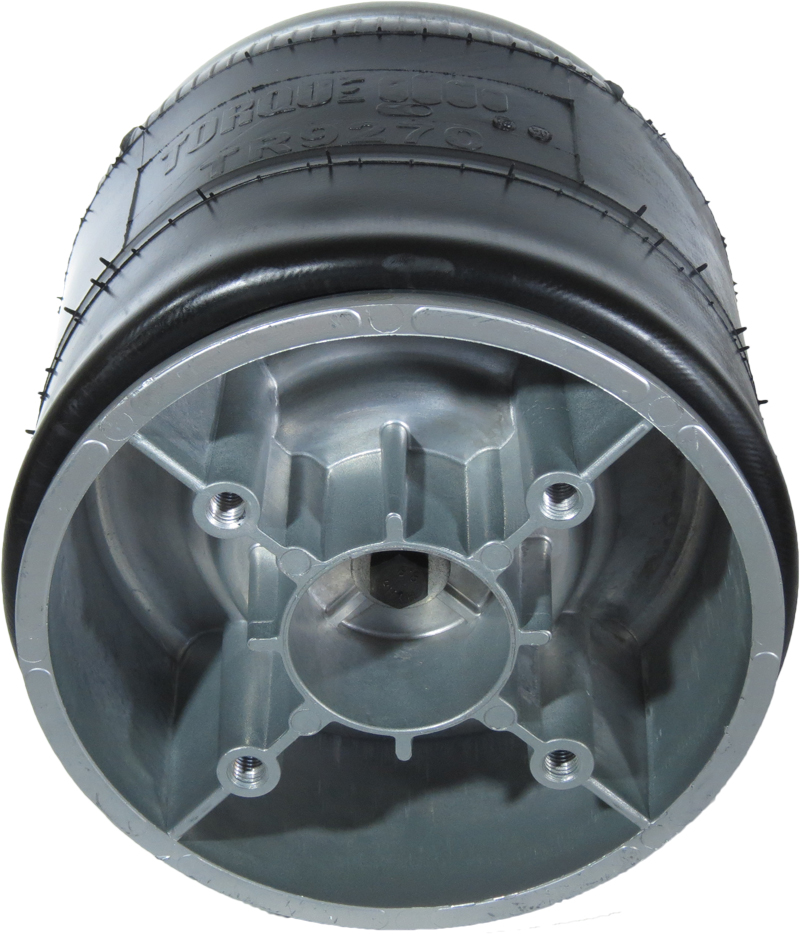

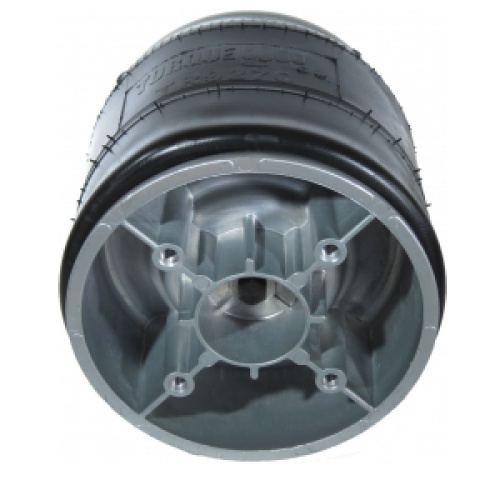

TR9270 Trailer Air Spring TR9270
Air Spring Type
Reversible Air Spring

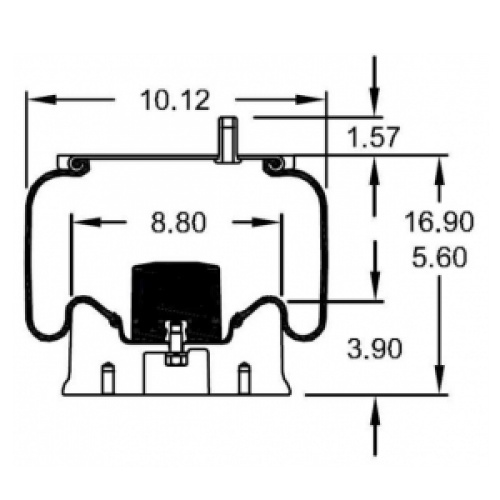

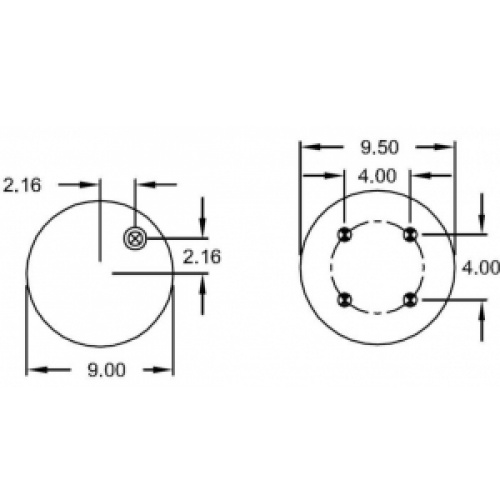

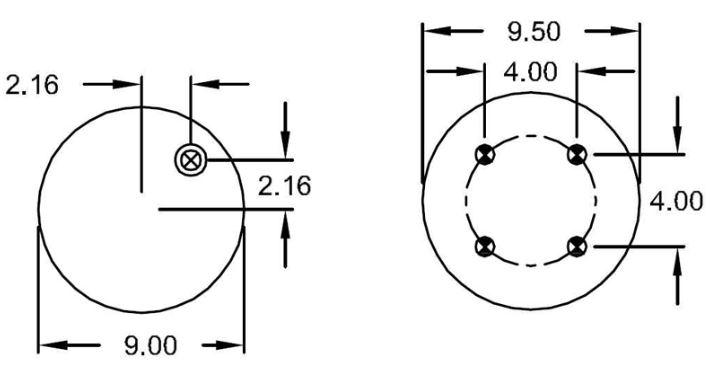

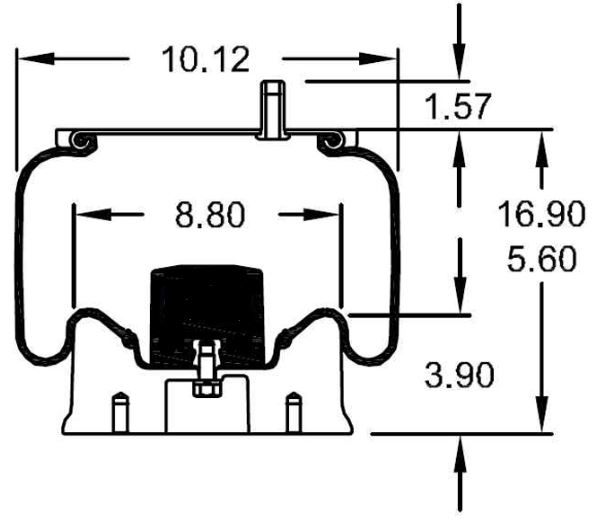

Top Plate Diameter
9.00
Piston Diameter
9.50
Bellows Diameter
10.12
Piston Height
3.90
Piston Material
Aluminum
Max Extended Height
16.90
Minimum Compressed Height
5.60
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
4.00
Has Inner Bumper
Yes
Bellows Number
1T15VP4
| Firestone: | W01-358-9270 |
| Hendrickson: | S-20010, S-21208, S-25559, C-25559, 520010, 521208, 525559 |
| Triangle: | 8433 |
| Contitech: | 910-13.5S433 |
| Goodyear: | 1R13-119, 1R13-077, 1R13-102 |
| Ridewell: | 1003589270C |
| Watson and Chalin: | AS0084 |
| Dayton: | 352-9270 |
| Alliance: | ABP N32 019270 |
| Extended Height: | 16.90" |
| Compressed Height: | 5.60" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.50" |
| Weight: | 14.40 lbsa |
