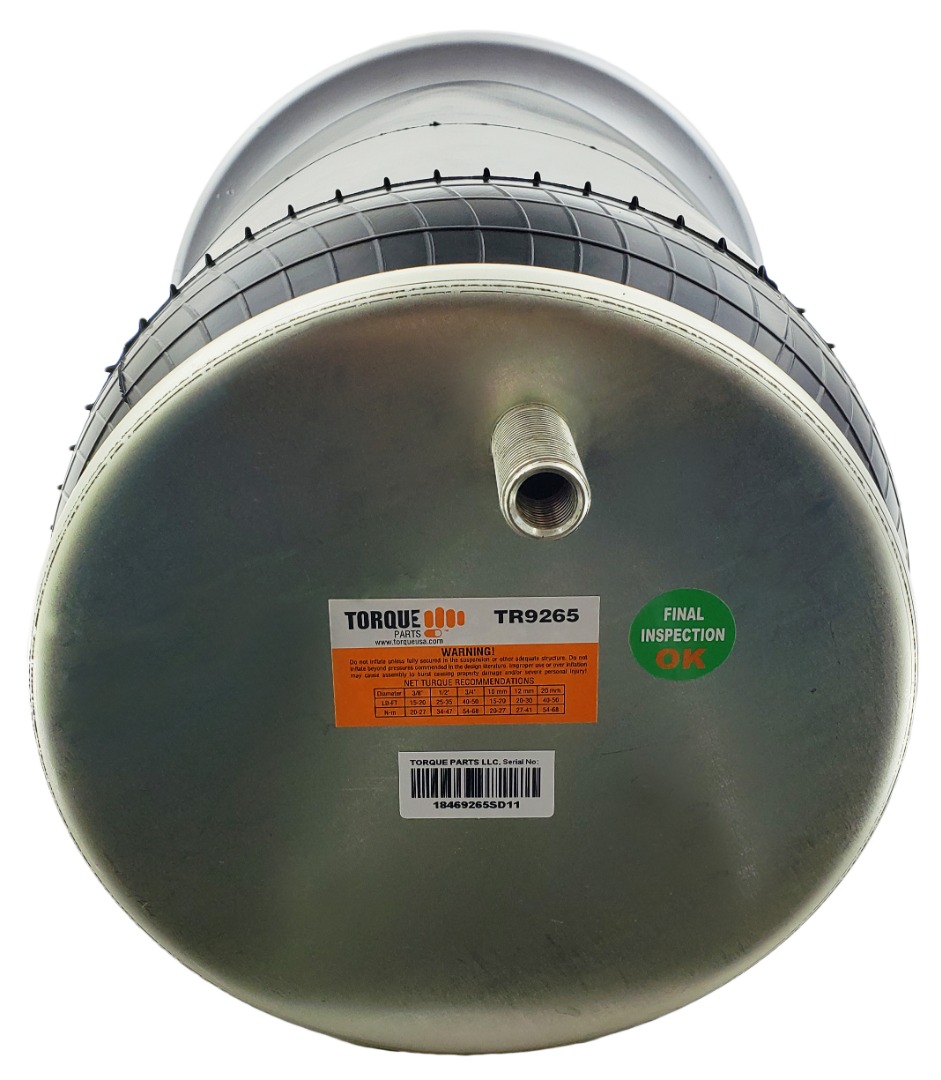

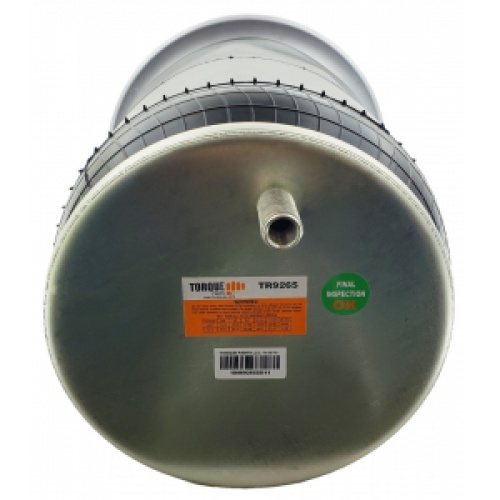

Trailer Air Spring
TR9265 Trailer Air Spring TR9265
Air Spring Type
Reversible Air Spring

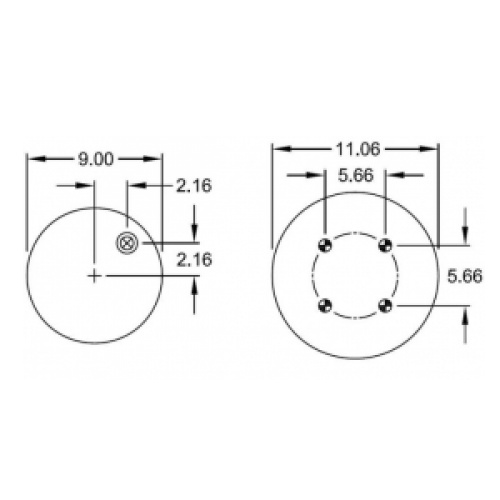

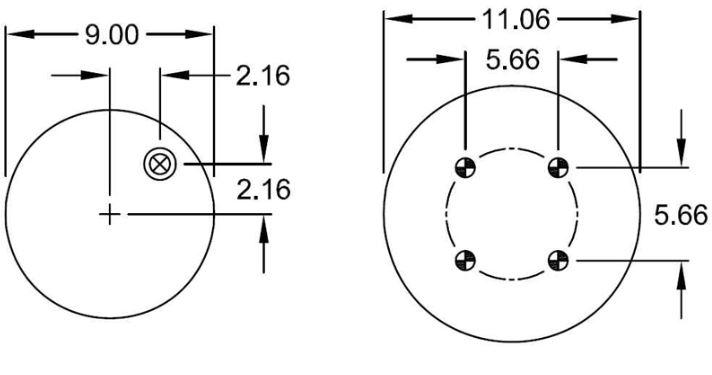

Top Plate Diameter
9.00
Piston Diameter
11.06

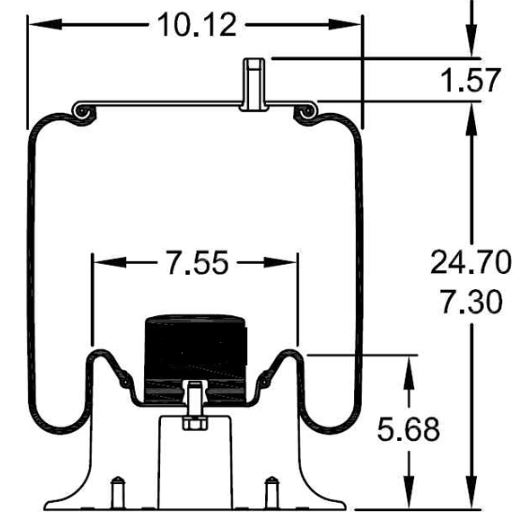

Bellows Diameter
10.12
Piston Height
5.68
Piston Material
Aluminum
Max Extended Height
24.70
Minimum Compressed Height
7.30
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet

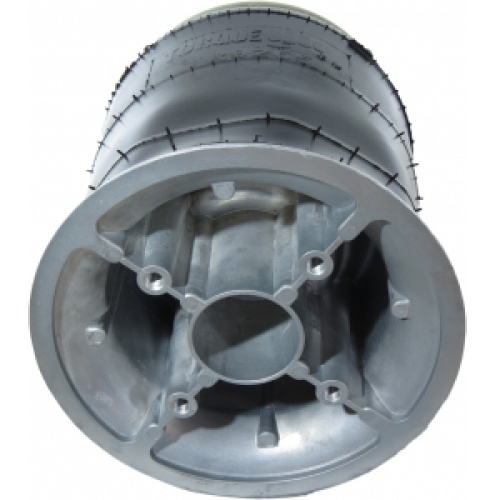

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
4.00
Has Inner Bumper
Yes
Bellows Number
1T15MM9
| Firestone: | W01-358-9265 |
| Hendrickson: | S-20124, S-20413, C-20413, C-20124, 520124, 520413, 5C2134 |
| Goodyear: | 1R12-375 |
| Triangle: | 8435 |
| Contitech: | 910-19 P 435 |
| Dayton: | 352-9265 |
| Volvo: | 85101155 |
| Load Guard: | 5C2759 |
| Alliance: | ABP N32 019265 |
| Extended Height: | 24.70" |
| Compressed Height: | 7.30" |
| Top Plate Width: | 9.00" |
| Piston Width: | 11.06" |
| Weight: | 16.90 lbs |
