Air Spring for Volvo Trucks

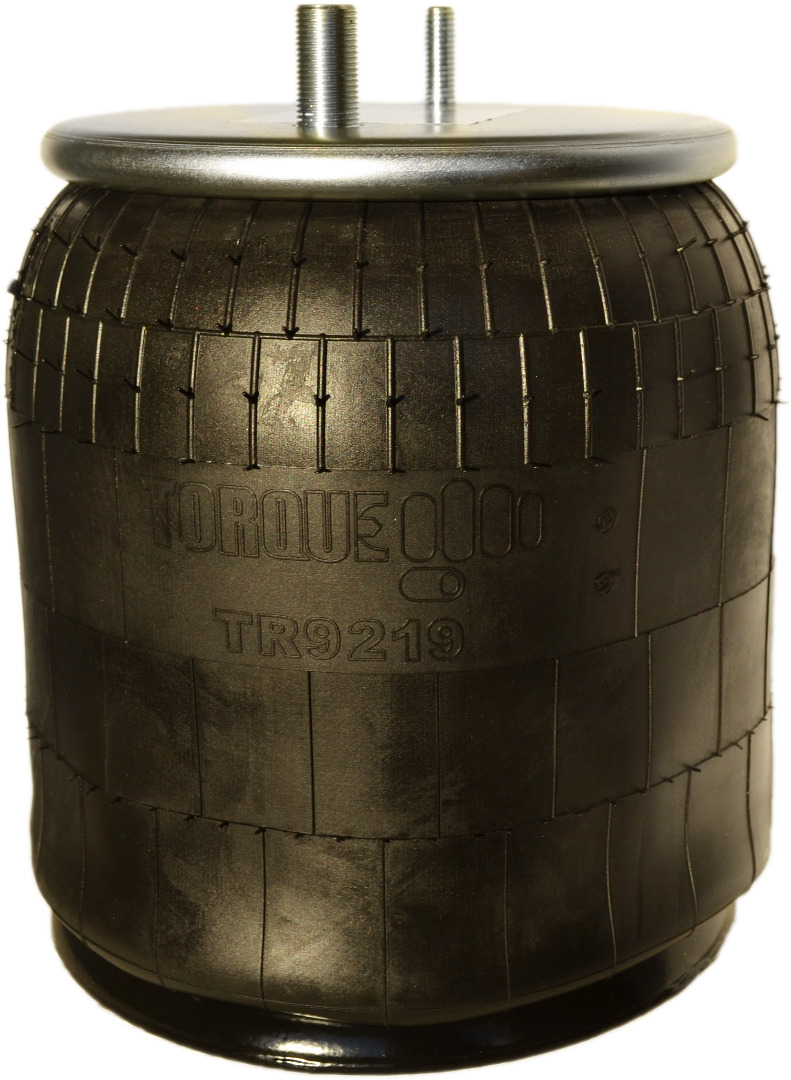

TR9219 Volvo Air Spring TR9219
Air Spring Type
Reversible Air Spring

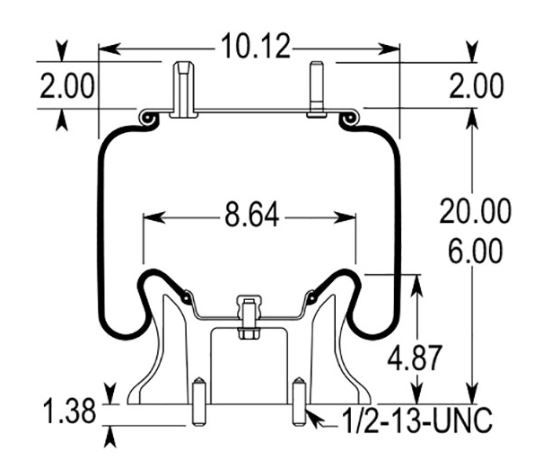

Top Plate Diameter
9.00
Piston Diameter
10.00
Bellows Diameter
10.12
Piston Height
4.87
Piston Material
Composite
Max Extended Height
20.00
Minimum Compressed Height
6.00
Air Inlet Type
Male
Air Inlet Height
2.00
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
2.00

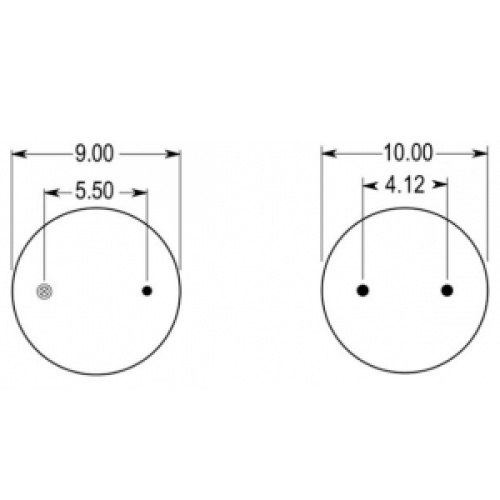

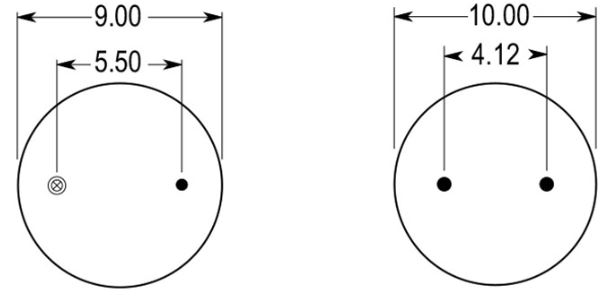

Distance between Top Plate Stud and Air Inlet
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
2
Distance Between Bottom Base Studs
4.12
Has Inner Bumper
No
Bellows Number
1T15M6
| Volvo: | 35003-3201 / 35003-3203 / 35003-3204 / 35003-3209 |
| Goodyear: | 1R12-182 |
| Triangle: | 8408 |
| Firestone: | W01-358-9219 |
| Extended Height: | 20.00" |
| Compressed Height: | 6.00" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 14 lbs |
