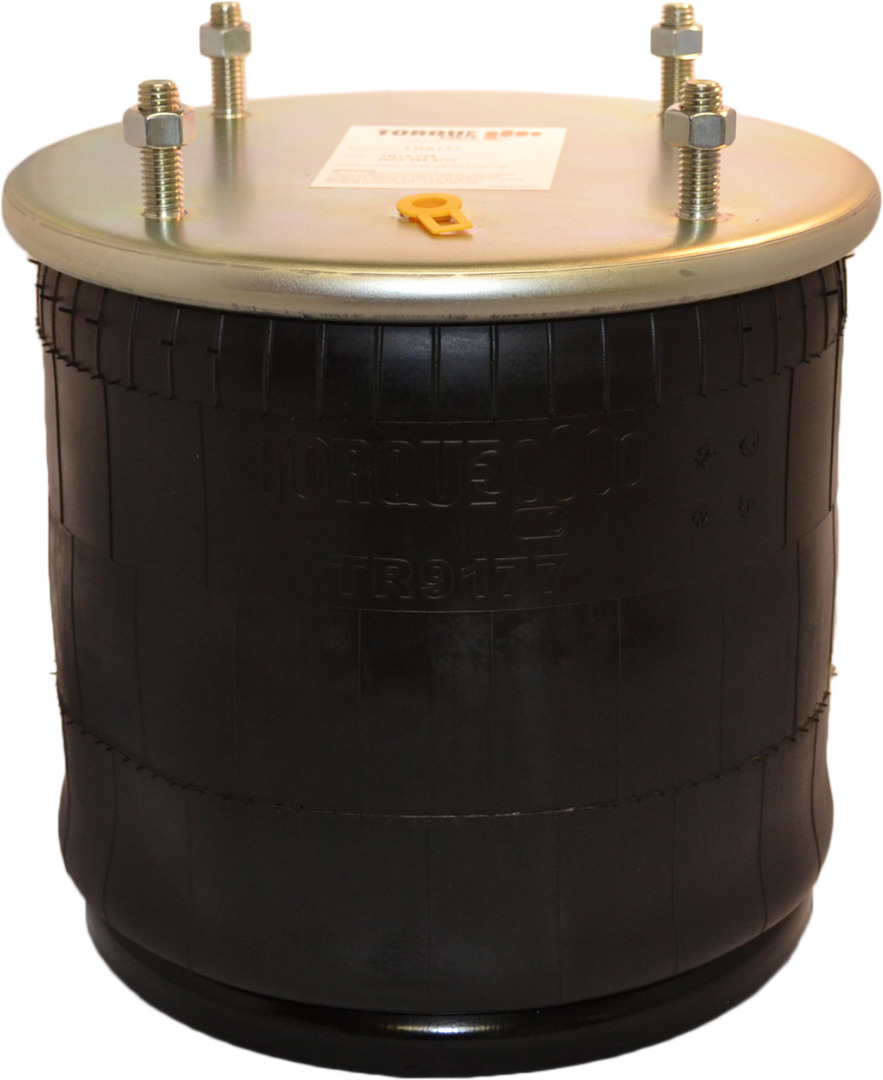

Trailer Air Spring
TR9177 Air Spring TR9177
Air Spring Type
Reversible Air Spring

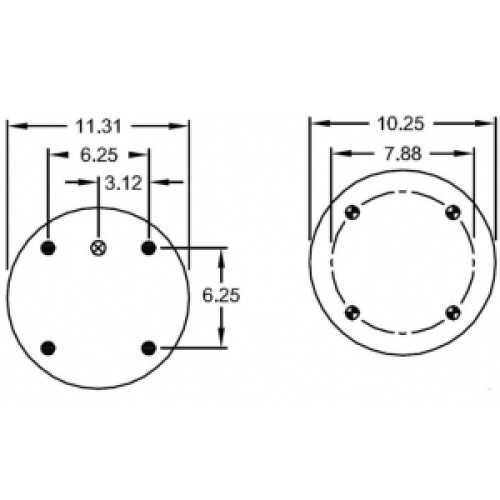

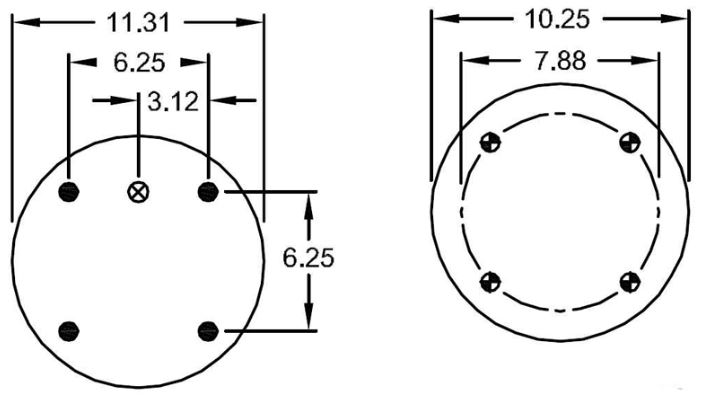

Top Plate Diameter
11.31
Piston Diameter
10.25

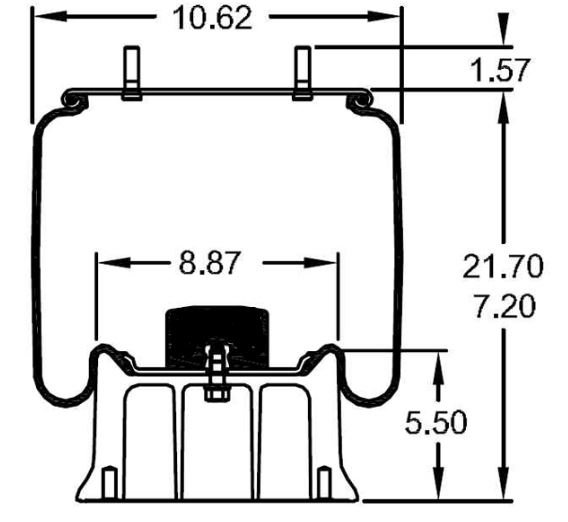

Bellows Diameter
10.62
Piston Height
5.50
Piston Material
Aluminum
Max Extended Height
21.70
Minimum Compressed Height
7.20
Air Inlet Type
Female
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
4
Top Plate Stud Height
1.57
Distance Between Top Plate Studs
6.25
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
7.88
Has Inner Bumper
Yes
Bellows Number
1T19L7
| Hendrickson: | S-2065 |
| Holland (Neway): | 905-57-003 |
| Ridewell: | 1003589177C |
| Triangle: | 8316 |
| Firestone: | W01-358-9177 |
| Goodyear: | 1R14-028 / 1R14-029 |
| R & S Truck & Body: | 1090216 |
| Extended Height: | 21.70" |
| Compressed Height: | 7.20" |
| Top Plate Width: | 11.31" |
| Piston Width: | 10.2" |
| Weight: | 22 lbs |
