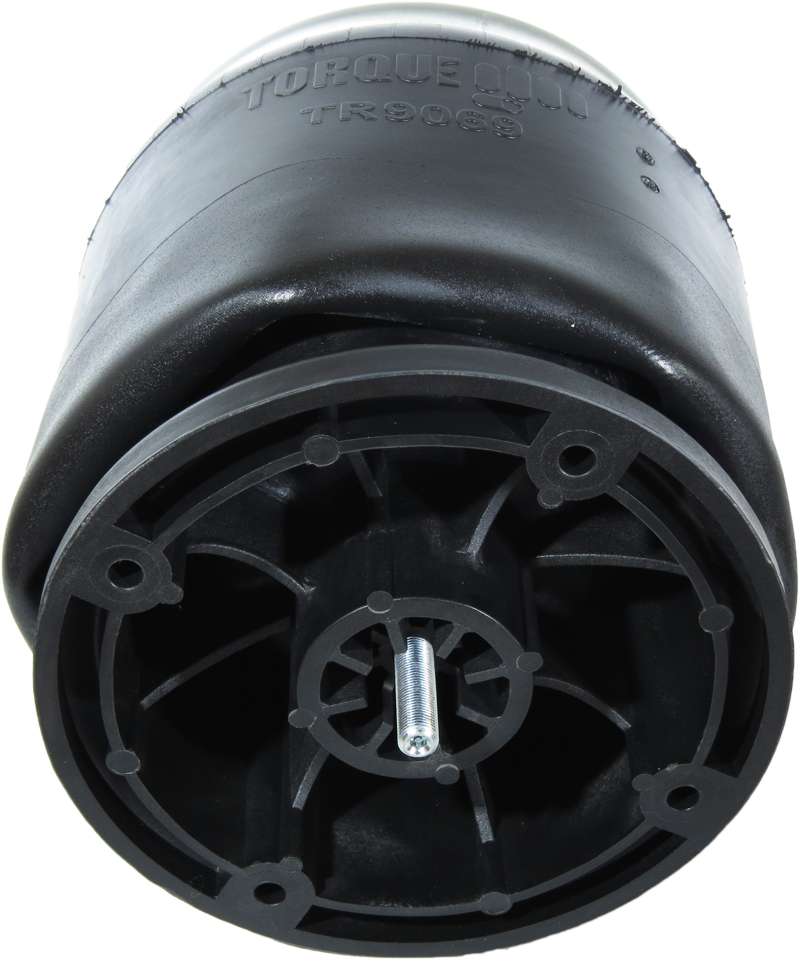

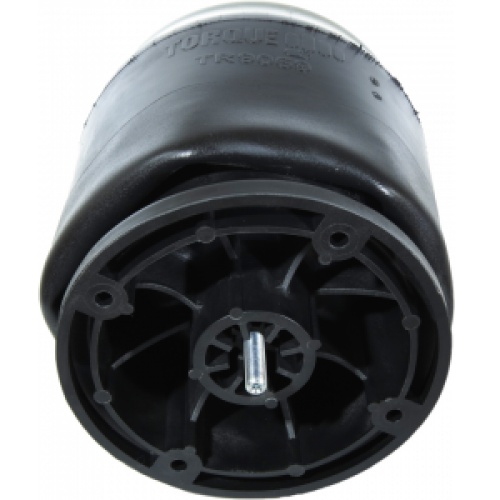

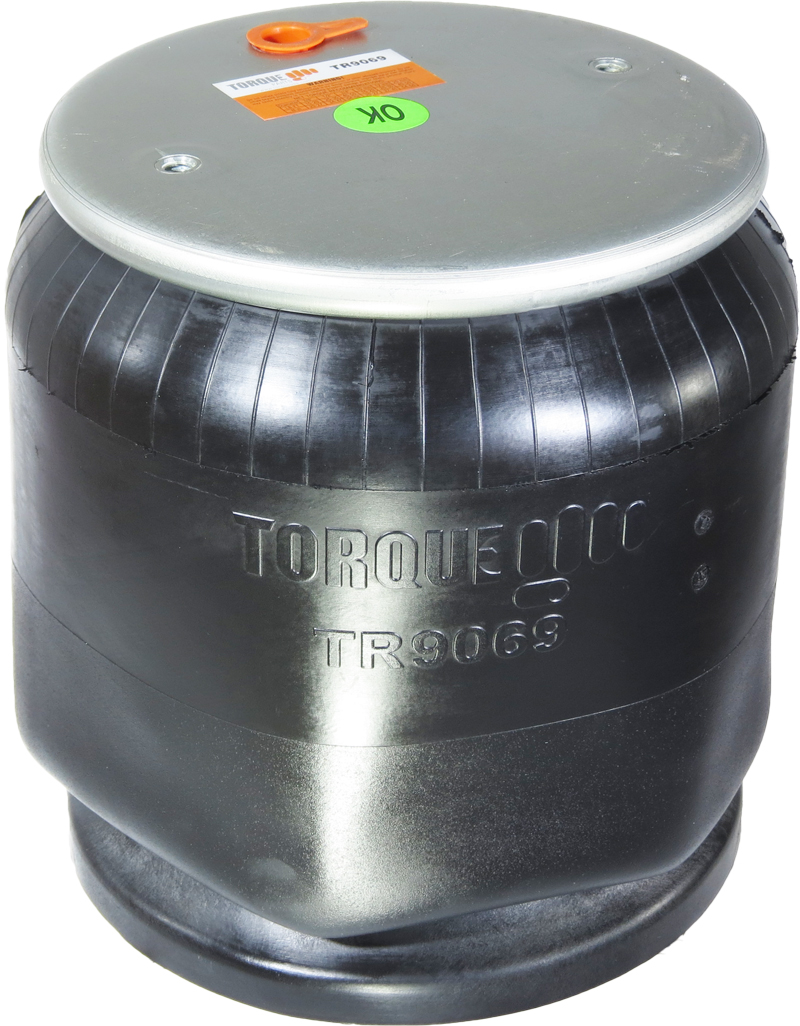

Air Spring for Peterbilt
TR9069 Peterbilt Air Spring TR9069
Air Spring Type
Reversible Air Spring
Top Plate Diameter
9.00
Piston Diameter
9.55
Bellows Diameter
10.12
Piston Height
4.76
Piston Material
Composite

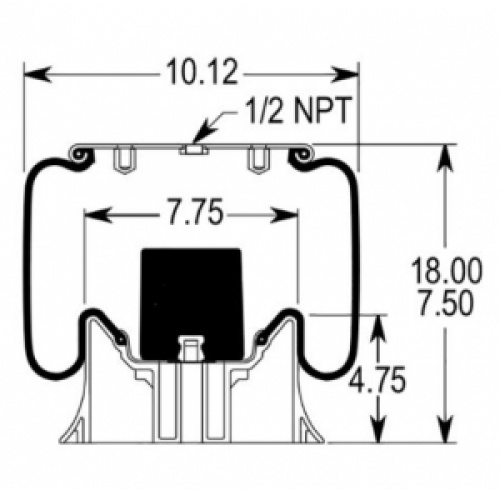

Max Extended Height
18.00
Minimum Compressed Height
7.50
Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
2

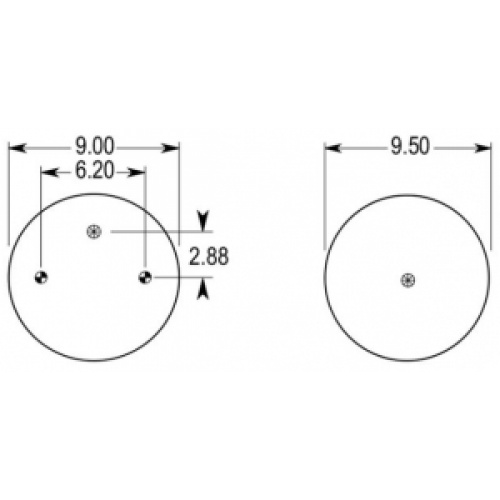

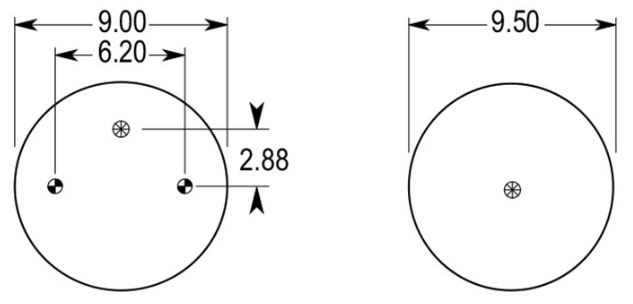

Distance Between Top Plate Threaded Holes
6.20
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T15M4
| Firestone: | W01-358-9069, W01-358-8813 |
| Goodyear: | 1R12-069 |
| Peterbilt: | 02456, 04759, 06746, 03-01649, 03-02038, 03-02456, 03-04759, 03-06746, 03-07112 |
| Triangle: | 8312 |
| Contitech: | 910-14 P 312 |
| Dayton: | 352-9069 |
| Neway: | 57009069 |
| Hendrickson: | 513031 |
| Load Guard: | 5C2034 |
| Volvo: | 85101145 |
| Watson & Chalin: | AS-0077 |
| Navistar: | 554764Cl |
| Alliance: | ABP N32 019069 |
| Extended Height: | 18.00" |
| Compressed Height: | 7.50" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.50" |
| Weight: | 13.4 lbs |
