Air Spring for Hendrickson

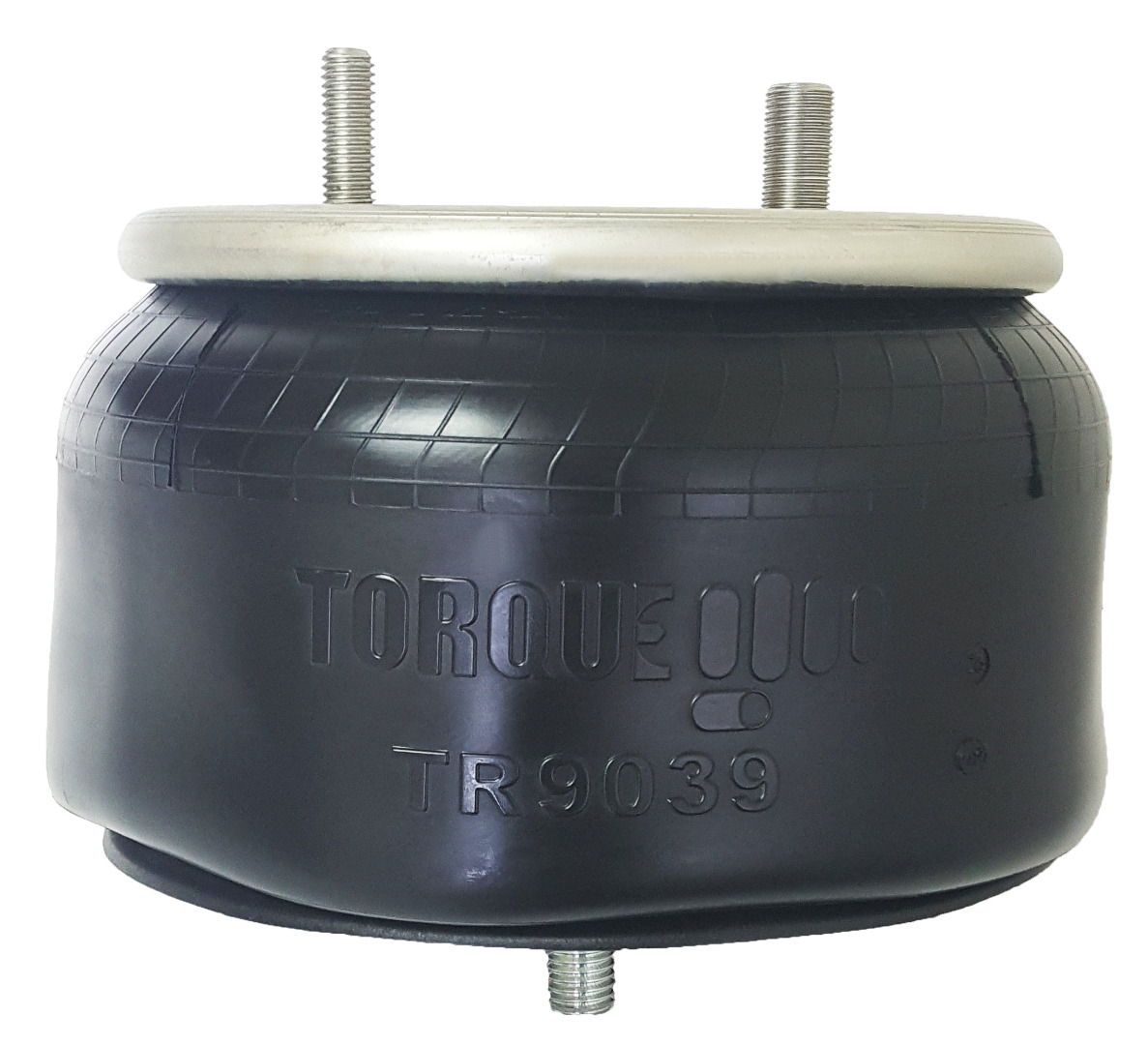

TR9039 Trailer Air Spring TR9039
Air Spring Type
Reversible Air Spring

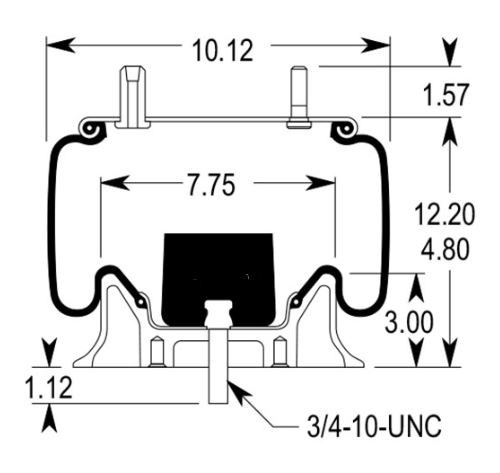

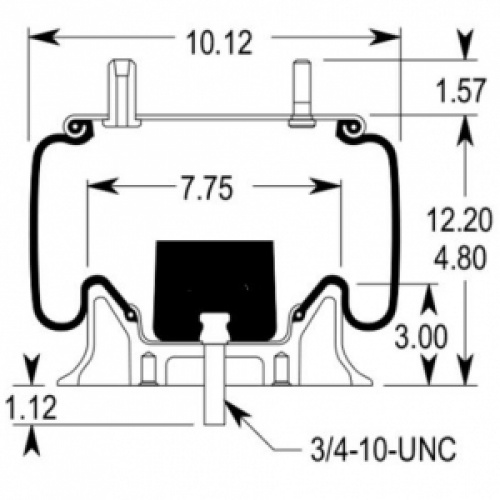

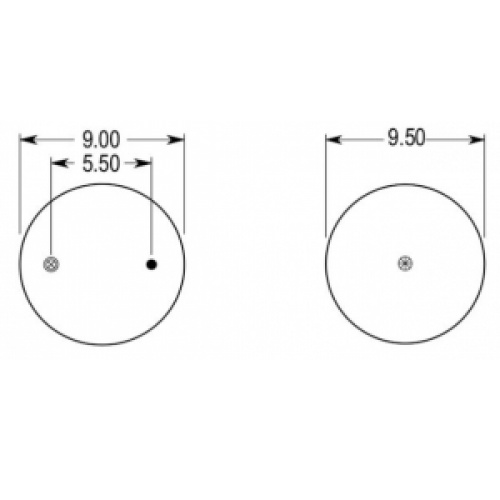

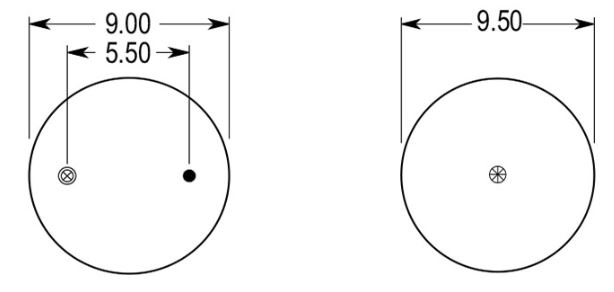

Top Plate Diameter
9.00
Piston Diameter
9.50
Bellows Diameter
10.12
Piston Height
3.00
Piston Material
Aluminum
Max Extended Height
12.20
Minimum Compressed Height
4.80
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Distance between Top Plate Stud and Air Inlet
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T15M0
| Firestone: | W01-358-9039 |
| Goodyear: | 1R12-095 |
| Hendrickson: | S-2064, S-11650 |
| Holland (Neway): | 905-57-011, 905-57-023, 905-57-085 |
| Triangle: | 8311 |
| Watson & Chalin: | AS-0012 |
| Extended Height: | 21.70" |
| Compressed Height: | 7.30" |
| Top Plate Width: | 9.00" |
| Piston Width: | 11.06" |
| Weigth: | 11.7 lbs |
