Air Spring for Peterbilt

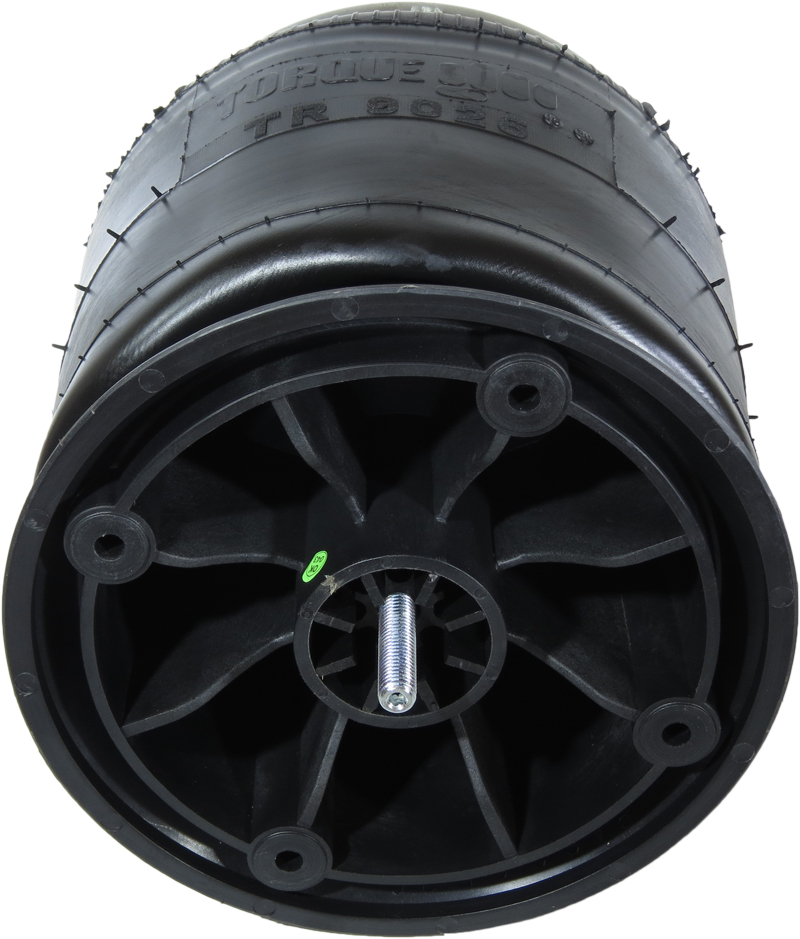

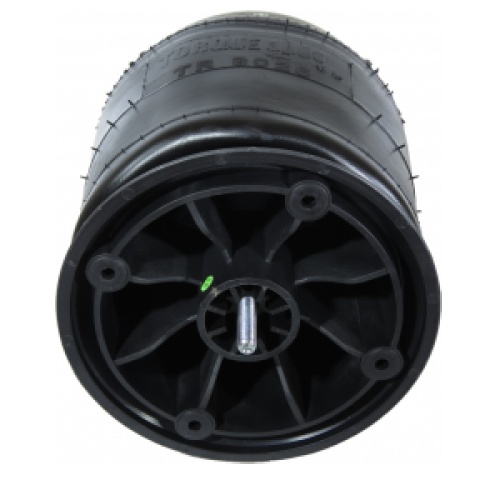

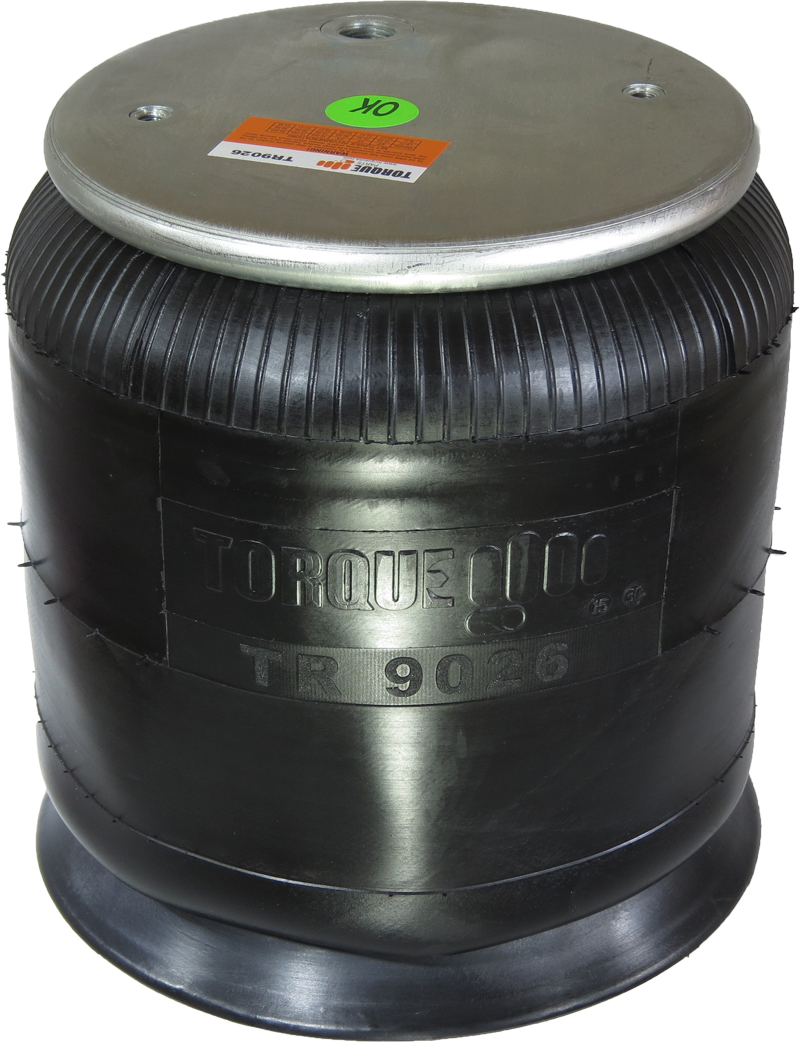

TR9026 Peterbilt Air Spring TR9026
Air Spring Type
Reversible Air Spring

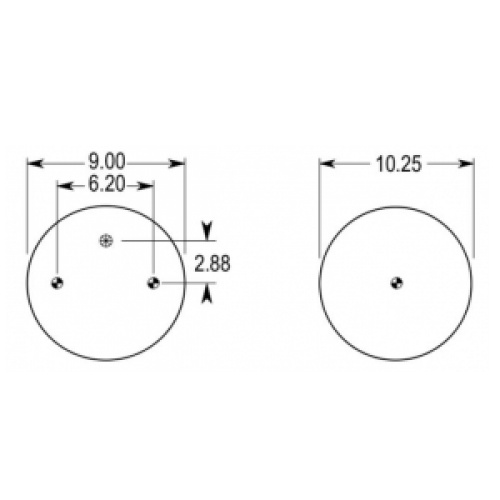

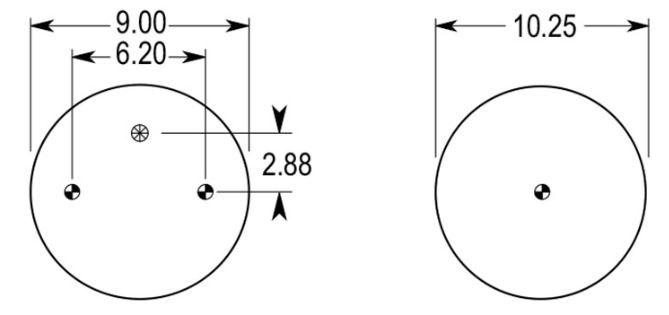

Top Plate Diameter
9.00
Piston Diameter
10.25

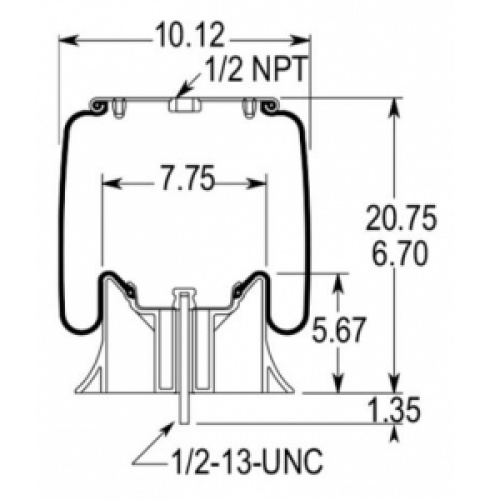

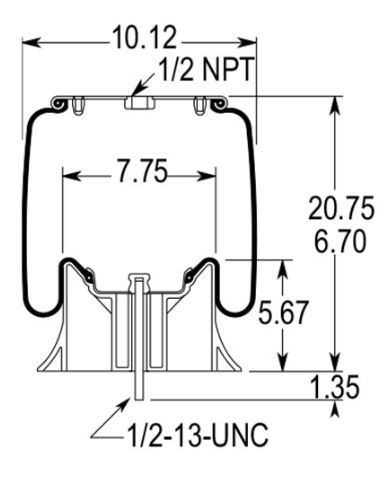

Bellows Diameter
10.12
Piston Height
5.69
Piston Material
Composite
Max Extended Height
20.75
Minimum Compressed Height
6.70
Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
2
Distance Between Top Plate Threaded Holes
6.20
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
1T15M6
| Firestone: | W01-358-9026 |
| Goodyear: | 1R12-567, 1R12-907 |
| Contitech: | 9 10-16 P 393 |
| Peterbilt: | 03-06213, 03-07111 (Low Air Leaf) |
| Extended Height: | 20.60" |
| Compressed Height: | 6.70" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.25" |
| Weight: | 11.7 lbs |
