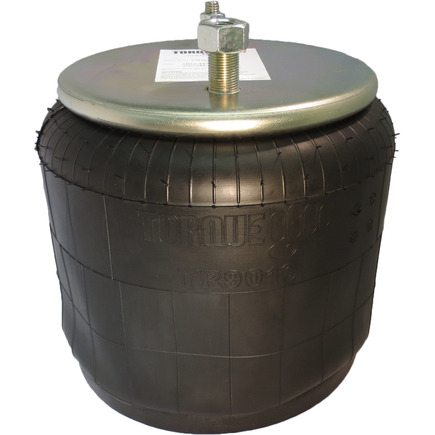

Replacement Trailer Air Spring
TR9010 TR9010
Air Spring Type
Reversible Air Spring
Top Plate Diameter
9.00
Piston Diameter
9.50
Bellows Diameter
10.12
Piston Height
4.75
Piston Material
Aluminum
Max Extended Height
18.00
Minimum Compressed Height
7.10
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Distance between Top Plate Stud and Air Inlet
5.50
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
7.88
Has Inner Bumper
Yes
Bellows Number
1T15M4
| Hendrickson: | S-2827, S-11566, B-2827, B-11566 |
| Watson & Chalin: | AS-0044 |
| Ridewell: | 1003589010C |
| Reyco: | 12928-01 |
| Triangle: | 8345 |
| Firestone: | W01-358-9010 |
| Goodyear: | 1R12-352 |
| Contitech: | 910-14P345 |
| Extended Height: | 18.00" |
| Compressed Height: | 7.10" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.50" |
| Weight: | 16.00 lbs |
