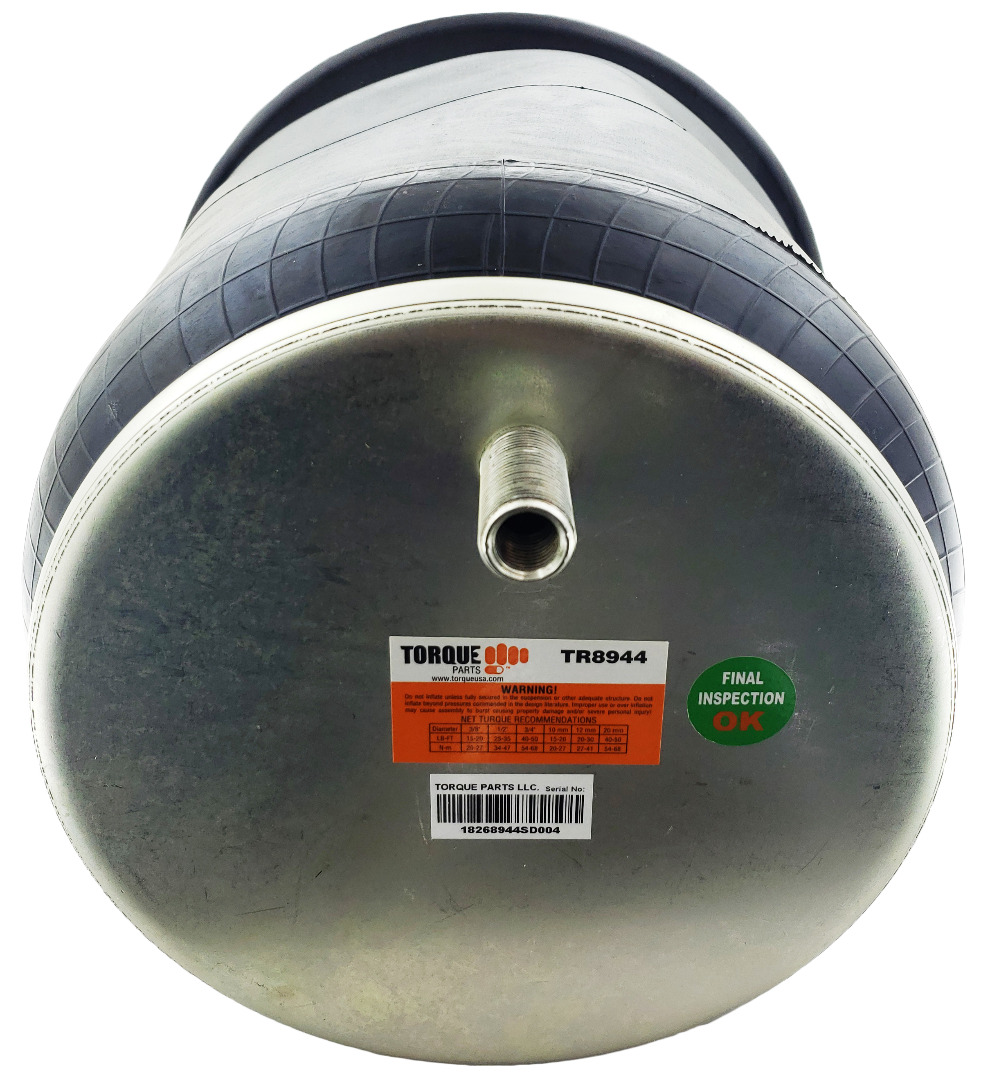

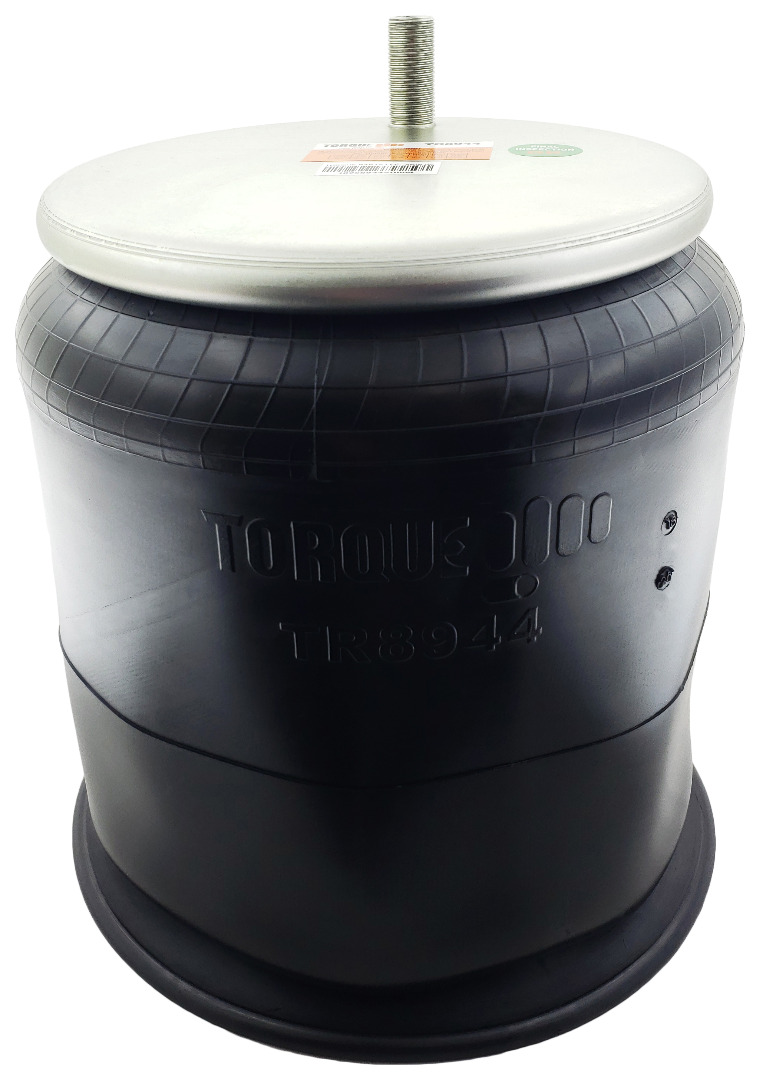

Air Spring for Hendrickson Trailer
TR8944 Trailer Air Spring TR8944
Air Spring Type
Reversible Air Spring

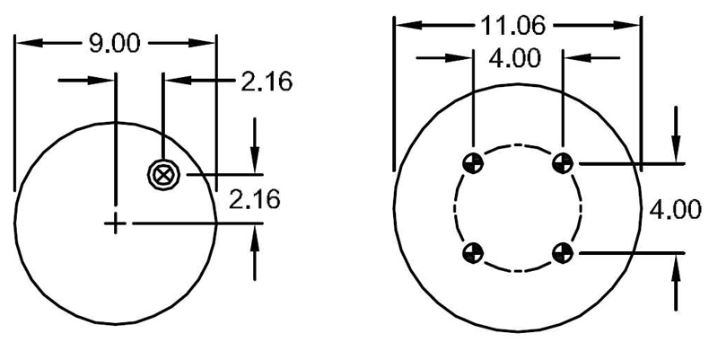

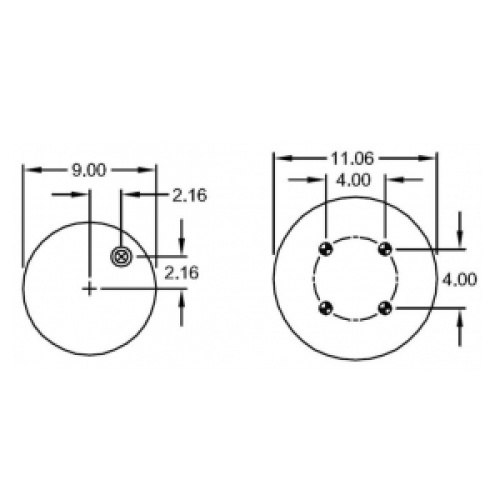

Top Plate Diameter
9.00
Piston Diameter
11.06

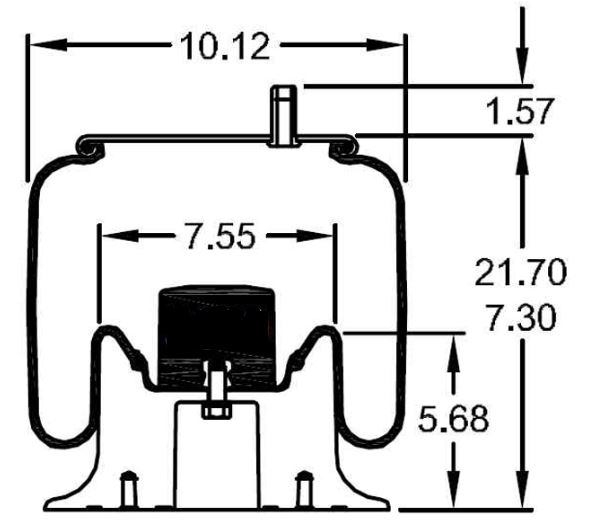

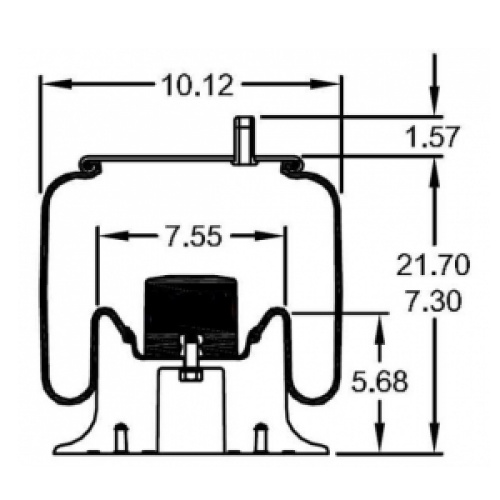

Bellows Diameter
10.12
Piston Height
5.68
Piston Material
Aluminum
Max Extended Height
21.70
Minimum Compressed Height
7.30
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet

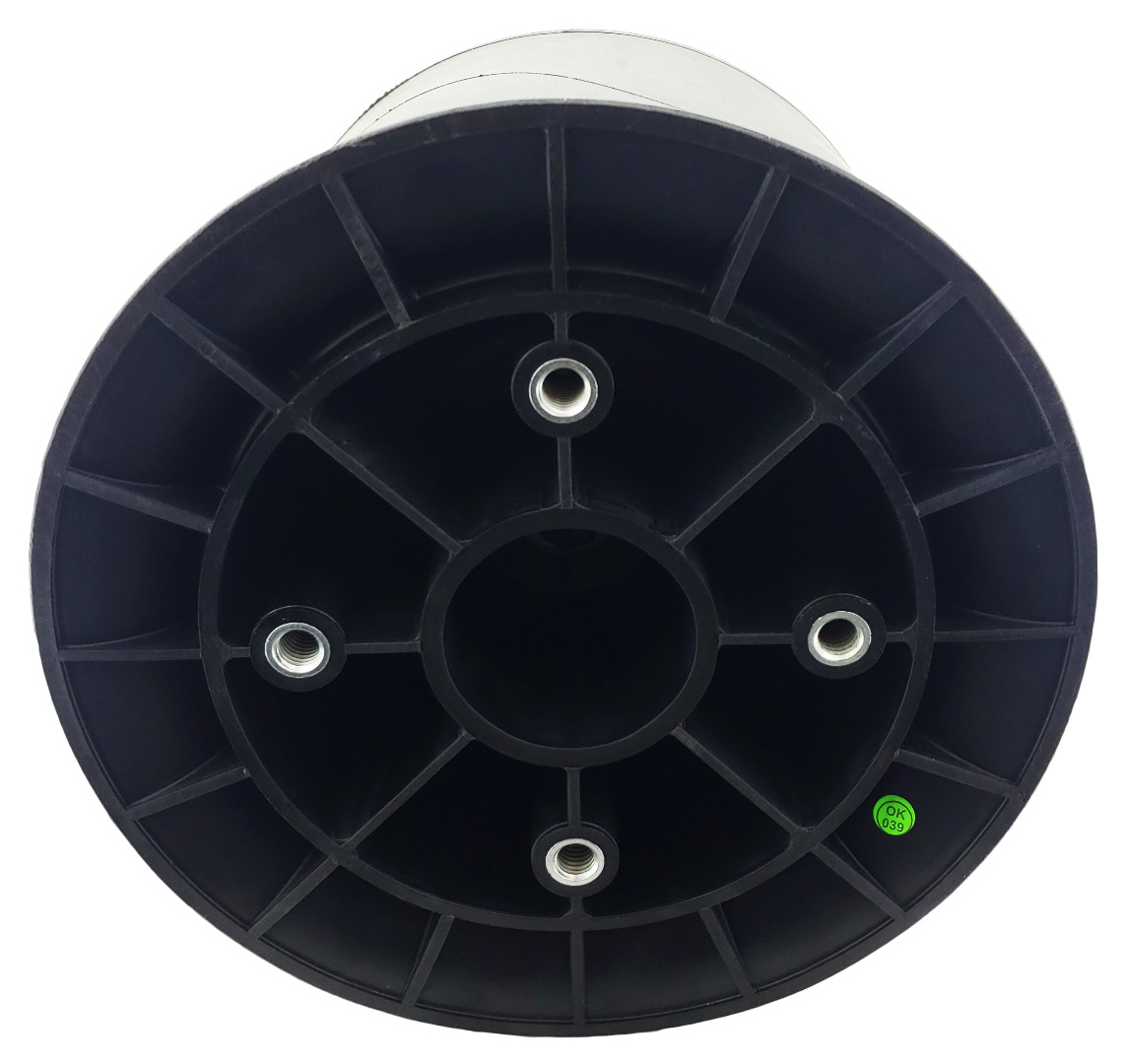

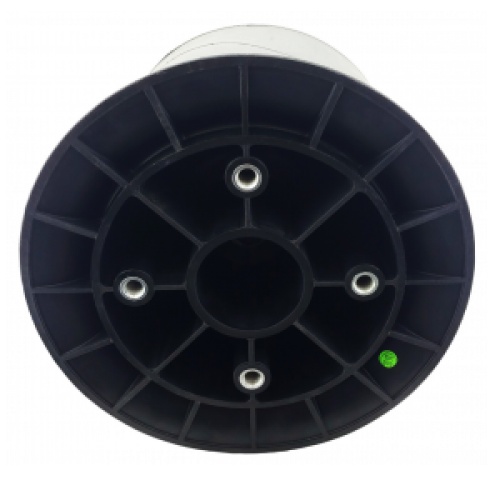

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
4.00
Has Inner Bumper
Yes
Bellows Number
1T15MLW7
| Firestone: | W01-358-8944, W01-358-9015 |
| Goodyear: | 1R12-366 |
| ContiTech: | 9 10.1-75 P 436 |
| Hendrickson: | S20217 (HT-190U) |
| Triangle: | 8436 |
| Extended Height: | 21.90" |
| Compressed Height: | 7.40" |
| Top Plate Width: | 9.00" |
| Piston Width: | 11.06" |
| Weight: | 15.4 lbs |
