Air Spring for Peterbilt
TR8864 Peterbilt Air Spring TR8864
Air Spring Type
Reversible Air Spring

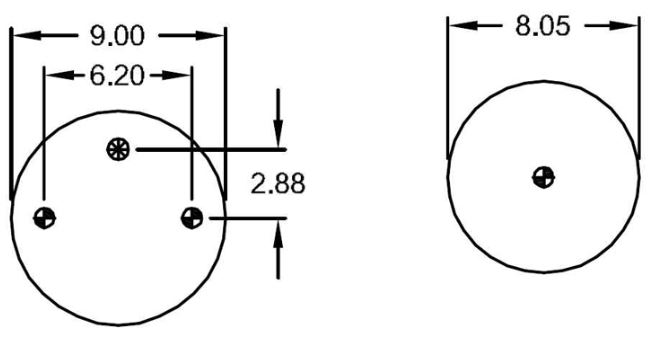

Top Plate Diameter
9.00
Piston Diameter
8.05

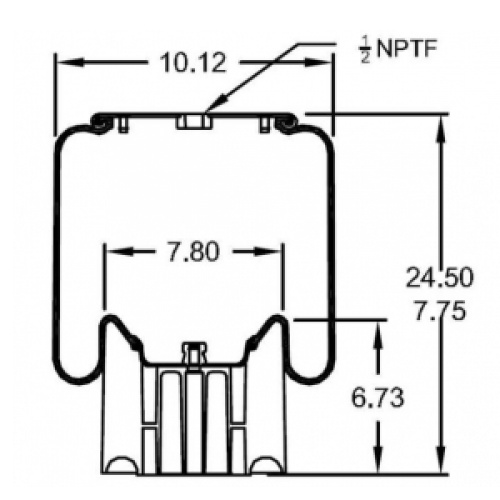

Bellows Diameter
10.12
Piston Height
6.73
Piston Material
Composite
Max Extended Height
24.50
Minimum Compressed Height
7.75
Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
2
Distance Between Top Plate Threaded Holes
6.20
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
1
Has Inner Bumper
No
Bellows Number
1T15M9
| Firestone: | W01-358-8864 |
| Goodyear: | 1R12-1097 |
| Peterbilt: | 03-08716 (New Low Leaf Supersedes 03-07887 effective 04/04) C811011 Paccar Part |
| Contitech: | 9 10-19 P 898 |
| Triangle: | 8898 |
| Dayton: | 352-8864 |
| Alliance: | ABP N32 018864 |
| Extended Height: | 24.50" |
| Compressed Height: | 7.80" |
| Top Plate Width: | 9.00" |
| Piston Width: | 8.05" |
| Weight: | 14.00 lbs |
