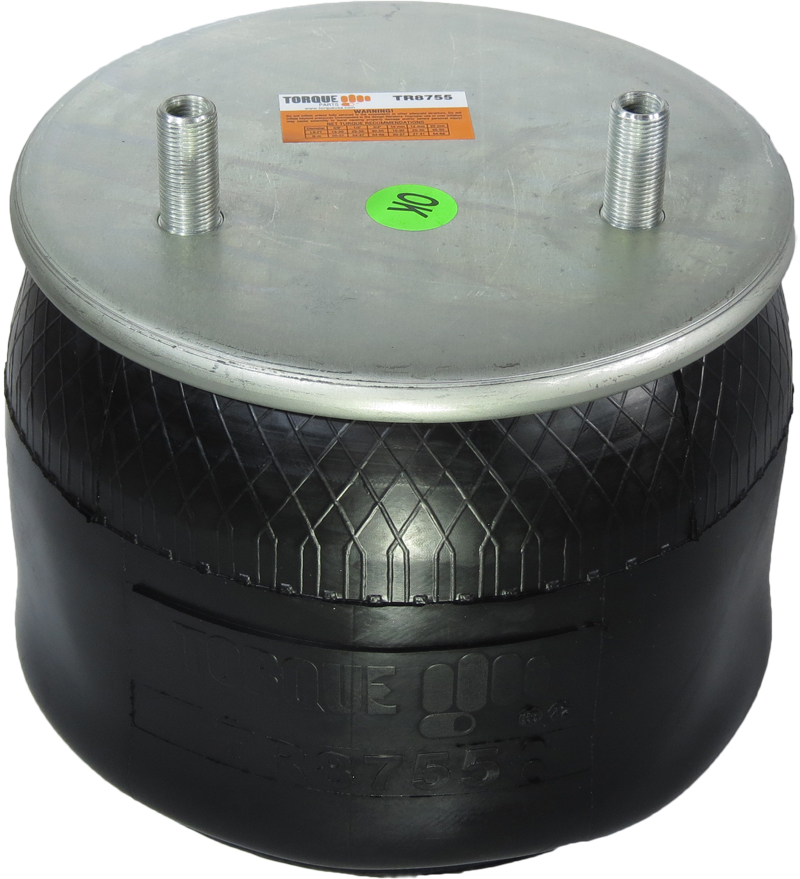

Air Spring for Hendrickson
TR8755 Trailer Air Spring TR8755
Air Spring Type
Reversible Air Spring

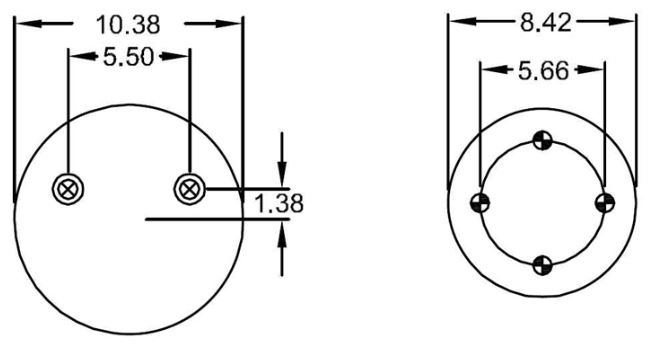

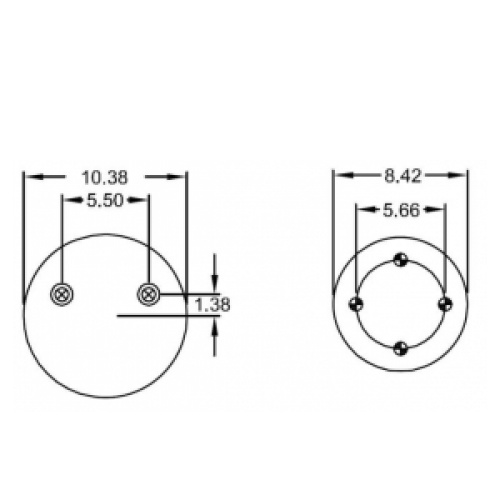

Top Plate Diameter
10.38
Piston Diameter
8.42

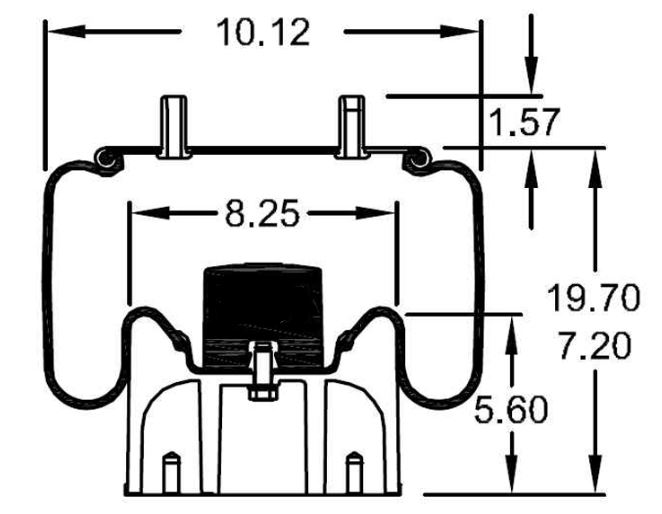

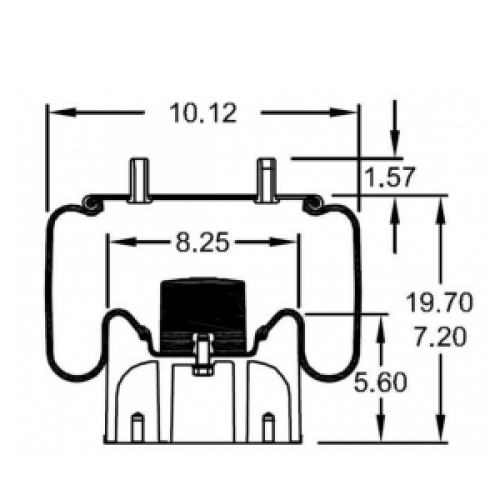

Bellows Diameter
10.12
Piston Height
5.60
Piston Material
Aluminum
Max Extended Height
19.70
Minimum Compressed Height
7.20
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet
Air Inlet Qauntity
2
Distance Between Air Inlets
5.50

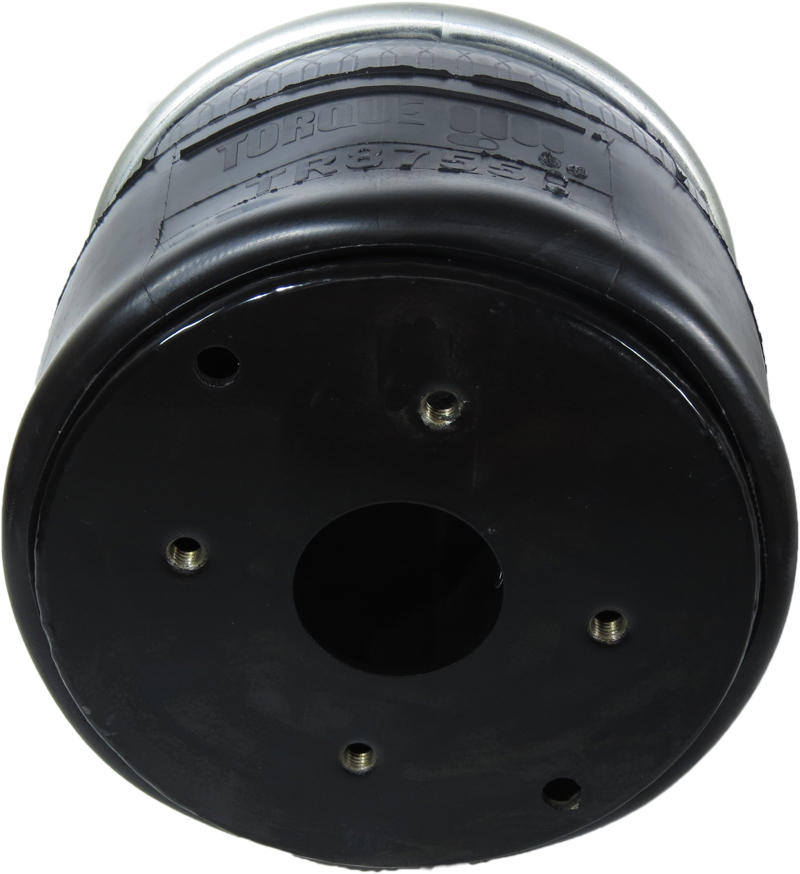

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
5.66
Has Inner Bumper
Yes
Bellows Number
1T17B5
| Firestone: | W01-358-8755, W01-358-8710 |
| Goodyear: | 1R13-124 |
| Hendrickson: | S-21623, S-22045 |
| Contitech: | 10 10-15 S 522 |
| Extended Height: | 19.70" |
| Compressed Height: | 7.20" |
| Top Plate Width: | 10.38" |
| Piston Width: | 8.42" |
| Weight: | 24.5 lbs |
