Trailer Air Spring

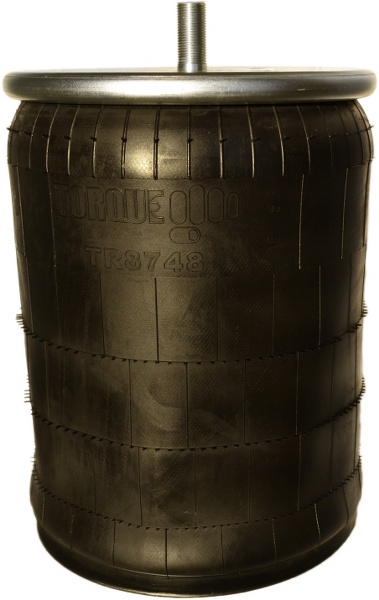

TR8748 Trailer Air Spring TR8748
Air Spring Type
Reversible Air Spring
Top Plate Diameter
10.38
Piston Diameter
10.25
Bellows Diameter
10.12
Piston Height
5.67
Piston Material
Composite
Max Extended Height
25.80
Minimum Compressed Height
7.40
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Distance between Top Plate Stud and Air Inlet
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T17B11
| Holland (Neway) | 905-57-167 |
| Firestone | W01-358-8748 |
| Goodyear | 1R13-152 |
| Triangle: | 8570 |
| ContiTech: | 10 10-21 P 570 |
| Extended Height: | 25.80" |
| Compressed Height: | 7.40" |
| Top Plate Width: | 10.38" |
| Piston Width: | 10.25" |
| Weight: | 17.0 lb |
