Trailer Air Spring

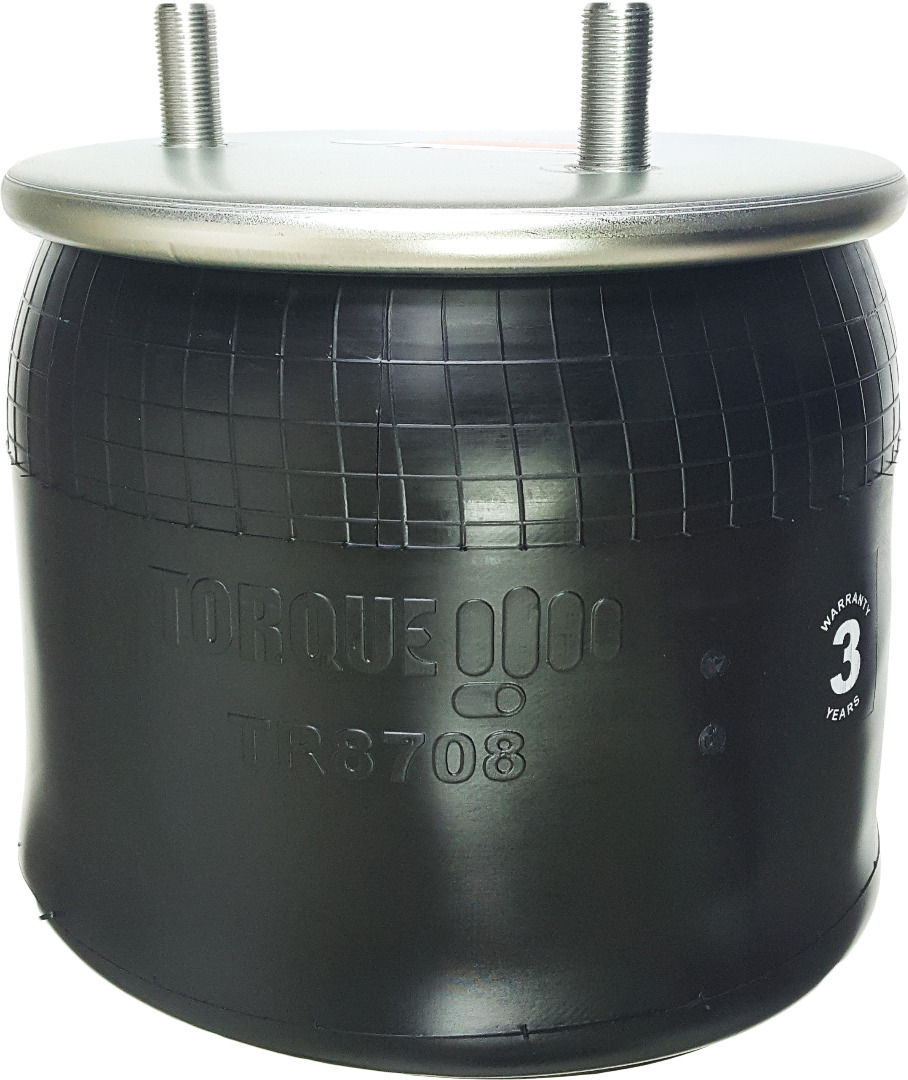

TR8708 Trailer Air Spring TR8708
Air Spring Type
Reversible Air Spring

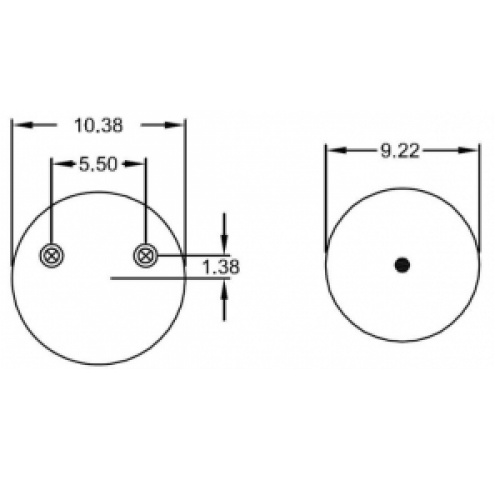

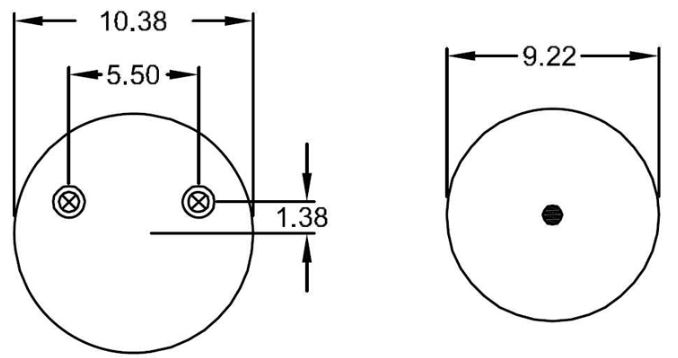

Top Plate Diameter
10.38
Piston Diameter
9.22

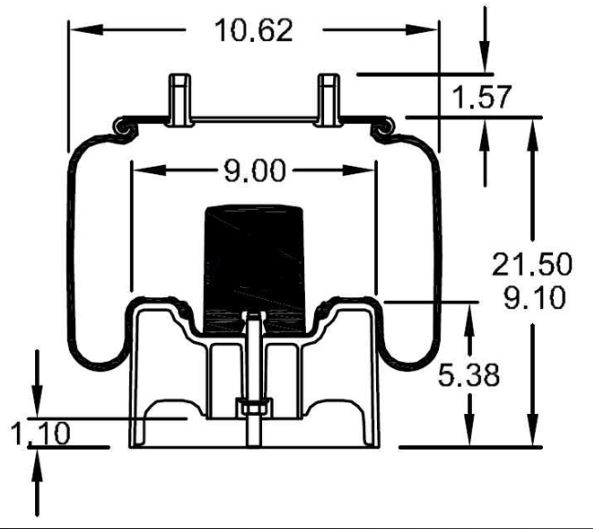

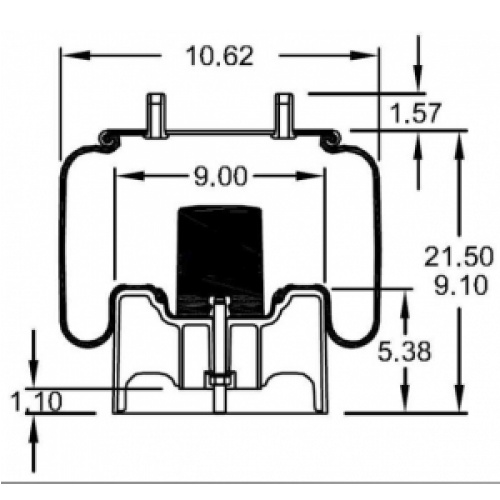

Bellows Diameter
10.62
Piston Height
5.38
Piston Material
Composite
Max Extended Height
21.50
Minimum Compressed Height
9.10
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet
Air Inlet Qauntity
2
Distance Between Air Inlets
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T17CA6.5
| Hendrickson: | S-21966, VAN TRAAX HKA-200 |
| Firestone: | W01-358-8708 |
| Goodyear: | 1R13-128 |
| Extended Height: | 21.50" |
| Compressed Height: | 9.10" |
| Top Plate Width: | 10.38" |
| Piston Width: | 9.22" |
| Weight: | 15.2 lbs |
