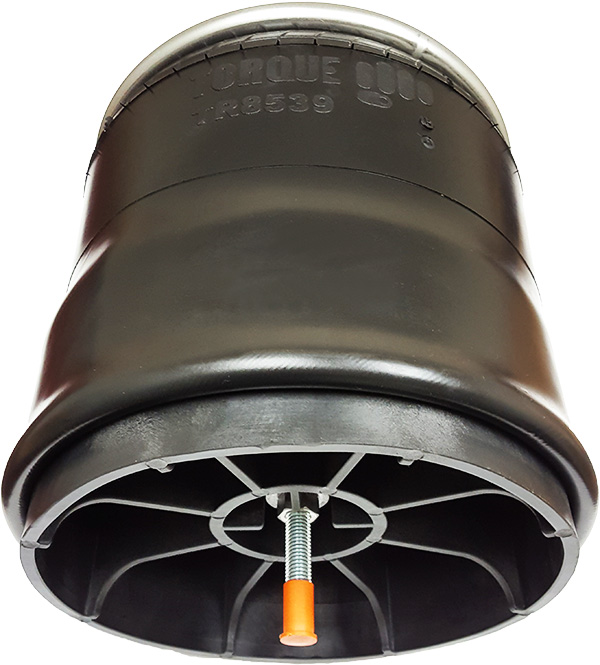

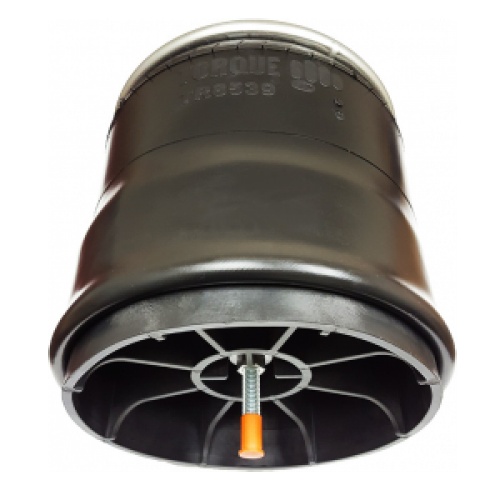

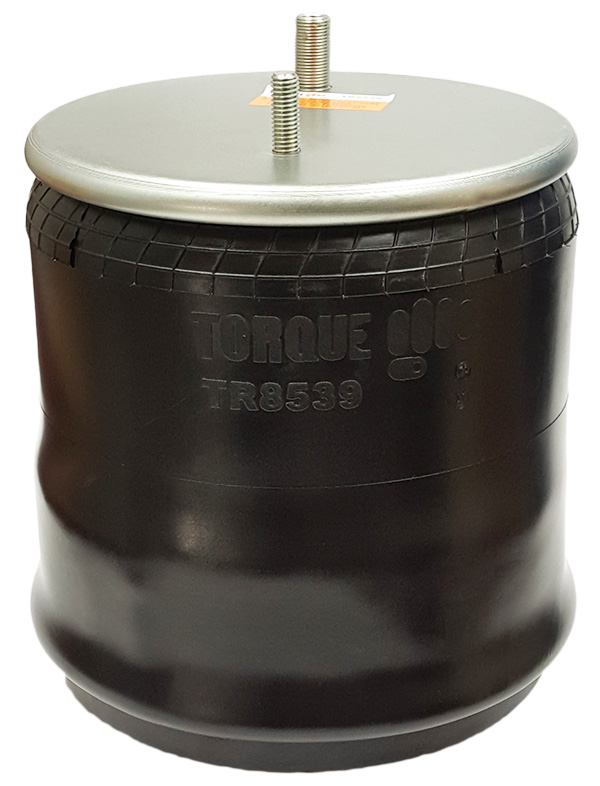

Trailer Air Spring

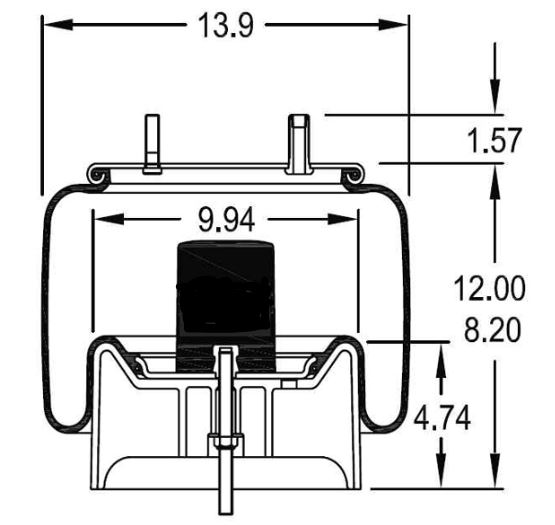

TR8539 Trailer Air Spring TR8539
Air Spring Type
Reversible Air Spring

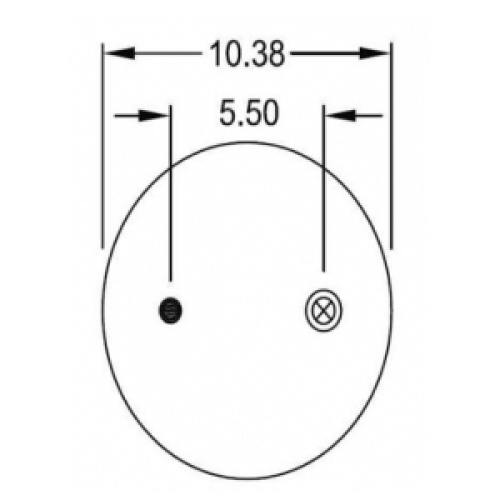

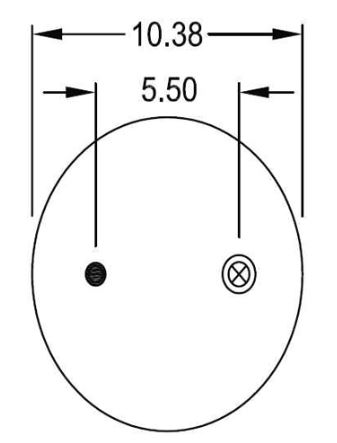

Top Plate Diameter
10.38

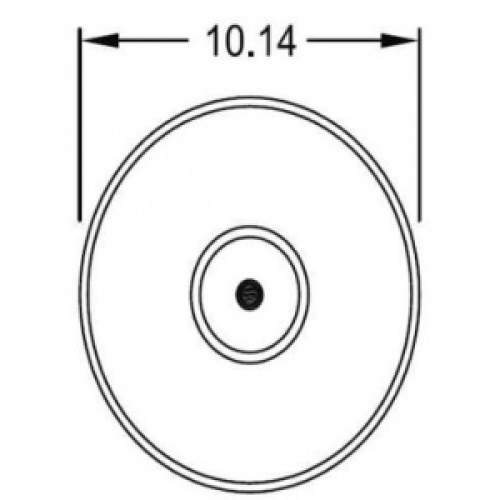

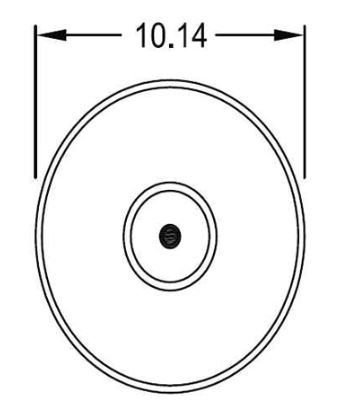

Piston Diameter
10.14

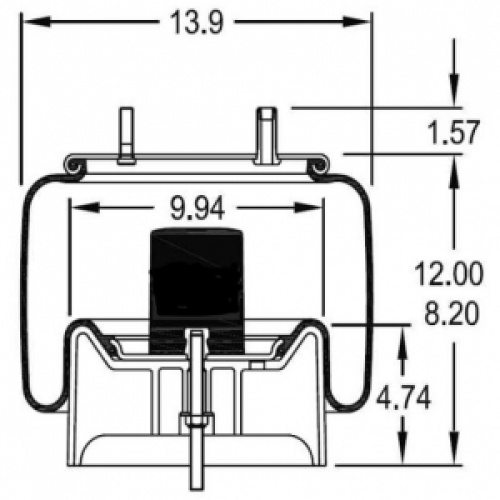

Bellows Diameter
13.90
Piston Height
4.74
Piston Material
Composite
Max Extended Height
12.00
Minimum Compressed Height
8.20
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T17GJ6
| Dana: | SR1VA105, SR1VA101 |
| Hendrickson: | S-29892 |
| Firestone: | W01-358-8539 |
| Goodyear: | 1R13-188 |
| Triangle: | 8320 |
| Extended Height: | 12.00" |
| Compressed Height: | 8.20" |
| Top Plate Width: | 10.38" |
| Piston Width: | 10.1" |
| Weight: | 17 lbs |
