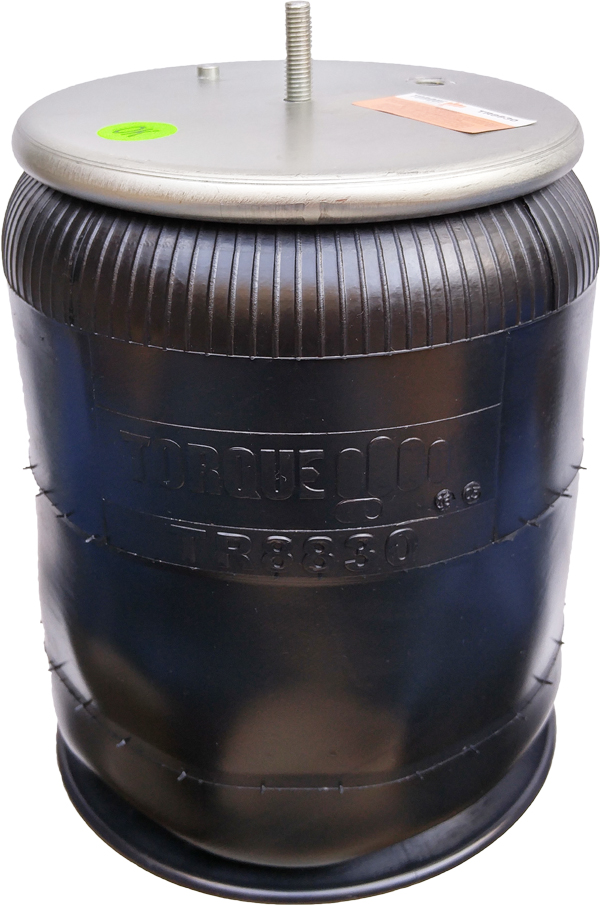

Air Spring for Volvo
TR8468 Volvo Air Spring TR8468
Air Spring Type
Reversible Air Spring

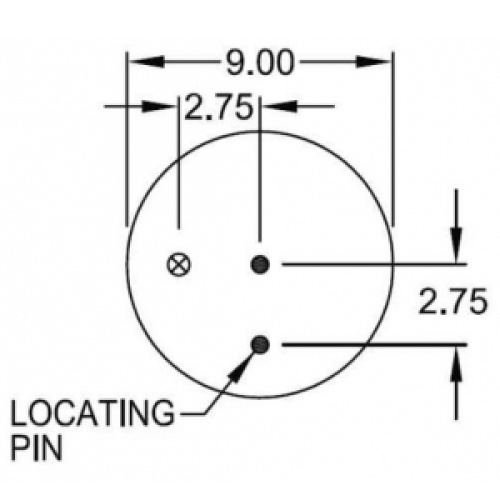

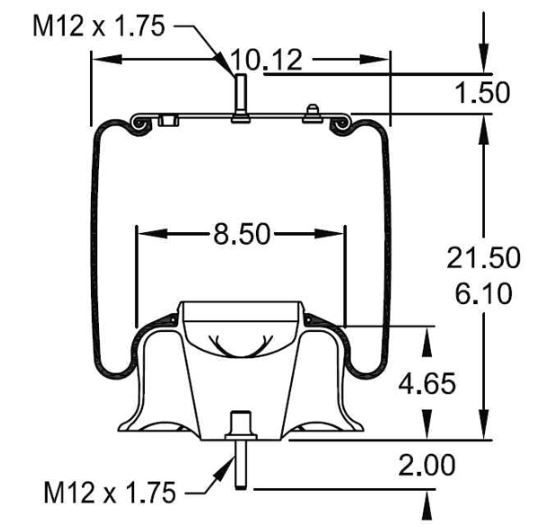

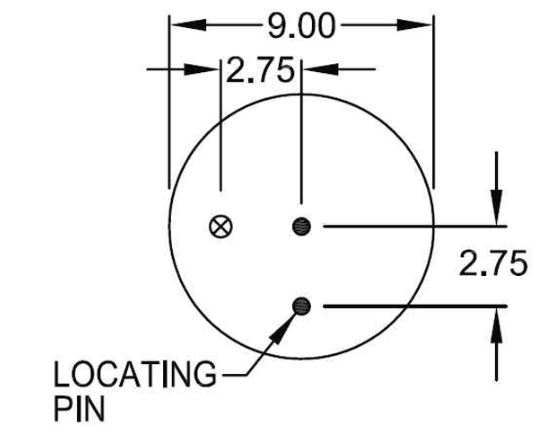

Top Plate Diameter
9.00
Piston Diameter
10.00
Bellows Diameter
10.12
Piston Height
4.65
Piston Material
Composite
Max Extended Height
21.50
Minimum Compressed Height
6.10
Air Inlet Type
Female
Top Plate Mounting Type
Air Inlet and Stud
Top Plate Threaded Hole Quantity
1
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.50
Distance between Top Plate Stud and Air Inlet
2.75
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
1T15XMR7
| Firestone: | W01-M58-8468 |
| Goodyear: | 1R12-654, 1R12-1049 |
| Volvo: | 21132005 |
| Extended Height: | 21.00" |
| Compressed Height: | 6.00" |
| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 13.8 lbs |
