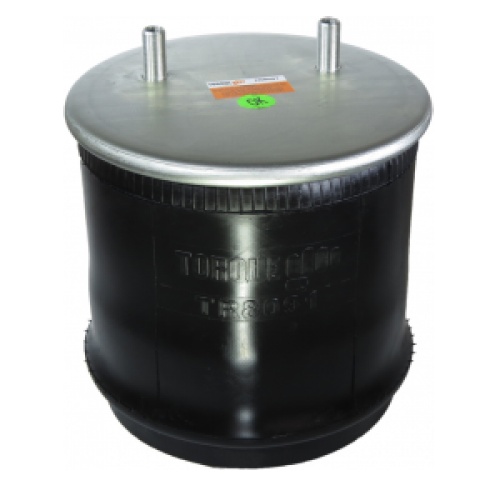

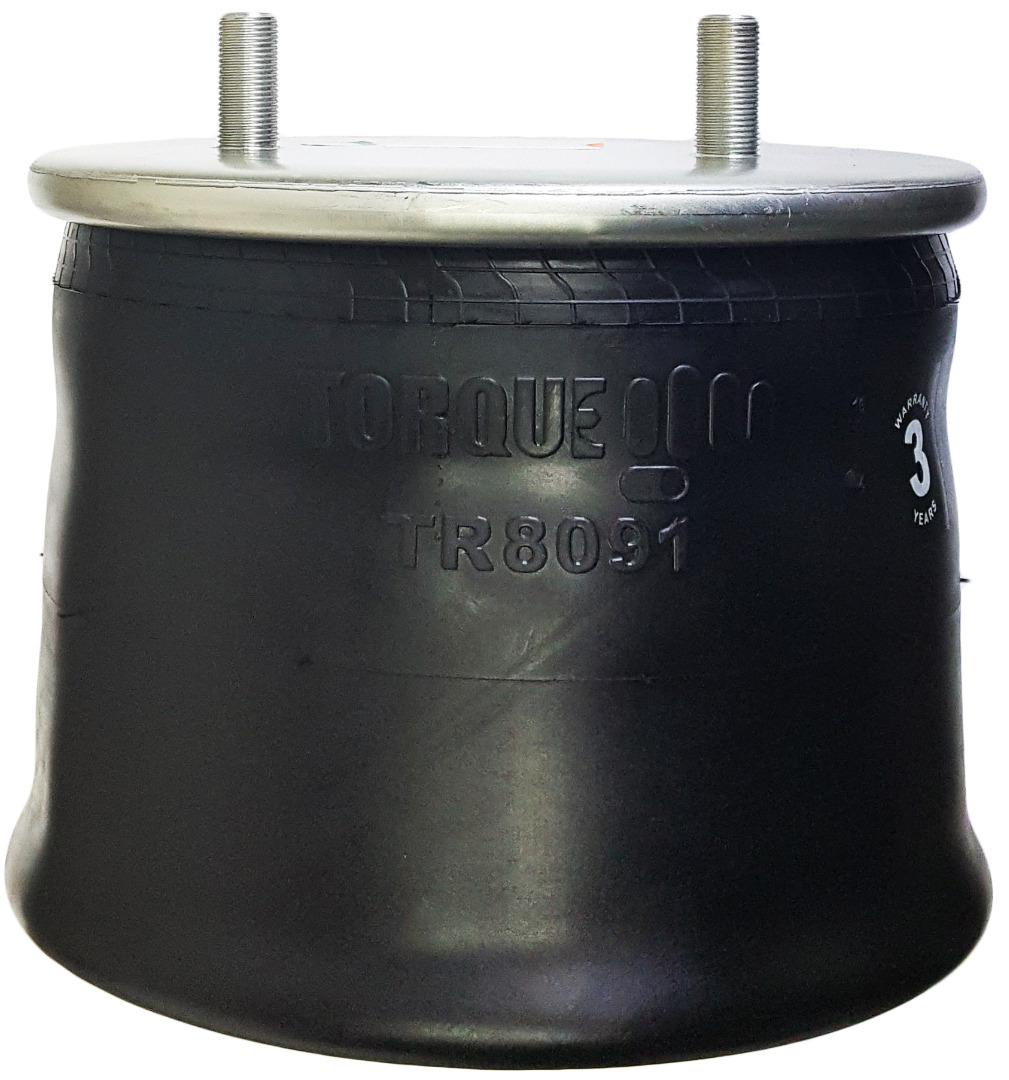

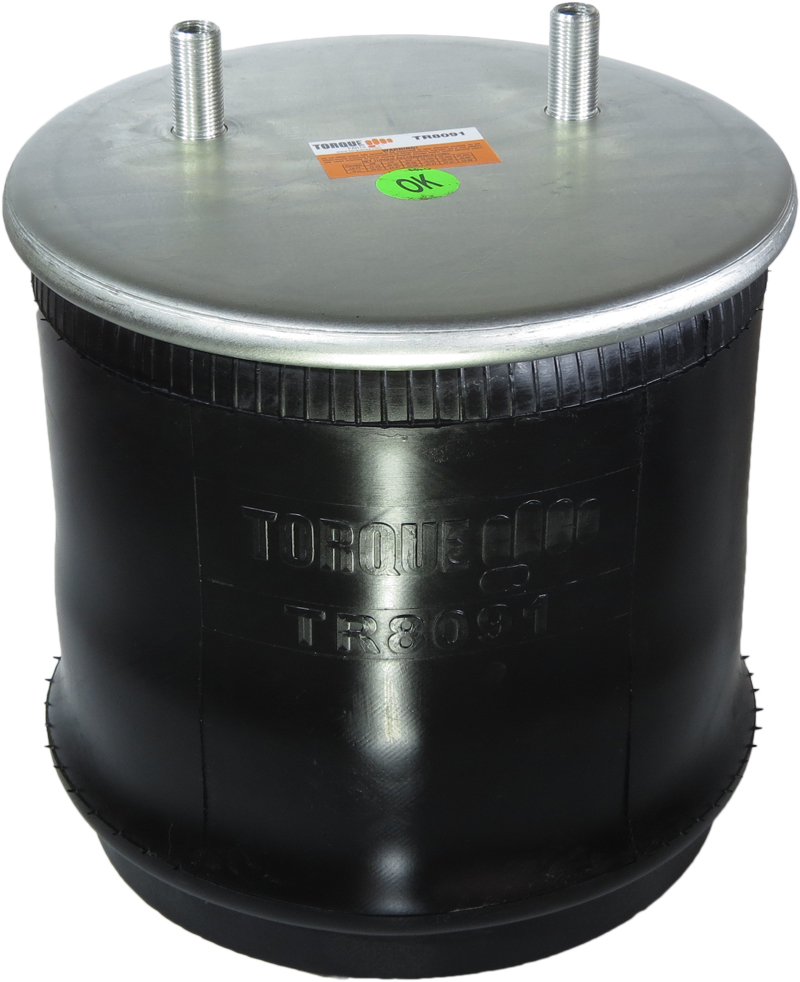

Trailer Air Spring for Hendrickson AAT 25K Models
TR8091 Trailer Air Spring TR8091

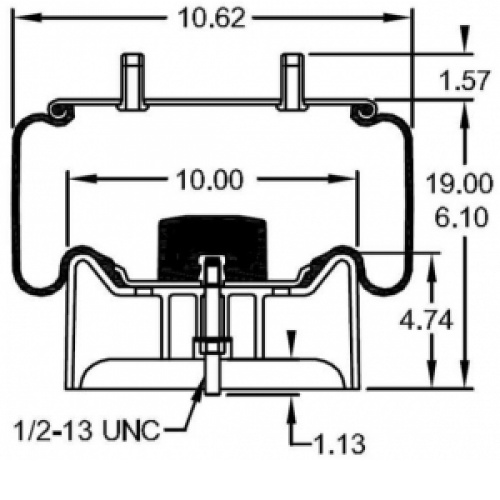

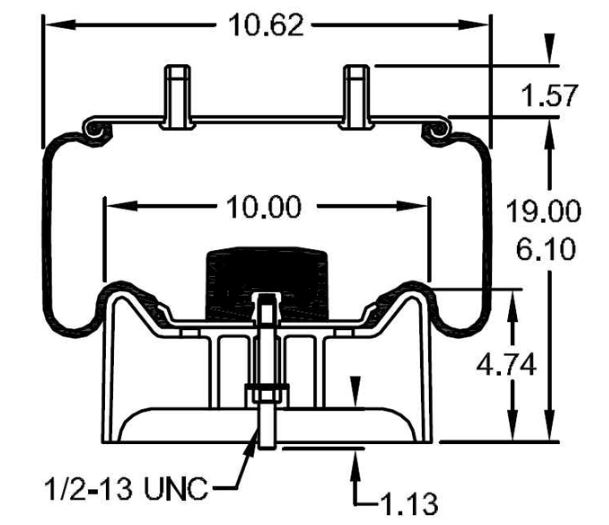

Air Spring Type
Reversible Air Spring

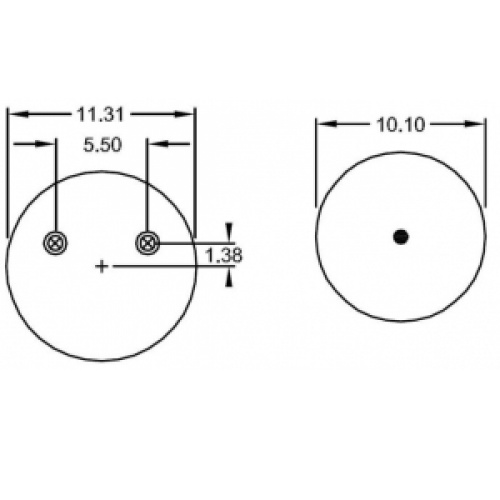

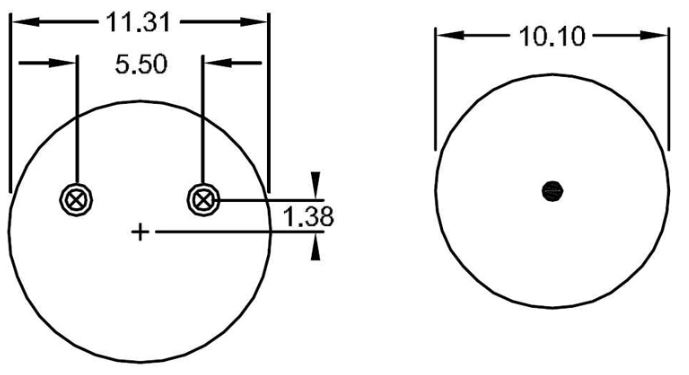

Top Plate Diameter
11.31
Piston Diameter
10.10
Bellows Diameter
10.62
Piston Height
4.74

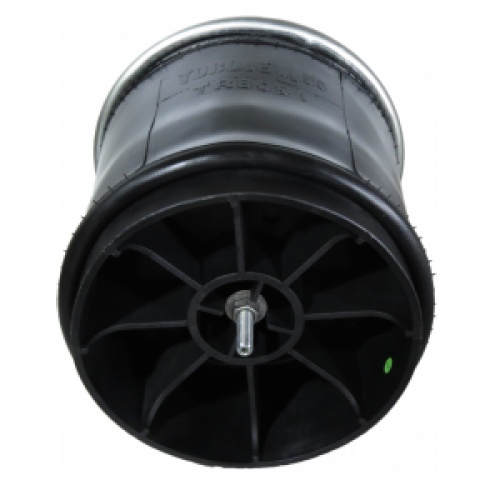

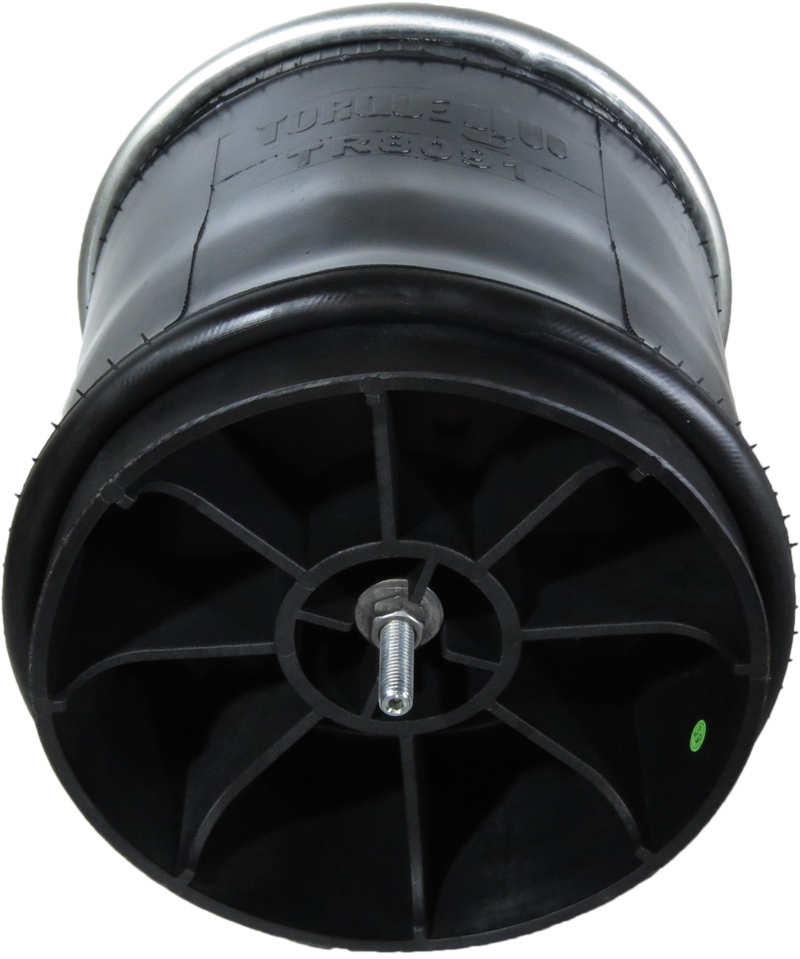

Piston Material
Composite
Max Extended Height
19.00
Minimum Compressed Height
6.10
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet
Air Inlet Qauntity
2
Distance Between Air Inlets
5.50
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
1T19LC6
| Hendrickson Trailer: | S-20901, S-21784 |
| Intraax: | # AA250T (reuse metal disk) / Van Traax # HKA-250 (reuse metal disk) |
| Goodyear: | 1R14-171 |
| Firestone: | W01-358-8091 |
| Extended Height: | 19.00" |
| Compressed Height: | 6.10" |
| Top Plate Width: | 11.31" |
| Piston Width: | 10.1 |
| Weight | 17.9 |
