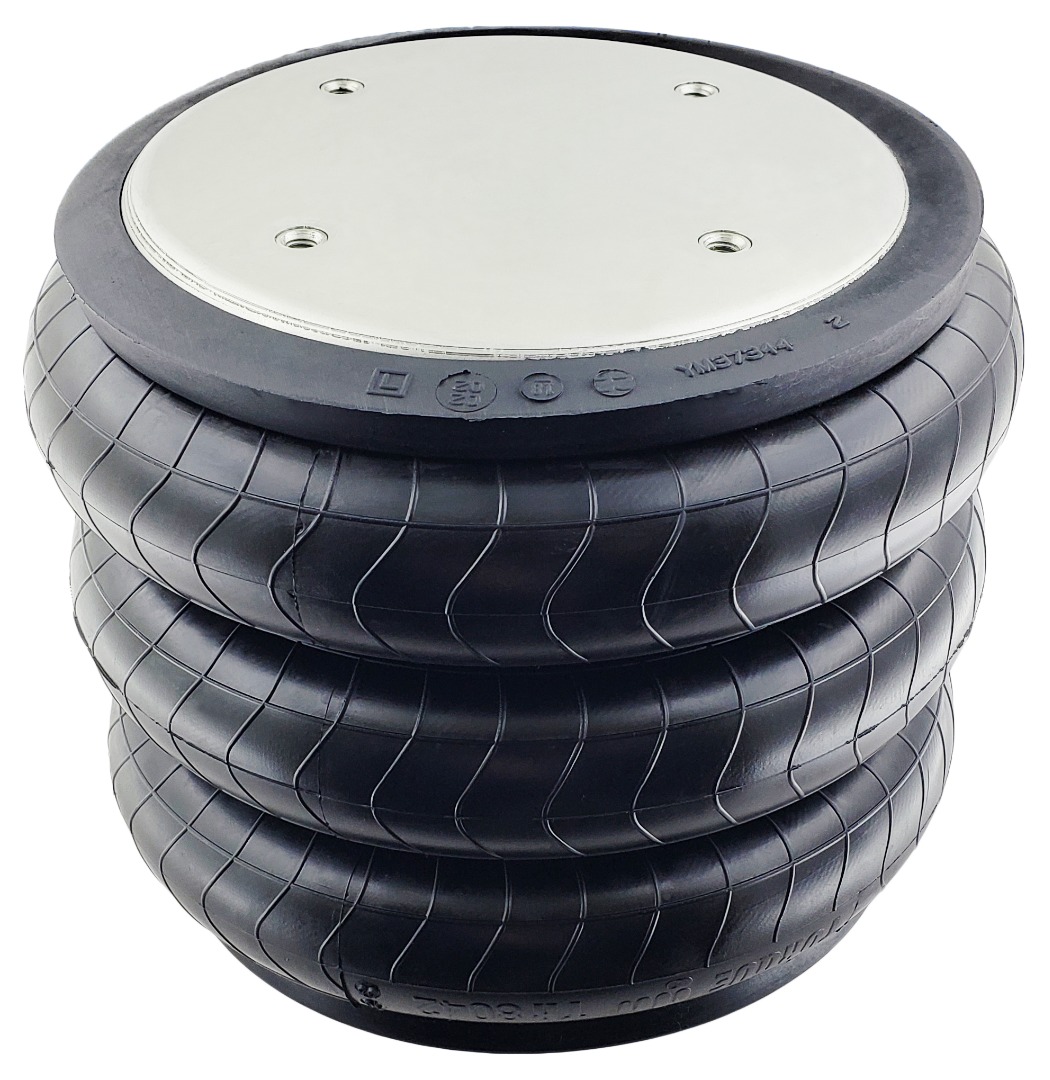

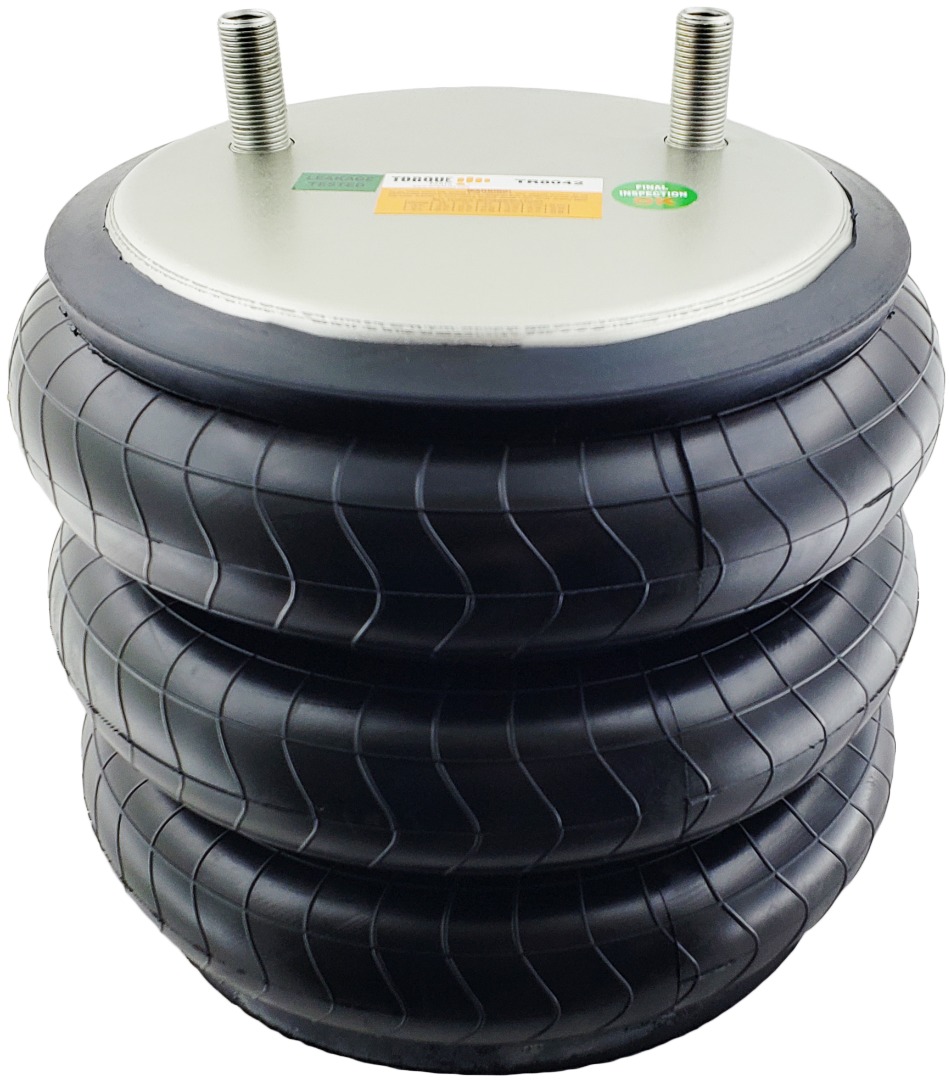

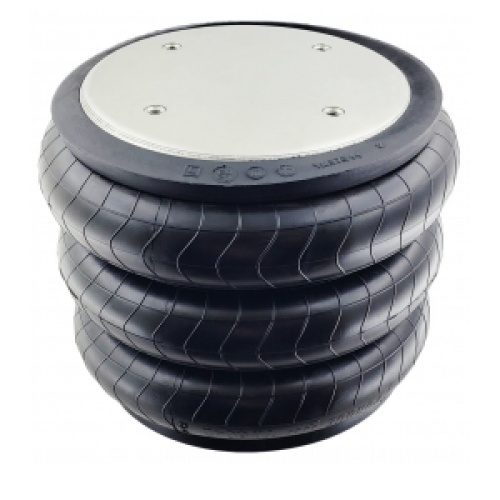

TR8042 Convoluted Air Spring

TR8042 Convoluted Air Spring TR8042

Air Spring Type Convoluted Air Spring
Top Plate Diameter 10.38
Piston Diameter 10.38

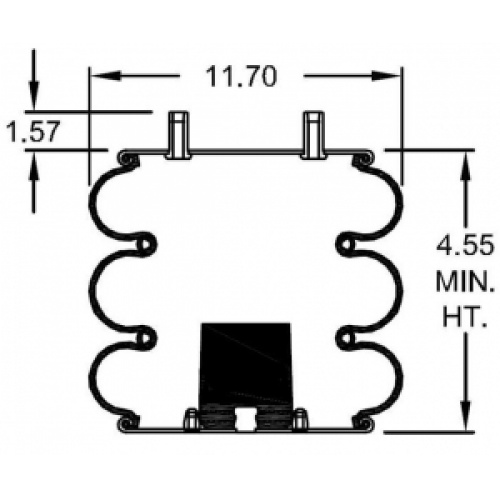

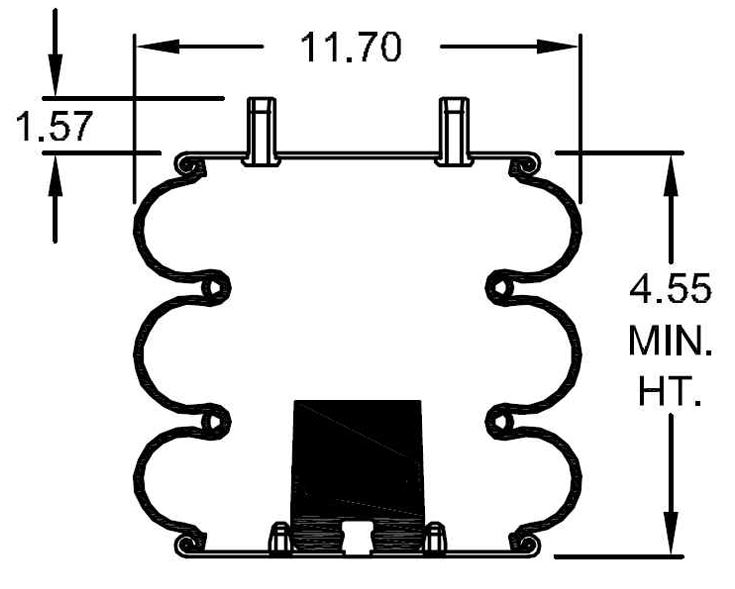

Bellows Diameter 11.70
Minimum Compressed Height 4.55
Air Inlet Type Male
Air Inlet Height 1.57
Top Plate Mounting Type Air Inlet
Air Inlet Qauntity 2

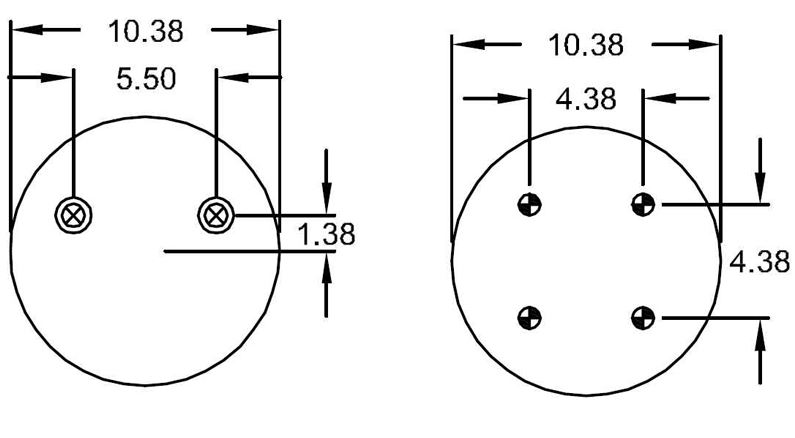

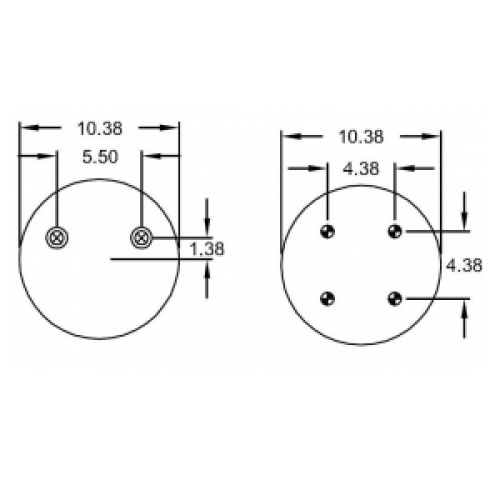

Distance Between Air Inlets 5.50
Piston Mounting Type Threaded Hole
Piston Threaded Hole Quantity 4
Distance Between Bottom Base Studs 4.38
Has Inner Bumper Yes
Bellows Number 352

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Convoluted Air Spring
Hendrickson:  1015
Firestone:  W01-358-8042
Goodyear:  3B12-322
SAF Holland:  905-57-236, VSA144
Compressed Height:  4.55"
Top Plate Width:  10.38"
Piston Width:  10.38"
Weight:  15.4 lbs
