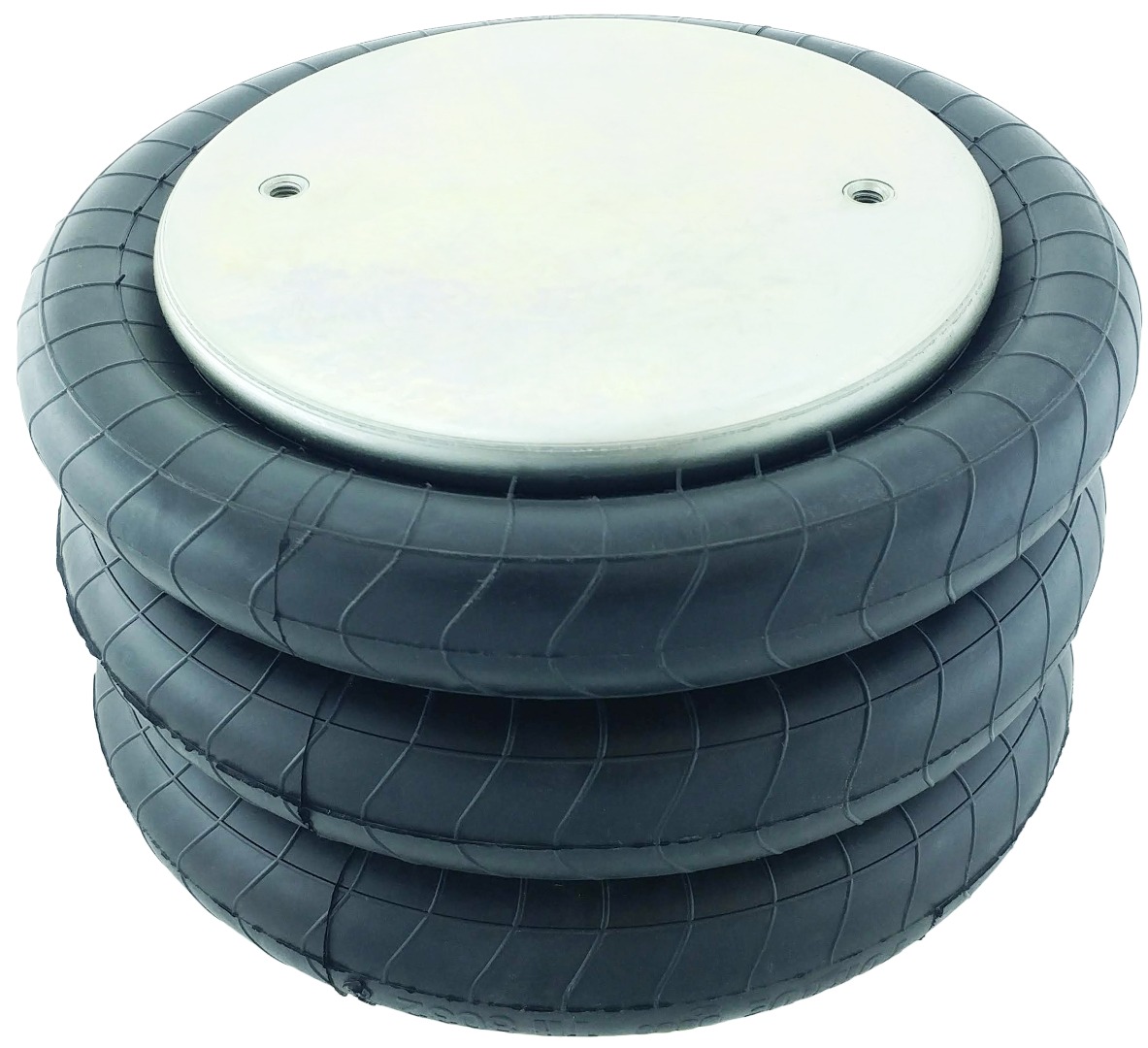

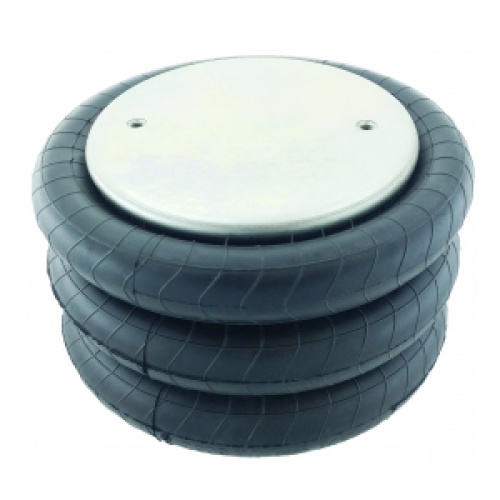

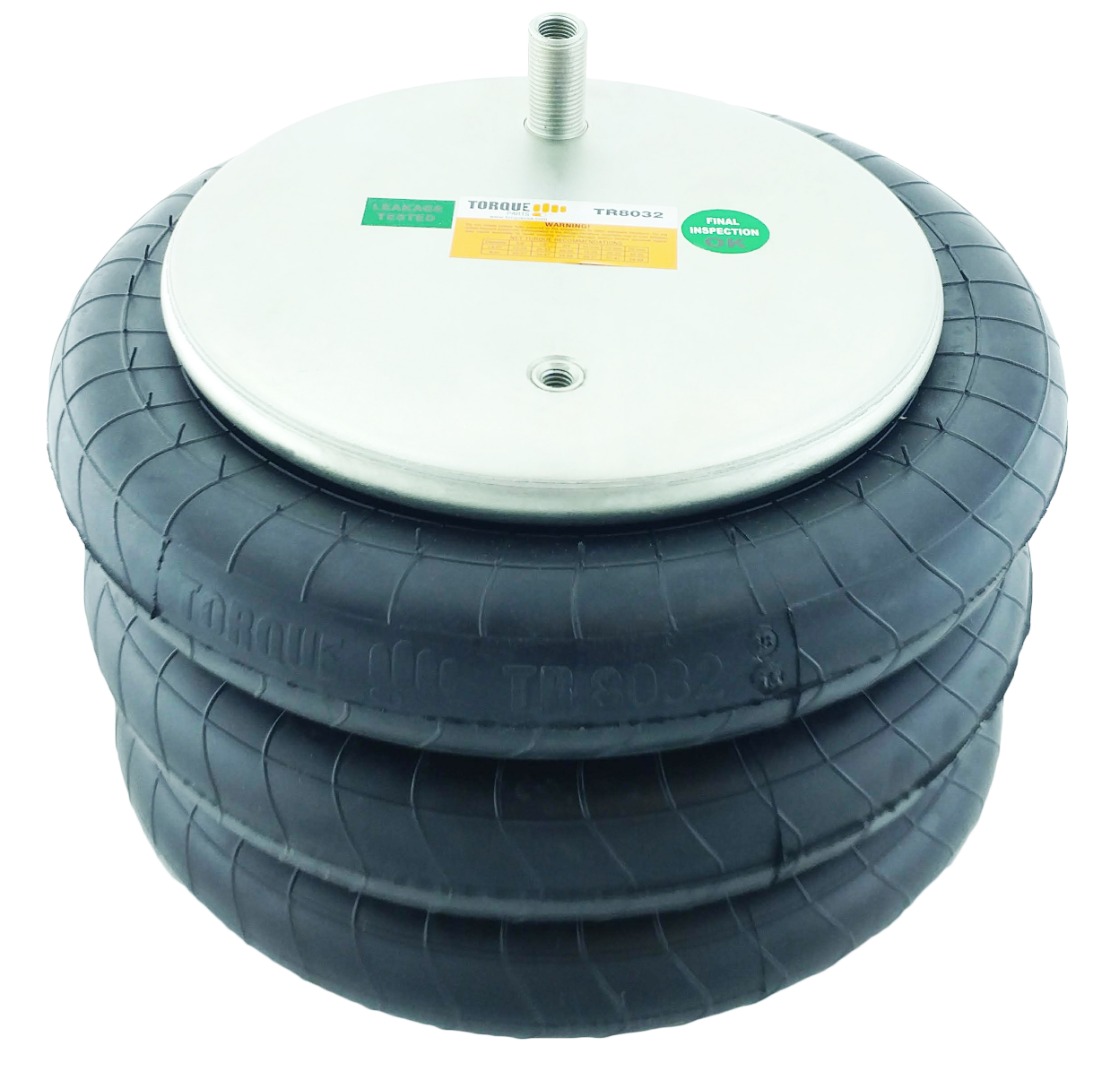

Convoluted Air Spring
TR8032 Convoluted Air Spring TR8032
Air Spring Type
Convoluted Air Spring

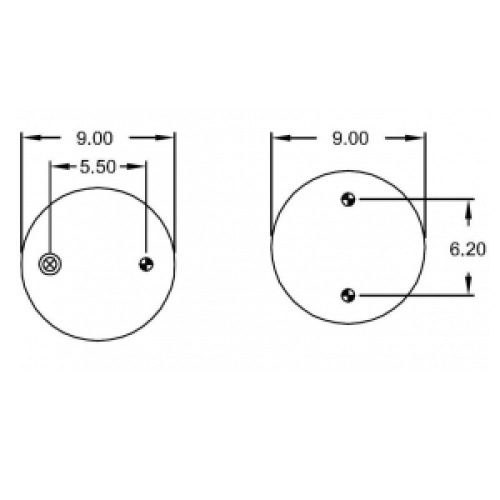

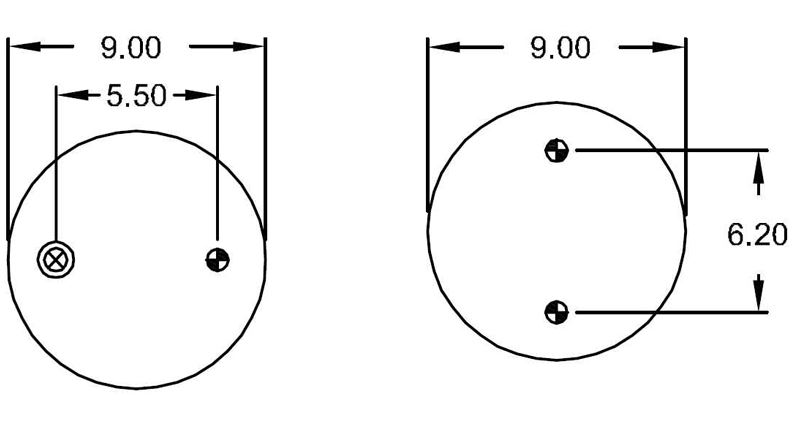

Top Plate Diameter
9.00
Piston Diameter
9.00

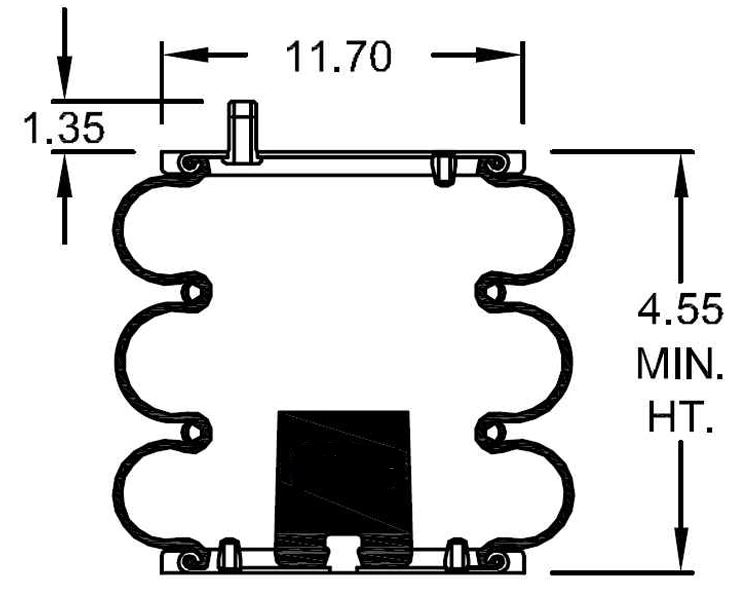

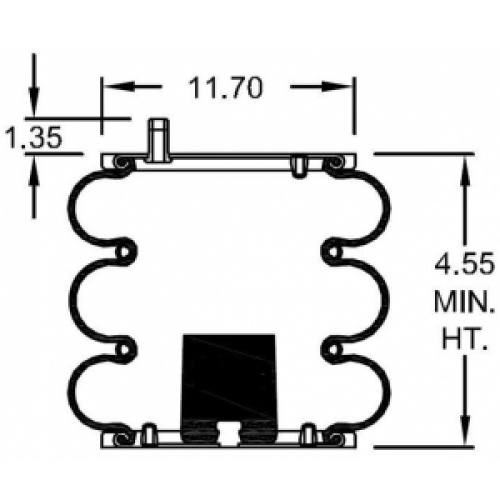

Bellows Diameter
11.70
Minimum Compressed Height
4.55
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet
Top Plate Threaded Hole Quantity
1
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
6.20
Has Inner Bumper
Yes
Bellows Number
38
| Hendrickson: | S-12405 |
| Watson & Chalin: | AS-0048 |
| Triangle: | 4413 |
| Firestone: | W01-358-8032, W01-358-7995 |
| Goodyear: | 3B12-319 / 3B12-329 |
| Contitech: | FT 330-29 413 |
| Compressed Height: | 4.55" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.00" |
| Weight: | 15.3 lbs |
