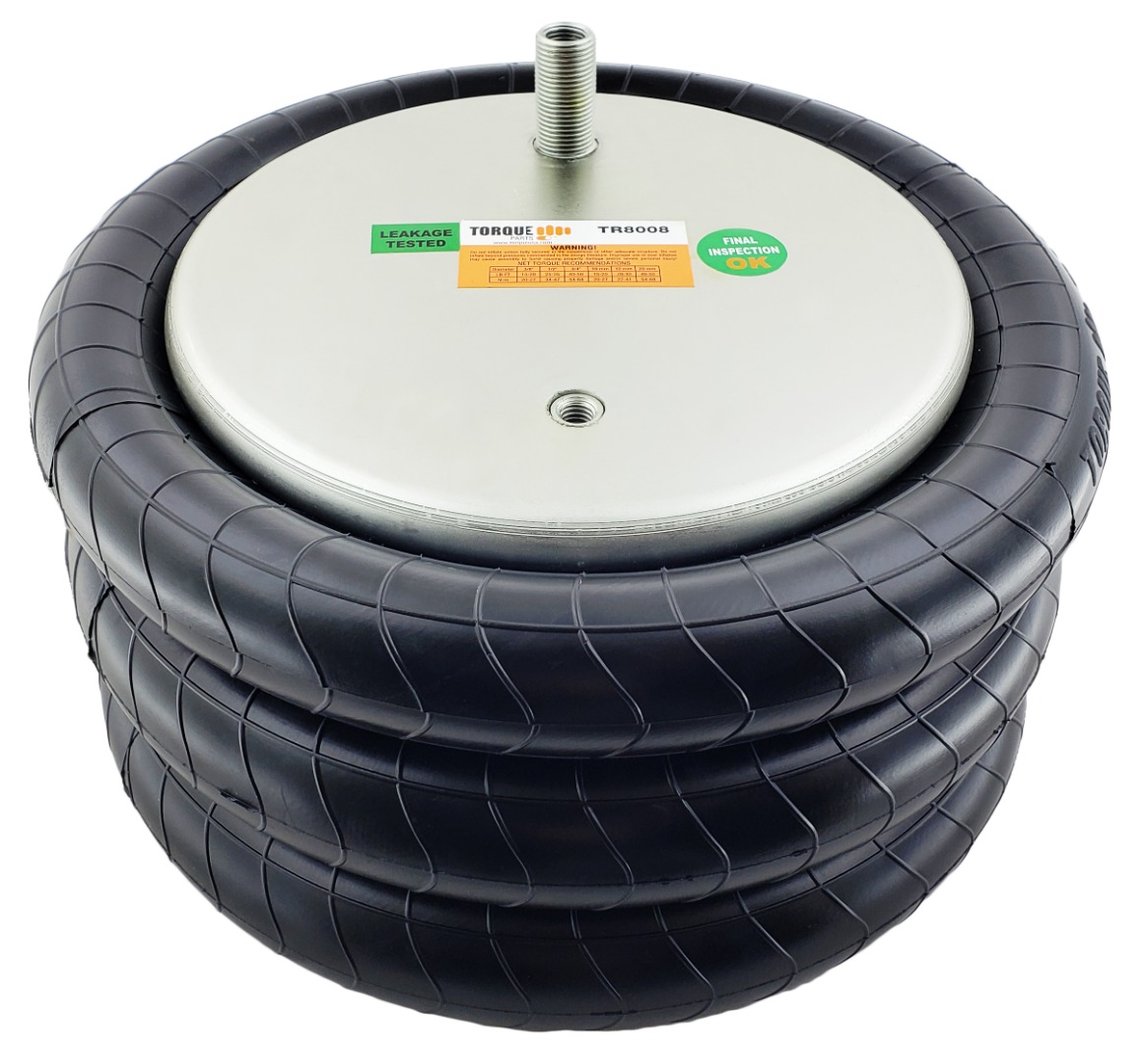

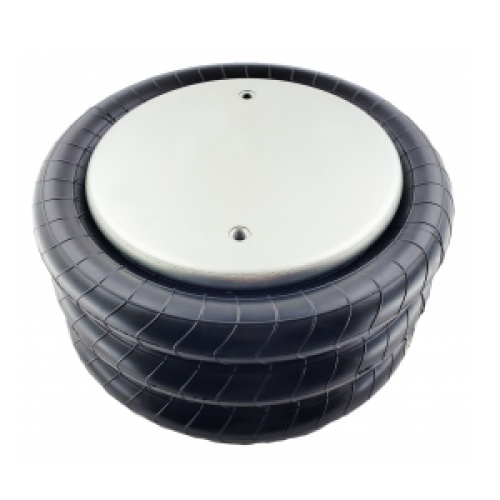

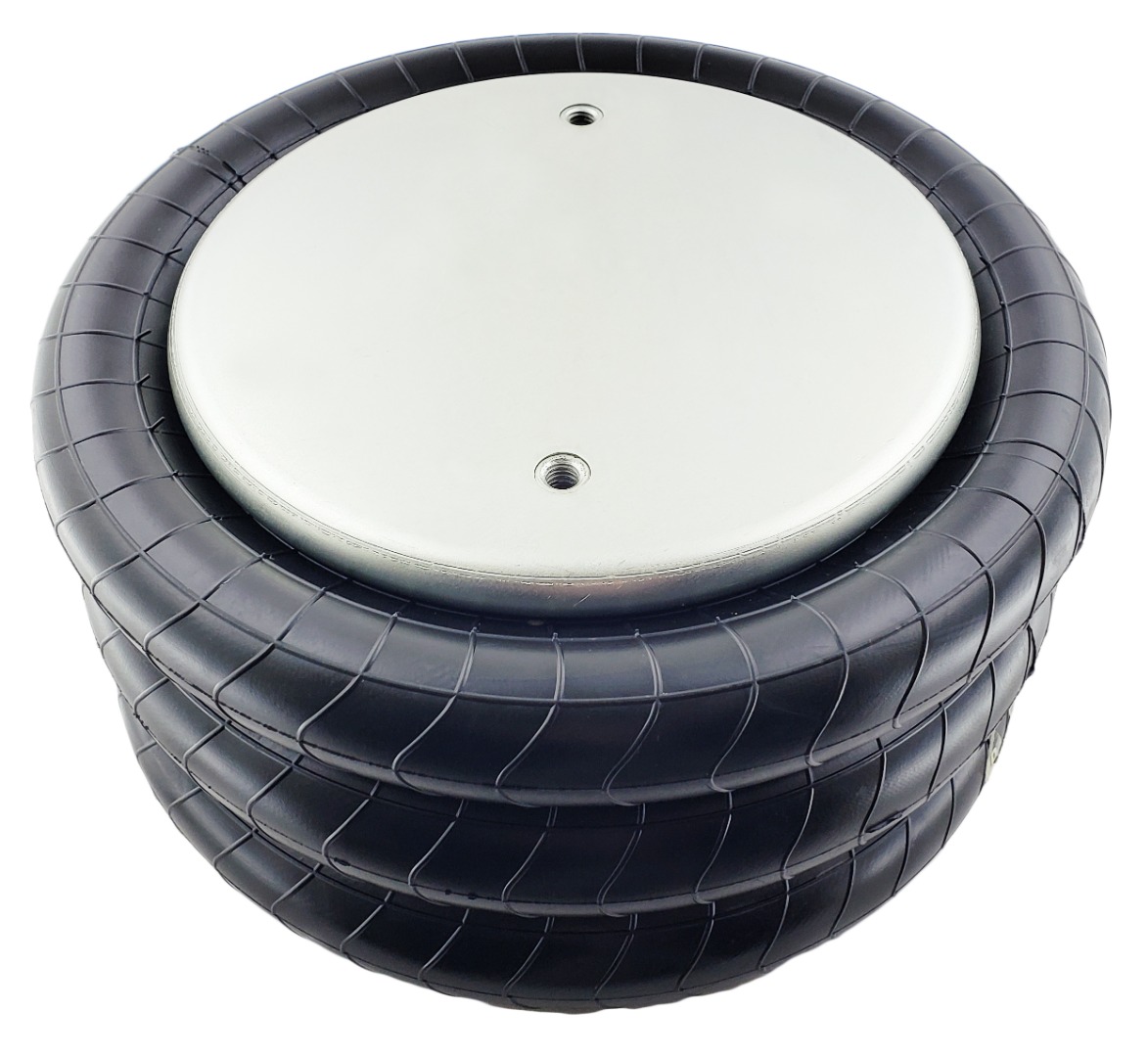

Convoluted Air Spring
TR8008 Convoluted Air Spring TR8008
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
9.00
Piston Diameter
9.00

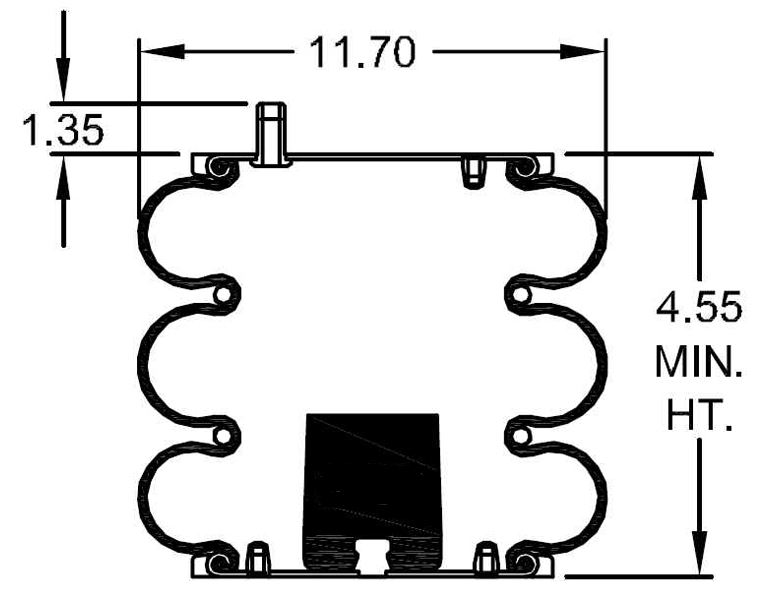

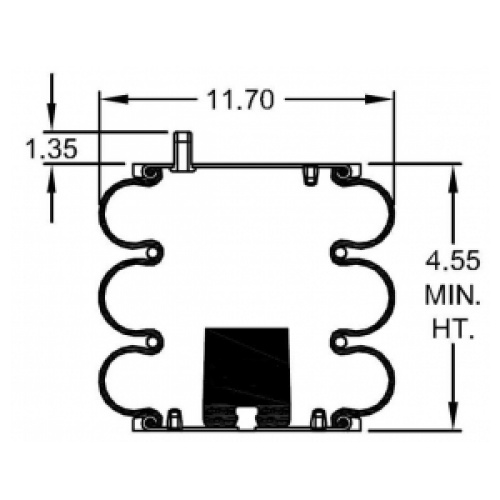

Bellows Diameter
11.70
Minimum Compressed Height
4.55
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet
Top Plate Threaded Hole Quantity
1

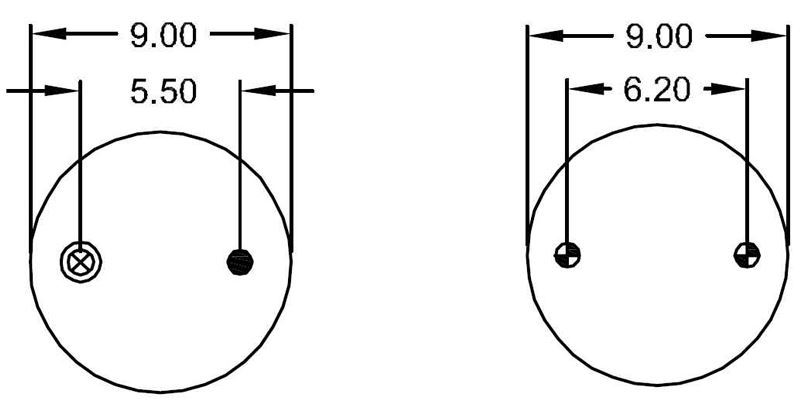

Distance Between Top Plate Threaded Holes
5.50
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
6.20
Has Inner Bumper
Yes
Bellows Number
38
| Hendrickson: | S-11637 |
| Ridewell: | 1003588008C |
| Watson & Chalin: | AS-0019 |
| Triangle: | 4431 |
| Firestone: | W01-358-8008 |
| Goodyear: | 3B12-300 |
| Contitecth: | FT 330-29 431 |
| Compressed Height: | 4.55" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.00" |
| Weight: | 15.3 lbs |
