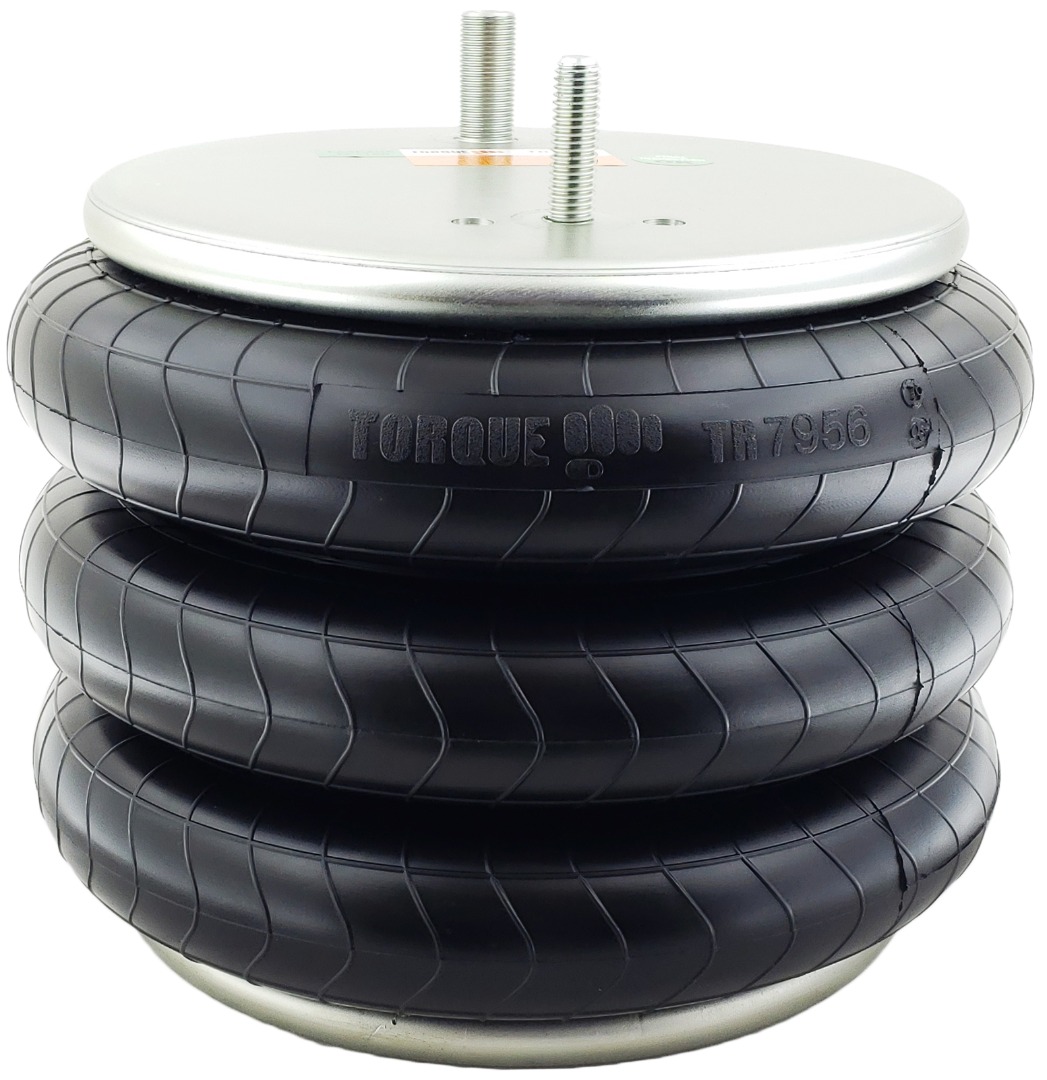

Convoluted Air Spring
TR7956 Convoluted Air Spring TR7956
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
10.38
Piston Diameter
10.38

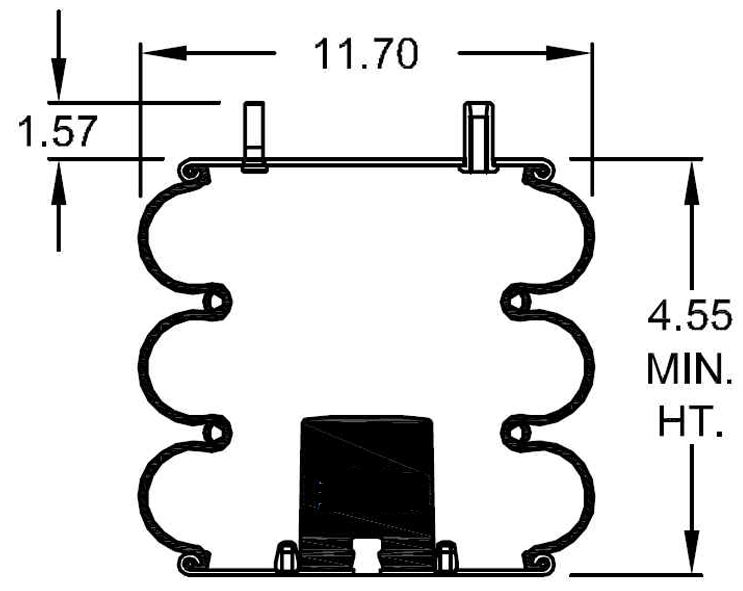

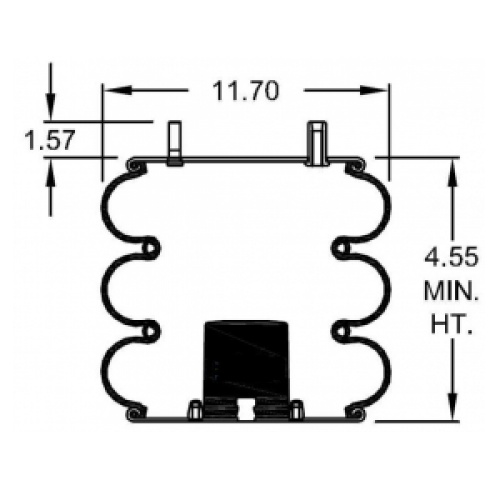

Bellows Diameter
11.70
Minimum Compressed Height
4.55
Air Inlet Type
Male
Air Inlet Height
1.57

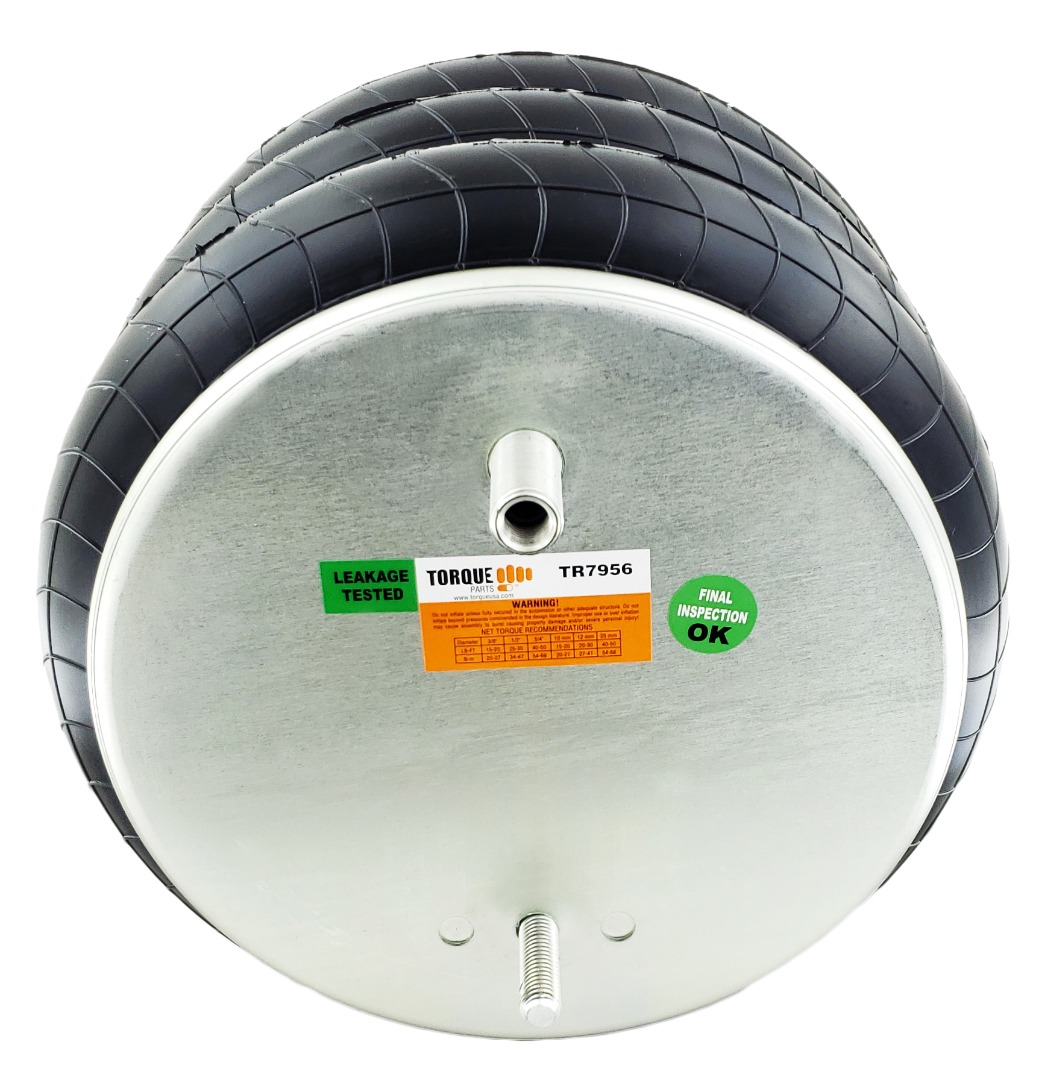

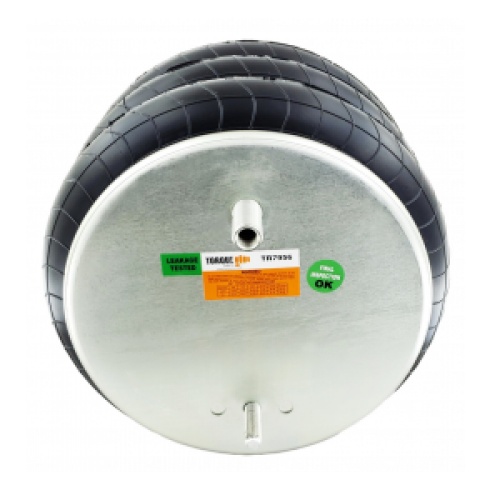

Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57

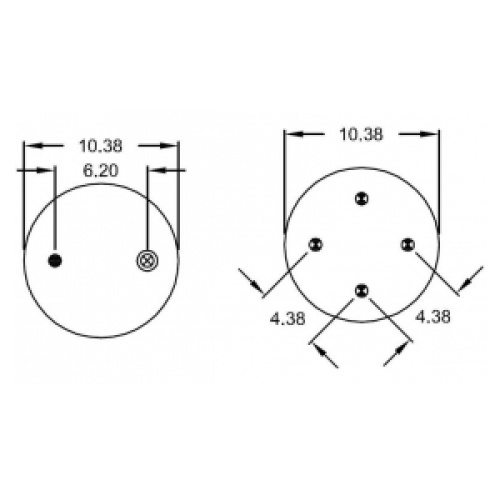

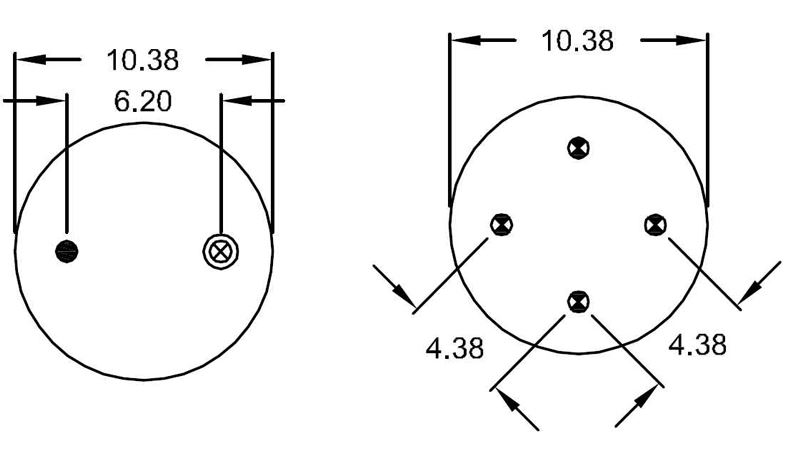

Distance between Top Plate Stud and Air Inlet
6.20

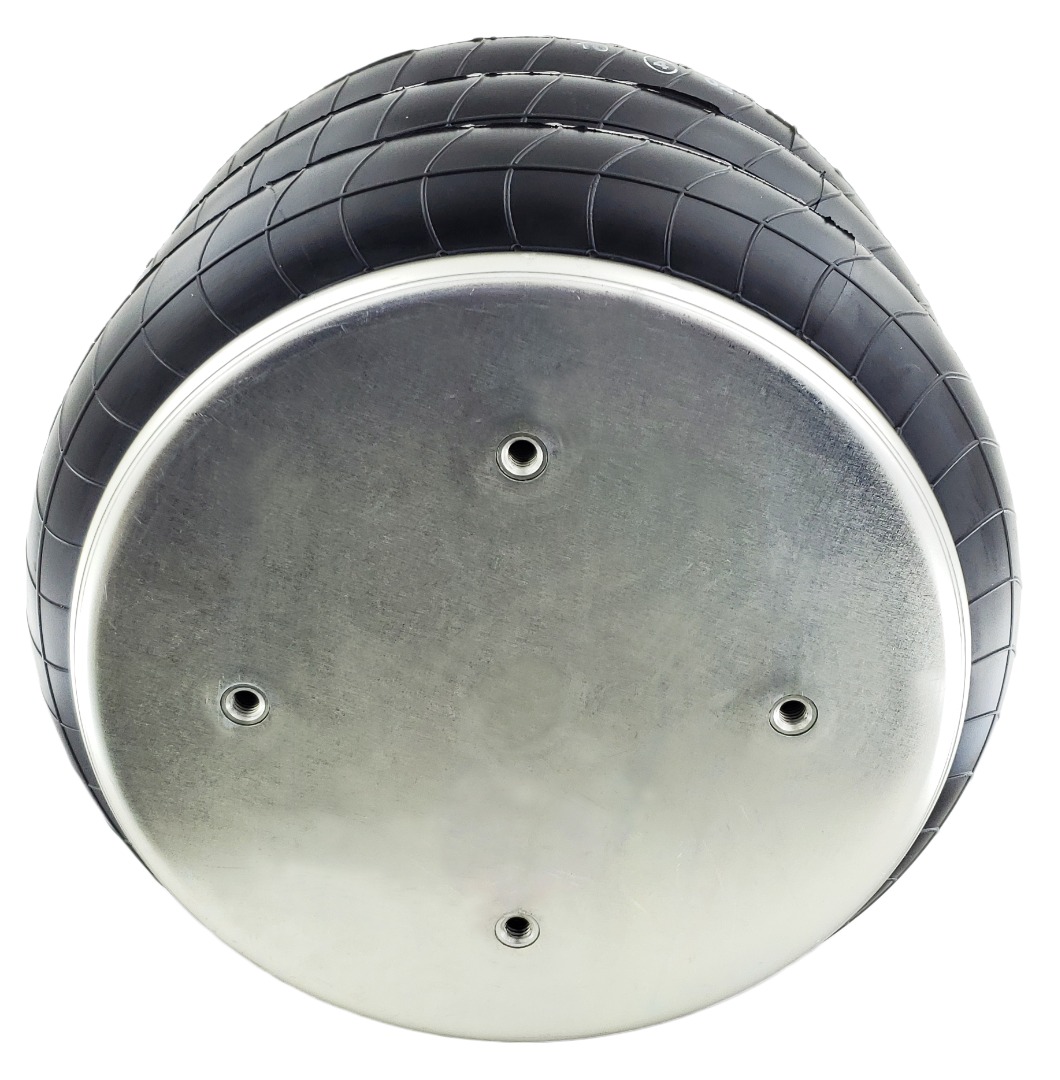

Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Bottom Base Studs
4.38
Has Inner Bumper
Yes
Bellows Number
352
| Rowe Truck: | 0059, ASC 1500 |
| Firestone: | W01-358-7956 |
| Compressed Height: | 4.55" |
| Top Plate Width: | 10.38" |
| Piston Width: | 10.38" |
