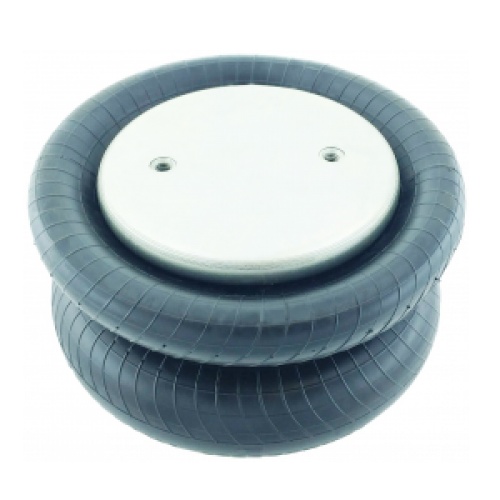

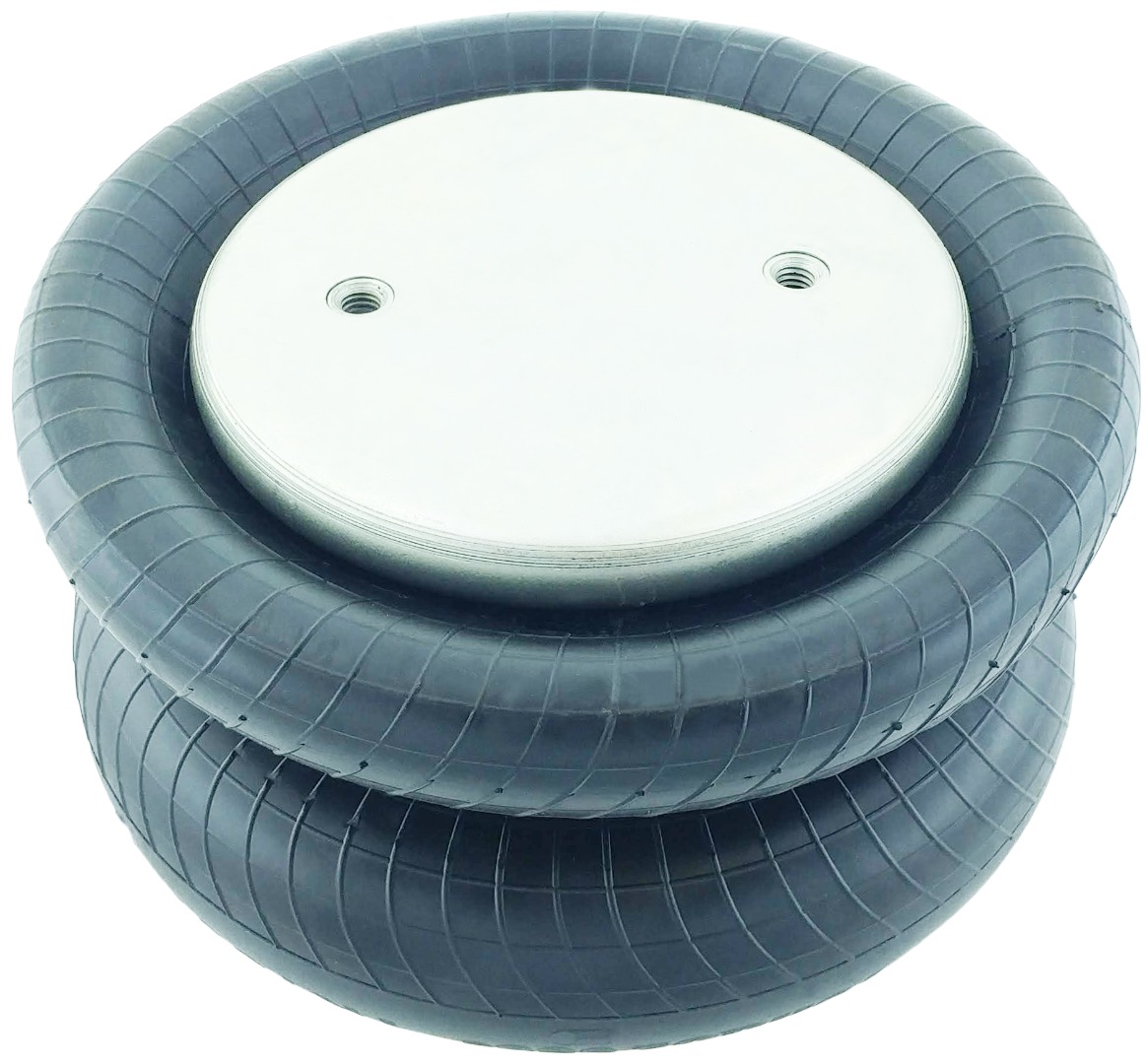

Convoluted Air Spring
TR7897 Convoluted Air Spring TR7897
Air Spring Type
Convoluted Air Spring

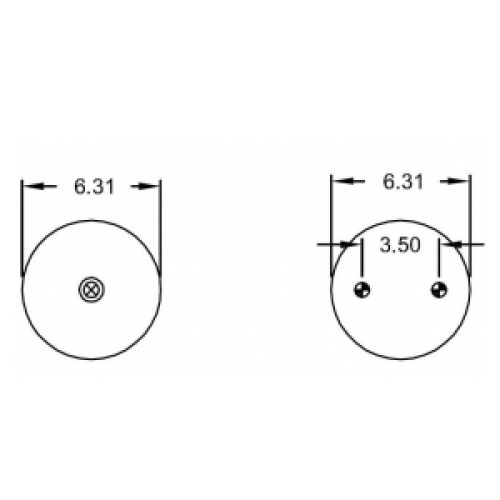

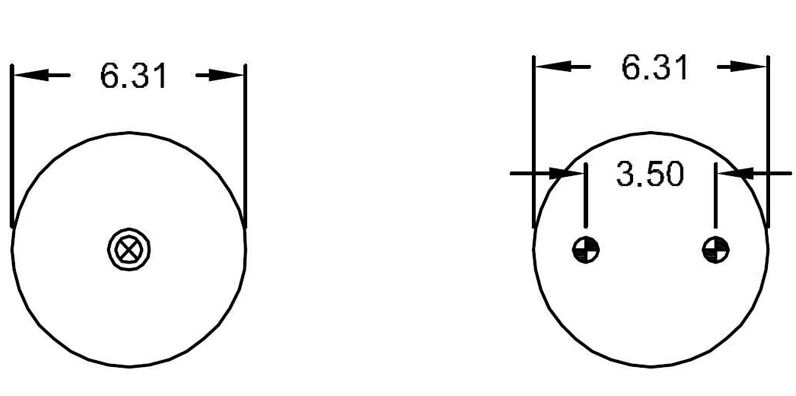

Top Plate Diameter
6.31
Piston Diameter
6.31

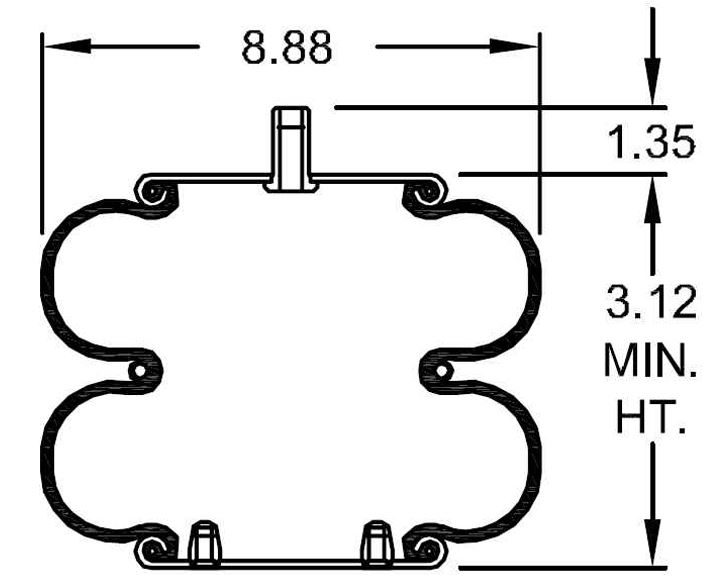

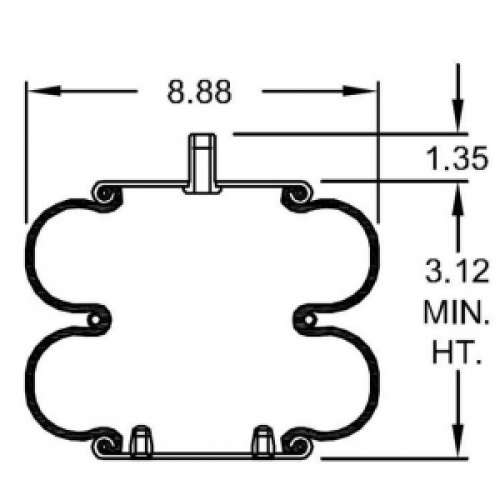

Bellows Diameter
8.88
Minimum Compressed Height
3.12
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
3.50
Has Inner Bumper
No
Bellows Number
20-1
| Hendrickson: | 002878, S-23114 |
| Firestone: | W01-358-7897 |
| Contitech: | FD 200-23A 709 |
| Compressed Height: | 3.12" |
| Top Plate Width: | 6.31" |
| Piston Width: | 6.31" |
| Weight: | 6.4 lbs |
