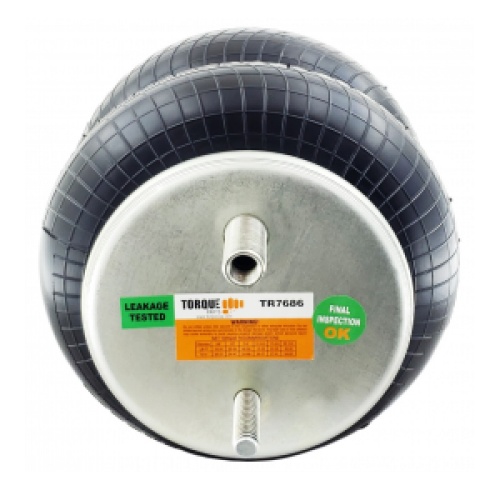

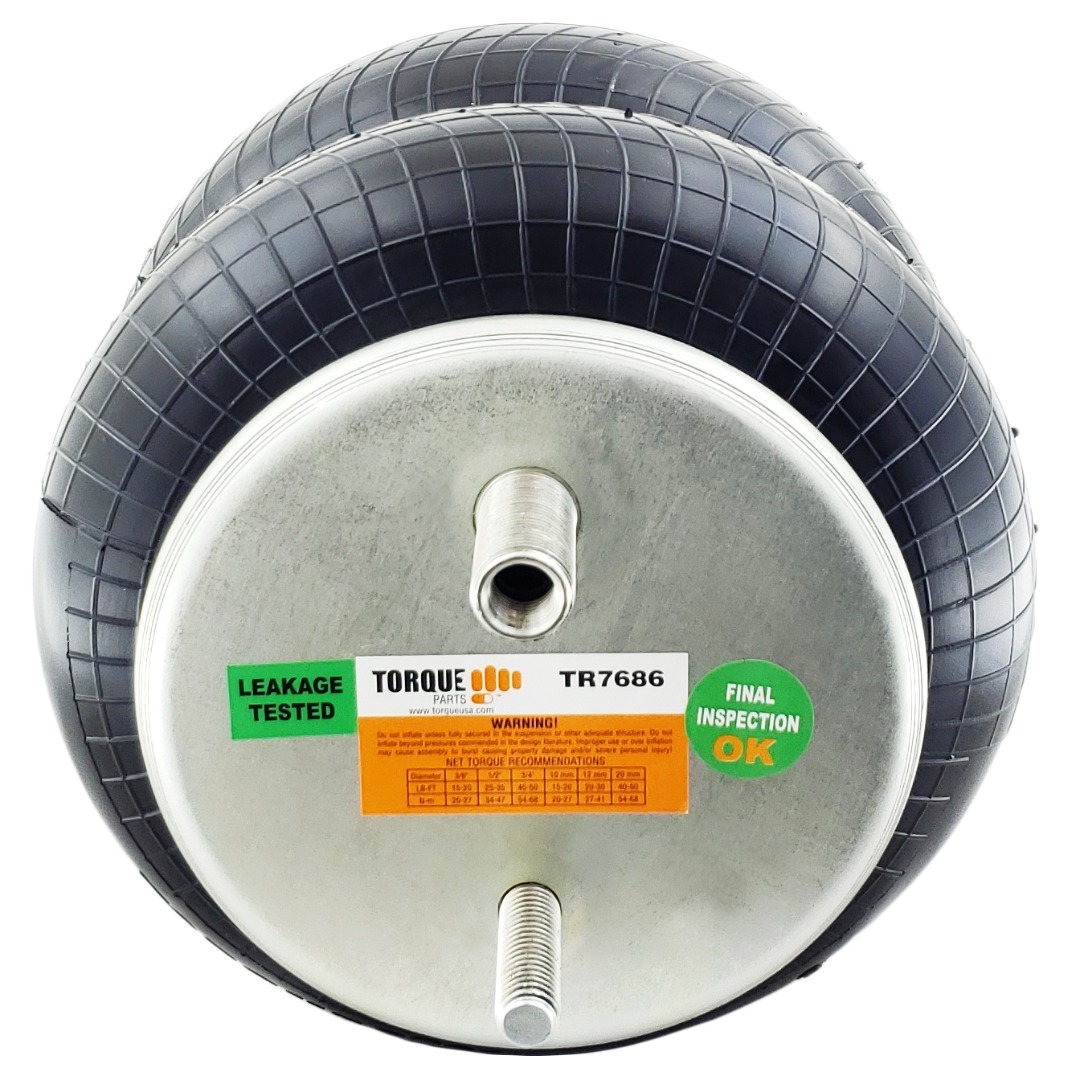

Convoluted Air Spring
TR7686 Convoluted Air Spring TR7686
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
6.31
Piston Diameter
6.31

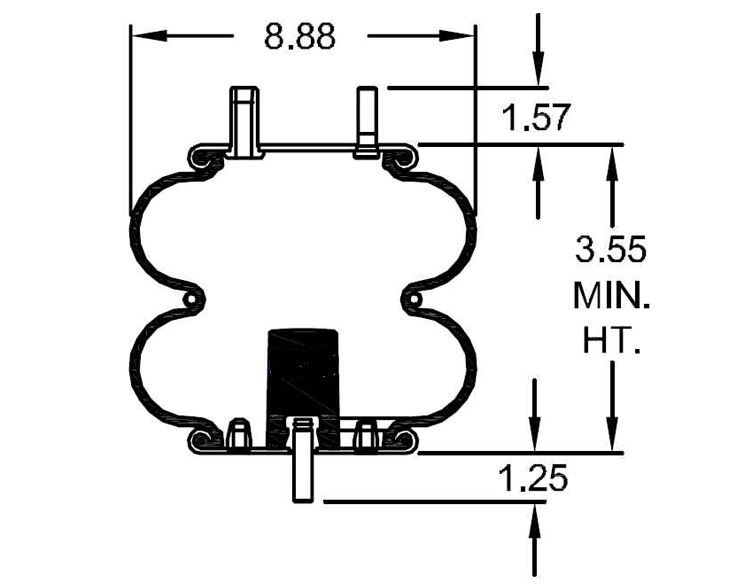

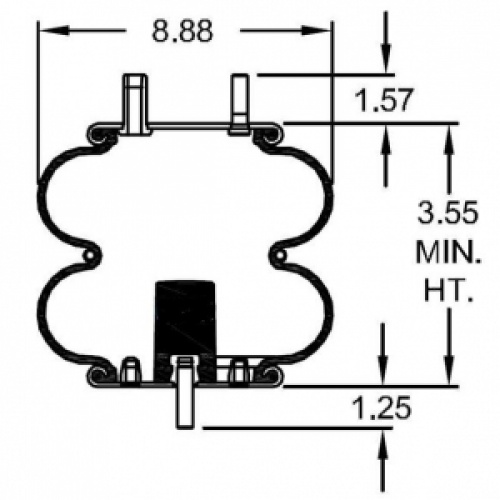

Bellows Diameter
8.88
Minimum Compressed Height
3.55
Air Inlet Type
Male
Air Inlet Height
1.57
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.57

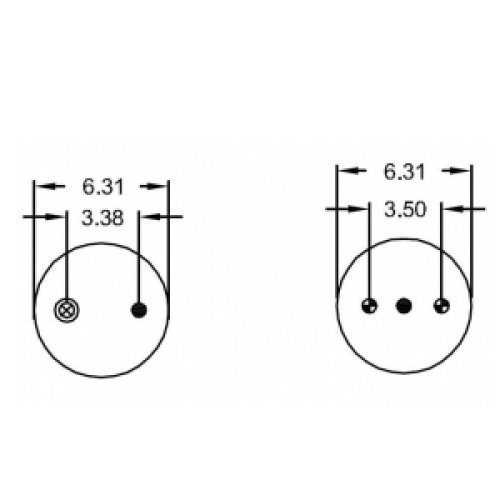

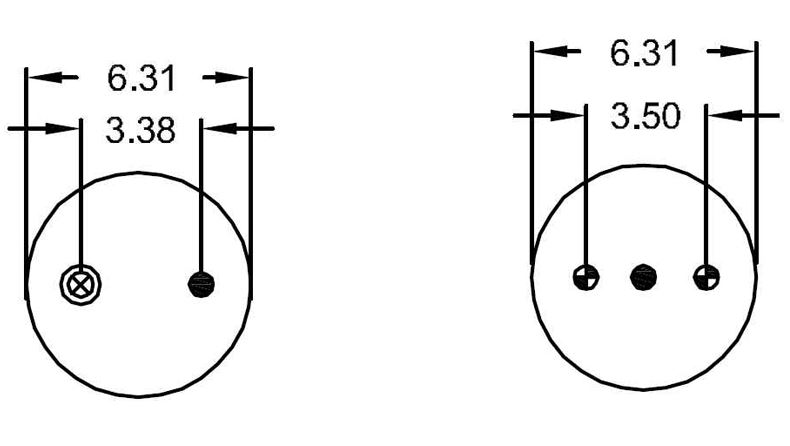

Distance between Top Plate Stud and Air Inlet
3.38

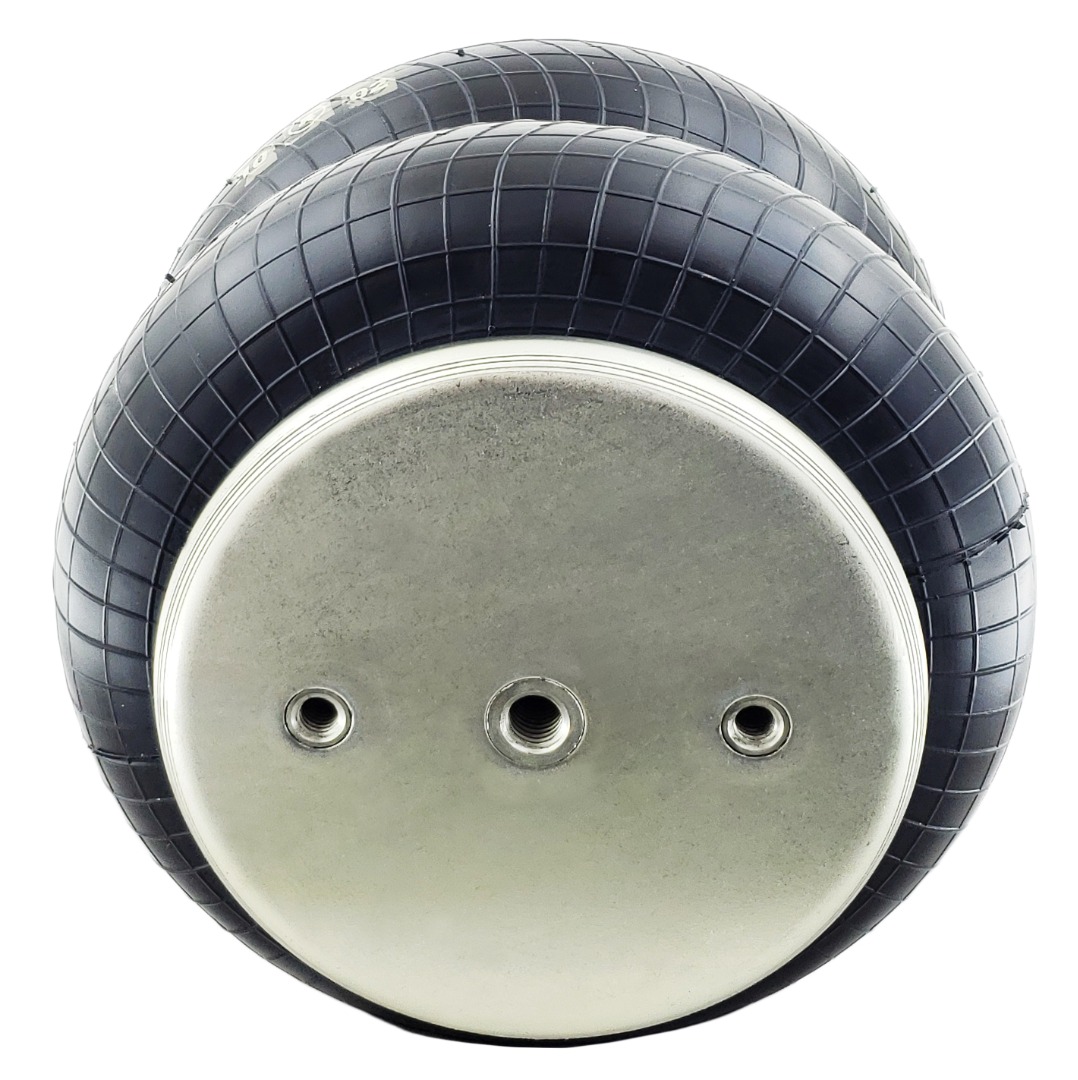

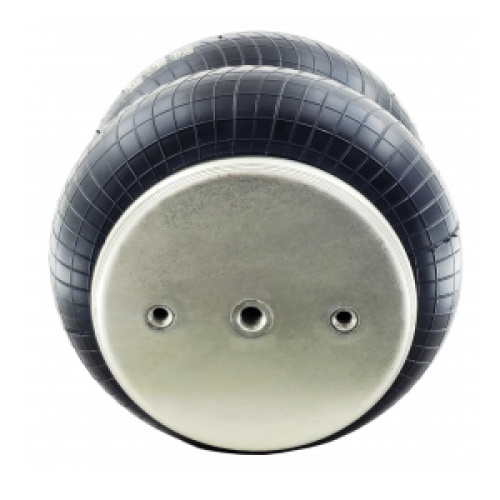

Piston Mounting Type
Stud and Threaded Hole
Piston Stud Quantity
1
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
3.50
Has Inner Bumper
Yes
Bellows Number
20
| Rowe Truck: | 0035, ASC2500, ASC1600 |
| Firestone: | W01-358-7686 |
| Compressed Height: | 3.55" |
| Top Plate Width: | 6.31" |
| Piston Width: | 6.31" |
| Weight: | 8.9 lbs |
