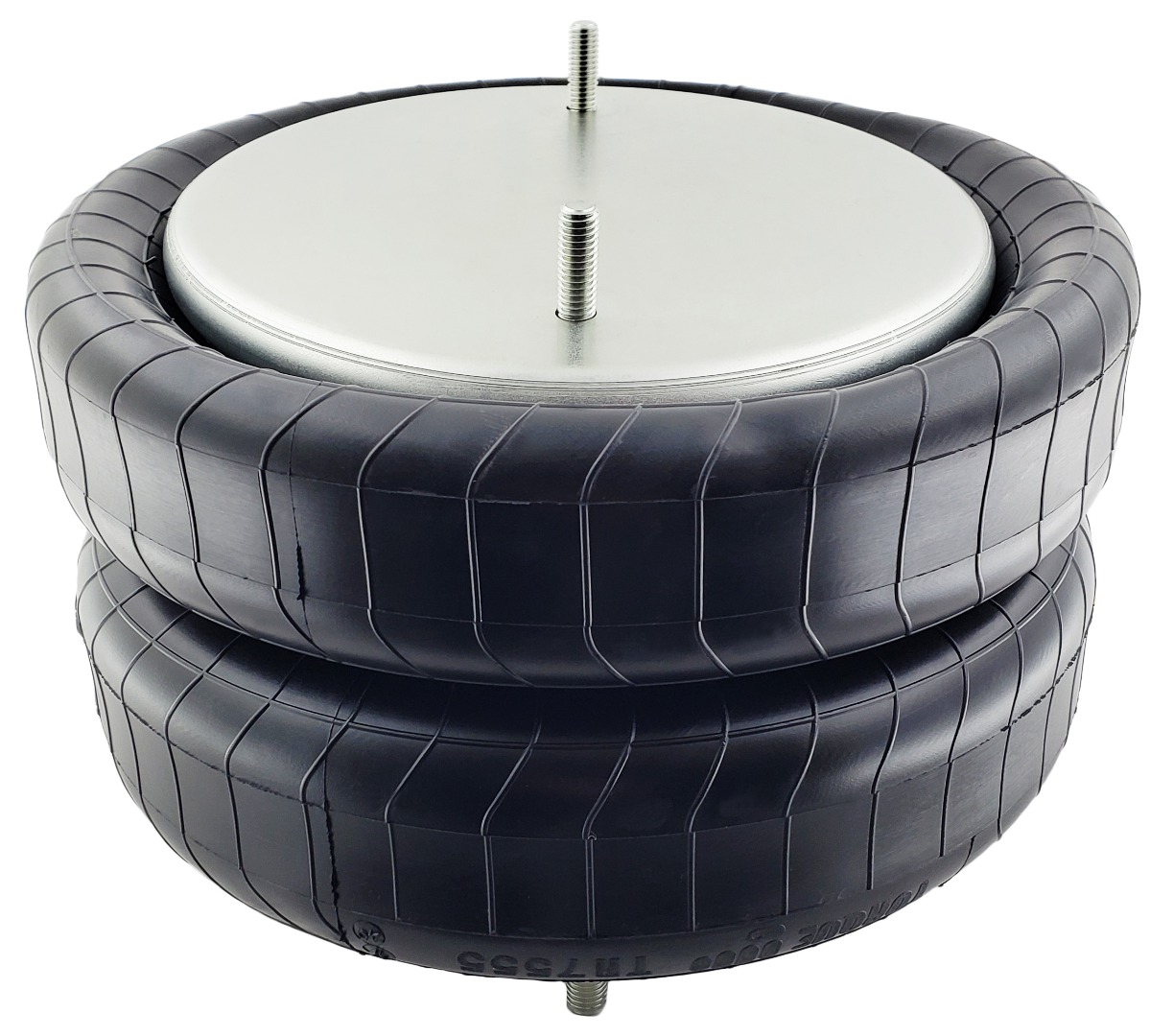

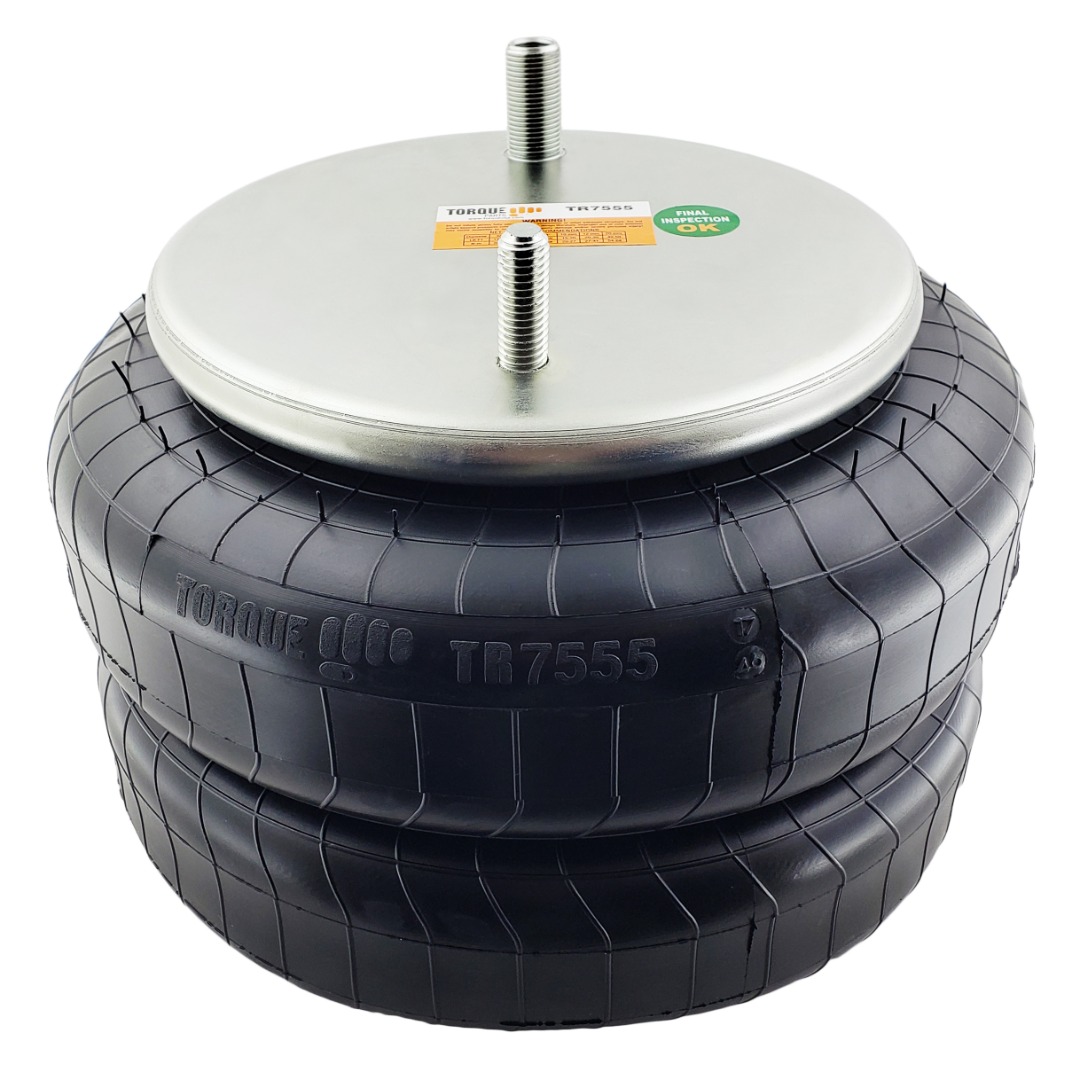

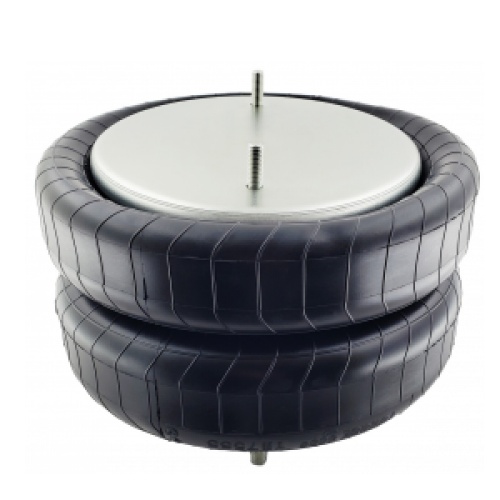

Convoluted Air Spring
TR7555 Convoluted Air Spring TR7555
Air Spring Type
Convoluted Air Spring

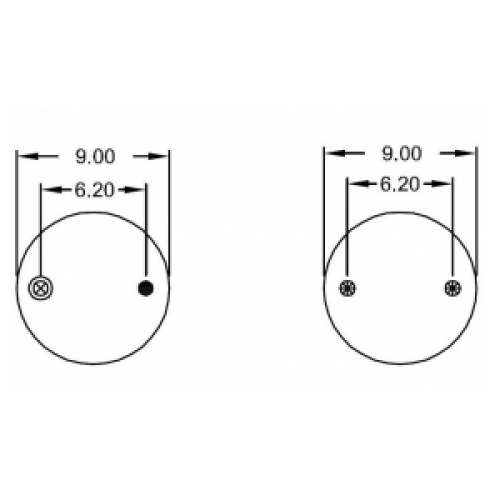

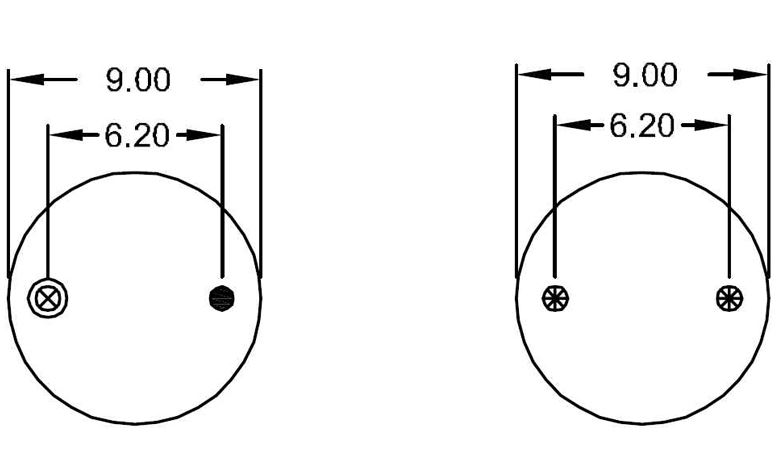

Top Plate Diameter
9.00
Piston Diameter
9.00

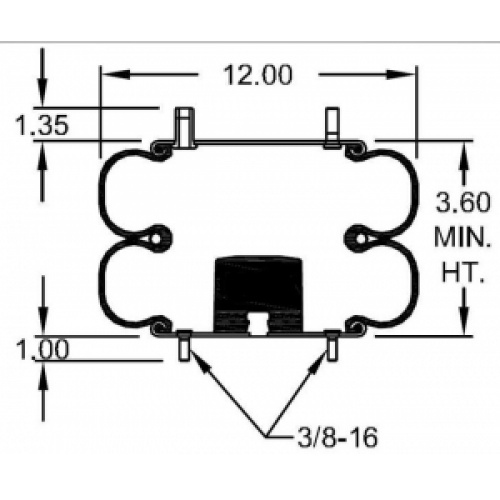

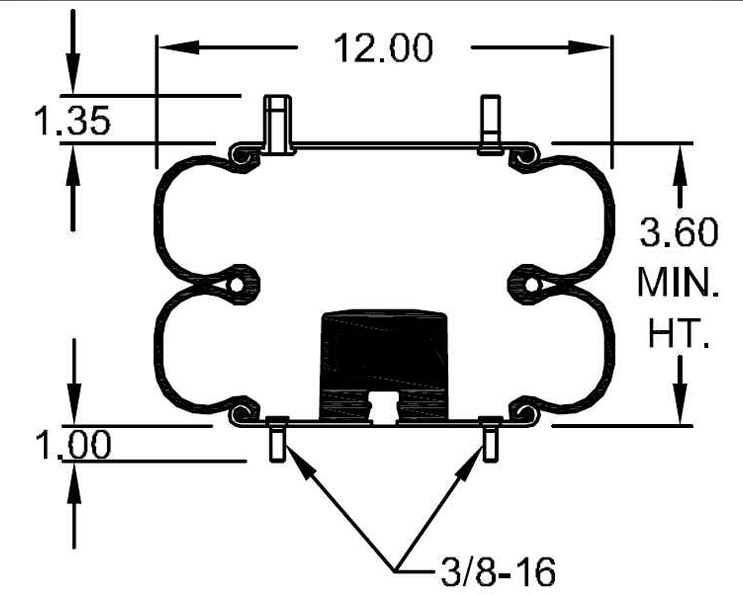

Bellows Diameter
12.00
Minimum Compressed Height
3.60
Air Inlet Type
Male
Air Inlet Height
1.35
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
1.35
Distance between Top Plate Stud and Air Inlet
6.20
Piston Mounting Type
Stud
Piston Stud Quantity
2
Distance Between Bottom Base Studs
6.20
Has Inner Bumper
Yes
Bellows Number
228-1.5
| Reyco Number: | 18813-01, 20018-01 |
| Triangle: | 4480 |
| Firestone: | W01-358-7555 |
| Goodyear: | 2B12-440 |
| Contitech: | FD 331-26 480 |
| NOTE: (BINKLEY XB-SPN-053-37 /Supersedes W01-358-7550): | |
| Compressed Height: | 3.60" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.00" |
| Weight: | 12.2 lbs |
