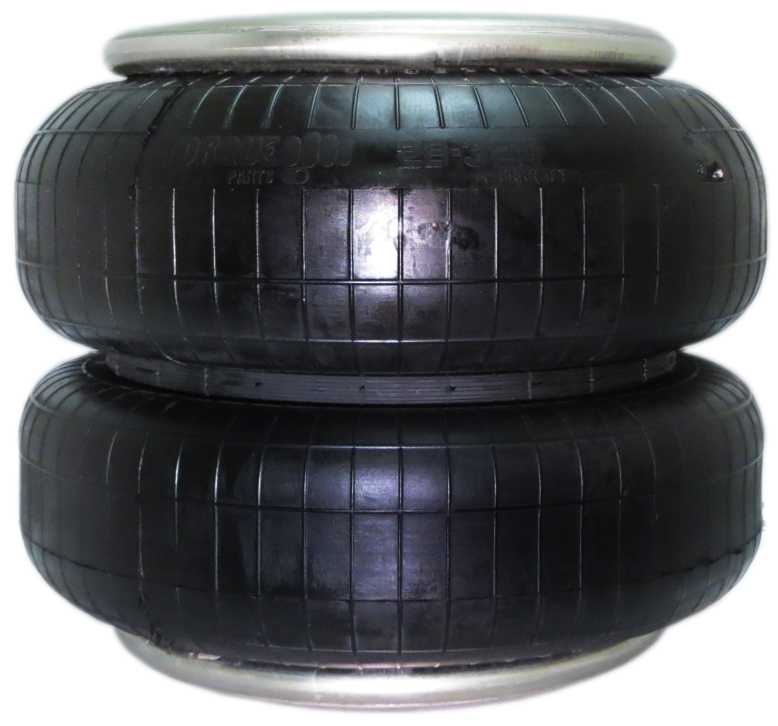

Convoluted Air Spring
TR7443 Convoluted Air Spring TR7443
Air Spring Type
Convoluted Air Spring

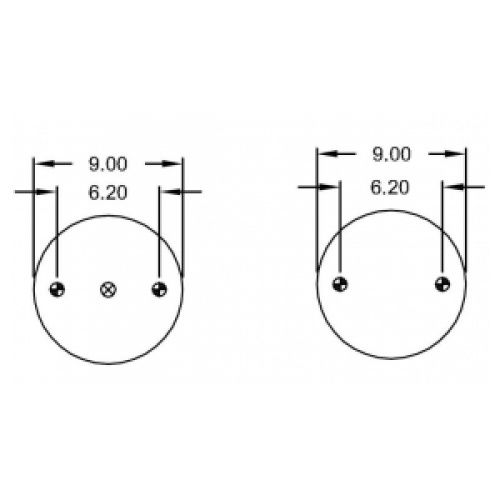

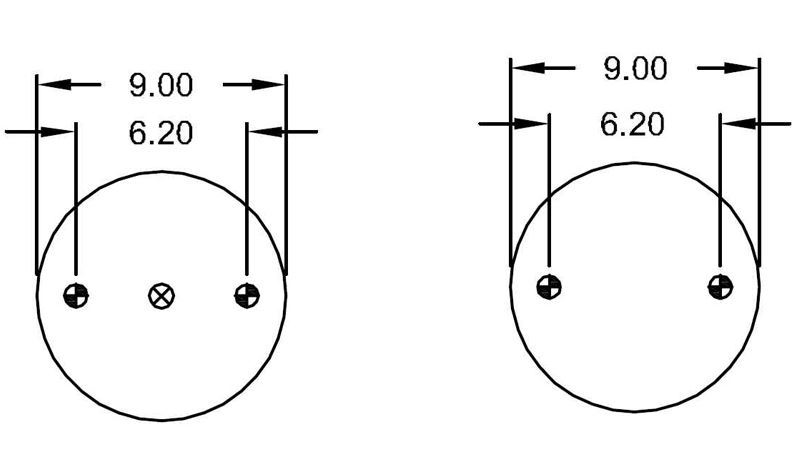

Top Plate Diameter
9.00
Piston Diameter
9.00

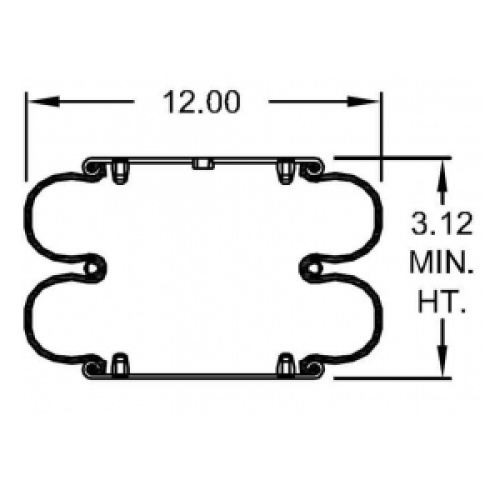

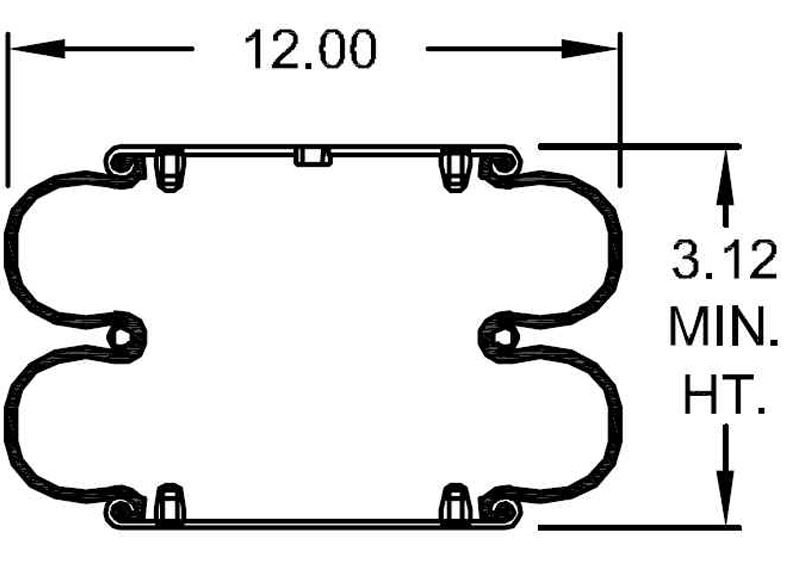

Bellows Diameter
12.00
Minimum Compressed Height
3.12
Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
2
Distance Between Top Plate Threaded Holes
6.20
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
6.20
Has Inner Bumper
No
Bellows Number
22-1.5
| Granning: | 1218 |
| Ridewell: | 1003587443C |
| Triangle: | 4323 |
| Watson & Chalin: | AS-0027 |
| Firestone: | W01-358-7443 |
| Goodyear: | 2B12-305 |
| Compressed Height: | 3.12" |
| Top Plate Width: | 9.00" |
| Piston Width: | 9.00" |
| Weight: | 11.7 lbs |
