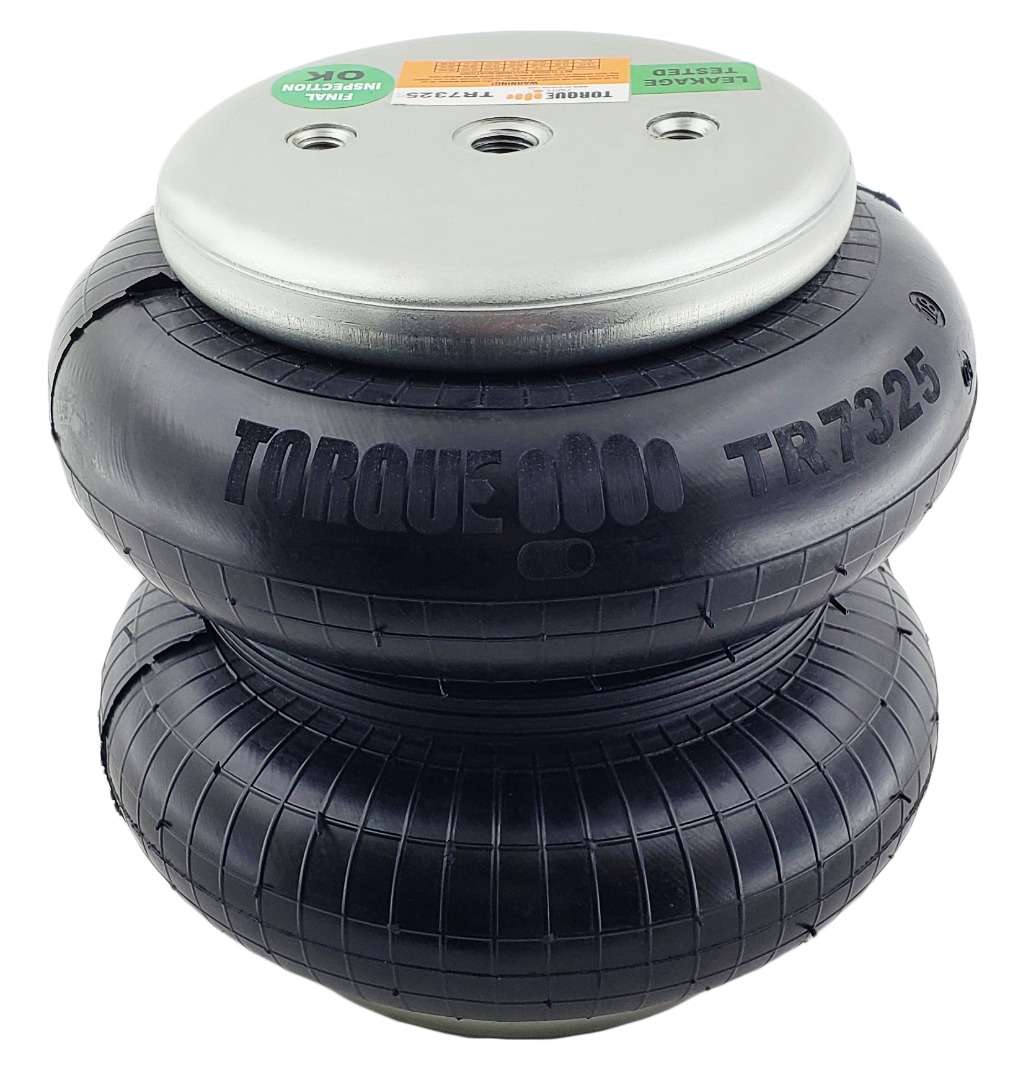

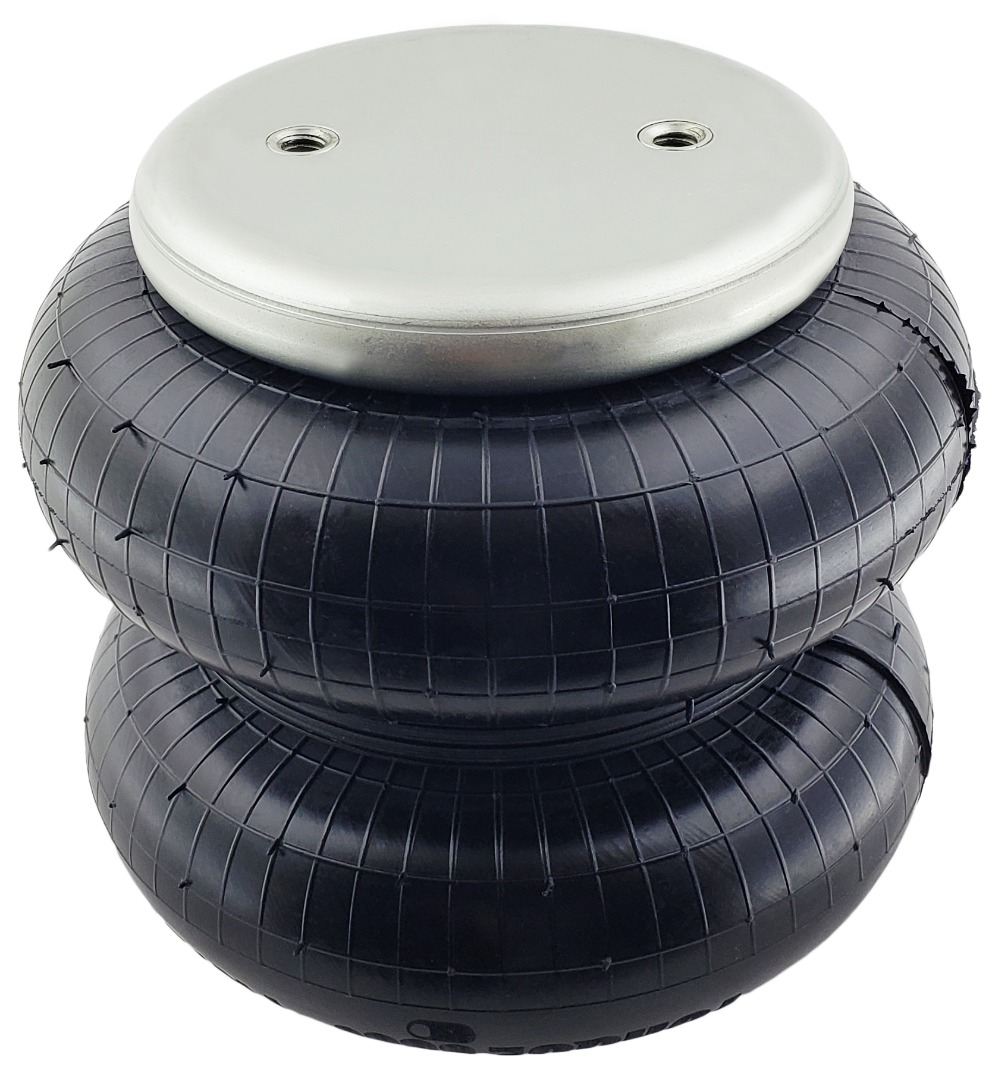

Convoluted Air Spring
TR7325 Convoluted Air Spring TR7325
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
5.31
Piston Diameter
5.31

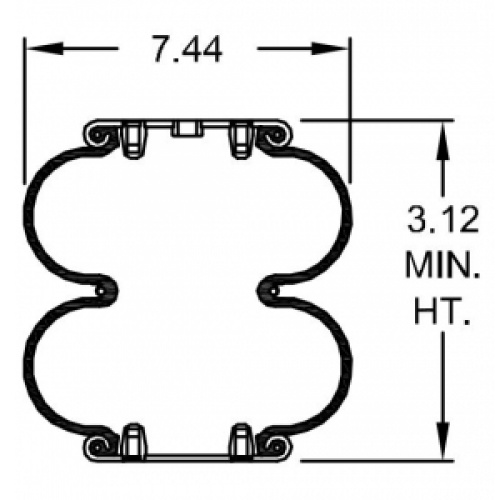

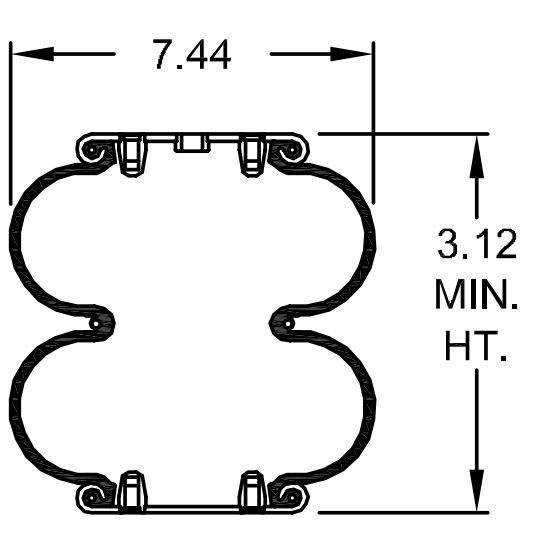

Bellows Diameter
7.44
Minimum Compressed Height
3.12
Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole

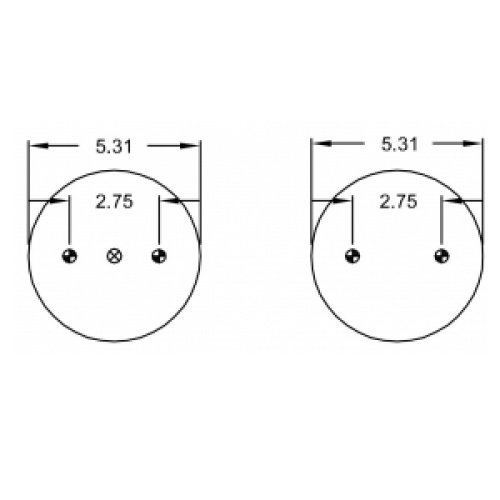

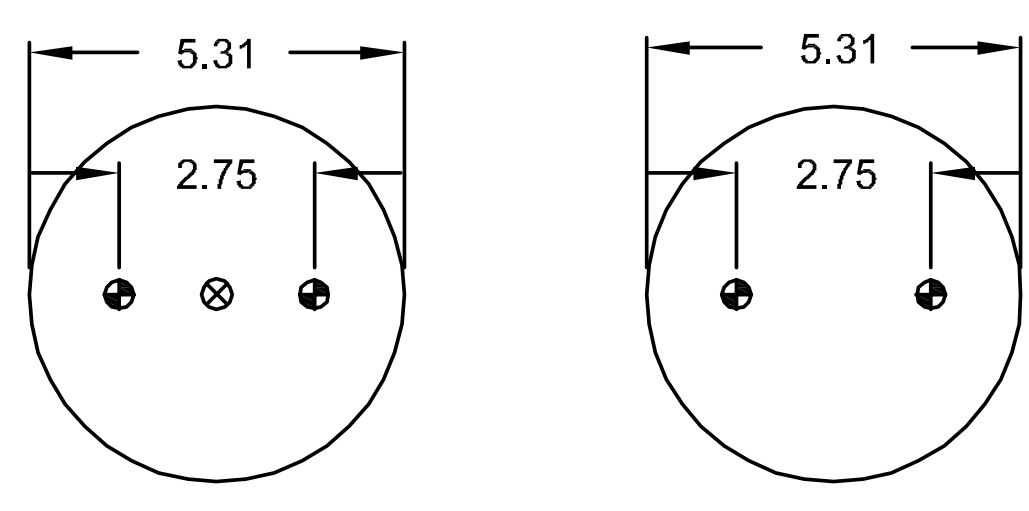

Top Plate Threaded Hole Quantity
2
Distance Between Top Plate Threaded Holes
2.75
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
2.75
Has Inner Bumper
No
Bellows Number
26
| Mack: | 227QS-32, 57QK1113 |
| Hendrickson: | S-14395 |
| Triangle: | 4509 |
| Watson & Chalin: | AS-0030 |
| Firestone: | W01-358-7325 |
| Goodyear: | 2B8-150, 2B8-153, 2B8-550 |
| Contitech: | FD 120-20 509 |
| Compressed Height: | 3.12" |
| Top Plate Width: | 5.31" |
| Piston Width: | 5.31" |
| Weight: | 5 lbs |
