Cabin Air Spring for Freightliner Trucks
TR7215 Freightliner Cabin Air Spring TR7215

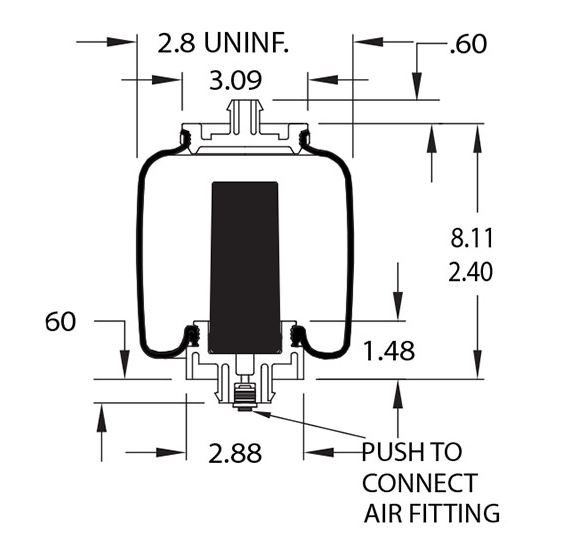

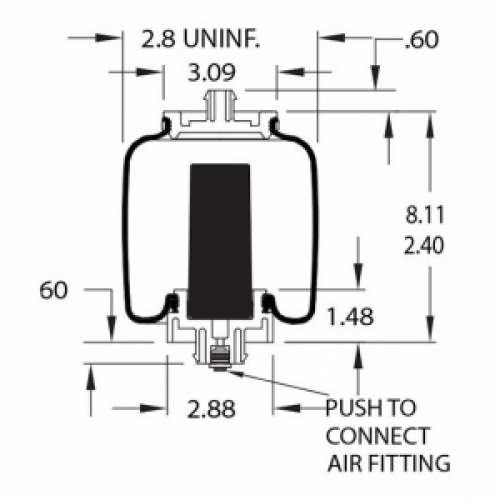

Air Spring Type
Cabin Air Spring
BCR
10.43
Top Plate Diameter
3.09
Piston Diameter
2.88
Bellows Diameter
2.80
Piston Height
1.48
Piston Material
Composite
Max Extended Height
8.11
Bottom Air Inlet Thread Size
PUSH TO CONNECT AIR FITTING
Minimum Compressed Height
2.40
Air Inlet Type
Male
Air Inlet Height
0.60
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
1
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
YELLOW
| Freightliner: | 18-40977-000, 18-52651-000, 18-66715-000 |
| Firestone: | W02-358-7215, W02-358-7207 (Supersede by 7111) |
| Goodyear: | 1S5-175 |
| Contitech: | SC31-Y215 |
| Triangle: | AS-5215 |
| Alliance: | ABP N32 027215 |
| Extended Height: | 8.11" |
| Compressed Height: | 2.40" |
| BCR: | 10.43" |
