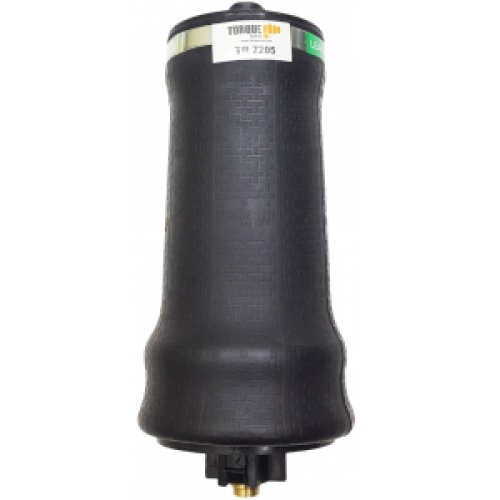

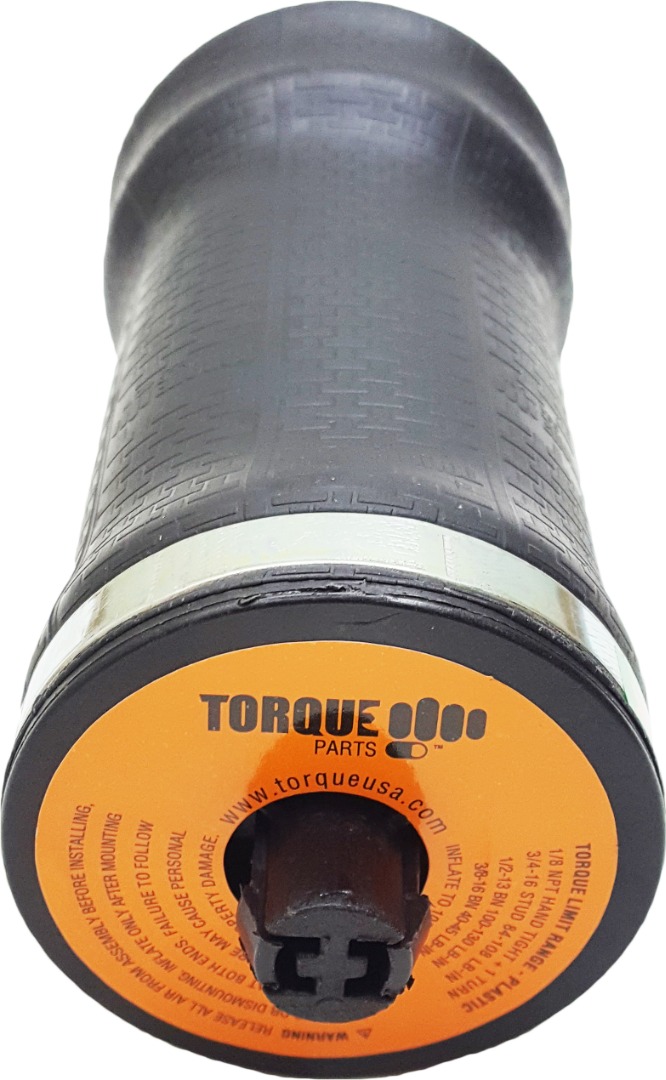

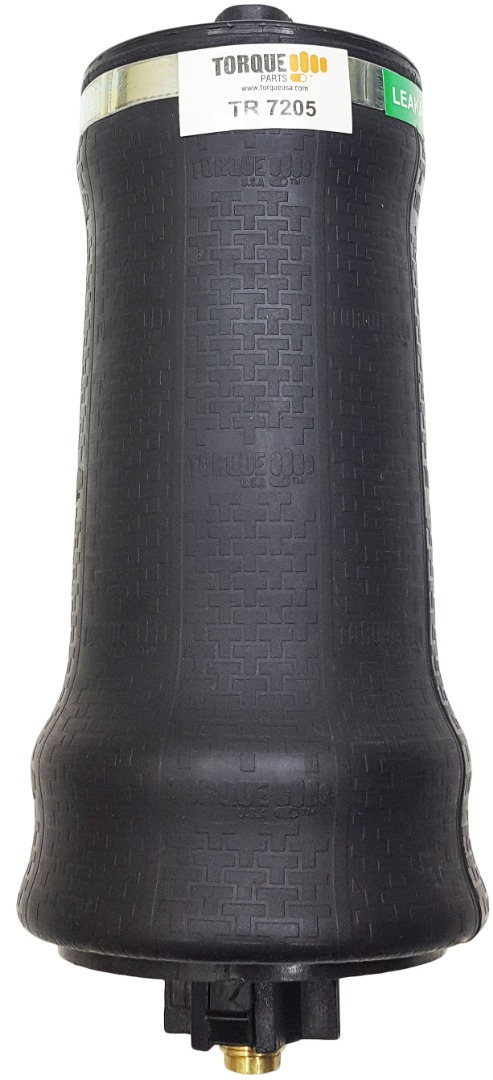

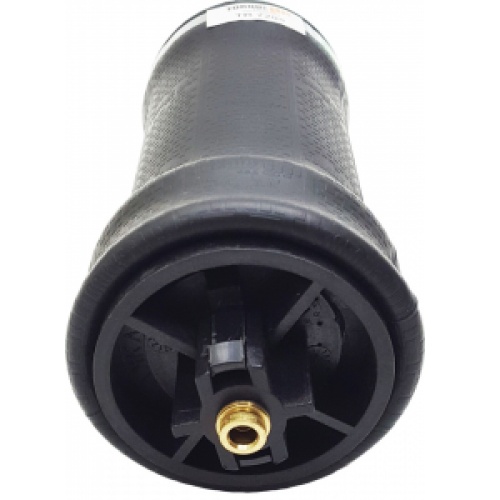

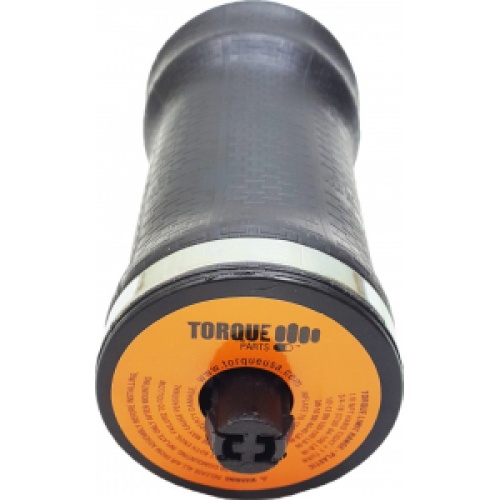

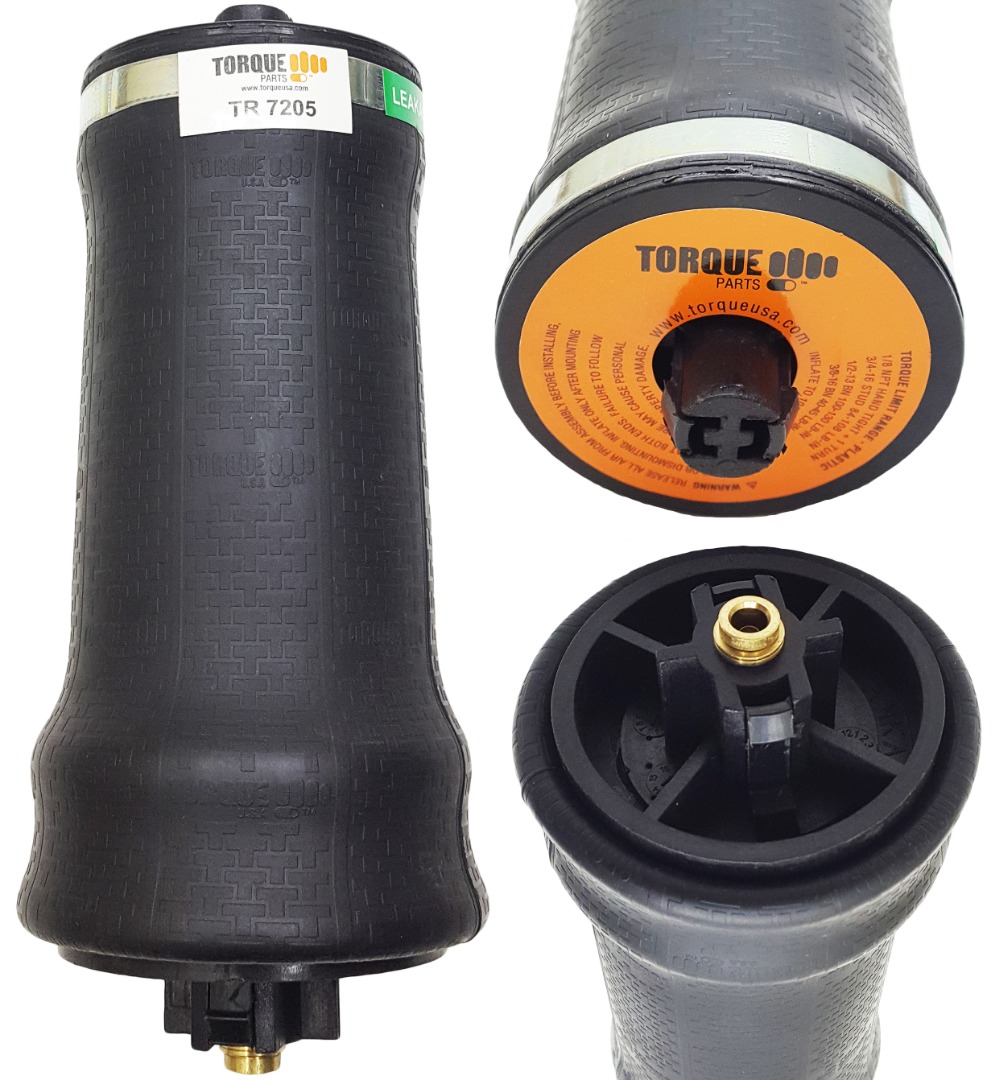

Cabin Air Spring for Freightliner/Western Star Trucks

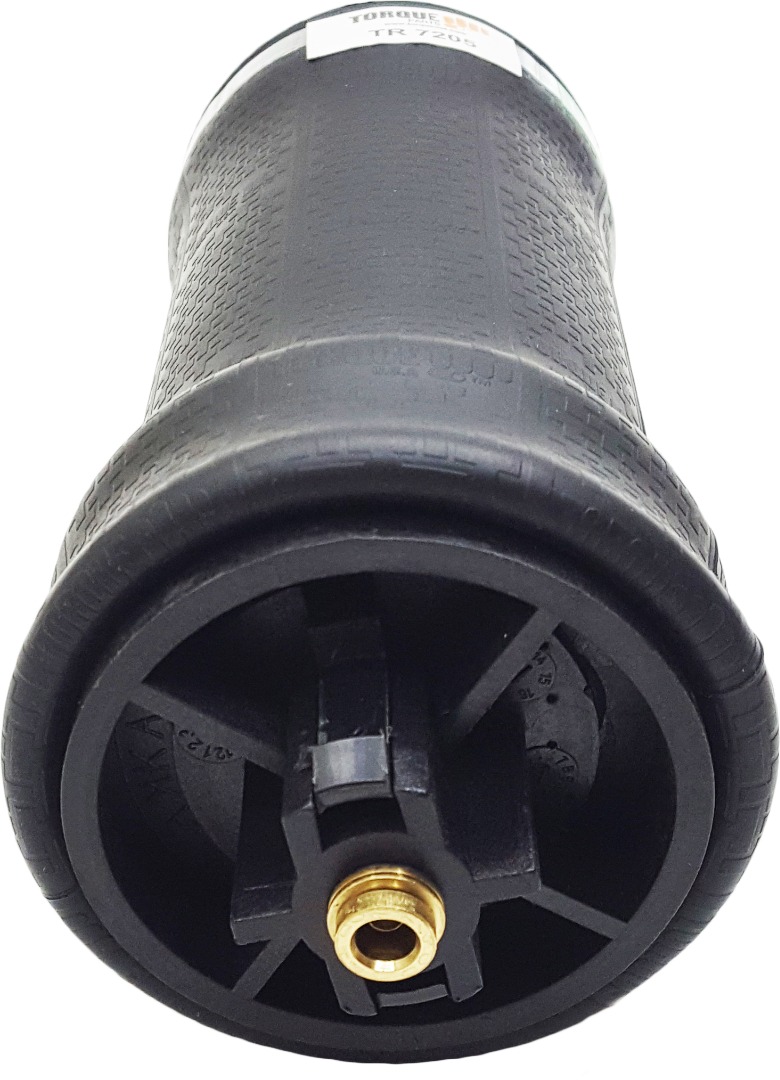

TR7205 Freightliner Cabin Air Spring TR7205
Air Spring Type
Cabin Air Spring
BCR
8.00

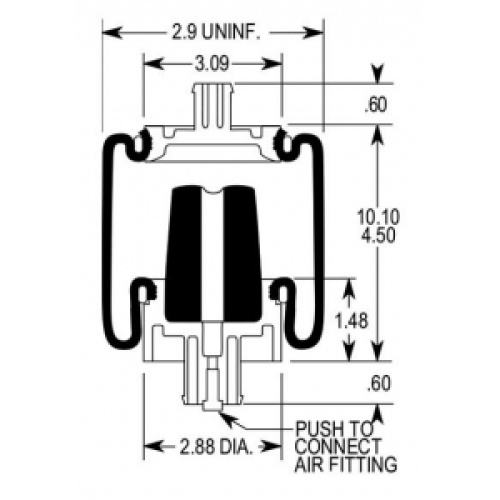

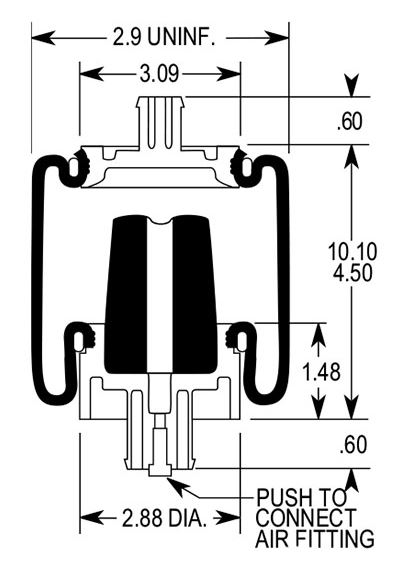

Top Plate Diameter
3.09
Piston Diameter
2.88
Bellows Diameter
2.90
Piston Height
1.48
Piston Material
Composite
Max Extended Height
10.10
Bottom Air Inlet Thread Size
PUSH TO CONNECT AIR FITTING
Minimum Compressed Height
4.50
Air Inlet Type
Male
Air Inlet Height
0.60
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
1
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
Yes
Bellows Number
YELLOW
| Firestone: | W02-358-7205 |
| Contitech: | SC31-Y205 |
| Western Star: | 66003-3406 |
| Alliance: | ABP N32 027205 |
| Extended Height: | 10.10" |
| Compressed Height: | 4.50" |
| BCR: | 8.00" |
