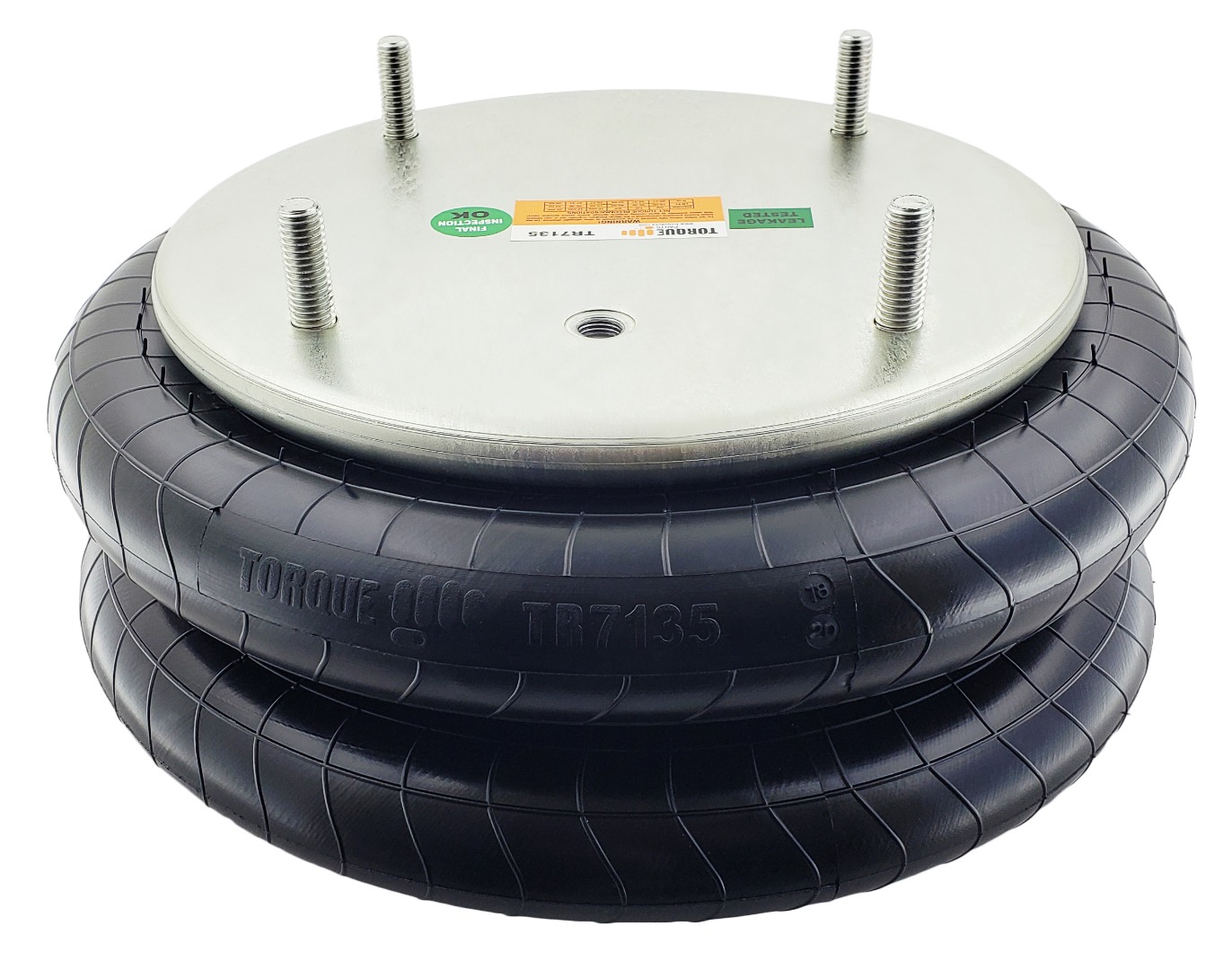

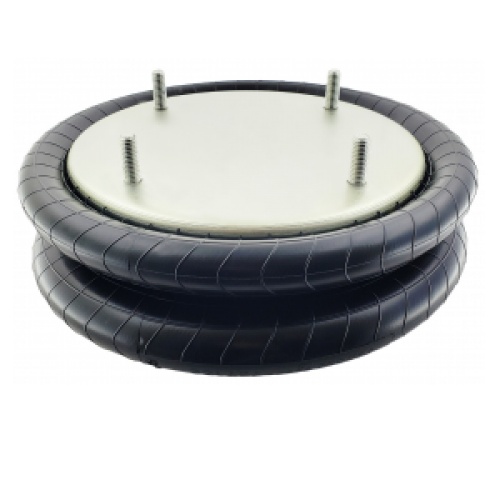

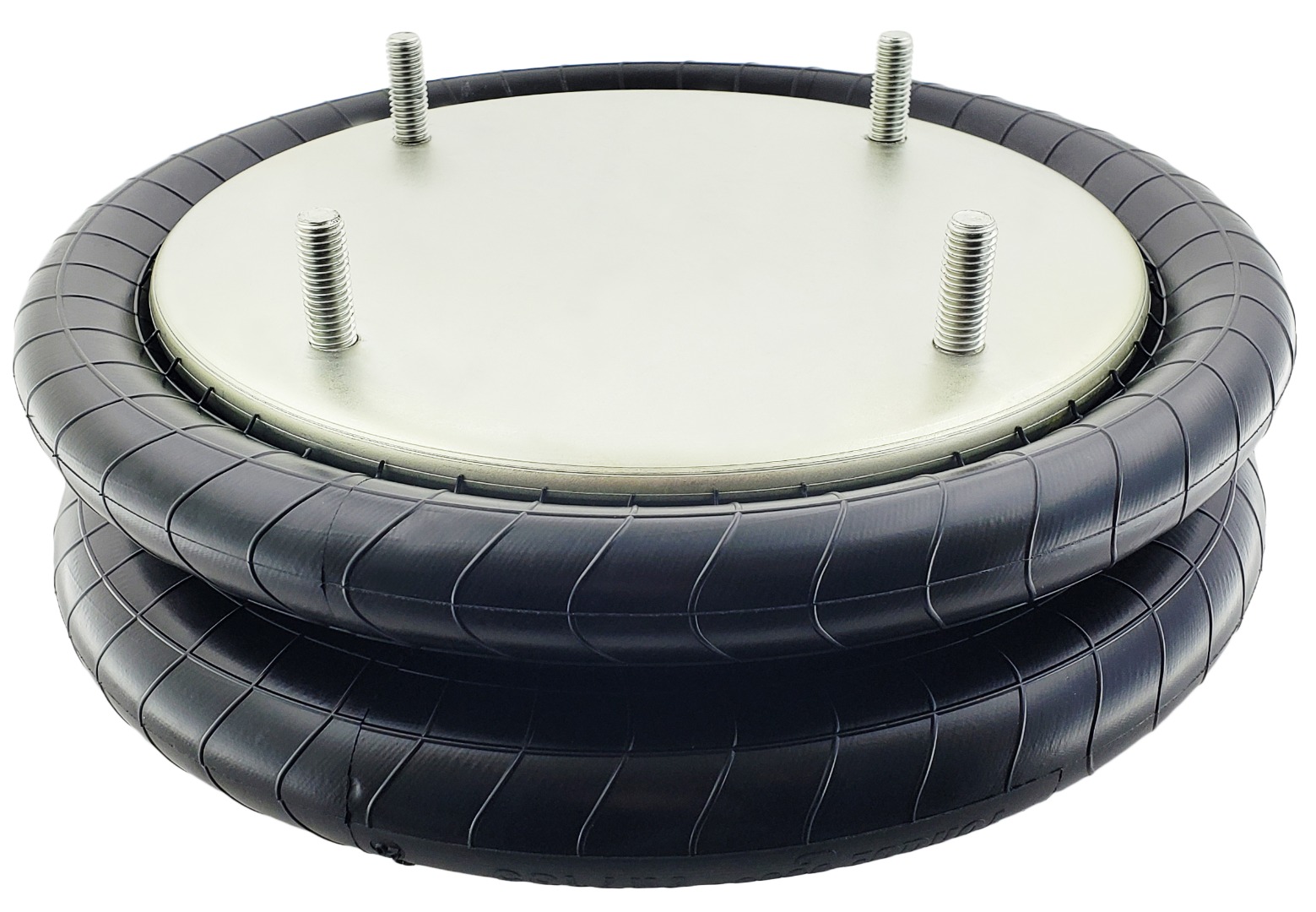

Convoluted Air Spring
TR7135 Convoluted Air Spring TR7135

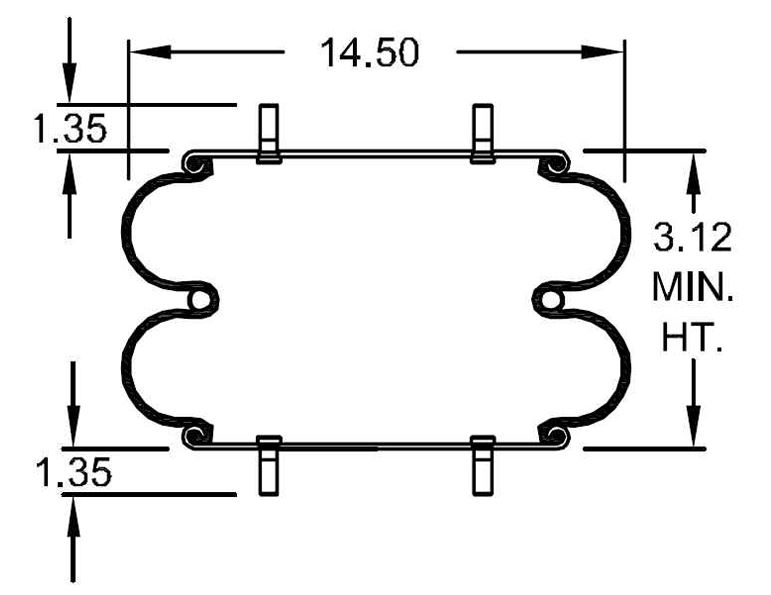

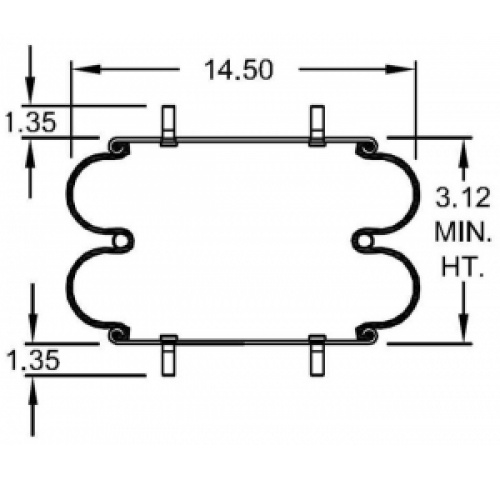

Air Spring Type
Convoluted Air Spring
Top Plate Diameter
11.31
Piston Diameter
11.31
Bellows Diameter
14.50
Minimum Compressed Height
3.12
Air Inlet Type
Female
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
4
Top Plate Stud Height
1.35

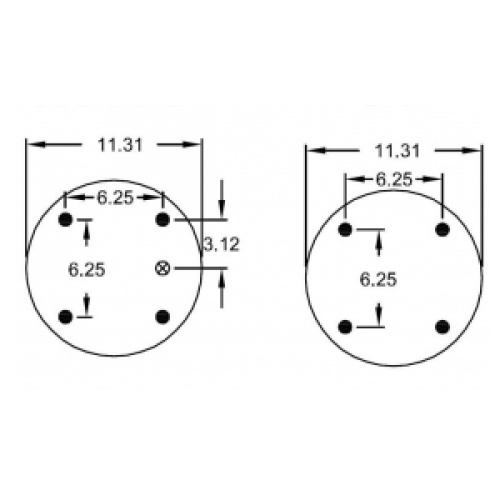

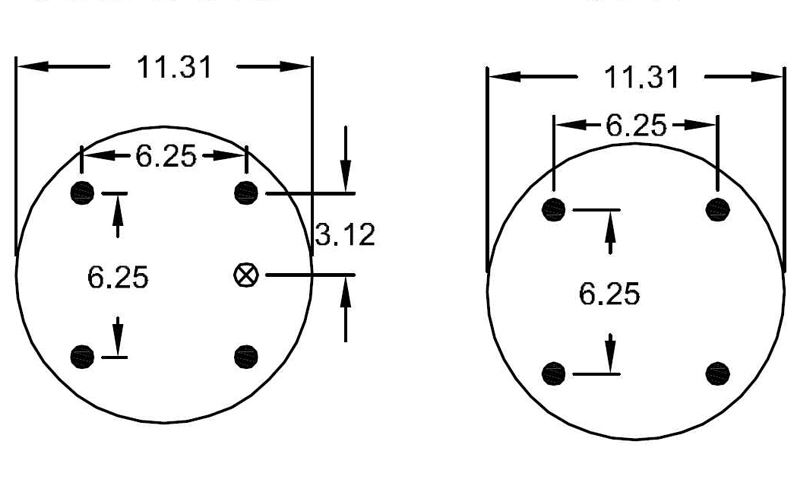

Distance Between Top Plate Studs
6.25
Piston Mounting Type
Stud
Piston Stud Quantity
4
Distance Between Bottom Base Studs
6.25
Has Inner Bumper
No
Bellows Number
21
| Hendrickson: | B-12514-014 |
| Holland (Neway): | 905-57-001 |
| Ridewell: | 1003587135C |
| Triangle: | 4311 |
| Firestone: | W01-358-7135 |
| Goodyear: | 2B14-360 |
| Contitech: | FD 530-22 321 |
| Compressed Height: | 3.12" |
| Top Plate Width: | 11.31" |
| Piston Width: | 11.31" |
| Weight: | 14.8 lbs |
