Air Spring for Kenworth T2000 1998 & Later Model Trucks

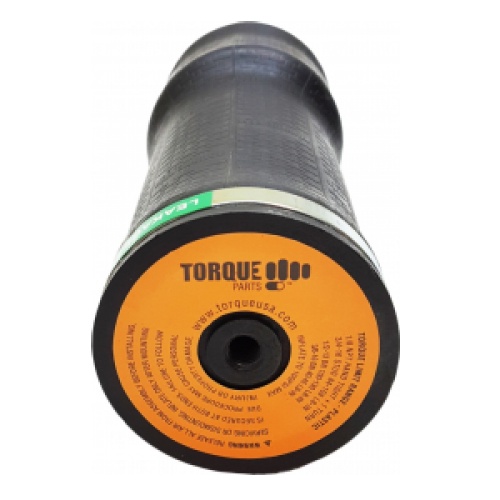

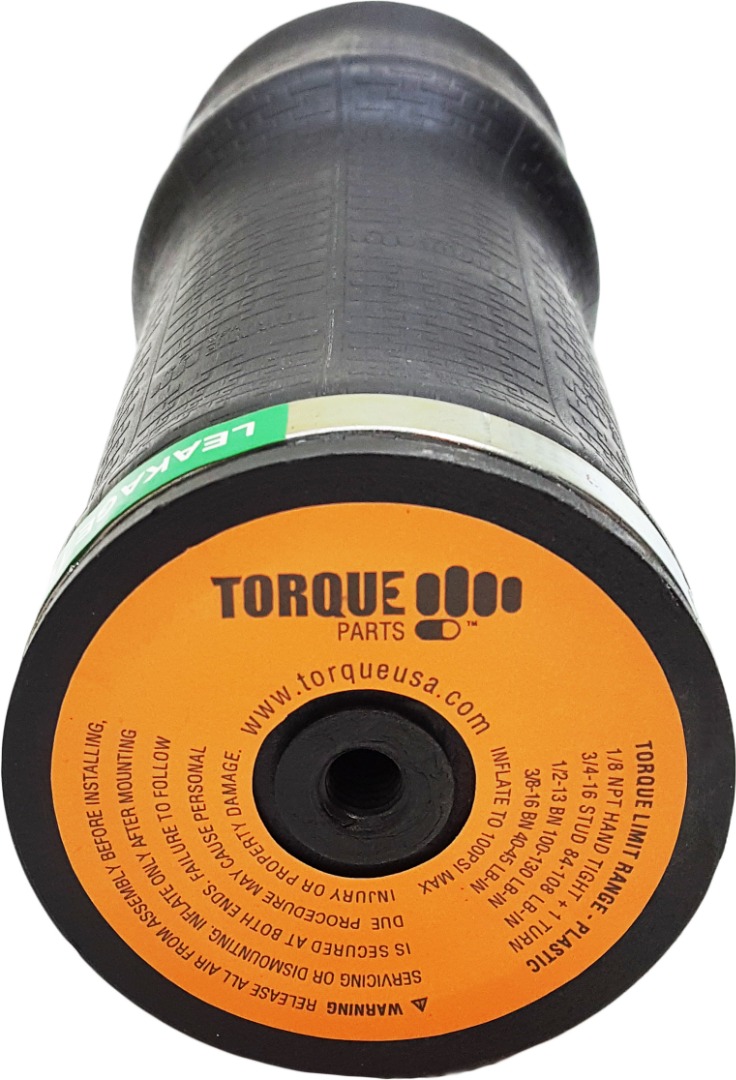

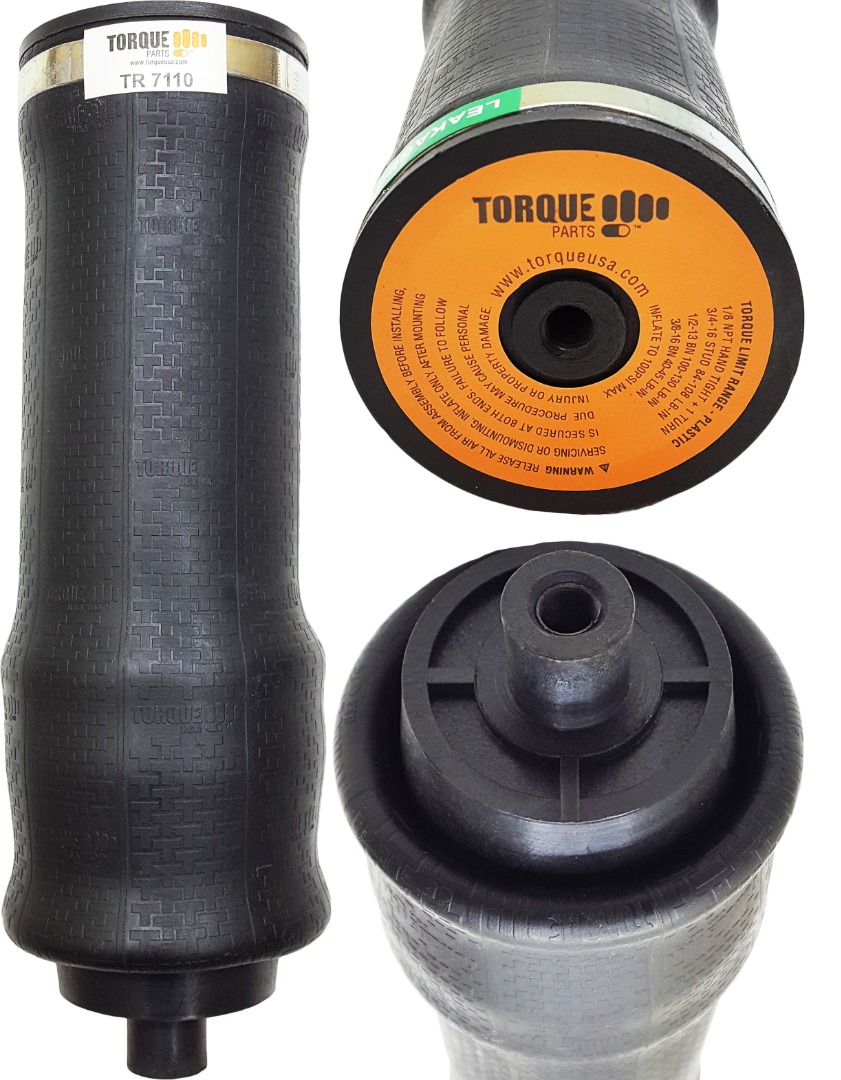

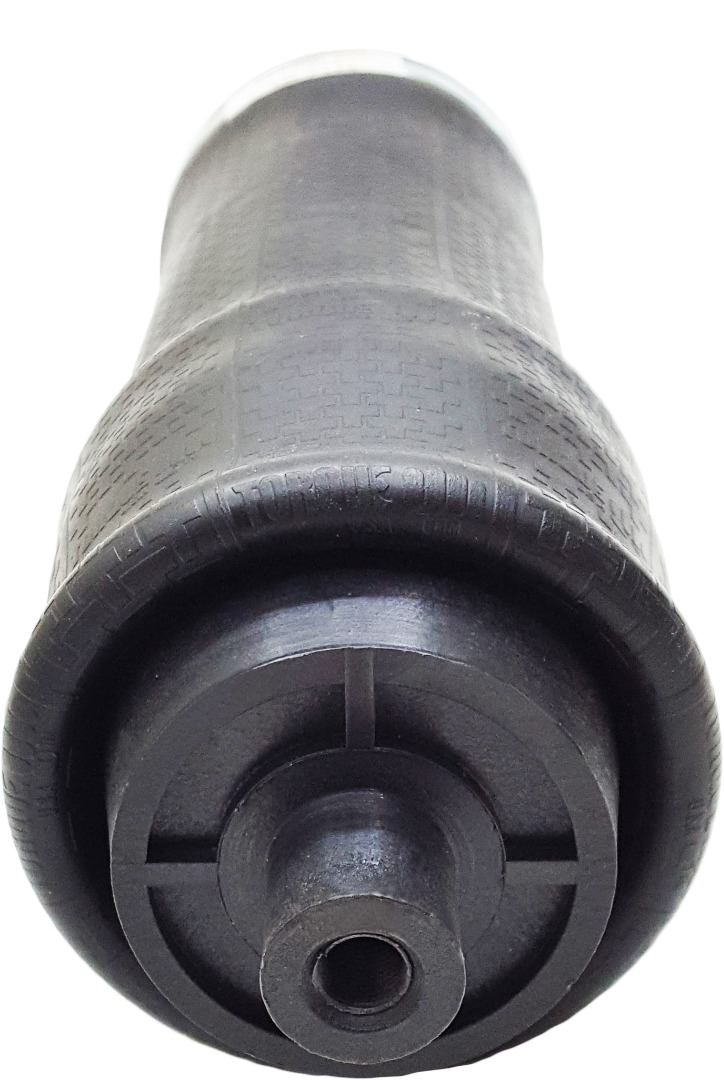

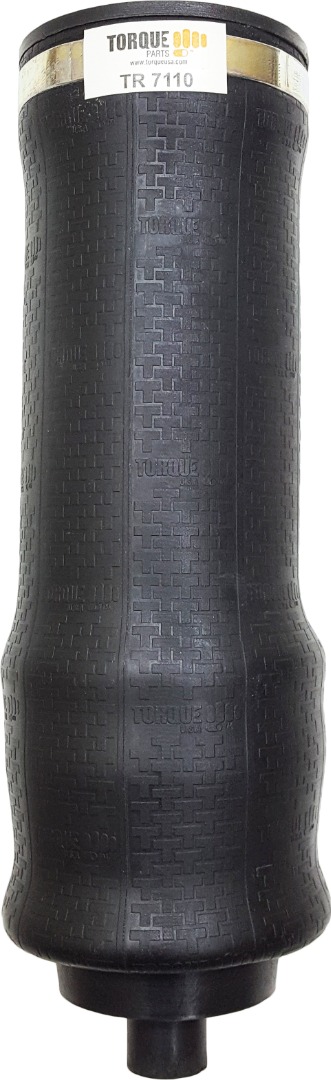

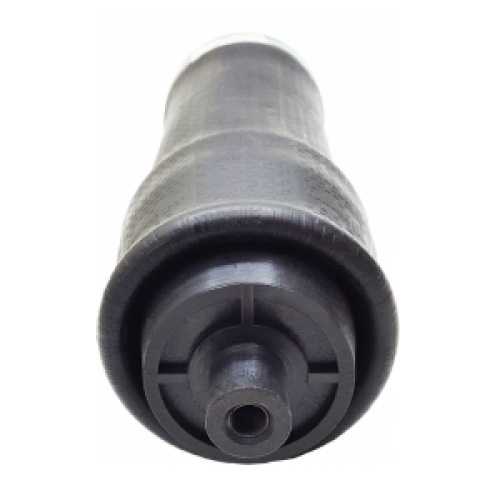

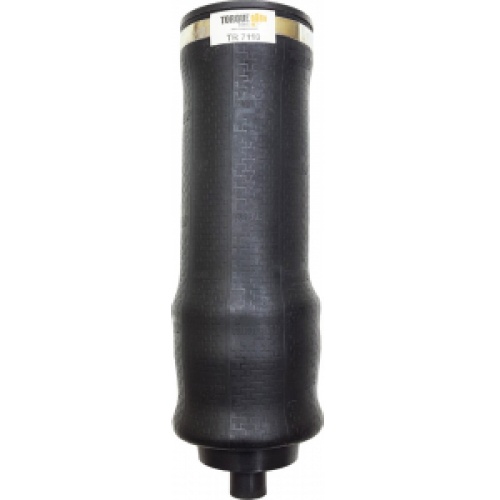

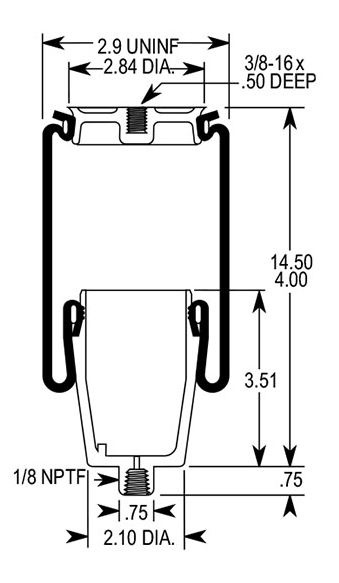

TR7110 Kenworth Cabin Air Spring TR7110
Air Spring Type
Cabin Air Spring
BCR
11.75

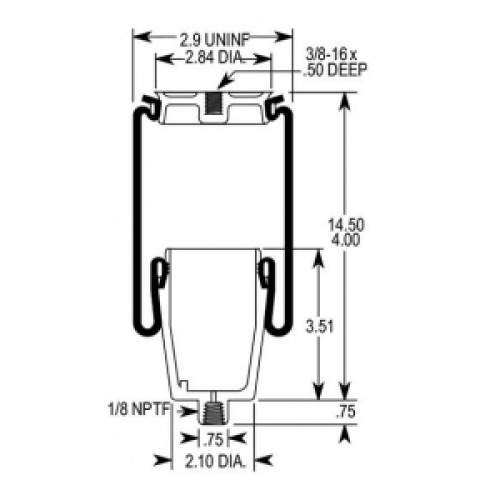

Top Plate Diameter
2.84
Piston Diameter
2.10
Bellows Diameter
2.90
Piston Height
3.51
Piston Material
Composite
Max Extended Height
14.50
Bottom Air Inlet Thread Size
1/8 NPT
Minimum Compressed Height
4.00
Air Inlet Type
Male
Air Inlet Height
0.75
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
1
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
BLUE
| Kenworth: | R81-1002 |
| Link: | 1102-0082, 1102-K082 |
| Firestone: | W02-358-7110 |
| Goodyear: | 1S5-152 |
| Extended Height: | 14.50" |
| Compressed Height: | 4.00" |
| Bcr: | 11.75" |
