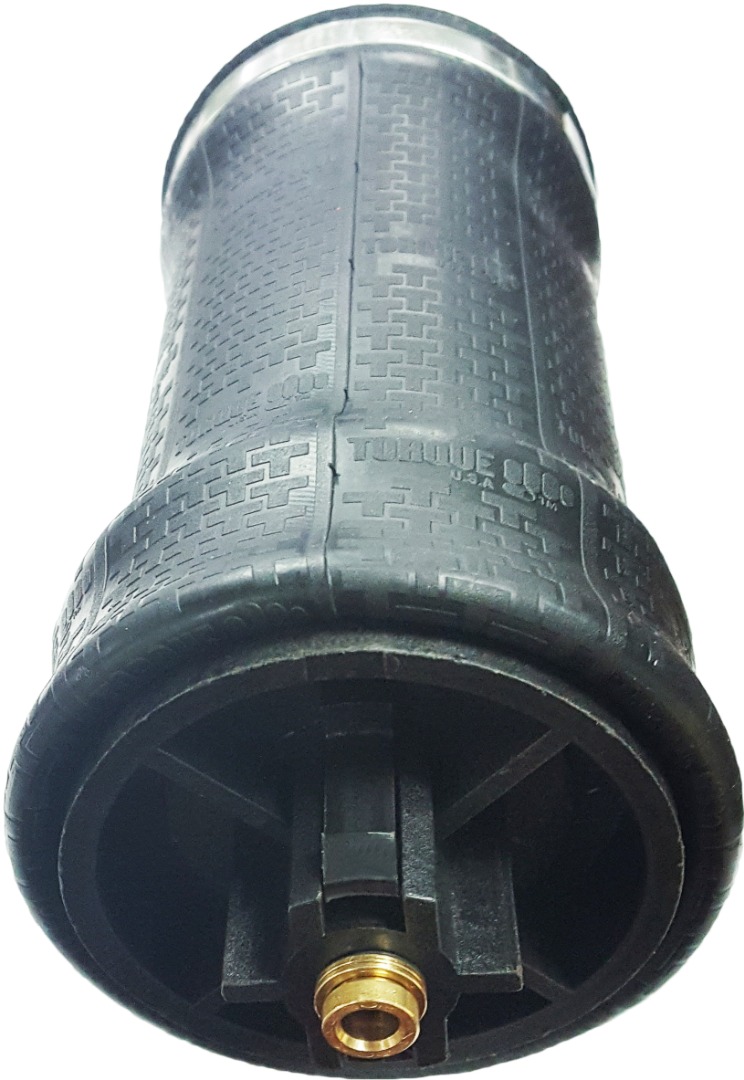

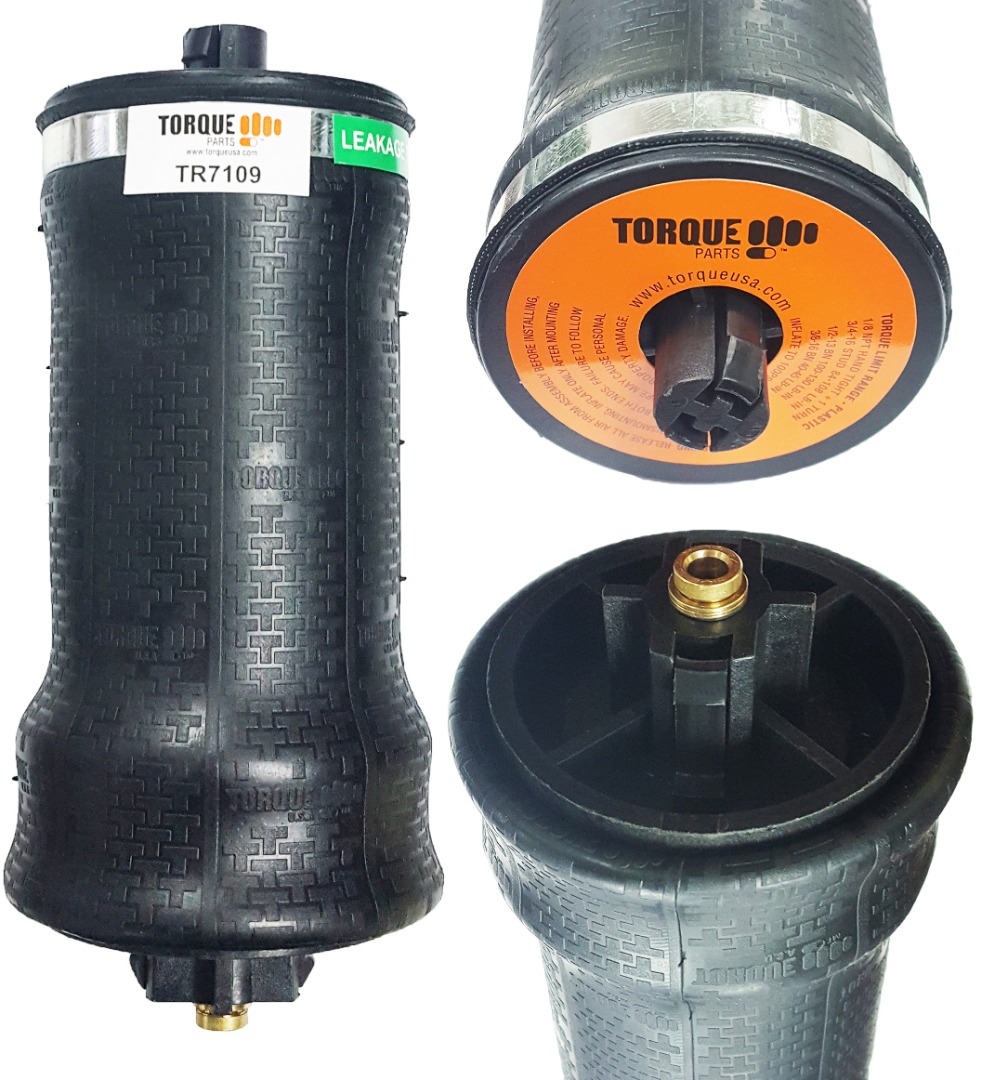

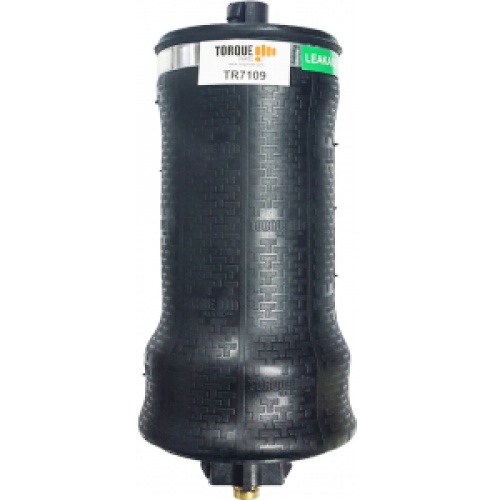

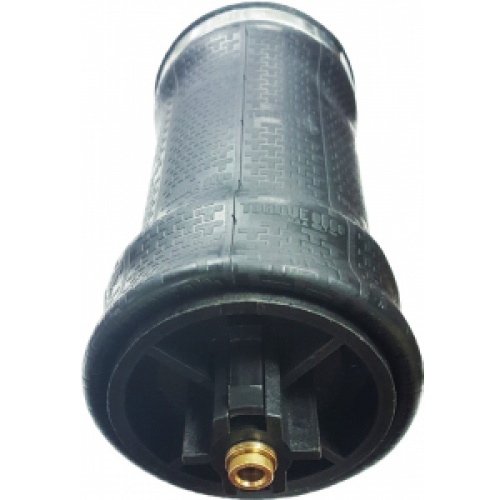

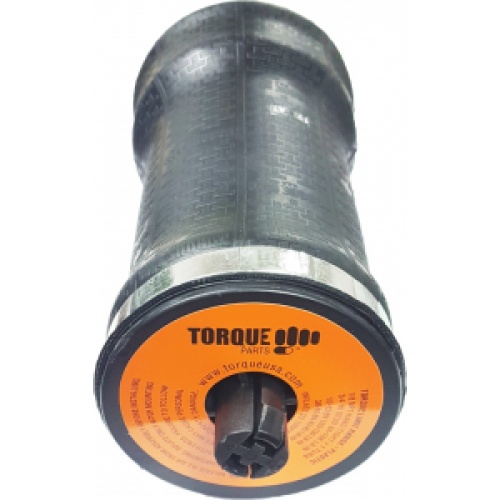

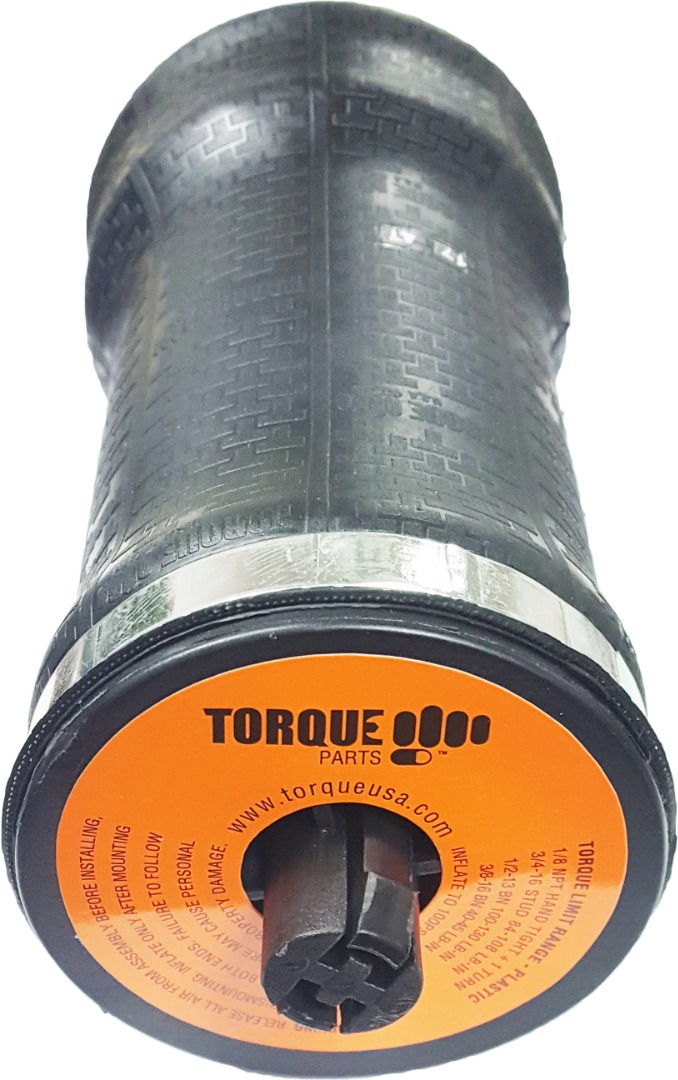

Cabin Air Spring for Kenworth Aerocab Mid 1999 & Later Model Trucks

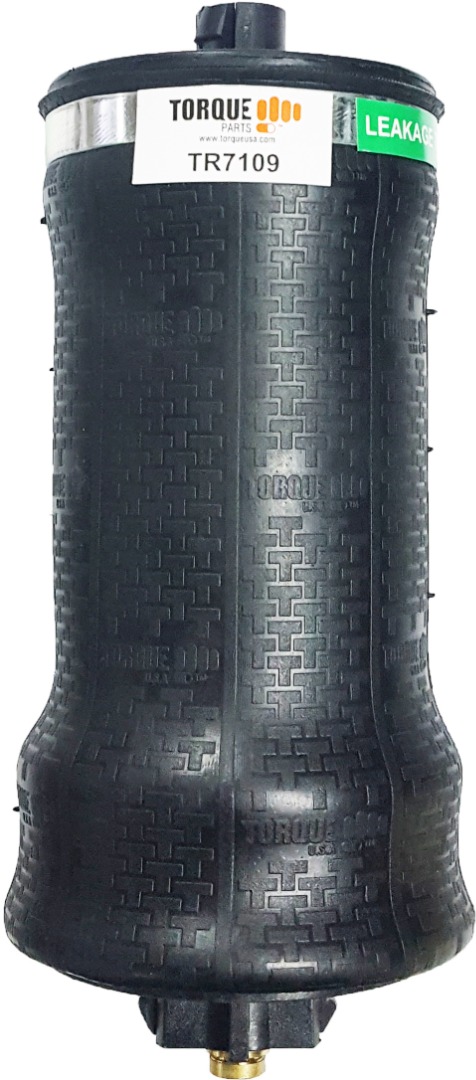

TR7109 Kenworth Cabin Air Spring TR7109
Air Spring Type
Cabin Air Spring

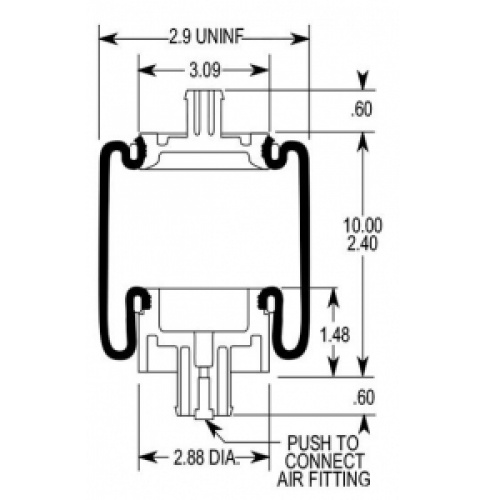

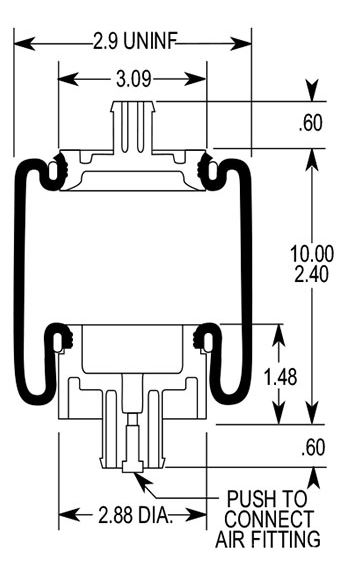

BCR
7.87
Top Plate Diameter
3.09
Piston Diameter
2.88
Bellows Diameter
2.90
Piston Height
1.48
Piston Material
Composite
Max Extended Height
10.00
Bottom Air Inlet Thread Size
PUSH TO CONNECT AIR FITTING
Minimum Compressed Height
2.40
Air Inlet Type
Male
Air Inlet Height
0.60
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
1
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
YELLOW
| Kenworth: | T81-1000 |
| Link Manufacturing: | 1102-0077 |
| Firestone: | W02-358-7109 |
| Extended Height: | 10.00" |
| Compressed Height: | 2.40" |
| Bcr: | 7.87" |
