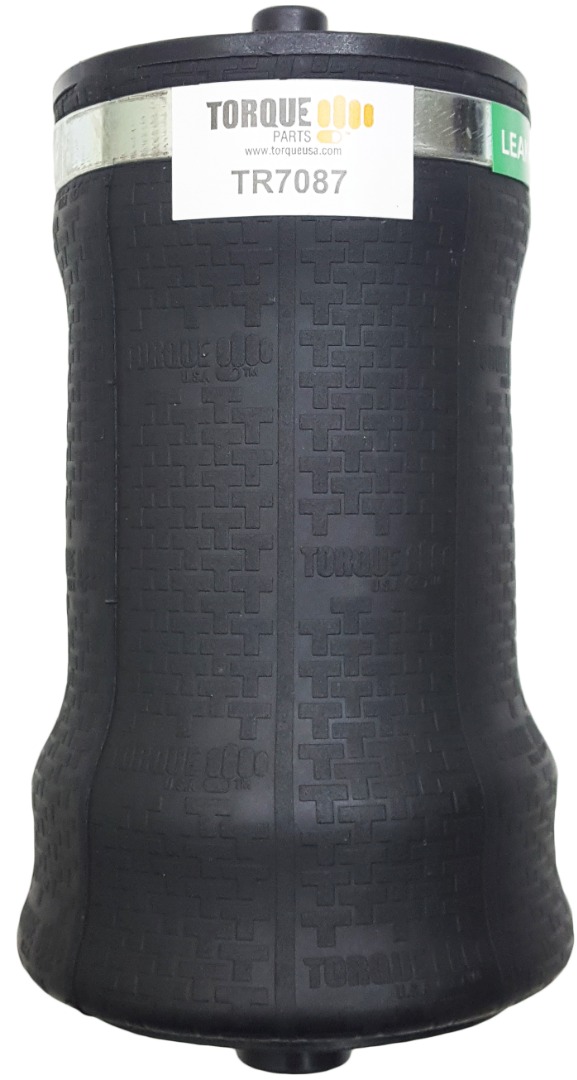

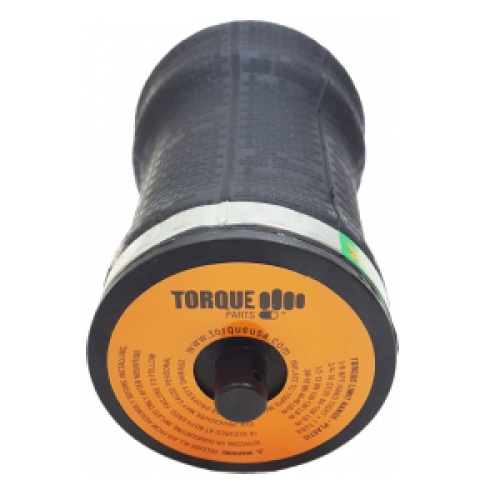

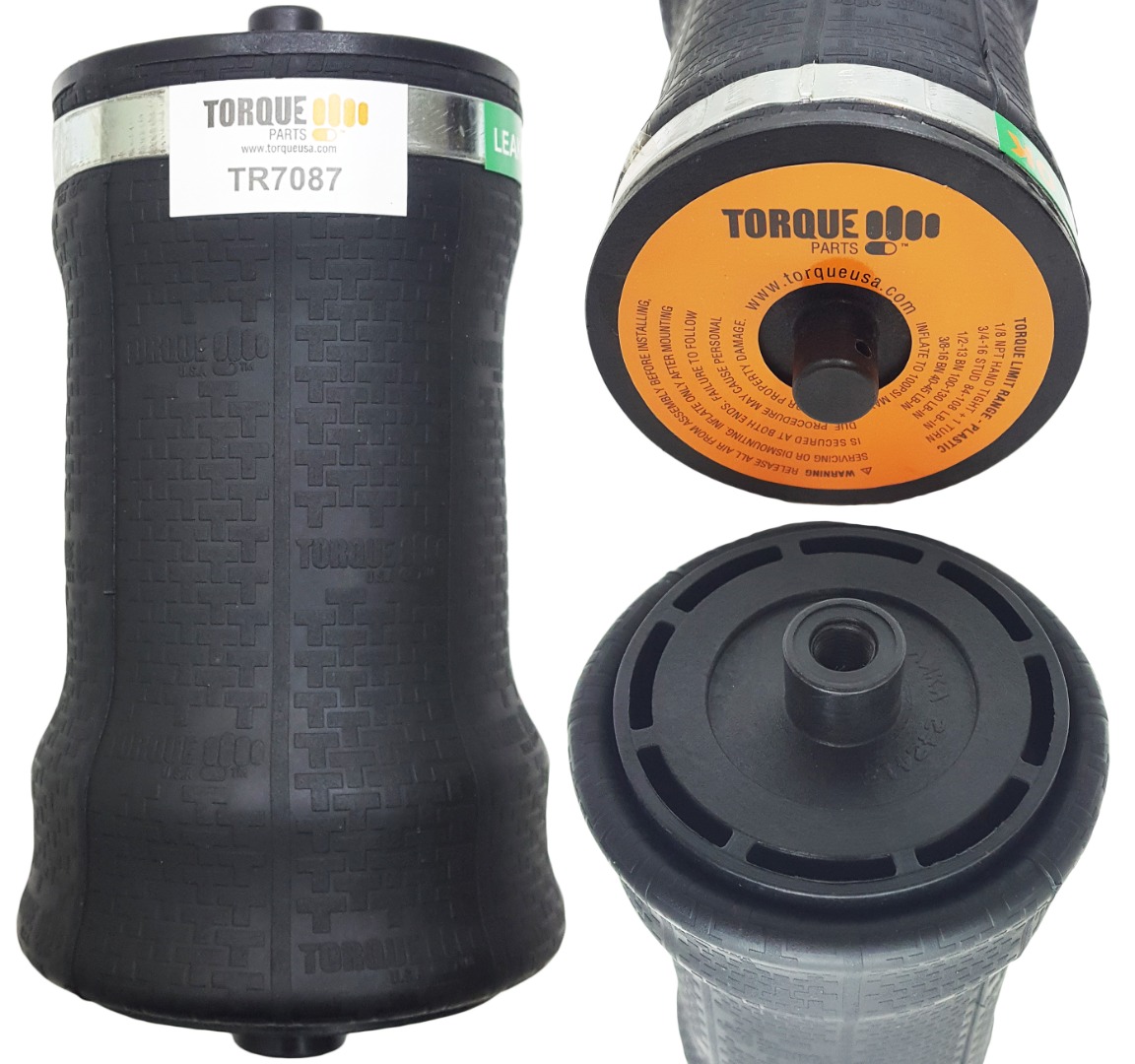

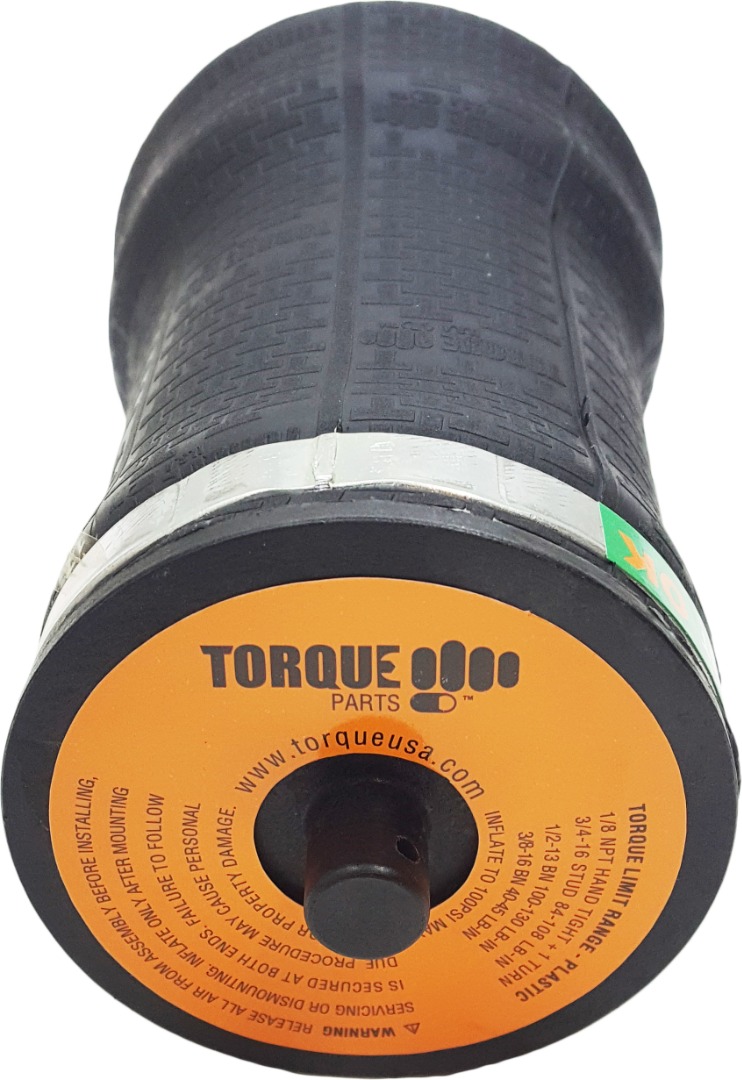

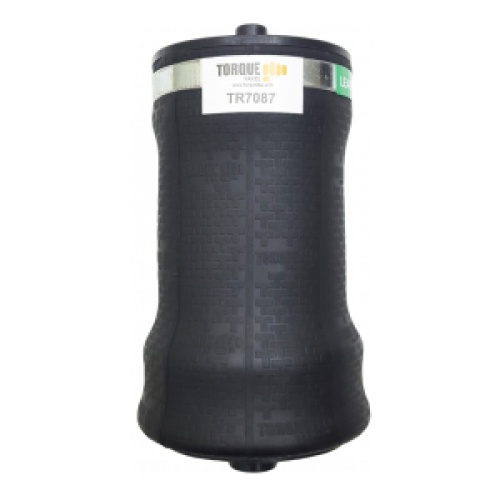

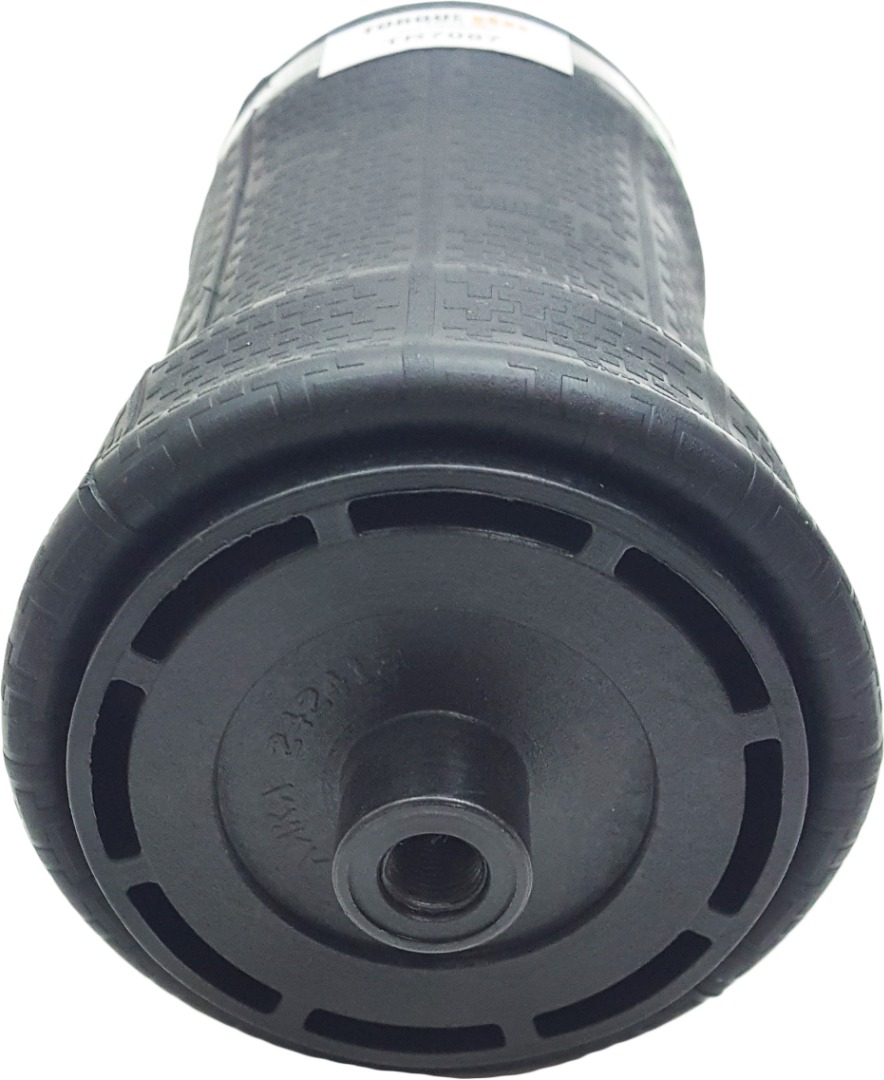

Cabin Air Spring for 1988 & Later Freightliner FLD Model Trucks
TR7087 Freightliner Cabin Air Spring TR7087
Air Spring Type
Cabin Air Spring
BCR
6.75

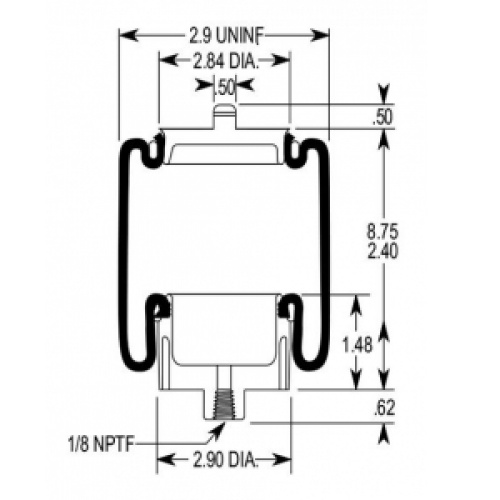

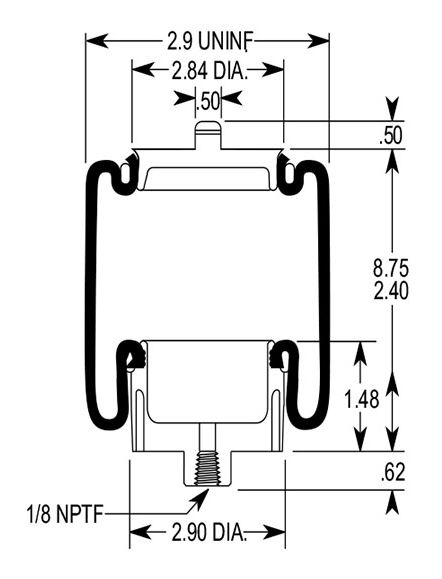

Top Plate Diameter
2.84
Piston Diameter
2.90
Bellows Diameter
2.90
Piston Height
1.48
Piston Material
Composite
Max Extended Height
8.75
Bottom Air Inlet Thread Size
1/8 NPT
Minimum Compressed Height
2.40
Air Inlet Type
Male
Air Inlet Height
0.53
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
1
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
WHITE
| Firestone: | W02-358-7087 |
| Goodyear: | 1S5-040 |
| Contitech: | SC29-W087 |
| Extended Height: | 8.75" |
| Compressed Height: | 2.40" |
| BCR: | 6.75" |
